Material:Rohs approved PE white,black,yellow.
Usage：Cut it in suitable length，fixed with cable tie at one side
then wrap it deasil
Fuctions：protect cables and wires, good insulation.

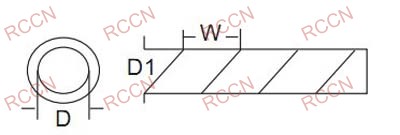

Item No.
Inner
dia.
D		 Outer
dia.
D1		 Screw
W
Wrapping
range
 Packing
White/half
transparency		 Yellow
KS-4W KS-4Y 3.1 4.2 7.0 3-10
50M
KS-6W KS-6Y 4.3 6.2 8.0 4-25
50M
KS-8W KS-8Y 6.0 8.0 12.0 6-30
50M
KS-10W KS-10Y 7.5 10 12.0 7.5-30 25M
KS-12W KS-12Y 9.0 12 15.0 9-32 25M
KS-15W KS-15Y 12 15 15.0 12-35 25M
KS-19W KS-19Y 15 19 19.0 15-50 10M
KS-24W KS-24Y 20 24 21.0 20-100 10M
KS-30W KS-30Y 30 35 30.0 26-130 5M








]]> http://www.wiring-ducts.com/spiral-wrapping-band/feed/ 0 RCCN KSV0 Spiral Wrapping Bands http://www.wiring-ducts.com/rccn-ksv0-spiral-wrapping-bands-2/ http://www.wiring-ducts.com/rccn-ksv0-spiral-wrapping-bands-2/#comments Wed, 12 Sep 2012 05:35:53 +0000 admin http://www.wiring-ducts.com/?p=2370







Material:milk white Rohs approved PE
Use:protect cables and wires, good insulation,fireproof
Note:Rohs approved products come with MOQ

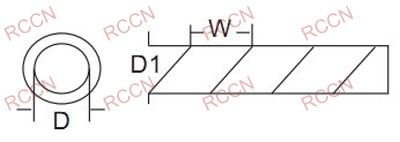

 Item No. Inner
dia.
D		 Outer
dia.
D1		 Screw
W		 Wire
harness
Packing
Milk white fireproof White fireproof
ROHS approved
KS-3WV0 KS-3WV0/ROHS 1.5 3 4.0 1.5-10 50M
KS-4WV0 KS-4WV0/ROHS 3.2 4.5 7.0 3-10 50M
KS-6WV0 KS-6WV0/ROHS 4.1 6.2 8.0 4-25 50M
KS-8WV0 KS-8WV0/ROHS 6 8 12.0 6-30 50M
KS-10WV0 KS-10WV0/ROHS 7.5 10 12.0 7.5-30 25M
KS-12WV0 KS-12WV0/ROHS 9 12 15.0 9-32 25M
KS-15WV0 KS-15WV0/ROHS 12 15 15.0 12-35 25M
KS-19WV0 KS-19WV0/ROHS 15 19 19.0 15-50 10M
KS-24WV0 KS-24WV0/ROHS 20 24 21.0 20-100 10M
KS-30WV0 KS-30WV0/ROHS 30 35 30.0 26-130 5M

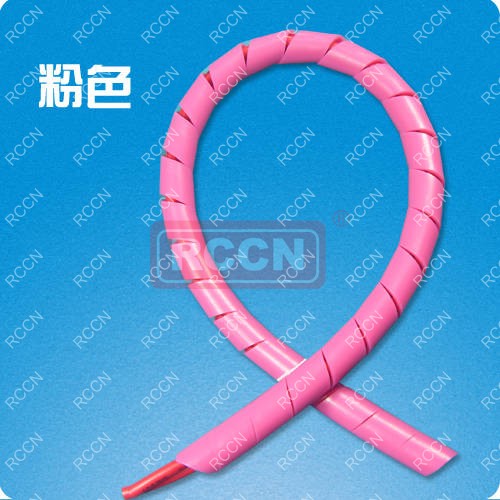

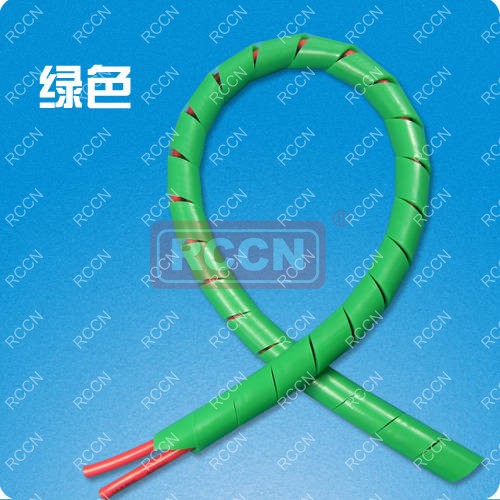

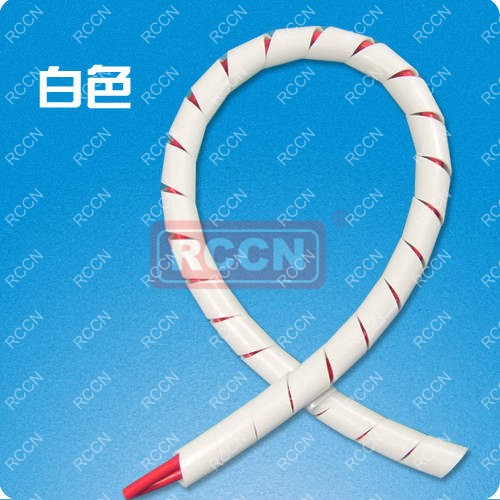

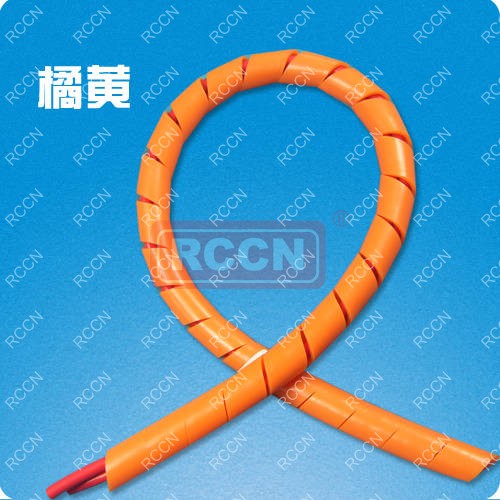

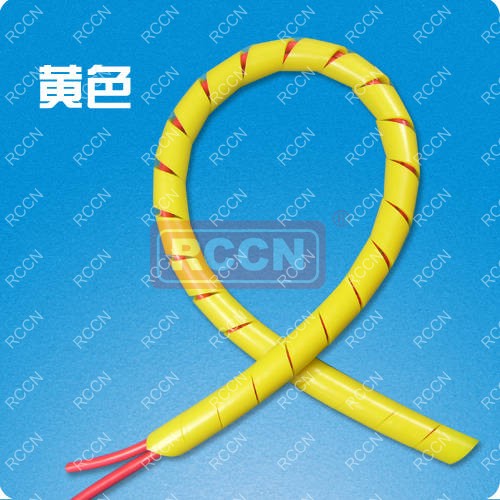

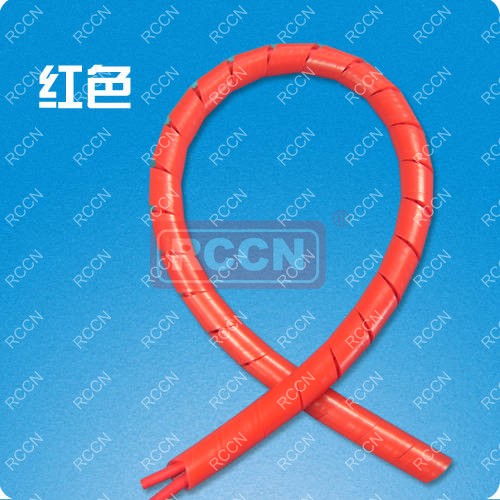

]]> http://www.wiring-ducts.com/rccn-ksv0-spiral-wrapping-bands-2/feed/ 0 RCCN KS Color Bands http://www.wiring-ducts.com/rccn-ks-color-bands/ http://www.wiring-ducts.com/rccn-ks-color-bands/#comments Wed, 12 Sep 2012 05:34:10 +0000 admin http://www.wiring-ducts.com/?p=2368







Material: PE modification is made.

Use: end of the wire and a protective wire from cuts and insulation, flame retardant requirement for environment.

Note: environmental protection type shopping goods, have MOQ requirement, colour is partial to cream.
 Item No.
D

D1
W Wire
harness
Packing

Transparent Item No.
Color reference

 Color flame retardant
KS-4W KS-4/Color/V0 3.2 4.5 7.0 3-10 50M
KS-6W KS-6/Color/V0 4.1 6.2 8.0 4-25 50M
KS-8W KS-8/Color/V0 6 8 12.0 6-30 50M
KS-10W KS-10/Color/V0 7.5 10 12.0 7.5-30 25M
KS-12W KS-12/Color/V0 9 12 15.0 9-32 25M
KS-15W KS-15/Color/V0 12 15 15.0 12-35 25M
KS-19W KS-19/Color/V0 15 19 19.0 15-50 10M
KS-24W KS-24/Color/V0 20 24 21.0 20-100 10M
KS-30W KS-30/Color/V0 30 35 30.0 26-130 5M



Transparent
Item No.
 		 White
 Item No.
 		 Black
Item No.
 		 Yellow
Item No.
 		 Orange
 Item No.

KS-4W KS-4W KS-4B KS-4Y KS-4O
KS-6W KS-6W KS-6B KS-6Y KS-6O
KS-8W KS-8W KS-8B KS-8Y KS-8O
KS-10W KS-10W KS-10B KS-10Y KS-10O
KS-12W KS-12W KS-12B KS-12Y KS-12O
KS-15W KS-15W KS-15B KS-15Y KS-15O
KS-19W KS-19W KS-19B KS-19Y KS-19O
KS-24W KS-24W KS-24B KS-24Y KS-24O
KS-30W KS-30W KS-30B KS-30Y KS-30O

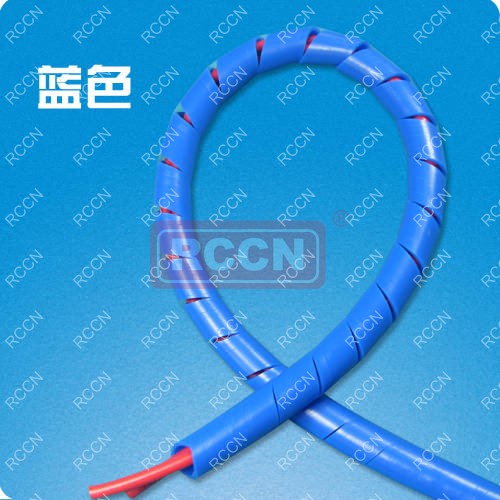

Red
Item No.
 		 Blue
 Item No.
 		 Green
 Item No.

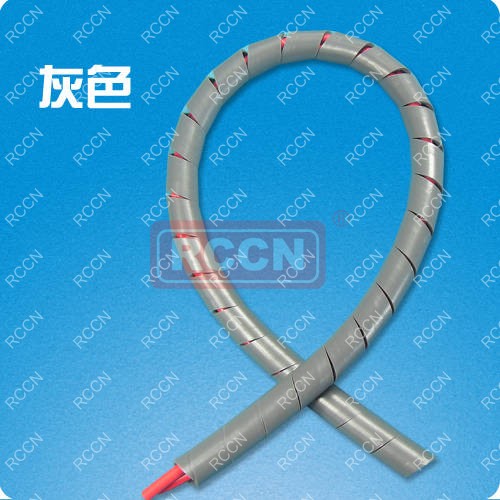

 		 Gray
 Item No.
 		 Pink
Item No.

KS-4R KS-4B KS-4G KS-4G KS-4P
KS-6R KS-6B KS-6G KS-6G KS-6P
KS-8R KS-8B KS-8G KS-8G KS-8P
KS-10R KS-10B KS-10G KS-10G KS-10P
KS-12R KS-12B KS-12G KS-12G KS-12P
KS-15R KS-15B KS-15G KS-15G KS-15P
KS-19R KS-19B KS-19G KS-19G KS-19P
KS-24R KS-24B KS-24G KS-24G KS-24P
KS-30R KS-30B KS-30G KS-30G KS-30P



White flame retardant
Item No.
 		 Yellow  flame retardant
Item No.
 		 Orange flame retardant
Item No.
 		 Redame flame retardant
Item No.

KS-4WV0 KS-4YV0 KS-4OV0 KS-4RV0
KS-6WV0 KS-6YV0 KS-6OV0 KS-6RV0
KS-8WV0 KS-8YV0 KS-8OV0 KS-8RV0
KS-10WV0 KS-10YV0 KS-10OV0 KS-10RV0
KS-12WV0 KS-12YV0 KS-12OV0 KS-12RV0
KS-15WV0 KS-15YV0 KS-15OV0 KS-15RV0
KS-19WV0 KS-19YV0 KS-19OV0 KS-19RV0
KS-24WV0 KS-24YV0 KS-24OV0 KS-24RV0
KS-30WV0 KS-30YV0 KS-30OV0 KS-30RV0
Blueflame retardant
Item No.



 Greenflame retardant
Item No.



 Grayflame retardant
Item No.



 Pinkflame retardant
Item No.


KS-4BV0 KS-4GV0 KS-4GV0 KS-4PV0
KS-6BV0 KS-6GV0 KS-6GV0 KS-6PV0
KS-8BV0 KS-8GV0 KS-8GV0 KS-8PV0
KS-10BV0 KS-10GV0 KS-10GV0 KS-10PV0
KS-12BV0 KS-12GV0 KS-12GV0 KS-12PV0
KS-15BV0 KS-15GV0 KS-15GV0 KS-15PV0
KS-19BV0 KS-19GV0 KS-19GV0 KS-19PV0
KS-24BV0 KS-24GV0 KS-24GV0 KS-24PV0
KS-30BV0 KS-30GV0 KS-30GV0 KS-30PV0



































]]> http://www.wiring-ducts.com/rccn-ks-color-bands/feed/ 0 RCCN KSN Spiral Wrapping Bands http://www.wiring-ducts.com/rccn-ksn-spiral-wrapping-bands/ http://www.wiring-ducts.com/rccn-ksn-spiral-wrapping-bands/#comments Wed, 12 Sep 2012 05:31:55 +0000 admin http://www.wiring-ducts.com/?p=2366

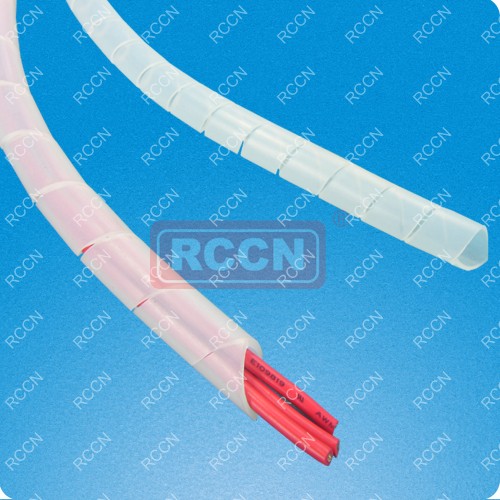

Material:Nylon 66
uctions：protect cables and wires, good insulation.

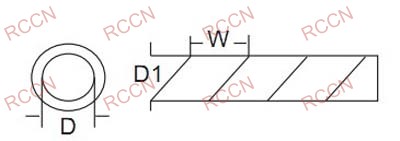

Item No. Thickness
D		 Outer dia.
D1		 Screw
W		 Wire
harness		 packing
White Black
KS-4NW KS-4NB 0.45 4.5 7.0 4-25 10M
KS-6NW KS-6NB 0.52 6.0 7.0 4-25 10M
KS-8NW KS-8NB 0.7 8.0 10.8 6-30 10M
KS-10NW KS-10NB 0.7 10 11.4 7.5-30 10M
KS-12NW KS-12NB 0.7 12 13.9 9-32 10M
KS-15NW KS-15NB 0.8 15 15.0 12-35 10M
KS-19NW KS-19NB 0.9 19 18.2 15-50 10M
KS-24NW KS-24NB 0.9 24 19.6 20-100 10M








]]> http://www.wiring-ducts.com/rccn-ksn-spiral-wrapping-bands/feed/ 0 RCCN KS Spiral Wrapping Bands http://www.wiring-ducts.com/rccn-ks-spiral-wrapping-bands/ http://www.wiring-ducts.com/rccn-ks-spiral-wrapping-bands/#comments Wed, 12 Sep 2012 05:30:16 +0000 admin http://www.wiring-ducts.com/?p=2364

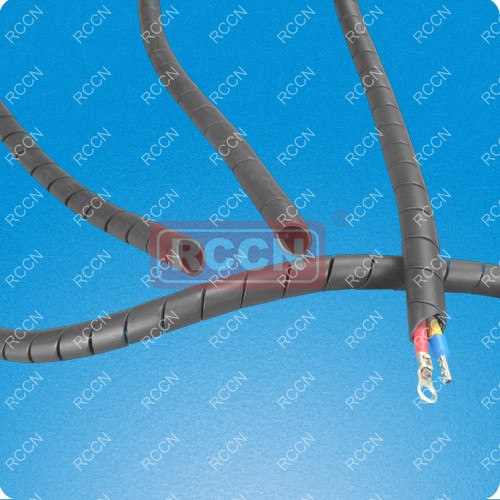

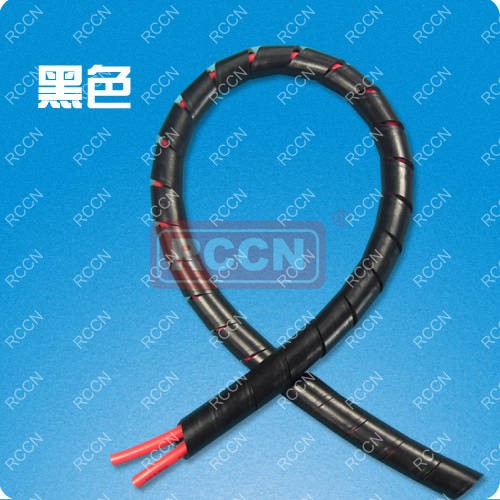

Material:Rohs approved halogen free PE,black.
Usage：Cut it in suitable length，fixed with cable tie at one side
              then wrap it easily
Fuctions：protect cables and wires, good insulation.

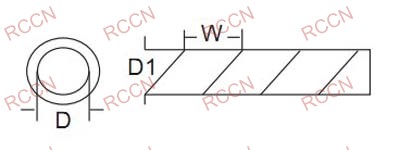

 Item No.
 		 Inner
dia.
D		 Outer
dia.
D1		 Screw
W		 Wrapping
Range(mm)
Packing
Black -
KS-4B - 3.1 4.2 7.0 3-10
50M
KS-6B - 4.3 6.2 8.0 4-25
50M
KS-8B - 6.0 8.0 12.0 6-30
50M
KS-10B - 7.5 10 12.0 7.5-30 25M
KS-12B - 9.0 12 15.0 9-32 25M
KS-15B - 12 15 15.0 12-35 25M
KS-19B - 15 19 19.0 15-50 10M
KS-24B - 20 24 21.0 20-100 10M
KS-30B - 30 35 30.0 26-130 5M








]]> http://www.wiring-ducts.com/rccn-ks-spiral-wrapping-bands/feed/ 0 RCCN KSV0 Spiral Wrapping Bands http://www.wiring-ducts.com/rccn-ksv0-spiral-wrapping-bands/ http://www.wiring-ducts.com/rccn-ksv0-spiral-wrapping-bands/#comments Wed, 12 Sep 2012 05:28:09 +0000 admin http://www.wiring-ducts.com/?p=2362







Material:black Rohs approved PE
Use:protect cables and wires, good insulation,fireproof
Note:Rohs approved products come with MOQ

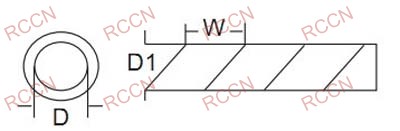

 Item No. Inner
dia.
D		 Outer
dia.
D1		 Screw
W		 Wrapping
range		 Packing
Black fireproof Black fireproof
ROHS approved
KS-3BV0 KS-3BV0/ROHS 1.5 3 4.0 1.5-10 50M
KS-4BV0 KS-4BV0/ROHS 3.2 4.5 7.0 3-10 50M
KS-6BV0 KS-6BV0/ROHS 4.1 6.2 8.0 4-25 50M
KS-8BV0 KS-8BV0/ROHS 6 8 12.0 6-30 50M
KS-10BV0 KS-10BV0/ROHS 7.5 10 12.0 7.5-30 25M
KS-12BV0 KS-12BV0/ROHS 9 12 15.0 9-32 25M
KS-15BV0 KS-15BV0/ROHS 12 15 15.0 12-35 25M
KS-19BV0 KS-19BV0/ROHS 15 19 19.0 15-50 10M
KS-24BV0 KS-24BV0/ROHS 20 24 21.0 20-100 10M
KS-30BV0 KS-30BV0/ROHS 30 35 30.0 26-130 5M

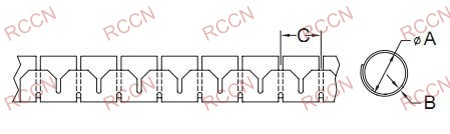

]]> http://www.wiring-ducts.com/rccn-ksv0-spiral-wrapping-bands/feed/ 0 RCCN KP Split Wrapping Bands http://www.wiring-ducts.com/rccn-kp-split-wrapping-bands/ http://www.wiring-ducts.com/rccn-kp-split-wrapping-bands/#comments Wed, 12 Sep 2012 05:24:02 +0000 admin http://www.wiring-ducts.com/?p=2356

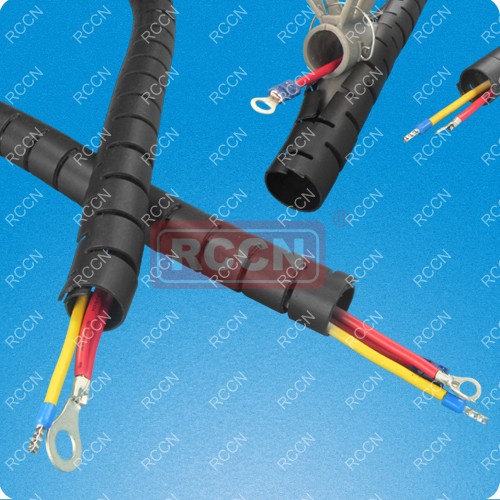

Material: PP black.
Usage：Cut it in suitable length，fixed with cable tie at one side
then wrap it easily
Fuctions：protect cables and wires, good insulation.
Item No. Thickness
D		 Outer dia.
D1		 Screw
W		 Wire
harness		 packing
Black Fitting tools
KP-15B KT-15 0.8 15 13 10 5M
KP-20B KT-20 0.9 20 15 16 5M
KP-25B KT-25 1.3 25 18 22 5M
KP-32B KT-32 1.3 32 23 27 5M

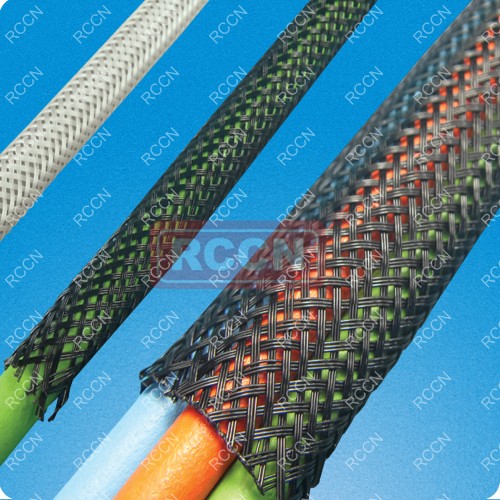

]]> http://www.wiring-ducts.com/rccn-kp-split-wrapping-bands/feed/ 0 RCCN PET Polyflex Expandable Sleevings http://www.wiring-ducts.com/rccn-pet-polyflex-expandable-sleevings/ http://www.wiring-ducts.com/rccn-pet-polyflex-expandable-sleevings/#comments Wed, 12 Sep 2012 05:22:16 +0000 admin http://www.wiring-ducts.com/?p=2354

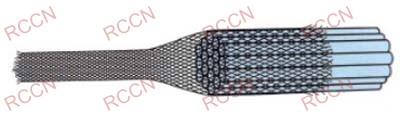

Material:PET
Use:bind cables in industry,protect cables and conduits of auto.equipment,can
be installed fast.
Operate temperature:-75℃ to 125℃.
Fireproof:94V-2.
Item No. SIZE ,
single silk		 width,
dia.		 Wrapping range packing
Black Gray
PET-2B PET-2G 2 0.2 1.5-2.4 600M
PET-3B PET-3G 3 0.2 2.4-6.4 500M
PET-6B PET-6G 6 0.2 3.2-11.1 500M
PET-8B PET-8G 8 0.2 6.4-12.7 500M
PET-10B PET-10G 10 0.2 4.8-15.9 400M
PET-12B PET-12G 12 0.2 6.4-19.1 400M
PET-16B PET-16G 16 0.25 9.5-25.4 400M
PET-20B PET-20G 20 0.25 12.7-31.8 300M
PET-25B PET-25G 25 0.25 15.9-38.1 200M
PET-32B PET-32G 32 0.25 19.1-44.5 100M
PET-38B PET-38G 38 0.25 25.4-63 100M
PET-45B PET-45G 45 0.25 32-70 50M
PET-50B PET-50G 50 0.25 40-90 50M
PET-64B PET-64G 64 0.25 44.5-114 30M
PET-76B PET-76G 76 0.25 63.5-120 30M






]]> http://www.wiring-ducts.com/rccn-pet-polyflex-expandable-sleevings/feed/ 0 RCCN PETO Open Polyflex Expandable Sleevings http://www.wiring-ducts.com/rccn-peto-open-polyflex-expandable-sleevings/ http://www.wiring-ducts.com/rccn-peto-open-polyflex-expandable-sleevings/#comments Wed, 12 Sep 2012 05:19:35 +0000 admin http://www.wiring-ducts.com/?p=2349







Material:PET+PP
Use:bind cables in industry,protect cables and conduits of auto.equipment,can
be installed fast.
Operate temperature:-75℃ to 125℃.
Fireproof:94V-2.
Item No. SIZE ,
single silk		 width,
dia.		 Wrapping range packing
Black White
PETO-6B PETO-6W 6 0.2 3.2-11.1 200M
PETO-9B PETO-9W 9 0.2 6.4-12.7 200M
PETO-13B PETO-13W 13 0.2 6.4-19.1 100M
PETO-16B PETO-16W 16 0.25 9.5-25.4 100M
PETO-20B PETO-20W 20 0.25 12.7-31.8 50M
PETO-25B PETO-25W 25 0.25 15.9-38.1 50M
PETO-32B PETO-32W 32 0.25 19.1-44.5 50M
PETO-40B PETO-40W 40 0.25 25-63 50M
PETO-50B PETO-50W 50 0.25 40-90 30M
PETO-60B PETO-60W 60 0.25 45-100 30M





]]> http://www.wiring-ducts.com/rccn-peto-open-polyflex-expandable-sleevings/feed/ 0 RCCN PET-X Polyflex Expandable Sleevings http://www.wiring-ducts.com/rccn-pet-x-polyflex-expandable-sleevings/ http://www.wiring-ducts.com/rccn-pet-x-polyflex-expandable-sleevings/#comments Wed, 12 Sep 2012 05:13:05 +0000 admin http://www.wiring-ducts.com/?p=2342







Use:bind cables in industry,protect
cables and conduits of auto.equipment,can
be installed fast.
Operate temperature:-75℃ to 125℃.
Fireproof:94V-2..
 Item No. Packing

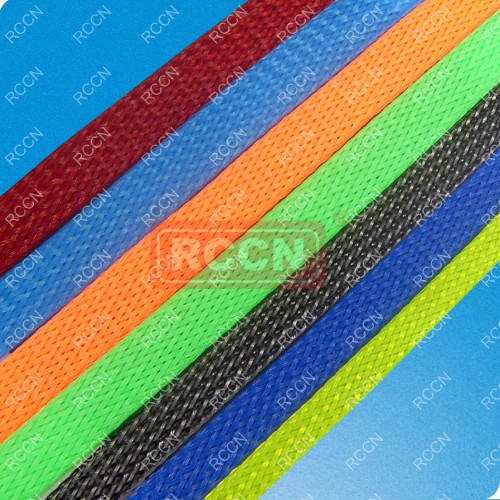

Red Light blue Blue Yellow Green Orange
PET-2R PET-2LE PET-2BE PET-2Y PET-2GN PET-2O 600M
PET-3R PET-3LE PET-3BE PET-3Y PET-3GN PET-3O 500M
PET-6R PET-6LE PET-6BE PET-6Y PET-6GN PET-6O 500M
PET-8R PET-8LE PET-8BE PET-8Y PET-8GN PET-8O 500M
PET-10R PET-10LE PET-10BE PET-10Y PET-10GN PET-10O 400M
PET-12R PET-12LE PET-12BE PET-12Y PET-12GN PET-12O 400M
PET-16R PET-16LE PET-16BE PET-16Y PET-16GN PET-16O 400M
PET-20R PET-20LE PET-20BE PET-20Y PET-20GN PET-20O 300M
PET-25R PET-25LE PET-25BE PET-25Y PET-25GN PET-25O 200M
PET-32R PET-32LE PET-32BE PET-32Y PET-32GN PET-32O 100M
PET-38R PET-38LE PET-38BE PET-38Y PET-38GN PET-38O 100M
PET-45R PET-45LE PET-45BE PET-45Y PET-45GN PET-45O 50M
PET-51R PET-51LE PET-51BE PET-51Y PET-51GN PET-51O 50M
PET-64R PET-64LE PET-64BE PET-64Y PET-64GN PET-64O 30M
PET-76R PET-76LE PET-76BE PET-76Y PET-76GN PET-76O 30M
