Material：UL approved NYLON 66(black)，
fireproof 94V-2

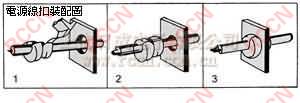

Use：according to the pictures above

Item No.	shape	UL Wires	Approx.wiresize	Mounting Hole		Length D.	Thickness F.	Packing
Item No.	shape	UL Wires	Approx.wiresize	A	B	Length D.	Thickness F.	Packing
SR-F21	for flat cable FLAT	SPT-1#18	2.3X4.5或2.8X5.3	9.5	8.7	10.3	0.5-1.6	1000pcs
SR-F23		SPT-1#18	2.3X4.5或2.8X5.3	9.5	8.7	10.3	1.8-3.2
SR-F31		SPT-1#18	3.0X5.6	11.0	9.9	10.3	1.0-1.6
SR-F32		SPT-1#18	3.0X5.6	11.0	9.9	10.3	1.9-2.5
SR-F41		SPT-2#18	3.0X7.1或3.8X7.6	12.7	11.8	10.3	0.5-1.6
SR-F42		SPT-2#18	3.0X7.1或3.8X7.6	12.7	11.8	10.3	1.8-2.5
SR-F51		SPT-3#18	5X10.4	14.3	12.9	15.2	0.5-1.6
SR-F53		SPT-3#18	5X10.4	14.3	12.9	15.2	1.8-3.5
SR-F83		Wire 3C 2mm2	6X15.2	21.6	21.3	20.4	2.0-3.4
SR-5R1	for round cable ROUND	SVI,SVT3C#18	6.2ø ~7.4ø	12.8	11.5	11.0	0.5-1.6
SR-5R2		SVI,SVT3C#18	6.2ø ~7.4ø	13.0	11.5	11.0	1.8-2.5
SR-6W2		SVI3C#18	7.6ø	12.8	11.8	11.0	1.8-2.3
SR-6P1		SJC 3C # 18	7.4ø~8.2ø	15.9	14.0	14.8	0.5-1.6
SR-6P3		SJC 3C # 18	7.4ø~8.2ø	15.9	14.0	14.8	1.9-3.2
SR-6R1		SJ,SJT,3C # 16	8.2ø~9.2ø	15.9	14.0	14.8	0.5-1.6
SR-6R3		SJ,SJT,3C # 16	8.2ø~9.2ø	15.9	14.0	14.8	1.9-3.2
SR-7R1		SJT,3C # 14	9.2ø~10.5ø或11ø	19.9	17.0	19.0	0.5-1.6
SR-7R3		SJT,3C # 14	9.2ø~10.5ø或11ø	19.7	17.0	19.0	1.9-3.2
SR-8R3		SJT,3C # 12	12ø~15.2ø	21.6	21.3	20.6	1.9-3.2
SR-9R1		# 18 20-30pcs	11ø~15ø	15	19	17.5	0.5-1.6
SR-9R7		SJT,3C # 10	15.2ø~16.3ø	28.0/30.2	25.5	25.2	1.0-3.2
SR-9R7		SJT,3C # 10	17.5ø	28.0/30.2	25.5	25.2	1.0-3.2

]]> http://www.wiring-ducts.com/strain-relief-bushing/feed/ 0 RCCN KT Strain Relief Bushings Assembly Tool http://www.wiring-ducts.com/strain-relief-bushing-assembly-tools/ http://www.wiring-ducts.com/strain-relief-bushing-assembly-tools/#comments Sun, 04 Oct 2009 06:44:40 +0000 admin http://www.wiring-ducts.com/strain-relief-bushing-assembly-tools/

Part no.:KT-1
Features:handing
Use:to install bushings

]]> http://www.wiring-ducts.com/strain-relief-bushing-assembly-tools/feed/ 0 RCCN SR Strain Relief Bushings http://www.wiring-ducts.com/rccn-sr-strain-relief-bushings-2/ http://www.wiring-ducts.com/rccn-sr-strain-relief-bushings-2/#comments Sun, 04 Oct 2009 06:44:40 +0000 admin http://www.wiring-ducts.com/?p=2559

Material：UL approved NYLON 66(black)，
fireproof 94V-2
Use：according to the pictures above

Item No.	shape	ULWires	Approx.wiresize	Mounting Hole		Part L. D.	Max. Chassis Thickness F.	Packing
Item No.	shape	ULWires	Approx.wiresize	A	B	Part L. D.	Max. Chassis Thickness F.	Packing
SR-F21	FLAT	SPT-1#18	2.3X4.5或2.8X5.3	9.5	8.7	10.3	0.5-1.6	100pcs
SR-F23		SPT-1#18	2.3X4.5或2.8X5.3	9.5	8.7	10.3	1.8-3.2
SR-F31		SPT-1#18	3.0X5.6	11.0	9.9	10.3	1.0-1.6
SR-F32		SPT-1#18	3.0X5.6	11.0	9.9	10.3	1.9-2.5
SR-F41		SPT-2#18	3.0X7.1或3.8X7.6	12.7	11.8	10.3	0.5-1.6
SR-F42		SPT-2#18	3.0X7.1或3.8X7.6	12.7	11.8	10.3	1.8-2.5
SR-F51		SPT-3#18	5X10.4	14.3	12.9	15.2	0.5-1.6
SR-F53		SPT-3#18	5X10.4	14.3	12.9	15.2	1.8-3.5
SR-F83		Wire 3C 2mm2	6X15.2	21.6	21.3	20.4	2.0-3.4
SR-5R1	ROUND	SVI,SVT3C#18	6.2ø ~7.4ø	12.8	11.5	11.0	0.5-1.6
SR-5R2		SVI,SVT3C#18	6.2ø ~7.4ø	13.0	11.5	11.0	1.8-2.5
SR-6W2		SVI3C#18	7.6ø	12.8	11.8	11.0	1.8-2.3
SR-6P1		SJC 3C # 18	7.4ø~8.2ø	15.9	14.0	14.8	0.5-1.6
SR-6P3		SJC 3C # 18	7.4ø~8.2ø	15.9	14.0	14.8	1.9-3.2
SR-6R1		SJ,SJT,3C # 16	8.2ø~9.2ø	15.9	14.0	14.8	0.5-1.6
SR-6R3		SJ,SJT,3C # 16	8.2ø~9.2ø	15.9	14.0	14.8	1.9-3.2
SR-7R1		SJT,3C # 14	9.2ø~10.5ø或11ø	19.9	17.0	19.0	0.5-1.6
SR-7R3		SJT,3C # 14	9.2ø~10.5ø或11ø	19.7	17.0	19.0	1.9-3.2
SR-8R3		SJT,3C # 12	12ø~15.2ø	21.6	21.3	20.6	1.9-3.2
SR-9R1		# 18 20-30pcs	11ø~15ø	15	19	17.5	0.5-1.6
SR-9R7		SJT,3C # 10	15.2ø~16.3ø	28.0/30.2	25.5	25.2	1.0-3.2
SR-9R7		SJT,3C # 10	17.5ø	28.0/30.2	25.5	25.2	1.0-3.2

]]> http://www.wiring-ducts.com/rccn-sr-strain-relief-bushings-2/feed/ 0 RCCN HP Hole Plug http://www.wiring-ducts.com/rccn-hp-hole-plug/ http://www.wiring-ducts.com/rccn-hp-hole-plug/#comments Sun, 04 Oct 2009 06:44:32 +0000 admin http://www.wiring-ducts.com/?p=2564

Material: UL approved NYLON66 ( black ), fire rating of 94V-2, oil resistance, erosion resistance.

Usage: substrate drilling, then charge can be firmly locked into machine plate.

Uses: can be used as a preparatory hole or the excess Kong Saiping use, maintain surface appearance.

Item No.	Mounting HoleA	Head cover scope	Suit thickness	Packing
HP-0913	9.5*13	21.5*11.5	0.8-3.2	100PCS

]]> http://www.wiring-ducts.com/rccn-hp-hole-plug/feed/ 0 RCCN Right Angle Strain Relief Bushing http://www.wiring-ducts.com/right-angle-strain-relief-bushing/ http://www.wiring-ducts.com/right-angle-strain-relief-bushing/#comments Sun, 04 Oct 2009 06:44:26 +0000 admin http://www.wiring-ducts.com/?p=486

Material：UL approved NYLON66(black)，
fireproof 94V-2
Installed it according to fallowing pictures

Item No.	style	ULWires	Approx. wireSize	Mounting Hole		Part L. D	Thickness F	Packing
				A	B
SR-F42L	flat	SPT-1	3X5.6	12.7	11.8	17.7	1.8~2.6	100pcs
		SPT-2	3.8X7.1

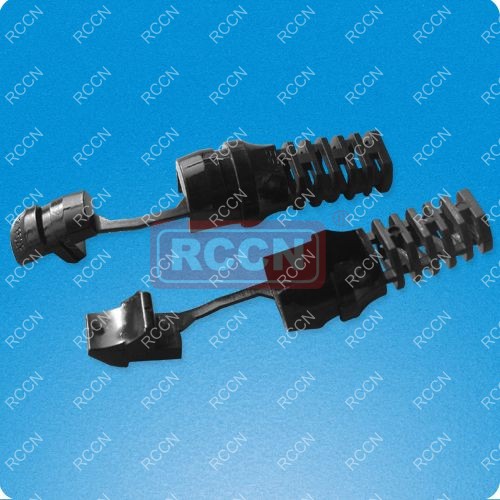

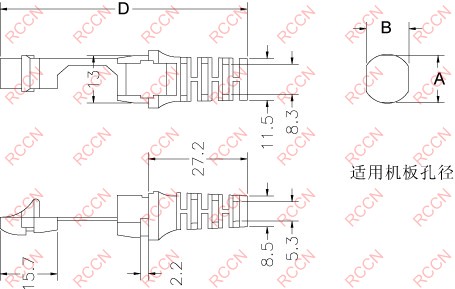

]]> http://www.wiring-ducts.com/right-angle-strain-relief-bushing/feed/ 0 RCCN Flexible Strain Relief Bushing http://www.wiring-ducts.com/flexible-strain-relief-bushing/ http://www.wiring-ducts.com/flexible-strain-relief-bushing/#comments Sun, 04 Oct 2009 06:43:56 +0000 admin http://www.wiring-ducts.com/?p=490

Material：UL approved NYLON66(black)，fireproof 94V-2

Item No.	Cross Section Shape	Wires Accomodated		Mounting Hole		Part L. D.	Max. Chassis Thickness F	Packing
		U.L 线	尺寸	A	B
SR-F52F	Flat	SPT-2	4.6X8	14.3	13.2	36	0.8~2.3	100pcs

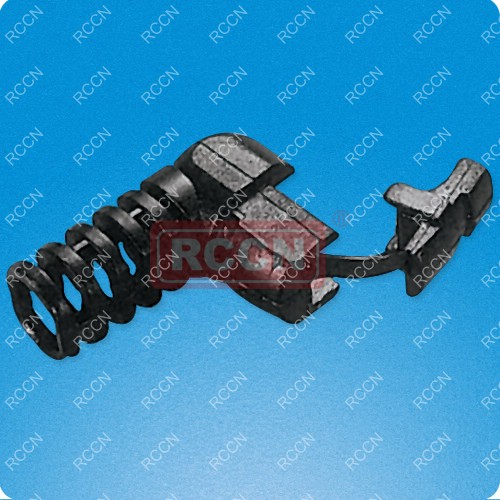

]]> http://www.wiring-ducts.com/flexible-strain-relief-bushing/feed/ 0 RCCN Flexible Strain Relief Bushing http://www.wiring-ducts.com/flexible-right-angle-strain-relief-bushing/ http://www.wiring-ducts.com/flexible-right-angle-strain-relief-bushing/#comments Sun, 04 Oct 2009 06:43:15 +0000 admin http://www.wiring-ducts.com/?p=488

Material：UL approved NYLON66(black)，
fireproof 94V-2
Installed according to the pictures above

Item No.	Style	ULWires		Mounting Hole		Part L. D.	Thickness F	Packing
				A	B
SR-F42LF	flat	SPT-2#18	3.3X6.6	12.7X13.2	10.9	20.5	1.5~2.0	100pcs
			3.6X7.2	13.2X13.7

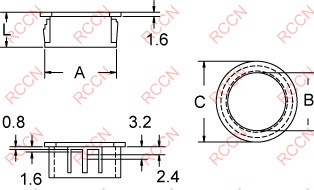

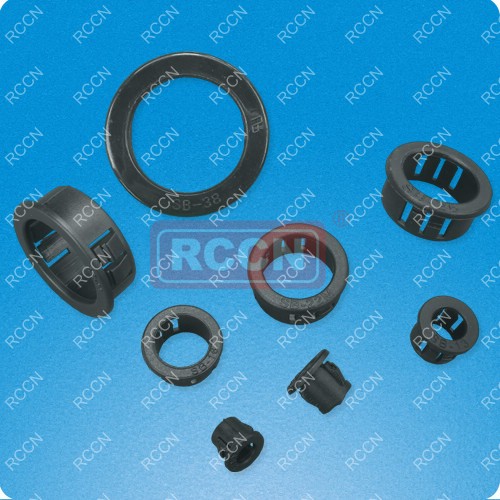

]]> http://www.wiring-ducts.com/flexible-right-angle-strain-relief-bushing/feed/ 0 RCCN SB Snap Bushing http://www.wiring-ducts.com/snap-bushing/ http://www.wiring-ducts.com/snap-bushing/#comments Sun, 04 Oct 2009 06:40:54 +0000 admin http://www.wiring-ducts.com/?p=483

Material：UL approved NYLON 66(black)，
fireproof 94V-2,oil and rot resistant

Item No.	Mounting Hole A (mm)	Mounting Hole B (mm)	C (mm)	L (mm)	Packing
SB-7S	7.0	5.8	8.8	6.1	100pcs
SB-8	7.8	5.2	9.4	8.0
SB-10	9.5	6.3	12.0	10.3
SB-12S	11.9	9.2	13.7	6.3
SB-13	12.7	8.0	14.2	10.3
SB-14	14.0	11.4	17.0	10.3
SB-16	5.9	12.7	18.6	10.3
SB-19	19.0	14.3	21.7	10.3
SB-22	22.2	17.5	24.2	11.5
SB-26	25.5	19.1	28.5	11.5
SB-28	28.0	23.0	30.7	11.5
SB-30	30.0	24.1	33.3	11.5
SB-32	32.0	23.8	34.6	11.5
SB-38	38.1	29	41.2	11.4
SB-45	43.7	35.4	47.9	11.6
SB-50	50.1	41.6	54.6	11.8

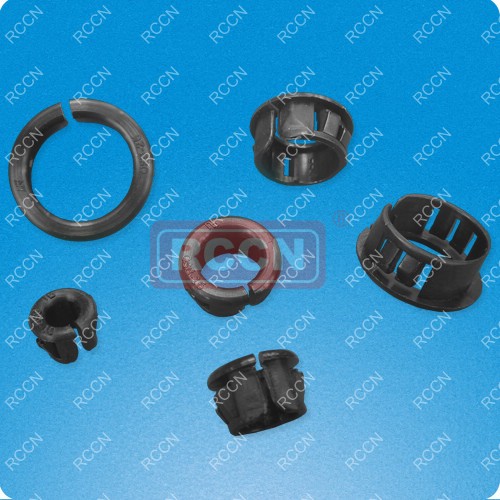

]]> http://www.wiring-ducts.com/snap-bushing/feed/ 0 RCCN OSB Snap Bushing (Open/Closed) http://www.wiring-ducts.com/snap-bushing-openclose/ http://www.wiring-ducts.com/snap-bushing-openclose/#comments Sun, 04 Oct 2009 06:40:04 +0000 admin http://www.wiring-ducts.com/?p=481

Material：UL approved NYLON 66(black)，
fireproof 94V-2,oil and rot resistant

Item No.	Mounting Hole A (mm)	B (mm)	C (mm)	L (mm)	Packing
OSB-10	9.5	6.7	10.7	9.8	100pcs
OSB-13	12.7	8.0	14.2	10.3
OSB-16	15.9	11.5	17.7	10.3
OSB-19	19.0	13.1	20.2	10.3
OSB-22	22.2	17.0	23.4	10.3
OSB-26	25.5	20.2	27.0	10.6

]]> http://www.wiring-ducts.com/snap-bushing-openclose/feed/ 0 RCCN HP Hole Plug http://www.wiring-ducts.com/hole-plug/ http://www.wiring-ducts.com/hole-plug/#comments Sun, 04 Oct 2009 06:39:18 +0000 admin http://www.wiring-ducts.com/?p=477

Material：UL approved NYLON 66(black)，
fireproof 94V-2,oil and rot resistant

Item No.	Mounting Hole A	Covering B (mm)	Height C (mm)	Packing
HP-5	4.5	6.3	5.9	100pcs
HP-8	7.9	10.3	8.1
HP-10	9.5	13.0	10.5
HP-13	12.7	16.5	10.9
HP-15	14.3	16.7	10.3
HP-16	15.9	19.8	10.0
HP-19	19.0	22.9	10.0
HP-22	22.2	25.8	11.3
HP-25	25.3	29.0	11.6
HP-30	30.0	34.2	12.0
HP-38	38.1	42.1	11.2
HP-45	44.5	49.7	11.8
