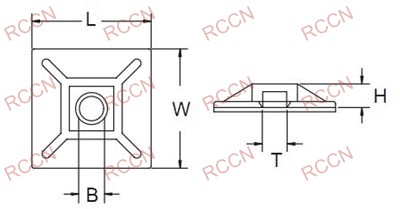

wiring duct-RCCN » Cable Clamps http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN HC Self Adhesive Backed Mounts http://www.wiring-ducts.com/self-adhesive-tie-mount/ http://www.wiring-ducts.com/self-adhesive-tie-mount/#comments Sun, 04 Oct 2009 05:36:26 +0000 admin http://www.wiring-ducts.com/?p=429





*Available in either “screw mount“ or “self adhesive mounting”. This range offers
a safe and secure mount.
*Simple to install with a screw or bolt, the give excellent security,
particularly in areas of high vibration.
*Designed to offer the maximum surface area, and in conjunction with the
specially developed adhesive ensures that a very high pull-off force is achieved.
*The tie mounts offer a ‘4-way’ entry for the cable tie enabling quicker and more
lexible installation.
*Designed speciically for holding heavier cable bundles. These mounting bases
can be used in many industries from agriculture to truck manufacture. They offer
a very secure ixing and can be used with a wide variety of heavy duty cable ties
up to 5.5mm wide.
*Material: Polyamide 6.6, UL94 V2

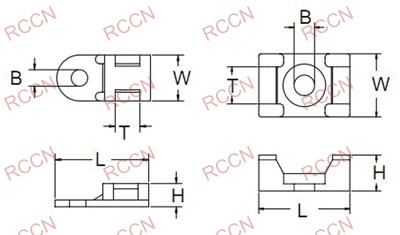

Item No.

L W

H
 B Cable tie
with hole
 T		 Packing
Natural Black
HC-100  - 12.5 12.5 3.2 3.2 3.2 100PCS
or
500PCS
HC-101 HC-101B 19.5 19.5 3.9 3.2 4.5
HC-102 HC-102B 29 29 6.0 7.0 6.0
HC-101/3M HC-101B/3M 19.5 19.5 3.9 3.2 4.5
HC-102/3M HC-102B/3M 29 29 6.0 7.0 6.0

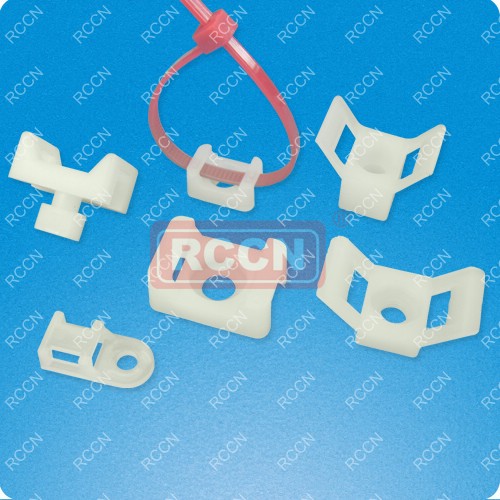

]]> http://www.wiring-ducts.com/self-adhesive-tie-mount/feed/ 0 RCCN HC Saddle Tie Mounts http://www.wiring-ducts.com/saddle-type-tie-mount/ http://www.wiring-ducts.com/saddle-type-tie-mount/#comments Sun, 04 Oct 2009 05:35:35 +0000 admin http://www.wiring-ducts.com/?p=427





Material：UL approved NYLON 66(natural)，fireproof 94V-2
Part no. of black:HC-0B,HC-1B,HC-1LB,HC-2B




ITEM No.

H

L

W

B

T

Packing
HC-0 5.0 19.6 9.5 3.7 5.2
100pcs
or
500pcs





HC-1 7.0 15.0 10.0 3.3 5.1
HC-1L 7.0 15.0 9.5 4.5 5.1
HC-2S 9.4 21.2 15.3 4.5 9.0
HC-2A 9.8 23 16 6.0 9.0
HC-2 10.4 20.5 17.1 5.0 10.4
HC-2L 9.8 23 16 6.5 9.0
HC-3 17.5 23 13.8 9.5 5.3
HC-4 11.6 30 14.7 9.5 5.0

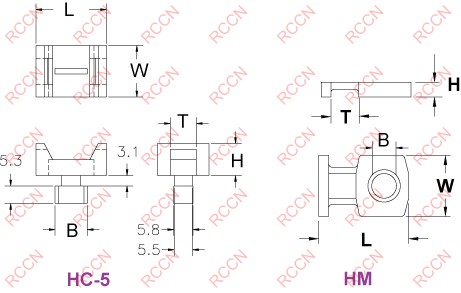

HC-5 10 21.5 16.0 7.8 5.8*9.7
HM-0 2.5 10.2 8.1 3.5 2.8
HM-1 3.0 18.9 12.7 4.4 5.0

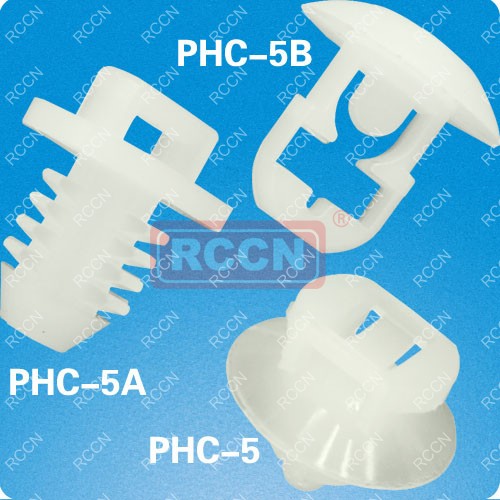

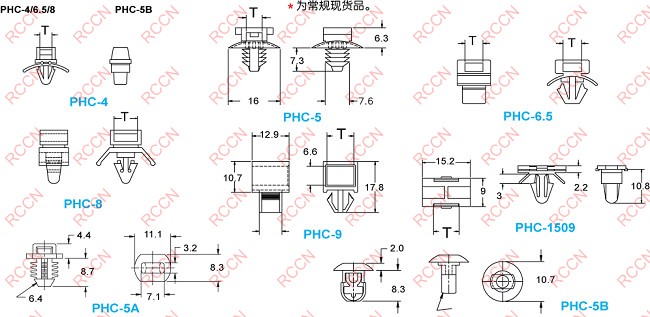

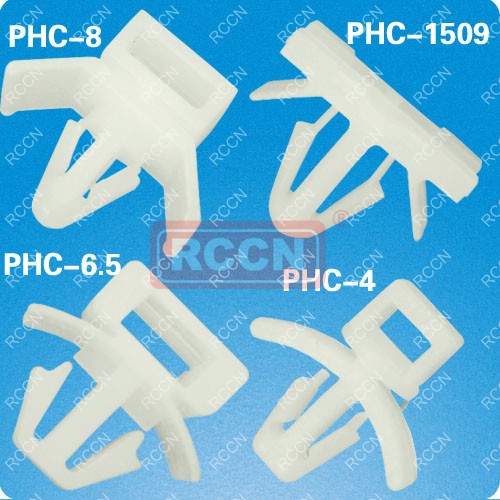

]]> http://www.wiring-ducts.com/saddle-type-tie-mount/feed/ 0 RCCN PHC Push Tie Mounts http://www.wiring-ducts.com/push-barb-cable-tie-mounts/ http://www.wiring-ducts.com/push-barb-cable-tie-mounts/#comments Sun, 04 Oct 2009 05:34:42 +0000 admin http://www.wiring-ducts.com/?p=425





part no. of black Three different design
Material：UL approved NYLON 66(natural)，fireproof 94V-2
good insulation
:PHC-4B,PHC-6.5B,PHC-8B



ITEM No.
T

Fiting

Packing
PHC-4 4.0 4.8
100pcs
PHC-5 5.0 7.6
PHC-5A 5.0 6.4
PHC-5B 5.0 6.4
PHC-6.5 6.5 8.5
PHC-8 8.1 6.2
PHC-9 9.4 7.9
PHC-1105 11 4.5
PHC-1509 7.8 4.5

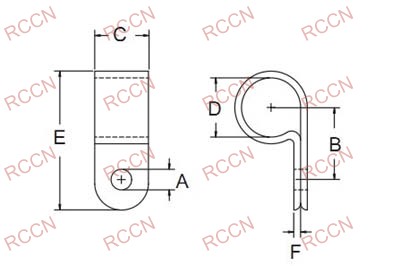

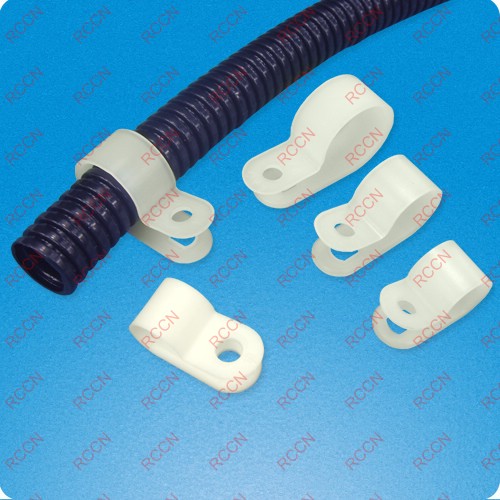

]]> http://www.wiring-ducts.com/push-barb-cable-tie-mounts/feed/ 0 RCCN UC Cable Clamp http://www.wiring-ducts.com/cable-clamps/ http://www.wiring-ducts.com/cable-clamps/#comments Sun, 04 Oct 2009 05:33:58 +0000 admin http://www.wiring-ducts.com/?p=423






Material：UL approved NYLON 66(natural)，fireproof 94V-2



Item No.

Thread
hole
A
B
Width
C
Band dia.(inner)
Length
E
Thickness
F

Packing
UC-0
 4.8 8.0 9.6 3.2(1/8″)1分 17 1.2
Pcs/bag
100pcs
UC-0.5
 4.8 9.2 9.6 5.0(3/16″)分半 18.6 1.2
UC-1
 4.6 10.0 10.0 6.35(1/4″)2分 20.0 1.4
UC-1.5
 4.6 12.0 10.0 7.9(5/16″)2分半 22.0 1.5
UC-2
 4.6 12.5 12.0 9.5(3/8″)3分 24.0 1.5
UC-3
 5.0 15.2 12.0 12.7(1/2″)4分 31.0 1.5
UC-4
 4.6 18.2 12.0 15.8(5/8″)5分 34.3 1.5
UC-5
 4.6 18.2 12.0 19.4(3/4″)6分 35.0 1.5
UC-6
 4.6 22.0 12.0 25.4(1″)1寸 43.0 1.8
UC-6.5
 4.6 24.0 12.0 27.5(1 1/16″) 50.0 1.8
UC-7
 4.6 26.2 12.0 31.8(1 1/4″)1寸 2分 50.0 1.8
UC-9
 4.6 30.0 12.0 36.7(1 1/2″)1寸 4分 50.0 1.8







]]> http://www.wiring-ducts.com/cable-clamps/feed/ 0 RCCN AC Adjustable Cable Clamp http://www.wiring-ducts.com/rccn-ac-adjustable-cable-clamp/ http://www.wiring-ducts.com/rccn-ac-adjustable-cable-clamp/#comments Sun, 04 Oct 2009 05:33:33 +0000 admin http://www.wiring-ducts.com/?p=2097






UL approved NYLON 66(natural)，fireproof 94V-2 Material：
,with 3M tape
Color：natural



Item No.
Wire
harness
range
G
A
B
C
D
E

Packing
AC-0810 7.5-9.5 24.6 10.2 8.0 18.5 10.0
100pcs
AC-1113 11-13.5 24.9 12.2 7.25 14.9 10.0
AC-1518 15-18 34.3 15.0 8.8 18.5 12.7
AC-1621 16-21 35.8 17.1 10.1 18.7 12.7
AC-1925 19-25 39.4 19.8 10.2 19.4 13.0

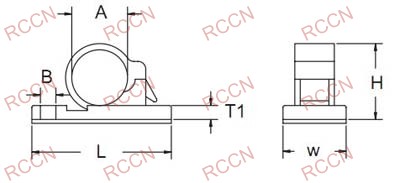

]]> http://www.wiring-ducts.com/rccn-ac-adjustable-cable-clamp/feed/ 0 RCCN JS Self-Adhesive Cable Clamp http://www.wiring-ducts.com/self-adhesive-cable-clamp/ http://www.wiring-ducts.com/self-adhesive-cable-clamp/#comments Sun, 04 Oct 2009 05:32:58 +0000 admin http://www.wiring-ducts.com/?p=419







Material：UL approved NYLON 66(natural)，fireproof 94V-2




Item No.
 Dimension
Packing
A B T1 L W H
5.5
5.0
3.0
25.8
13.4
12.2
100pcs
6J-S
7.5
5.0
3.2
28.8
13.4
14.5
8J-S
12
5.3
3.0
34.8
16.5
18.5
14
5.0
3.2
36.5
16.4
19.5
11J-S
15
5.0
2.7
38.2
16.0
20.3
17
4.8
3.1
41.3
15.6
24.0

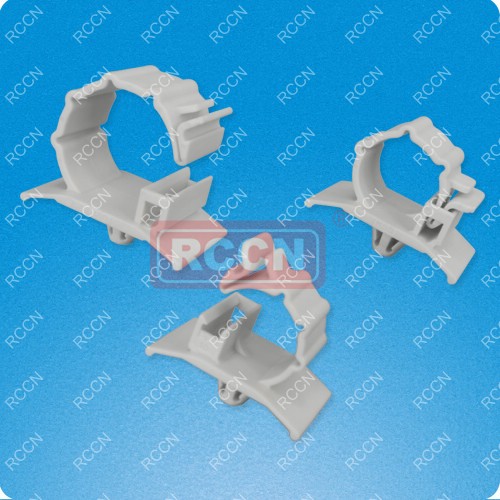

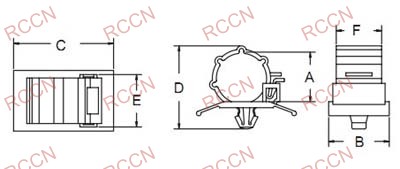

]]> http://www.wiring-ducts.com/self-adhesive-cable-clamp/feed/ 0 RCCN PFS Push Tie Mount http://www.wiring-ducts.com/cable-clamp-pfs/ http://www.wiring-ducts.com/cable-clamp-pfs/#comments Sun, 04 Oct 2009 05:31:11 +0000 admin http://www.wiring-ducts.com/?p=417






Material：UL approved NYLON 66(natural)，fireproof 94V-2

Item No.
  Dimension
Packing
A B C D E F
PFS-10 10.1 17.2 28.4 20.7 11.9 14.3
100pcs
PFS-15 14.9 19.3 31.8 27.1 14 16.3
PFS-18 17.3 21.2 35 29 15.9 18.3





]]> http://www.wiring-ducts.com/cable-clamp-pfs/feed/ 0 RCCN AP Adjustable Cable Clamp http://www.wiring-ducts.com/adjustable-cable-clamp-ap/ http://www.wiring-ducts.com/adjustable-cable-clamp-ap/#comments Sun, 04 Oct 2009 05:28:54 +0000 admin http://www.wiring-ducts.com/?p=415





Material：UL approved NYLON 66(black)，fireproof 94V-2
 with adhesive tape
Color：black



Item No.
Wire
harness
A
B
C
D
E
F

Packing
AP-0810 7.9~10.3 25.4 22.2 19.1 1.6 10.2 100pcs
AP-1013 10.0~12.5 31.8 27.8 19.1 1.6 10.2
AP-1316 12.6~15.4 37.0 31.8 18.4 3.0 12.1
AP-1720 16.5~20.1 42.0 37.0 25.0 3.0 12.7
AP-2225 22.2~25.4 41.8 43.5 21.5 3.0 11.3

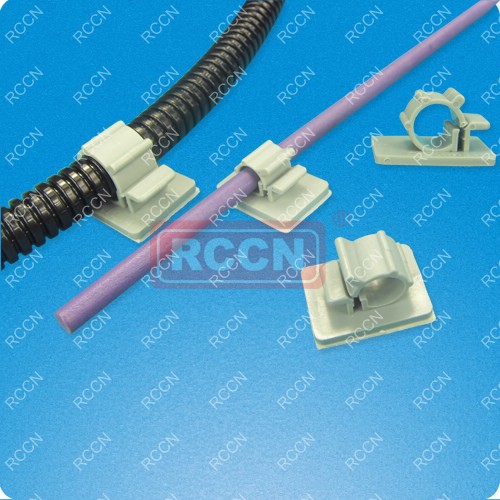

]]> http://www.wiring-ducts.com/adjustable-cable-clamp-ap/feed/ 0 RCCN TS Adjustable Cable Clamp http://www.wiring-ducts.com/adjustable-cable-clamp-ts/ http://www.wiring-ducts.com/adjustable-cable-clamp-ts/#comments Sun, 04 Oct 2009 05:27:50 +0000 admin http://www.wiring-ducts.com/?p=413







Material：UL approved NYLON 66(natural)，fireproof 94V-2
 Item No.
Wire
harness
A
B(mm)
C(mm)

Packing
Paster type Hosel type
TS-0607 PTS-0607 6~7 20 25 100pcs
TS-0708 PTS-0708 7~8 20 25
TS-0910 PTS-0910 9~10 24.5 30
TS-1214 PTS-1214 12~14 24.5 30
TS-1618 PTS-1618 16~18 24.5 30

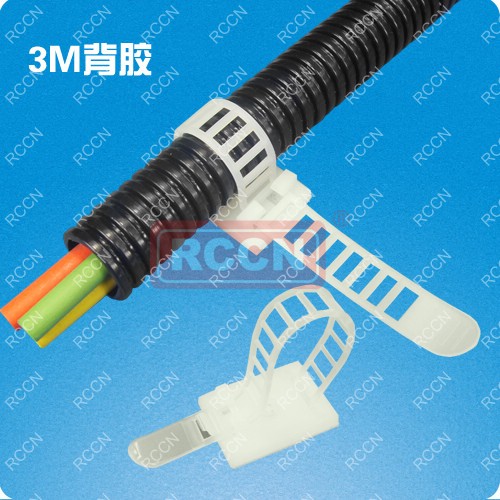

]]> http://www.wiring-ducts.com/adjustable-cable-clamp-ts/feed/ 0 RCCN ATC Adjustable Cable Clamp http://www.wiring-ducts.com/adjustable-cable-clamp/ http://www.wiring-ducts.com/adjustable-cable-clamp/#comments Sun, 04 Oct 2009 05:27:44 +0000 admin http://www.wiring-ducts.com/?p=421





Material：UL approved NYLON 66(natural)，fireproof 94V-2



ITEM No. A
mm		 B
mm		 C
mm		 Max.Bundle Dia.(mm) Packing
ATC-17 25.0 18.0 7.9 17.0
100pcs
ATC-22 30.5 21.0 12.0 22.0
ATC-26 30.5 21.0 12.0 26.0
