Thread:G,Metric, PG

Material:A.C.F are made from zincic metal.B.E

are made of rubber NBR).D is made

of sheet iron .

Certificates:CE

Color:Argentine

Protect class:IP6

Work T.:-40°C to 100°C,120°C in a short time.

Products characteristics: 1.thickness added zincic metal,good looking

2.conmmon impregnant resistant,such as water,salty,alcohol,oil, grease and so on.

3.we can adjust the sizes according to your request.

Marks:The finished goods are including locknut and washer.
Item No. Thread

G/M/PG

 MCR Thread

O.D.

D1

 Thread

Length

L1
Corresponding

item no

 Metric ø British
TNBG-M
TNBG-01M M14*1.5 MCR-01 6 3/16″ M14*1.5 8
TNBG-02M M14*1.5 MCR-02 8 5/16″ M14*1.5 8
TNBG-03M M16*1.5 MCR-03 10 1/4 M16*1.5 8
TNBG-04M M16*1.5 MCR-04 13 3/8″ M16*1.5 8
TNBG-05M M20*1.5 MCR-05 16 1/2″ M20*1.5 11
TNBG-06M M25*1.5 MCR-06 20 3/4″ M25*1.5 14
TNBG-08M M32*1.5 MCR-08 25 1″ M32*1.5 15
TNBG-10M M40*1.5 MCR-10 32 11/4″ M40*1.5 15
TNBG-12M M50*1.5 MCR-12 38 1 1/2 M50*1.5 16
TNBG-16M M63*1.5 MCR-16 51 2″ M63*1.5 18
TNBG-G
TNBG-01G G1/4″ MCR-01 6 3/16″ 13.2 8
TNBG-02G G1/4″ MCR-02 8 5/16″ 13.2 8
TNBG-03G G3/8″ MCR-03 10 1/4″ 16.5 8
TNBG-04G G3/8″ MCR-04 13 3/8″ 16.5 8
TNBG-05G G1/2″ MCR-05 16 1/2″ 21.3 11
TNBG-06G G3/4″ MCR-06 20 3/4″ 26.6 14
TNBG-08G G1″ MCR-08 25 1″ 33.4 15
TNBG-10G G1 1/4″ MCR-10 32 11/4″ 42.1 15
TNBG-12G G1 1/2″ MCR-12 38 11/2″ 47.8 16
TNBG-16G G2″ MCR-16 51 2 59.6 18
TNBG-PG
TNBG-03P PG9 MCR-03 10 1/4″ 15.2 8
TNBG-04P PG11 MCR-04 13 3/8″ 18.6 9
TNBG-05P PG13.5 MCR-05 16 1/2″ 20.4 11
TNBG-06P PG21 MCR-06 20 3/4″ 28.3 14
TNBG-08P PG29 MCR-08 25 1″ 37.0 15
TNBG-10P PG29 MCR-10 32 1 1/4″ 37.0 15
TNBG-12P PG36 MCR-12 38 11/2″ 47.0 16
TNBG-16P PG48 MCR-16 51 2″ 59.3 18
TNBG-NPT
TNBG-01N NPT1/4″ MCR-01 6 3/16″ 13.2 8
TNBG-02N NPT1/4″ MCR-02 8 5/16″ 13.2 8
TNBG-03N NPT3/8″ MCR-03 10 1/4″ 16.5 8
TNBG-04N NPT3/8″ MCR-04 13 3/8″ 16.5 8
TNBG-05N NPT1/2″ MCR-05 16 1/2″ 21.3 11
TNBG-06N NPT3/4″ MCR-06 20 3/4″ 26.6 14
TNBG-08N NPT1″ MCR-08 25 1″ 33.4 15
TNBG-10N NPT1 1/4″ MCR-10 32 11/4″ 42.1 15
TNBG-12N NPT1 1/2″ MCR-12 38 11/2″ 47.8 16
TNBG-16N NPT2″ MCR-16 51 2 59.6 18



<



]]> http://www.wiring-ducts.com/tnbg-metal-flexible-conduit-fittings/feed/ 0 RCCN brass cable gland type-A-M http://www.wiring-ducts.com/brass-cable-gland-type-mg/ http://www.wiring-ducts.com/brass-cable-gland-type-mg/#comments Wed, 30 Sep 2009 07:31:41 +0000 admin http://www.wiring-ducts.com/?p=268

Thread:Metric

Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR

Certificates:CE,EX

Operate temperature:-50°C to 250°C

Protection:IP68。

Product characterstics:Special design of part D and E,used with part F, can save your time,

large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,

withstand impregnant like acid,alkali,alcohol,oil,grease
Thread Item No Thread CableRange

Φ

 O.D.

D1

 Panel

Mounting

Hole

 Thread

Length

L1

 Joint

Length

L2+L3

 Spanner

size

A&F

 Std.Pkg

Pcs
M

Thread



 A-M12*1.5(2-6.5) M12*1.5 2-6.5 12 12-12.3 7 19 16 100PCS
A-M16*1.5(3-8) M16*1.5 3-8 16 16-16.3 7 20 18
A-M18*1.5(4-10) M18*1.5 4-10 18 18-18.3 7 22 20
A-M20*1.5(5-12) M20*1.5 5-12 20 20-20.3 8 23 22
A-M20*1.5(8-14) M20*1.5 8-14 20 20-20.3 8 23 24
A-M22*1.5(8-14) M22*1.5 8-14 22 22-22.3 8 23 24
A-M25*1.5(8-14) M25*1.5 8-14 25 25-25.4 8 23 28/24
A-M25*1.5(10-18) M25*1.5 10-18 25 25-25.4 9 32 30 10PCS
A-M32*1.5(10-18) M32*1.5 10-18 32 32-32.4 10 32 36/30
A-M32*1.5(15-25) M32*1.5 15-25 32 32-32.4 10 32 40
A-M40*1.5(15-25) M40*1.5 15-25 40 40-40.4 11 32 44/40
A-M40*1.5(20-32) M40*1.5 20-32 40 40-40.4 11 38 50
A-M50*1.5(20-32) M50*1.5 20-32 50 50-50.4 11 38 54/50
A-M50*1.5(25-38) M50*1.5 25-38 50 50-50.4 11 38 58
A-M63*1.5(30-44) M63*1.5 30-44 63 63-63.4 14 38 68/64
M

Length

added

thread

 A-M12*1.5L(2-6.5) M12*1.5 2-6.5 12 12-12.3 12 19 16 100PCS
A-M16*1.5L(3-8) M16*1.5 3-8 16 16-16.3 12 20 18
A-M18*1.5L(4-10) M18*1.5 4-10 18 18-18.3 12 22 20
A-M20*1.5L(5-12) M20*1.5 5-12 20 20-20.3 12 23 22
A-M20*1.5L(8-14) M20*1.5 8-14 20 20-20.3 12 23 24
A-M22*1.5L(8-14) M22*1.5 8-14 22 22-22.3 12 23 24
A-M25*1.5L(8-14) M25*1.5 8-14 25 25-25.4 12 23 28/24
A-M25*1.5(10-18) M25*1.5 10-18 25 25-25.4 12 32 30 10PCS
A-M32*1.5L(10-18) M32*1.5 10-18 32 32-32.4 15 32 36/30
A-M32*1.5L(15-25) M32*1.5 15-25 32 32-32.4 15 32 40
A-M40*1.5L(15-25) M40*1.5 15-25 40 40-40.4 15 32 44/40
A-M40*1.5(20-32) M40*1.5 20-32 40 40-40.4 15 38 50
A-M50*1.5L(20-32) M50*1.5 20-32 50 50-50.4 15 38 54/50
A-M50*1.5(25-38) M50*1.5 25-38 50 50-50.4 15 38 58
A-M63*1.5L(30-44) M63*1.5 30-44 63 63-63.4 18 38 68/64



Thread Item No Thread CableRange

Φ

 Thread

O.D.

D1

 Panel

Mounting

Hole

 Thread

Length

L1

 Spanner

size

A&F

 Std.Pkg

Pcs
M

Thread

 A-M12*1.5(2-6.5) M12*1.5 2-6.5 12 12-12.3 7 14 100PCS
A-M14*1.5(2-6.5) M14*1.5 2-6.5 14 14-14.3 7 14
A-M14*1.5(3-8) M14*1.5 3-8 14 14-14.3 7 18
A-M16*1.5(3-8) M16*1.5 3-8 16 16-16.3 7 18
A-M16*1.5(4-10) M16*1.5 4-10 16 16-16.3 7 20
A-M18*1.5(5-12) M18*1.5 5-12 18 18-18.3 7 20
A-M20*1.5(5-12) M20*1.5 5-12 20 20-20.3 8 22
A-M22*1.5(8-14) M22*1.5 8-14 22 22-22.3 8 24
A-M24*1.5(8-14) M24*1.5 8-14 24 24-24.3 8 28/24
A-M25*1.5(8-14) M25*1.5 8-14 25 25-25.4 9 28/24 50PCS
A-M25*1.5(10-18) M25*1.5 10-18 25 25-25.4 9 30
A-M27*2.0(10-18) M27*2.0 10-18 27 27-27.4 9 30
A-M30*2.0(10-18) M30*2.0 10-18 30 30-30.4 9 36/30
A-M32*1.5(10-18) M32*1.5 10-18 32 32-32.4 10 34
A-M32*1.5(15-25) M32*1.5 15-25 32 32-32.4 10 40
A-M33*2.0(15-25) M33*2.0 15-25 33 33-3.4 10 40
A-M36*2.0(15-25) M36*2.0 15-25 36 36-36.4 11 40
A-M40*1.5(15-25) M40*1.5 15-25 40 40-40.4 11 44/40 10PCS
A-M40*1.5(20-32) M40*1.5 20-32 40 40-40.4 11 50
A-M42*2.0(20-32) M42*2.0 20-32 42 42-42.4 11 50
A-M48*2.0(20-32) M48*2.0 20-32 48 48-48.4 11 54/50
A-M48*2.0(25-38) M48*2.0 25-38 58 48-48.4 11 58 5PCS
A-M50*1.5(20-32) M50*1.5 20-32 50 50-50.4 11 54/50
A-M50*1.5(25-38) M50*1.5 25-38 50 50-50.4 11 58
A-M54*2.0(25-38) M54*2.0 25-38 54 54-54.4 11 60
A-M56*2.0(25-38) M56*2.0 25-38 56 56-56.4 11 60
A-M60*2.0(30-44) M60*2.0 30-44 60 60-60.4 14 68/64
A-M63*1.5(30-44) M63*1.5 30-44 63 63-63.4 14 68/64
A-M64*2.0(30-44) M64*2.0 30-44 64 64-64.4 14 68/64
M

Length

added

thread

 A-M12*1.5L(2-6.5) M12*1.5 2-6.5 12 12-12.3 12 14 100PCS
A-M14*1.5L(2-6.5) M14*1.5 2-6.5 14 14-14.3 12 14
A-M14*1.5L(3-8) M14*1.5 3-8 14 14-14.3 12 18
A-M16*1.5L(3-8) M16*1.5 3-8 16 16-16.3 12 18
A-M16*1.5L(4-10) M16*1.5 4-10 16 16-16.3 12 20
A-M18*1.5L(5-12) M18*1.5 5-12 18 18-18.3 12 20
A-M20*1.5L(5-12) M20*1.5 5-12 20 20-20.3 12 22
A-M22*1.5L(8-14) M22*1.5 8-14 22 22-22.3 12 24
A-M24*1.5L(8-14) M24*1.5 8-14 24 24-24.3 12 28/24
A-M25*1.5L(8-14) M25*1.5 8-14 25 25-25.4 12 28/24 50PCS
A-M25*1.5L(10-18) M25*1.5 10-18 25 25-25.4 15 30
A-M27*2.0L(10-18) M27*2.0 10-18 27 27-27.4 15 30
A-M30*2.0L(10-18) M30*2.0 10-18 30 30-30.4 15 36/30
A-M32*1.5L(10-18) M32*1.5 10-18 32 32-32.4 15 34
A-M32*1.5L(15-25) M32*1.5 15-25 32 32-32.4 15 40
A-M33*2.0L(15-25) M33*2.0 15-25 33 33-3.4 15 40
A-M36*2.0L(15-25) M36*2.0 15-25 36 36-36.4 15 40
A-M40*1.5L(15-25) M40*1.5 15-25 40 40-40.4 15 44/40 10PCS
A-M40*1.5L(20-32) M40*1.5 20-32 40 40-40.4 15 50
A-M42*2.0L(20-32) M42*2.0 20-32 42 42-42.4 15 50
A-M48*2.0L(20-32) M48*2.0 20-32 48 48-48.4 15 54/50
A-M48*2.0L(25-38) M48*2.0 25-38 58 48-48.4 15 58 5PCS
A-M50*1.5L(20-32) M50*1.5 20-32 50 50-50.4 15 54/50
A-M50*1.5L(25-38) M50*1.5 25-38 50 50-50.4 15 58
A-M54*2.0L(25-38) M54*2.0 25-38 54 54-54.4 18 60
A-M56*2.0L(25-38) M56*2.0 25-38 56 56-56.4 18 60
A-M60*2.0L(30-44) M60*2.0 30-44 60 60-60.4 18 68/64
A-M63*1.5L(30-44) M63*1.5 30-44 63 63-63.4 18 68/64
A-M64*2.0L(30-44) M64*2.0 30-44 64 64-64.4 18 68/64







]]> http://www.wiring-ducts.com/brass-cable-gland-type-mg/feed/ 0 RCCN A-PG Brass Cable Gland http://www.wiring-ducts.com/a-pg-brass-cable-gland/ http://www.wiring-ducts.com/a-pg-brass-cable-gland/#comments Wed, 30 Sep 2009 07:31:26 +0000 admin http://www.wiring-ducts.com/?p=2442




Thread:DIN PG
Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
Large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
Withstand impregnant like acid,alkali,alcohol,oil,grease

Item No

Thread

CableRange

Φ

O.D.

D1

Panel

Mounting

Hole

Thread

Length

L1

Joint

Length

L2+L3

Spanner

size

A&F

Std.Pkg

Pcs
A-PG-7(2-6.5) PG-7 2-6.5 12.5 12.5-12.8 7 19 16 100PCS
A-PG-9(3-8) PG-9 3-8 15.2 15.2-15.8 7 20 18
A-PG-11(4-10) PG-11 4-10 18.6 18.6-18.9 7 22 20
A-PG-13.5(5-12) PG-13.5 5-12 20.4 20.4-20.7 8 23 22
A-PG-16(8-14) PG-16 8-14 22.5 22.5-22.8 9 23 24
A-PG-21(10-18) PG-21 10-18 28.3 28.3-28.7 10 28 30 20PCS
A-PG-29(15-25) PG-29 15-25 37.0 37.0-37.4 11 32 40
A-PG-36(20-32) PG-36 20-32 47.0 47.0-47.4 11 38 50 10PCS
A-PG-42(25-38) PG-42 25-38 54.0 54.0-54.4 11 38 58
A-PG-48(30-44) PG-48 30-44 59.3 59.3-59.7 14 38 64

Length added thread


A-PG-7L(2-6.5) PG-7 2-6.5 12.5 12.5-12.8 12 19 16 100PCS
A-PG-9L(3-8) PG-9 3-8 15.2 15.2-15.8 12 20 18
A-PG-11L(4-10) PG-11 4-10 18.6 18.6-18.9 12 22 20
A-PG-13.5L(5-12) PG-13.5 5-12 20.4 20.4-20.7 12 23 22
A-PG-16L(8-14) PG-16 8-14 22.5 22.5-22.8 12 23 24
A-PG-21L(10-18) PG-21 10-18 28.3 28.3-28.7 15 28 30 20PCS
A-PG-29L(15-25) PG-29 15-25 37.0 37.0-37.4 15 32 40
A-PG-36L(20-32) PG-36 20-32 47.0 47.0-47.4 15 38 50 10PCS
A-PG-42L(25-38) PG-42 25-38 54.0 54.0-54.4 15 38 58
A-PG-48L(30-44) PG-48 30-44 59.3 59.3-59.7 18 38 64







]]> http://www.wiring-ducts.com/a-pg-brass-cable-gland/feed/ 0 RCCN AG Nylon Cable Gland http://www.wiring-ducts.com/nylon-cable-gland-m/ http://www.wiring-ducts.com/nylon-cable-gland-m/#comments Wed, 30 Sep 2009 07:29:07 +0000 admin http://www.wiring-ducts.com/?p=283



*Time saving, cable can be easily once inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can stand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey
Thread
length		 Item No. Thread CableRange
￠		 Thread
O.D.
D1		 Panel
Mounting
Hole		 Thread
Length
L1		 Joint
Length
L2+L3		 Spanner
size
A&F		 Std.Pkg.
pcs
White Black
Short
 thread		 AG-12W AG-12B M12×1.5 3-6.5 12 12-12.3 8 22 18/16 100PCS
AG-14W AG-14B M14×1.5 4-8 14 14-14.3 8 26 22/19
AG-16W AG-16B M16×1.5 4-8 16 16-16.3 8 26 22/19
AG-18W AG-18B M18×1.5 5-10 18 18-18.3 8 27 24/22
AG-20W AG-20B M20×1.5 6-12 20 20-20.3 9 28 27/24
AG-22W AG-22B M22×1.5 10-14 22 22-22.3 10 30 30/27
AG-24W AG-24B M24×1.5 12-15 24 24-24.4 10 30 30/27
AG-25W AG-25B M25×1.5 13-18 25 25-25.4 10 35 33/33
AG-27W AG-27B M27×1.5 13-18 27 27-27.4 10 35 33/33
AG-30W AG-30B M30×1.5 16-21 30 30-30.4 11 35 39/36
AG-32W AG-32B M32×1.5 16-21 32 32-32.4 11 35 39/36
AG-36W AG-36B M36×1.5 18-25 36 36-36.4 12 40 46/42
AG-40W AG-40B M40×1.5 22-32 40 40-40.4 14 48 50/54 20PCS
AG-50W AG-50B M50×1.5 32-38 50 50-50.4 14 49 63/61
AG-63W AG-63B M63×1.5 37-44 63 63-63.4 14 50 75/65
Long
thread		 AG-12LW AG-12LB M12×1.5 3-6.5 12 12-12.3 15 22 18/16 100PCS
AG-14LW AG-14LB M14×1.5 4-8 14 14-14.3 15 26 22/19
AG-16LW AG-16LB M16×1.5 4-8 16 16-16.3 15 26 22/19
AG-18LW AG-18LB M18×1.5 18 18 18-18.3 15 27 24/22
AG-20LW AG-20LB M20×1.5 6-12 20 20-20.3 15 28 27/24
AG-22LW AG-22LB M22×1.5 10-14 22 22-22.3 15 30 30/27
AG-24LW AG-24LB M24×1.5 12-15 24 24-24.4 15 30 30/27
AG-25LW AG-25LB M25×1.5 13-18 25 25-25.4 15 35 33/33
AG-27LW AG-27LB M27×1.5 13-18 27 27-27.4 15 35 33/33
AG-30LW AG-30LB M30×1.5 16-21 30 30-30.4 15 35 39/36
AG-32LW AG-32LB M32×1.5 16-21 32 32-32.4 15 35 39/36
AG-36LW AG-36LB M36×1.5 18-25 36 36-36.4 18 40 46/42
AG-40LW AG-40LB M40×1.5 22-32 40 40-40.4 18 48 50/54 20PCS
AG-50LW AG-50LB M50×1.5 32-38 50 50-50.4 18 49 63/61
AG-63LW AG-63LB M63×1.5 37-44 63 63-63.4 18 50 75/65





]]> http://www.wiring-ducts.com/nylon-cable-gland-m/feed/ 0 RCCN Nylon Cable Gland PG http://www.wiring-ducts.com/nylon-cable-gland-pg/ http://www.wiring-ducts.com/nylon-cable-gland-pg/#comments Wed, 30 Sep 2009 07:28:35 +0000 admin http://www.wiring-ducts.com/?p=281




Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can wihtstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey
Thread
length		 Item No. Thread CableRange
￠		 Thread
O.D.
D1		 Panel
Mounting
Hole		 Thread
Length
L1		 Joint
Length
L2+L3		 Spanner
size
A&F		 Std.Pkg.
pcs
White Black
Short
thread		 PG-7W PG-7B PG7 3-6.5 12.5 12.5-12.8 8 22 18/16 100PCS
PG-9W PG-9B PG9 4-8 15.2 15.2-15.8 8 26 22/19
PG-11W PG-11B PG11 5-10 18.6 18.6-18.9 8 27 24/22
PG-13.5W PG-13.5B PG13.5 6-12 20.4 20.4-20.7 9 28 27/24
PG-16W PG-16B PG16 10-14 22.5 22.5-22.8 10 30 30/27
PG-19W PG-19B PG19 12-15 24.1 24.1-24.5 10 30 30/27
PG-21W PG-21B PG21 13-18 28.3 28.3-28.7 10 35 36/33
PG-25W PG-25B PG25 16-21 30.1 30.1-30.3 11 34 37/36
PG-29W PG-29B PG29 18-25 37.0 37.0-37.4 12 40 46/42
PG-36W PG-36B PG-36 22-32 47.0 47.0-47.4 14 48 59/54
PG-42W PG-42B PG42 32-38 54.0 54.0-54.4 14 49 64/61 20PCS
PG-48W PG-48B PG-48 37-44 59.3 59.3-59.7 14 50 69/65
PG-63W PG-63B PG63 42-50 59.3 72-27.4 27 60 75/72
Long
thread		 PG-7LW PG-7LB PG7 3-6.5 12.5 12.5-12.8 15 22 18/16 100PCS
PG-9LW PG-9LB PG9 4-8 15.2 15.2-15.8 15 26 22/19
PG-11LW PG-11LB PG11 5-10 18.6 18.6-18.9 15 27 24/22
PG-13.5LW PG-13.5LB PG13.5 6-12 20.4 20.4-20.7 15 28 27/24
PG-16LW PG-16LB PG16 10-14 22.5 22.5-22.8 15 30 30/27
PG-21LW PG-21LB PG21 13-18 28.3 28.3-28.7 15 35 36/33
PG-29LW PG-29LB PG29 18-25 37.0 37.0-37.4 18 40 46/42
PG-36LW PG-36LB PG-36 22-32 47.0 47.0-47.4 18 48 59/54 20PCS
PG-42LW PG-42LB PG42 32-38 54.0 54.0-54.4 18 49 64/61
PG-48LW PG-48LB PG-48 37-44 59.3 59.3-59.7 18 50 69/65

加厚型夹紧圈尺寸参照表

Item No.
PG7
PG9
PG11
PG13.5
PG16
PG19
PG21
PG25
PG29
PG36
PG42
PG48
CableRange
￠
2-5
2-6
3-7
5-9
7-12
10-12
9-16
13-18
13-20
20-26
25-31
29-35



]]> http://www.wiring-ducts.com/nylon-cable-gland-pg/feed/ 0 RCCN nylon cable gland NPT http://www.wiring-ducts.com/nylon-cable-gland-npt/ http://www.wiring-ducts.com/nylon-cable-gland-npt/#comments Wed, 30 Sep 2009 07:27:07 +0000 admin http://www.wiring-ducts.com/?p=279




*Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can withstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey
Item No.
Thread
CableRange
￠
Thread
O.D.
D1
Panel
Mounting
Hole
Thread
Length
L1
Joint
Length
L2+L3
Spanner
size
A&F
Std.Pkg.
pcs
White
Black
NPT 1/4W
NPT 1/4B
NPT 1/4″
3-6.5
13.2
13.2-13.
8
22
18/16
100PCS
NPT 3/8″
4-8
16.5
16.5-17.1
15
26
22/19
NPT 1/2″
6-12
21.3
21.0-21.3
13
30
27/24
NPT 3/4″
13-18
26.6
26.5-26.6
15
37
33/33
NPT 1W
NPT 1 “
18-25
33.22
33.2-33.8
15
42
40/40
NPT 11/4W
NPT 11/4B
NPT 11/4″
22-32
42.1
41.9-42.1
16
48
54/50
20PCS
NPT 11/2″
32-48
47.8
47.8-48.0
20
49
63/61
NPT 2W
NPT 2B
NPT 2″
37-44
59.6
59.6-60.1
20
50
75/65
G1/4W
G1/4B
G 1/4″
3-6.5
13.2
13.2-13.4
8
22
18/16
100PCS
G3/8W
G3/8B
G 3/8″
4-8
16.7
16.5-17.2
15
26
22/19
G1/2W
G1/2B
G 1/2″
6-12
20.9
21.0-21.3
13
30
27/24
G3/4W
G3/4B
G 3/4″
13-18
26.4
26.5-26.6
15
37
33/33
G1W
G1B
G 1″
18-25
33.2
33.2-33.4
16
40
39/36
G1-1/4W
G1-1/4B
G 11/4″
22-32
41.9
41.9-42.1
16
48
54/50
20PCS
G1-1/2W
G1-1/2B
G 11/2″
32-48
47.8
47.8-48.0
20
49
63/61
G2W
G2B
G 2″
37-44
59.6
59.6-60.1
20
50
75/65



]]> http://www.wiring-ducts.com/nylon-cable-gland-npt/feed/ 0 RCCN G Nylon Cable Gland http://www.wiring-ducts.com/g-nylon-cable-gland/ http://www.wiring-ducts.com/g-nylon-cable-gland/#comments Wed, 30 Sep 2009 07:26:23 +0000 admin http://www.wiring-ducts.com/?p=2522




*Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can withstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey
Item No.
Thread
CableRange
￠
Thread
O.D.
D1
Panel
Mounting
Hole
Thread
Length
L1
Joint
Length
L2+L3
Spanner
size
A&F
Std.Pkg.
pcs
White
Black
NPT 1/4W
NPT 1/4B
NPT 1/4″
3-6.5
13.2
13.2-13.
8
22
18/16
100PCS
NPT 3/8″
4-8
16.5
16.5-17.1
15
26
22/19
NPT 1/2″
6-12
21.3
21.0-21.3
13
30
27/24
NPT 3/4″
13-18
26.6
26.5-26.6
15
37
33/33
NPT 1W
NPT 1 “
18-25
33.22
33.2-33.8
15
42
40/40
NPT 11/4W
NPT 11/4B
NPT 11/4″
22-32
42.1
41.9-42.1
16
48
54/50
20PCS
NPT 11/2″
32-48
47.8
47.8-48.0
20
49
63/61
NPT 2W
NPT 2B
NPT 2″
37-44
59.6
59.6-60.1
20
50
75/65
G1/4W
G1/4B
G 1/4″
3-6.5
13.2
13.2-13.4
8
22
18/16
100PCS
G3/8W
G3/8B
G 3/8″
4-8
16.7
16.5-17.2
15
26
22/19
G1/2W
G1/2B
G 1/2″
6-12
20.9
21.0-21.3
13
30
27/24
G3/4W
G3/4B
G 3/4″
13-18
26.4
26.5-26.6
15
37
33/33
G1W
G1B
G 1″
18-25
33.2
33.2-33.4
16
40
39/36
G1-1/4W
G1-1/4B
G 11/4″
22-32
41.9
41.9-42.1
16
48
54/50
20PCS
G1-1/2W
G1-1/2B
G 11/2″
32-48
47.8
47.8-48.0
20
49
63/61
G2W
G2B
G 2″
37-44
59.6
59.6-60.1
20
50
75/65



]]> http://www.wiring-ducts.com/g-nylon-cable-gland/feed/ 0 RCCN nylon cable gland- SR http://www.wiring-ducts.com/nylon-cable-gland-strain-relief/ http://www.wiring-ducts.com/nylon-cable-gland-strain-relief/#comments Wed, 30 Sep 2009 07:25:32 +0000 admin http://www.wiring-ducts.com/?p=277








Kind of thread:metric,DIN PG,NPT。
Material:A.C.D.F are made of NYLON66.B.E are made of rubber NBR。
Pretect grade is upto IP67。
Color:white, black,other color can be manufactured
Use:Make this gland through the tpanel hole,then fixed it with nut,make the cables
through the seal nut,
fix it with the locknut
More choice:Length added gland,many other sizes of seal, made of rubber EPDM for
outdoor use

Thread
length
Item No.
Thread
CableRange
￠
Thread
O.D.
D1
Panel
Mounting
Hole
Thread
Length
L1
Joint
Length
L2+L3
Spanner
size
A&F
Std.Pkg.
pcs
White
Black
Standard thread
 METRIC

AG-12SRW
AG-12SRB
M12×1.5
3-6.5
12
12-12.3
8
65
18/17
50PCS
AG-16SRW
AG-16SRB
M16×1.5
4-8
16
16-16.3
8
65
22/20
AG-18SRW
AG-18SRB
M18×1.5
5-10
18
18-18.3
8
78
24/22
AG-20SRW
AG-20SRB
M20×1.5
6-12
20
20-20.3
9
90
27/24
AG-22SRW
AG-22SRB
M22×1.5
10-14
22
22-22.3
10
100
30/27
AG-25SRW
AG-25SRB
M25×1.5
13-18
25
25-25.4
10
112
35/34
AG-27SRW
AG-27SRB
M27×1.5
13-18
27
27-27.4
10
112
35/34
 PG DIN

PG-7SRW
PG-7SRB
PG7
3-6.5
12.5
12.5
8
65
18/17
50PCS
PG-9SRW
PG-9SRB
PG9
4-8
15.2
15.2
8
70
22/20
PG-11SRW
PG-11SRB
PG11
5-10
18.6
18.6
8
78
24/22
PG-13.5SRW
PG-13.5SRB
PG13.5
6-12
20.4
20.4
9
90
27/24
PG-16SRW
PG-16SRB
PG16
10-14
22.5
22.5
10
100
30/27
PG-21SRW
PG-21SRB
PG 21
13-18
28.3
28.3
10
112
36/34
Long thread
 METRIC

AG-12SRW
AG-12SRB
M12×1.5
3-6.5
12
12-12.3
15
65
18/17
50PCS
AG-16SRW
AG-16SRB
M16×1.5
4-8
16
16-16.3
15
65
22/20
AG-18SRW
AG-18SRB
M18×1.5
5-10
18
18-18.3
15
78
24/22
AG-20SRW
AG-20SRB
M20×1.5
6-12
20
20-20.3
15
90
27/24
AG-22SRW
AG-22SRB
M22×1.5
10-14
22
22-22.3
15
100
30/27
AG-25SRW
AG-25SRB
M25×1.5
13-18
25
25-25.4
15
112
35/34
 PG DIN

PG-7SRW
PG-7SRB
PG7
3-6.5
12.5
12.5
15
65
18/17
50PCS
PG-9SRW
PG-9SRB
PG9
4-8
15.2
15.2
15
70
22/20
PG-11SRW
PG-11SRB
PG11
5-10
18.6
18.6
15
78
24/22
PG-13.5SRW
PG-13.5SRB
PG13.5
6-12
20.4
20.4
15
90
27/24
PG-16SRW
PG-16SRB
PG16
10-14
22.5
22.5
15
100
30/27
PG-21SRW
PG-21SRB
PG 21
13-18
28.3
28.3
15
112
36/34

 NPT


NPT 3/8SRW
NPT 3/8SRB
NPT 3/8″
4-8
16.5
16.5
15
70
22/20
50PCS

NPT 1/2SRW
NPT 1/2SRB
NPT 1/2″
6-12
21.3
21.3
13
92
27/24

NPT 3/4SRW
NPT 3/4SRB
NPT 3/4″
13-18
26.6
26.6
15
114
34/34







]]> http://www.wiring-ducts.com/nylon-cable-gland-strain-relief/feed/ 0 RCCN nylon cable gland-mg http://www.wiring-ducts.com/nylon-cable-gland-mg/ http://www.wiring-ducts.com/nylon-cable-gland-mg/#comments Wed, 30 Sep 2009 07:23:17 +0000 admin http://www.wiring-ducts.com/?p=275




Thread:Metric。
Material:A.C.D.F are made of 66 NYLON66.B.Eare made of rubber NBR。
Pretect grade is upto IP67。
Color:white, black,other color can be manufactured
Use:Make this gland through the panel hole,then fixed it with nut,make the cables through the
seal nut,
fix it with the locknut
More choice:Length added gland,many other sizes of seal, made of rubber EPDM for
outdoor use。

Item No.
Thread
CableRange
￠
Thread
O.D.
D1
Panel
Mounting
Hole
Thread
Length
L1
Joint
Length
L2+L3
Spanner
size
A&F
Std.Pkg.
pcs
White
Black

MG12B-05
M12×1.5
3-5.3
12
12-12.3
9
38
19
100PCS
MG12W-08
MG12B-08
M12×1.5
4-8
12
12-12.3
9
38
19
MG16B-07
M16×1.5
4-7
16
16-16.3
15
35
22
MG16B-10
M16×1.5
6-10
16
16-16.3
15
35
22
MG20B-11
M20×1.5
6-11
20
20-20.3
15
37
27
MG20B-14
M20×1.5
9-14
20
20-20.3
15
37
27
MG25B-16
M25×1.5
10-16
25
25-25.3
15
42
33
MG25B-18
M25×1.5
13-18
25
25-25.3
15
42
33
MG32B-22
M32×1.5
15-22
32
32-32.3
15
48
41
50PCS
MG32B-25
M32×1.5
18-25
32
32-32.3
15
48
41
MG40B-25
M40×1.5
20-25
40
40-40.3
15
51
50
MG40B-30
M40×1.5
24-30
40
40-40.3
15
51
50
MG50B-32
M50×1.5
26-32
50
50-50.3
15
59
62
20PCS
MG50B-40
M50×1.5
30-40
50
50-50.3
15
59
62
MG63B-46
M63×1.5
38-46
63
63-63.3
24
65
75
MG63W-50
MG63B-50
M63×1.5
40-50
63
63-63.3
24
65
75



]]> http://www.wiring-ducts.com/nylon-cable-gland-mg/feed/ 0 RCCN MGA Nylon Cable Gland http://www.wiring-ducts.com/mga-nylon-cable-gland/ http://www.wiring-ducts.com/mga-nylon-cable-gland/#comments Wed, 30 Sep 2009 07:22:34 +0000 admin http://www.wiring-ducts.com/?p=2516




Thread:Metric。
Material:A.C.D.F are made of 66 NYLON66.B.Eare made of rubber NBR。
Pretect grade is upto IP68。
Color:white, black,other color can be manufactured
Use:Make this gland through the panel hole,then fixed it with nut,make the cables
through the seal nut,
fix it with the locknut
More choice:Length added gland,many other sizes of seal, made of rubber EPDM for
outdoor use。

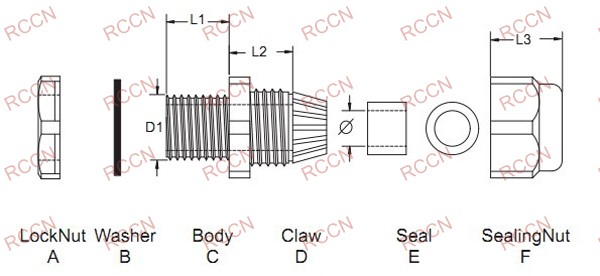

 Item No. Thread  CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1  ThreadLength

L2+L3

  Spannersize

A&F

  Std.PkgPcs
 Black  White
MG12A-05B MG12A-05G M12*1.5 3-5.3 12 12-12.3 8.5 38 18/19 50PCS
*MG12A-08B MG12A-08G M12*1.5 4-8 12 12-12.3 8.5 30 18/19
MG16A-07B MG16A-07G M16*1.5 4-7 16 16-16.3 15 35 22/22
*MG16A-10B MG16A-10G M16*1.5 6-10 16 16-16.3 15 35 22/22
MG20A-06B MG20A-06G M20*1.5 4-6 20 20-20.3 15 37 27/27
MG20A-11B MG20A-11G M20*1.5 6-11 20 20-20.3 15 37 27/27
*MG20A-14B MG20A-14G M20*1.5 9-14 20 20-20.3 15 42 27/27
MG25A-16B MG25A-16G M25*1.5 10-16 25 25-25.3 15 42 33/33
*MG25A-18B MG25A-18G M25*1.5 13-18 25 25-25.3 15 48 33/33
MG32A-22B MG32A-22G M32*1.5 15-22 32 32-32.3 15 48 41/42 20PCS
*MG32A-25B MG32A-25G M32*1.5 18-25 32 32-32.3 15 51 41/42
MG40A-25B MG40A-25G M40*1.5 20-25 40 40-40.3 20 51 50/52 10PCS
*MG40A-30B MG40A-30G M40*1.5 24-30 40 40-40.3 20 59 50/52
MG50A-32B MG50A-32G M50*1.5 26-32 50 50-50.3 22 59 62/62
*MG50A-40B MG50A-40G M50*1.5 30-40 50 50-50.3 22 65 62/62
MG63A-46B MG63A-46G M63*1.5 38-46 63 63-63.3 25 65 75/75
*MG63A-50B MG63A-50G M63*1.5 40-50 63 63-63.3 25 65 75/75
MG75A-66B MG75A-66G M75*1.5 55-66 75 75-75.3 25 65 92/92 5PCS
MG90A-77B MG90A-77G M90*1.5 65-77 90 90-90.3 25 65 110/110





]]> http://www.wiring-ducts.com/mga-nylon-cable-gland/feed/ 0
