 Material:Rohs approved PVC.oil resistant
            operate temperature to 85℃.
Structural:with elasticity,can be self
                adjusted to the cables
Features:suitable for connecting special
               codes,and difference of each
               code
Color:yellow body with black letters
         white body with black letters



Item No.

Suitable Wire

 Length (mm) Std.
Markings		 Packing
mm2 AWG
EC-0/0.5 0.5Square 26 1.0-2.0 4.0 0,1,2,3…..9
A,B,C,D…..Z
+,-,Blank,
Earthing		  Pcs/Roll
1000pcs
EC-0/0.75 0.75Square 18 2.0-3.2
EC-0/1.0 1.0Square 16 2.0-3.2
EC-0/1.5 1.5Square 22-18 2.0~3.2
EC-1 2.5Square 18-12 3.0~4.2 4.0
EC-2 4Square 12-8 3.6~7.4 5.0 Pcs/Roll
500pcs
EC-3/6 6Square 10 4-9 5.5 350pcs/Roll
EC-3/8 8Square 8-4 5-9 5.5 250pcs/Roll
EC-3/10 10Square 6 5-9 5.5 180pcs/Roll
EC-4 12Square 8-6 6-10 6.0 100pcs/Bag
EC-5 16Square 8-6 7-11 6.0 100pcs/Bag
EC-6 25Square 6-4 6-12 6.0 100pcs/Bag





]]> http://www.wiring-ducts.com/flat-cable-marker/feed/ 0 RCCN EC Color Coded Wire Cable Marker http://www.wiring-ducts.com/ec-color-coded-wire-cable-marker/ http://www.wiring-ducts.com/ec-color-coded-wire-cable-marker/#comments Mon, 10 Sep 2012 05:14:39 +0000 admin http://www.wiring-ducts.com/?p=2281

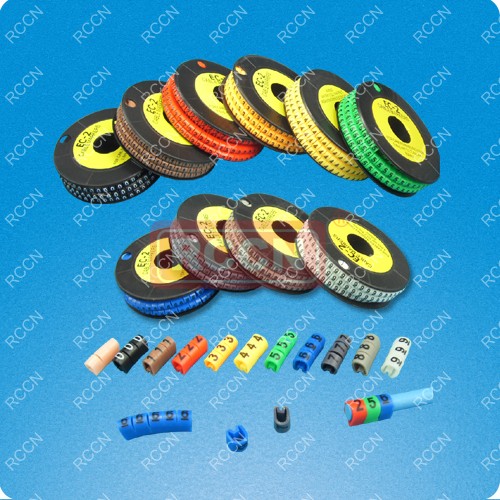

Material:Rohs approved PVC.oil resistant
             operate temperature to 85℃.
Structural:1,with elasticity,can be self
                adjusted to the cables
2,one size EC , can be used for different cables
Colors:10 different colors
Order part no., like:EC-1(2)/RD ,means EC-1,number 2,red.



BK BN RD OE YW GN BE VT GY WE

Item No.		 Item no.
Color code
Item No.		 Item no.
Color code		 Item No. Item no.
Color code
Item No.		 Item no.
Color code		 Item No. Item no.
Color code
EC-0/0.5 EC-0/0.5/0BK EC-1 EC-1/0BK EC-2 EC-2/0BK EC-3 EC-3/0BK EC-J EC-J/0BK
EC-0/0.5/1BN EC-1/1BN EC-2/1BN EC-3/1BN EC-J/1BN
EC-0/0.5/2RD EC-1/2RD EC-2/2RD EC-3/2RD EC-J/2RD
EC-0/0.5/3OE EC-1/3OE EC-2/3OE EC-3/3OE EC-J/3OE
EC-0/0.5/4YW EC-1/4YW EC-2/4YW EC-3/4YW EC-J/4YW
EC-0/0.5/5GN EC-1/5GN EC-2/5GN EC-3/5GN EC-J/5GN
EC-0/0.5/6BE EC-1/6BE EC-2/6BE EC-3/6BE EC-J/6BE
EC-0/0.5/7VT EC-1/7VT EC-2/7VT EC-3/7VT EC-J/7VT
EC-0/0.5/8GY EC-1/8GY EC-2/8GY EC-3/8GY EC-J/8GY
EC-0/0.5/9WE EC-1/9WE EC-2/9WE EC-3/9WE EC-J/9WE







]]> http://www.wiring-ducts.com/ec-color-coded-wire-cable-marker/feed/ 0 RCCN EC-J Flat Wire Cable Marker http://www.wiring-ducts.com/ec-j-flat-wire-cable-marker/ http://www.wiring-ducts.com/ec-j-flat-wire-cable-marker/#comments Mon, 10 Sep 2012 05:13:17 +0000 admin http://www.wiring-ducts.com/?p=2278

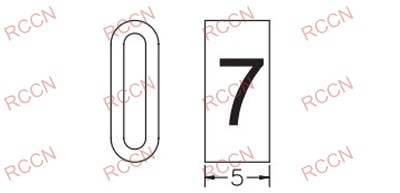

Material:Rohs approved PVC.oil resistant
            operate temperature to 85℃.
Structural:with elasticity,can be self
                adjusted to the cables



Order code, such as EC-J(0) means marked with “0″

ITEM No. Suitable Wire Length
(mm)		 Std. Markings Packing
Cable named
mm2		 Marker ‘s
inner dia.
MM
EC-J 2~8 3.5~7.0 5 0,1,2,3…..9
A,B,C,D…..Z
/,+,-,   Blank		 Pcs/Roll
500pcs

.

]]> http://www.wiring-ducts.com/ec-j-flat-wire-cable-marker/feed/ 0 RCCN MS Cable Marker Strip http://www.wiring-ducts.com/marker-strip/ http://www.wiring-ducts.com/marker-strip/#comments Mon, 10 Sep 2012 05:12:07 +0000 admin http://www.wiring-ducts.com/?p=399





. Material : Nylon PA 66 ( . 94V-2 ).
. Colours : White & Black.
. To carry OFM-type markers fo rmarking larger diameter wires and conduits.




ITEM No. L
mm		 W
mm		 T
mm		 Available loaded quantity of
 Packing
MS-65 60 10 6 8pcs 100pcs
MS-90 90 10 6 15pcs 100pcs
MS-130 130 10 6 20pcs 100pcs
]]> http://www.wiring-ducts.com/marker-strip/feed/ 0 RCCN ECB Marker Box http://www.wiring-ducts.com/marker-box/ http://www.wiring-ducts.com/marker-box/#comments Mon, 10 Sep 2012 05:11:13 +0000 admin http://www.wiring-ducts.com/?p=395

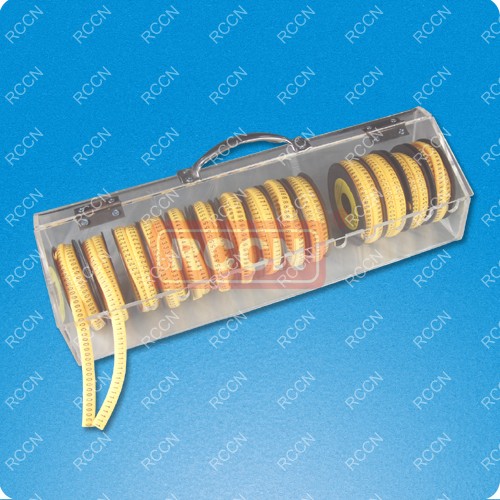

How to use:insert RCCN’s
Advantage:save time and convenient to find cable marker
ECB-1 single opened,ECB-2 double opened
ITEM No. Std.Markings Material
ECB-1 13Roll-15Roll Acrylic
ECB-2 26Roll-30Roll Acrylic





]]> http://www.wiring-ducts.com/marker-box/feed/ 0 RCCN OM Wire Cable Marker http://www.wiring-ducts.com/o-type-cable-marker/ http://www.wiring-ducts.com/o-type-cable-marker/#comments Mon, 10 Sep 2012 05:10:11 +0000 admin http://www.wiring-ducts.com/?p=393




 O unglisten,lubricity outside,keep
letters in the middle of tube,length 10mm/pcs.
Material:soft PVC(white),oil resistant
ITEM No. Suitable Wire Length
(mm)		 Std.Markings Packing
Cable named
mm2		 Tube’s
inner dia.
mm
OM-2.0 0.3 2.0 10 0,1,2,3…..100
A,B,C,…..Z
+,-,Blank		 Pcs/Roll
100Pcs
OM-2.5 0.5 2.5
OM-3.0 0.75 3.0
OM-3.2 1.25 3.2
OM-3.6 2.0 3.6
OM-4.2 3.5 4.2
OM-5.1 5.5 5.1
OM-6.2 8 6.2
OM-8.0 14 8.0
OM-9.1 22 9.1



]]> http://www.wiring-ducts.com/o-type-cable-marker/feed/ 0 RCCN OMR Marker Tube http://www.wiring-ducts.com/marker-tube/ http://www.wiring-ducts.com/marker-tube/#comments Mon, 10 Sep 2012 05:09:02 +0000 admin http://www.wiring-ducts.com/?p=391

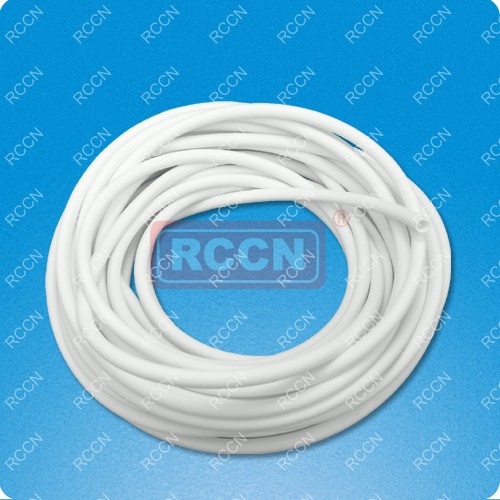

Material:soft PVC(white),oil-resitant
Remark:Small tooths inside,can hold cables
Can be printed with machine of LM-380E

Item No. Cable named
mm2		 Tube’s inner dia.
mm		 Packing
OMR-2.0 0.3 2.0 Pcs/Roll
100M
OMR-2.5 0.5 2.5
OMR-3.0 0.75 3.0
OMR-3.2 1.25 3.2
OMR-3.6 2.0 3.6
OMR-4.2 3.5 4.2
OMR-5.1 5.5 5.1
OMR-6.2 8.0 6.2
OMR-8.0 14 8.0
OMR-11 22 9.1 50M





]]> http://www.wiring-ducts.com/marker-tube/feed/ 0 RCCN MS Cable Marker Strip http://www.wiring-ducts.com/ms-cable-marker-strip/ http://www.wiring-ducts.com/ms-cable-marker-strip/#comments Mon, 10 Sep 2012 05:08:19 +0000 admin http://www.wiring-ducts.com/?p=2286

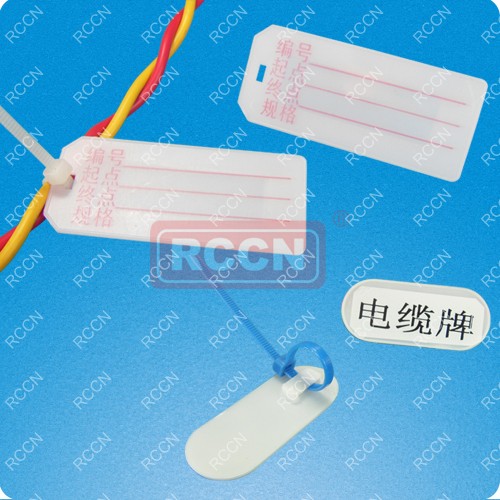

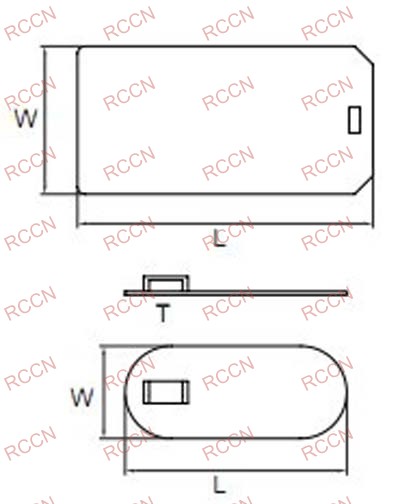

Material:PE.
Use:mark cables
 Item No.  L
 		  W
 		  Cable tie
with hole T
mm
 		  Packing
MS-50 55.5 24 10 1000PCS
MS-70 72.5 32 5 1000PCS



]]> http://www.wiring-ducts.com/ms-cable-marker-strip/feed/ 0 RCCN MT Marker Plate http://www.wiring-ducts.com/marker-plate/ http://www.wiring-ducts.com/marker-plate/#comments Mon, 10 Sep 2012 05:07:48 +0000 admin http://www.wiring-ducts.com/?p=389

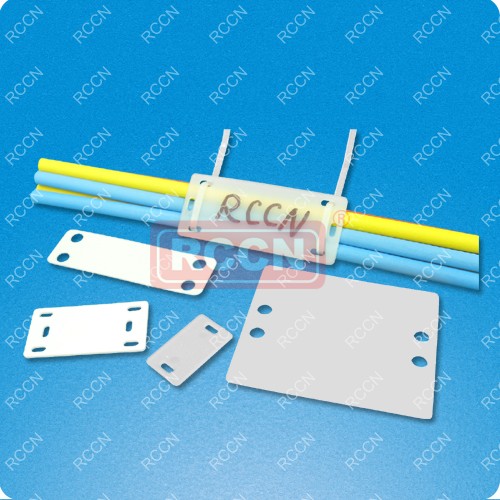

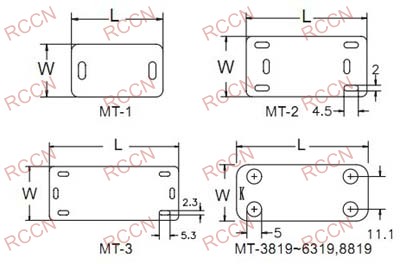

Material:UL approved PA66,fireproof 94V－2,four sides opened

Suitable cable ties:width small than 4.8MM
ITEM No. L
(mm)		 W
(mm)		 T
(mm)		 Packing
MT-1 26 15.2 1.2 100pcs
MT-2 42.2 21.2 1.2
MT-3 60 25 1.2
MT-4 62 50 1.3
MT-3819 38.5 19.1 0.4
MT-4419 45.0 19.1 0.4
MT-5019 51.0 19.1 0.4
MT-6319 64.5 19.1 0.4
MT-6344 63.8 44.8 0.4
MT-8819 90.0 19.1 0.4



]]> http://www.wiring-ducts.com/marker-plate/feed/ 0 RCCN MB Marker Box http://www.wiring-ducts.com/mb-marker-box/ http://www.wiring-ducts.com/mb-marker-box/#comments Mon, 10 Sep 2012 05:06:25 +0000 admin http://www.wiring-ducts.com/?p=2276

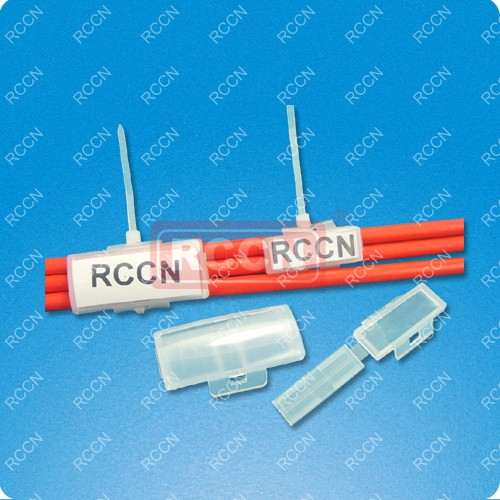

Material:PE natural.
Suitable cable ties:width
small than 4.8MM

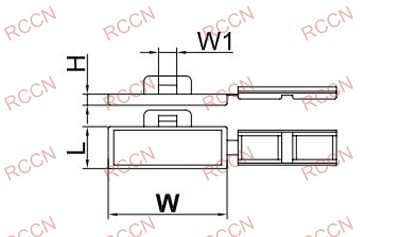

 Item No. W
 		 L
 		 H
 		 W1 Suitable
paper		  Packing
MB-1 32.6 11.5 3.0 5.0 30*9.5 100PCS
MB-2 43.5 19.1 4.6 5.1 40*17
