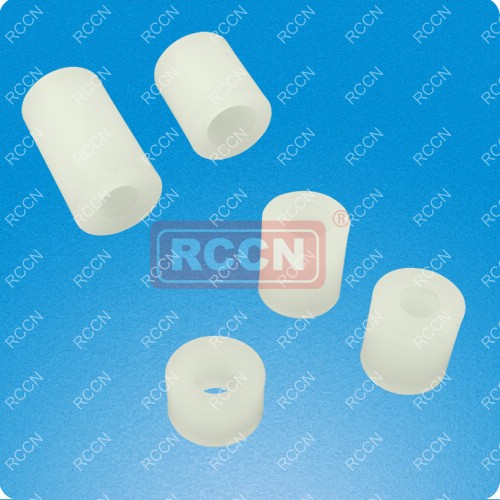

wiring duct-RCCN » Fasteners 1 http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN LED Spacer Support http://www.wiring-ducts.com/pcb-support/ http://www.wiring-ducts.com/pcb-support/#comments Fri, 13 Sep 2013 08:32:31 +0000 admin http://www.wiring-ducts.com/?p=554



Material:UL approved NYLON66（natural）
Functions:keep LED to hold PC board,
Fireproof:UL94-V2
Operate temperature:-40℃~120℃
Standard packing:mini.2000pcs/bag



 Item No. Item No.  Item No.

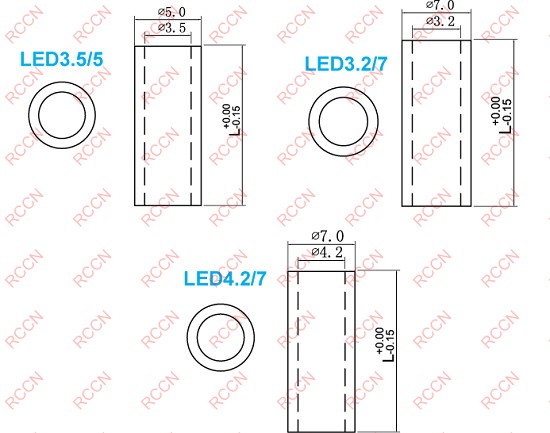

Inner dia./
Outer dia./Height		 Inner dia./
Outer dia./Height		 Inner dia./
Outer dia./Height
LED3.5/5-2.0 LED3.2/7-2.0 LED4.2/7-2.0
LED3.5/5-2.5 LED3.2/7-2.5 LED4.2/7-3.0
LED3.5/5-3.0 LED3.2/7-3.0 LED4.2/7-4.0
LED3.5/5-3.5 LED3.2/7-4.0 LED4.2/7-4.5
LED3.5/5-4.0 LED3.2/7-4.5 LED4.2/7-5.0
LED3.5/5-4.5 LED3.2/7-5.0 LED4.2/7-6.0
LED3.5/5-5.0 LED3.2/7-5.0B LED4.2/7-7.0
LED3.5/5-6.0 LED3.2/7-6.0 LED4.2/7-8.0
LED3.5/5-6.5 LED3.2/7-6.5 LED4.2/7-8.5
LED3.5/5-7.0 LED3.2/7-7.0 LED4.2/7-9.0
LED3.5/5-7.5 LED3.2/7-7.5 LED4.2/7-9.5
LED3.5/5-8.0 LED3.2/7-8.0 LED4.2/7-10.0
LED3.5/5-9.0 LED3.2/7-8.5 LED4.2/7-11.0
LED3.5/5-10.0 LED3.2/7-9.0 LED4.2/7-12.0
LED3.5/5-10.5 LED3.2/7-9.5 LED4.2/7-13.0
LED3.5/5-11.0 LED3.2/7-10.0 LED4.2/7-14.0
LED3.5/5-11.5 LED3.2/7-11.0 LED4.2/7-15.0
LED3.5/5-12.0 LED3.2/7-12.0 LED4.2/7-16.0
LED3.5/5-13.0 LED3.2/7-13.0 LED4.2/7-18.0
LED3.5/5-14.0 LED3.2/7-14.0 LED4.2/7-19.0
LED3.5/5-15.0 LED3.2/7-15.0 LED4.2/7-20.0
LED3.5/5-16.0 LED3.2/7-16.0 LED4.2/7-21.0
LED3.5/5-17.0 LED3.2/7-17.0 LED4.2/7-24.0
LED3.5/5-18.0 LED3.2/7-18.0 LED4.2/7-25.0
LED3.5/5-19.0 LED3.2/7-19.0
LED3.5/5-20.0 LED3.2/7-25.0
LED3.5/5-22.0 LED3.2/7-26.0
LED3.5/5-25.0
LED3.5/5-26.0







]]> http://www.wiring-ducts.com/pcb-support/feed/ 0 RCCN SP-MDLS PC Supports Post Mini http://www.wiring-ducts.com/rccn-sp-mdls-pc-supports-post-mini-2/ http://www.wiring-ducts.com/rccn-sp-mdls-pc-supports-post-mini-2/#comments Mon, 24 Sep 2012 05:01:58 +0000 admin http://www.wiring-ducts.com/?p=3034

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation, good aging resistant



Item No.
Instance
Packing
Fig1 Fig2 “A”±0.4mm
1000pcs
SP-MDLS-1-2.0
SP-MDLS-2-2.0
 2.0
SP-MDLS-1-3.0
SP-MDLS-2-3.0
 3.0
SP-MDLS-1-4.0
SP-MDLS-2-4.0
 4.0
SP-MDLS-1-5.0
SP-MDLS-2-5.0
 5.0
SP-MDLS-1-6.0 SP-MDLS-2-6.0 6.0
SP-MDLS-1-7.0
SP-MDLS-2-7.0
 7.0
SP-MDLS-1-8.0
SP-MDLS-2-8.0
 8.0
SP-MDLS-1-10.0
SP-MDLS-2-10.0
 10.0
SP-MDLS-1-12.0 SP-MDLS-2-12.0 12.0
SP-MDLS-1-14.0 SP-MDLS-2-14.0 14.0
SP-MDLS-1-16.0 – 16.0
SP-MDLS-1-18.0 SP-MDLS-2-18.0 18.0









]]> http://www.wiring-ducts.com/rccn-sp-mdls-pc-supports-post-mini-2/feed/ 0 RCCN HTS Hexagonal Tapped Spacer http://www.wiring-ducts.com/hexagonal-threaded-space-hts/ http://www.wiring-ducts.com/hexagonal-threaded-space-hts/#comments Thu, 13 Sep 2012 08:34:16 +0000 admin http://www.wiring-ducts.com/?p=557

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant
Item No.
A
mm
B
mm
C/D
L
mm
Packing
HTS-306 5.6 6 3
Application of nutPN-3		 6
100pcs
(1000pcs)
HTS-308 5.6 6 8
HTS-310 5.6 6 10
HTS-312 5.6 6 12.7
HTS-315 5.6 6 15
HTS-318 5.6 6 18
HTS-320 5.6 6 20
HTS-322 5.6 6 22
HTS-325 5.6 6 25
HTS-330 5.6 6 30
HTS-410 7 6 4
Application of nutPN-4		 10.1
HTS-413 7 6 13.0
HTS-415 7 6 15.0
HTS-419 7 6 19.0
HTS-425 7 6 25.0
HTS-430 7 6 30.0







]]> http://www.wiring-ducts.com/hexagonal-threaded-space-hts/feed/ 0 RCCN HTP Hexagonal Tapped Spacer http://www.wiring-ducts.com/hexagonal-tappped-spacer-htp/ http://www.wiring-ducts.com/hexagonal-tappped-spacer-htp/#comments Thu, 13 Sep 2012 08:33:33 +0000 admin http://www.wiring-ducts.com/hexagonal-tappped-spacer-htp/

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant
Item No. L A C Packing
HTP-306 6.0 5.5 3
1000pcs
HTP-308 8.0 5.5 3
HTP-310 10.0 5.5 3
HTP-312 12.7 5.5 3
HTP-315 15.0 5.5 3
HTP-318 18.0 5.5 3
HTP-320 20.0 5.5 3
HTP-322 22.0 5.5 3
HTP-325 25.0 5.5 3
HTP-330 30.0 5.5 3

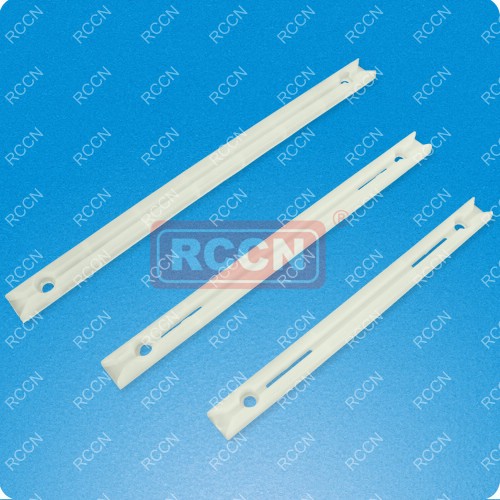

]]> http://www.wiring-ducts.com/hexagonal-tappped-spacer-htp/feed/ 0 RCCN BT PC Circuit Board Track http://www.wiring-ducts.com/p-c-b-track-bt/ http://www.wiring-ducts.com/p-c-b-track-bt/#comments Thu, 13 Sep 2012 08:31:49 +0000 admin http://www.wiring-ducts.com/?p=552






Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant





Item No.
A
B
C
D
E
F
G
Packing
BT-90A 89 77 1.9 4.5 9.5 1.5 3
100pcs
BT-90 89 64.5 1.9 4.5 9.5 1.5 3
BT-120 119 94.5 1.9 4.5 9.5 1.5 3
BT-140 140 115.0 1.9 4.5 9.5 1.5 3
BT-155A 154 140 1.9 4.6 9.5 1.3 3.3
BT-160 160 134.5 1.9 4.5 9.5 1.5 3

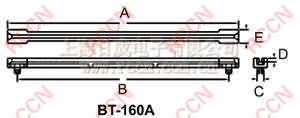

BT-160A 163 149.5 1.9 6.5 9.5 2.2 2.3

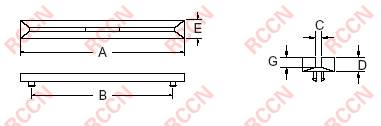

型 号
Item No.
A
B
C
E
G
包 装
Packing
BT-250 63.5 50.8 2.1 3.2 0.8-1.2
100pcs
BT-300 76 63.5
BT-350 88.9 76.2
BT-400 101.6 88.9
BT-450 114.3 101.6
BT-500 127.0 114.3
BT-550 139.7 127
BT-600 152.4 139.7

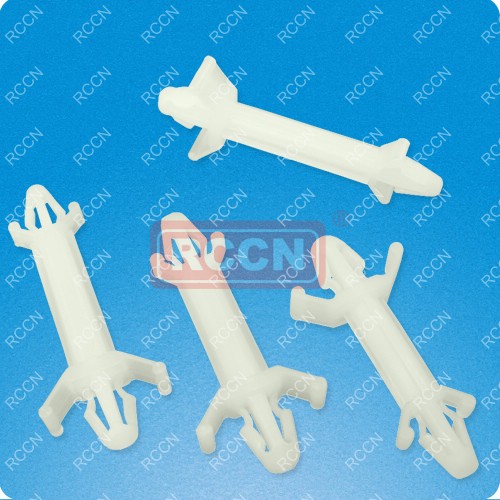

]]> http://www.wiring-ducts.com/p-c-b-track-bt/feed/ 0 RCCN CS Circuit Board Support http://www.wiring-ducts.com/circuit-board-support-cs/ http://www.wiring-ducts.com/circuit-board-support-cs/#comments Thu, 13 Sep 2012 08:30:11 +0000 admin http://www.wiring-ducts.com/?p=550

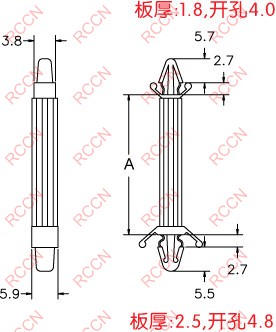

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation
good aging resistant





Item No.
Distance
A
Packing
CS-0305
 4.8(3/16″)
1000pcs
CS-0406
 6.4(1/4″)
CS-0610
 9.6(3/8″)
CS-0813
 12.7(1/2″)
CS-1016
 15.9(5/8″)
CS-1219
 19.1(3/4″)
CS-1422
 22.2(7/8″)
CS-1625
 25.4(1″)
CS-1828
 28.5(1 1/8″)
CS-2236
 35.0(1 3/8″)







]]> http://www.wiring-ducts.com/circuit-board-support-cs/feed/ 0 RCCN SP Miniature Support Post http://www.wiring-ducts.com/miniature-support-post-sp/ http://www.wiring-ducts.com/miniature-support-post-sp/#comments Thu, 13 Sep 2012 08:29:32 +0000 admin http://www.wiring-ducts.com/?p=548


Thickness:1.6,Hole 4.0

This is our old design, new design part no. is CBP series/pageB81
Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant



This product for old money: the new model of CBP series /B81.

Item No.
Distance
B
Packing
A
SP-3 3.2 3.8
1000pcs
SP-6 6.3 3.8
SP-8 8.0 3.8
SP-10 10.5 3.8
SP-13 12.7 5.6
SP-16 15.9 5.6
SP-17 16.5 5.6
SP-19 19.1 5.6
SP-22 22.2 5.6
SP-25 25.4 5.6







]]> http://www.wiring-ducts.com/miniature-support-post-sp/feed/ 0 RCCN CS Circuit Board Support http://www.wiring-ducts.com/screw-fastened-circuit-board-support-cs/ http://www.wiring-ducts.com/screw-fastened-circuit-board-support-cs/#comments Thu, 13 Sep 2012 08:28:47 +0000 admin http://www.wiring-ducts.com/?p=546




Thickness:1.8,Hole 4.0

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant





Item No.
Distance
A
Packing
CS-5
 5.0(3/16″)
1000pcs
CS-10
 9.6(1/4″)
CS-13
 12.7(3/8″)
CS-19
 19.1(1/2″)
CS-28
 28.5(5/8″)
CS-35
 35.0(3/4″)







]]> http://www.wiring-ducts.com/screw-fastened-circuit-board-support-cs/feed/ 0 RCCN RS Reverse Locking Circuit Board Support http://www.wiring-ducts.com/reverse-locking-circuit-board-support-rs/ http://www.wiring-ducts.com/reverse-locking-circuit-board-support-rs/#comments Thu, 13 Sep 2012 08:27:10 +0000 admin http://www.wiring-ducts.com/?p=544



Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,
good aging resistant





Item No.
Distance
A

Up hole
size

Up panel
thickness

below
 hole
size

Helow
hole
thickness
Packing
RS-3 3.5 3.5 1.8 5.5 1.4
1000pcs
RS-5 5.0 5.0 1.8 5.5 1.8
RS-6 6.4 6.0 1.8 5.5 1.8
RS-8 8.0 8.0 1.8 5.5 1.8

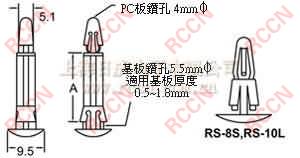

RS-8S 8.0 6.1 1.6 5.5 1.8
RS-10 9.6 9.8 1.8 5.5 1.8
RS-10L 10.8 9.8 1.8 5.5 1.8
RS-12 12.0 12.0 1.8 5.5 1.8
RS-14 14.0 14.0 1.8 5.5 1.8
RS-18 18.0 18.0 1.8 5.5 1.8

 .





]]> http://www.wiring-ducts.com/reverse-locking-circuit-board-support-rs/feed/ 0 RCCN RLS Circuit Board Support http://www.wiring-ducts.com/reverse-locking-circuit-board-support-rls/ http://www.wiring-ducts.com/reverse-locking-circuit-board-support-rls/#comments Thu, 13 Sep 2012 08:26:28 +0000 admin http://www.wiring-ducts.com/?p=542



Material: . approved Nylon 66, 94V-2



Item No.
A(mm)
Packing
RLS-5 5.0
100pcs
(1000pcs)
RLS-6 6.4
RLS-8 8.0
RLS-9 9.8
RLS-10 10.1
RLS-12 12.0
RLS-14 14.0
RLS-18 18.0



]]> http://www.wiring-ducts.com/reverse-locking-circuit-board-support-rls/feed/ 0
