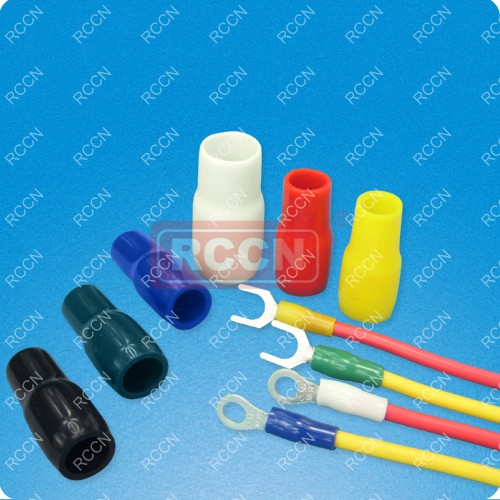

wiring duct-RCCN » Tubes http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN V Vinyl Wire End Cap http://www.wiring-ducts.com/vinyl-wire-end-caps-2/ http://www.wiring-ducts.com/vinyl-wire-end-caps-2/#comments Wed, 12 Sep 2012 06:31:30 +0000 admin http://www.wiring-ducts.com/?p=460





Material：high quality soft PVC
Used place：power supply equipments、machines，and so on
                    to clear the cables
Features：clear color,good flexible and insulation.
Order note：V-38red,means 38 square red tube.
Color：red，blue，white，black，yellow，green，brown.



Item No. Suit
terminal

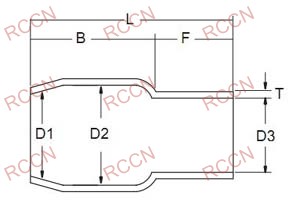

SQ		 D1 D2 D3 L F B T Packing
V-1.25 1.25 2.8 3.3 3.1 13±2.0 6±1.0 7±1.0 0.6+0.3
　　-0.2		 1000
V-2 2 3.3 4.5 3.7 14 9 7 0.7 1000
V-3.5 3.5 4.2 5.7 4.1 17 9 8 0.8 1000
V-5.5 5.5 4.8 5.7 5.2 17 10 8 0.8 1000
V-8 8 6.2 7.2 6.2 19 14±1.2 9 1.0 1000
V-14 14 7.5 10 8 25±2.4 15 11±1.2 11±0.3 100
V-22 22 10.5 12 9.5 30 17.5 15 1.2 100
V-38 38 12.5 14 11.8 34 20 16.5 1.5 100
V-60 60 15 16.8 13.5 39 25±1.5 19 15 100
V-80 80 17 19 16 47±3.0 30 22±1.5 16±0.4 100
V-100 100 19 22 18 54 30 24 1.7 50
V-125 125 21 24 20 57 32 25 1.8 50
V-150 150 23 24.5 22 65 35 30 2.0 25
V-200 200 27 32 24 65 35 30 2.0 20
V-250 250 29 38 26.5 77±4.0 35±2.0 42±2.0 2.5±0.6 20
V-325 325 29 38 29 77 37 40 2.5 20
V-400 400 39 44 37 86 47 39 2.5 10
V-500 500 40.5 45 39.5 86 47 39 2.5 10
V-630 630 47 52 45 92 48 44 2.5 10











]]> http://www.wiring-ducts.com/vinyl-wire-end-caps-2/feed/ 0 RCCN HST Heat Shrinkable Tubing http://www.wiring-ducts.com/rccn-hst-heat-shrinkable-tubing/ http://www.wiring-ducts.com/rccn-hst-heat-shrinkable-tubing/#comments Wed, 12 Sep 2012 06:30:03 +0000 admin http://www.wiring-ducts.com/?p=2421



Main Material: PE of soft,fireproof,enviroment protected,halegon free
Approved by UL 224,rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 fireproo。
Approved by CSA 224,rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 heat-resistant热。
Suitable temperture: – 55 cent degree to 125 cent degree
Available Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 2:1


Item No.


Size


As Supplied (mm)
After Shrinkage (mm)
 Std.Pkg.
M
Suitable
scope
Inside
Diameter
(min.)
Wall
Thickness
(nominal)
Inside
Diameter
(max.)
Wall
Thickness
(nominal)
HST-0.6 Φ0.6 0.9±0.2 0.10±0.05 ≤0.40 0.22±0.10 200 0.5-0.7
HST-0.8 Φ0.8 1.0±0.2 0.15±0.05 ≤0.50 0.22±0.10 200 0.6-0.8
HST-1 Φ1.0 1.5±0.2 0.15±0.05 ≤0.65 0.28±0.10 200 0.75-0.9
HST-1.5 Φ1.5 2.0±0.2 0.15±0.05 ≤0.65 0.28±0.10 200 0.95-1.4
HST-2
 		 Φ2.0 2.5±0.2 0.18±0.05 ≤1.00 0.40±0.10 200 1.1-1.8
HST-2.5 Φ2.5 3.0±0.2 0.18±0.05 ≤1.30 0.40±0.10 200 1.4-2.3
HST-3 Φ3.0 3.5±0.2 0.18±0.05 ≤1.50 0.40±0.10 200 1.6-2.7
HST-3.5 Φ3.5 4.0±0.2 0.22±0.05 ≤1.80 0.42±0.10 200 1.9-3.2
HST-4 Φ4.0 4.5±0.2 0.25±0.05 ≤2.00 0.45±0.10 200 2.1-3.6
HST-4.5 Φ4.5 5.0±0.2 0.25±0.05 ≤2.30 0.50±0.10 100 2.4-4.0
HST-5 Φ5.0 5.5±0.2 0.25±0.05 ≤2.50 0.55±0.10 100 2.6-4.5
HST-5.5 Φ5.5 6.0±0.2 0.25±0.05 ≤2.75 0.55±0.10 100 2.8-5.0
HST-6 Φ6.0 6.5±0.2 0.28±0.05 ≤3.00 0.55±0.10 100 3.1-5.4
HST-7 Φ7.0 7.5±0.3 0.28±0.05 ≤3.50 0.55±0.10 100 3.7-6.3
HST-8 Φ8.0 8.5±0.3 0.28±0.05 ≤4.00 0.60±0.10 100 4.2-7.2
HST-9 Φ9.0 9.5±0.3 0.30±0.08 ≤4.50 0.60±0.10 100 4.7-8.0
HST-10 Φ10 10.8±0.3 0.30±0.08 ≤5.00 0.60±0.10 100 5.2-9.0
HST-11 Φ11 11.5±0.3 0.30±0.08 ≤5.50 0.60±0.10 100 5.7-10
HST-12 Φ12 12.5±0.3 0.30±0.08 ≤6.00 0.65±0.10 100 6.2-11
HST-13 Φ13 13.5±0.3 0.35±0.10 ≤6.50 0.65±0.10 100 6.7-12
HST-14 Φ14 14.5±0.3 0.35±0.10 ≤7.00 0.70±0.10 100 7.3-13
HST-15 Φ15 15.5±0.4 0.40±0.12 ≤7.50 0.75±0.10 100 7.8-14
HST-16 Φ16 16.5±0.4 0.40±0.12 ≤8.00 0.75±0.10 100 8.3-15
HST-17 Φ17 17.5±0.4 0.40±0.12 ≤8.50 0.75±0.10 100 8.8-16
HST-18 Φ18 19.0±0.5 0.40±0.15 ≤9.00 0.80±0.15 100 9.3-17
HST-20 Φ20 22.0±0.5 0.40±0.15 ≤10.00 0.82±0.15 100 10.4-19
HST-22 Φ22 24.0±0.5 0.40±0.15 ≤11.00 0.82±0.15 100 11.4-21
HST-25 Φ25 26.0±0.5 0.55±0.15 ≤12.50 1.00±0.15 50 12.8-24
HST-28 Φ28 29.0±0.5 0.55±0.15 ≤14.00 1.00±0.15 50 14.4-29
HST-30 Φ30 31.5±1.0 0.55±0.15 ≤15.00 1.05±0.15 50 16-29
HST-35 Φ35 36.5±1.0 0.55±0.1 ≤17.50 1.15±0.15 50 18-34
HST-40 Φ40 41.5±1.0 0.55±0.15 ≤20.00 1.20±0.15 50 21-39
HST-50 Φ50 51.0±1.0 0.55±0.15 ≤25.00 1.20±0.15 25 26-49
HST-60 Φ60 60.0±1.0 0.60±0.15 ≤31.00 1.30±0.20 25 35-55
HST-70 Φ70 70.0±1.0 0.65±0.15 ≤36.00 1.47±0.20 25 40-65
HST-80 Φ80 80.0±1.0 0.65±0.15 ≤41.00 1.47±0.20 25 45-75
HST-90 Φ90 90.5±1.0 0.65±0.15 ≤46.00 1.47±0.20 25 50-88
HST-100 Φ100 100.5±1.0 0.65±0.20 ≤51.00 1.47±0.20 25 55-95
HST-120 Φ120 120.5±1.0 0.65±0.20 ≤61.00 1.56±0.20 15 65-115
HST-150
 		 Φ150 150.5±1.0 0.65±0.20 ≤76.00 1.56±0.20 15 80-115
HST-180 Φ180 180.5±1.0 0.65±0.30 ≤91.00 1.56±0.20 15 95-115





]]> http://www.wiring-ducts.com/rccn-hst-heat-shrinkable-tubing/feed/ 0 RCCN HCB Heat Shrinkable Tubing http://www.wiring-ducts.com/heat-shrinkable-tube/ http://www.wiring-ducts.com/heat-shrinkable-tube/#comments Wed, 12 Sep 2012 06:23:15 +0000 admin http://www.wiring-ducts.com/?p=458



Main Material: PE of soft,fireproof,enviroment protected,halegon free
Approved by UL 224,rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 fireproo。
Approved by CSA 224,rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 heat-resistant热。
Suitable temperture: – 55 cent degree to 125 cent degree
Available Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 2:1
Item No.
Size
mm
Pro-shrinking
After shrinking
 Std.Pkg.
M
Suitable
scope
Inner D
Thickness W
Inner
Thickness
HCB-1 Φ1.0 1.4±0.2 0.13±0.05 ≤0.65 0.20±0.10 200 0.7-1.0
HCB-1.5 Φ1.5 1.9±0.2 0.13±0.05 ≤0.85 0.20±0.10 200 0.9-1.4
HCB-2.0 Φ2.0 2.4±0.2 0.13±0.05 ≤1.00 0.22±0.10 200 1.1-1.8
HCB-2.5 Φ2.5 2.9±0.2 0.13±0.05 ≤1.30 0.25±0.10 200 1.4-2.3
HCB-3.0 Φ3.0 3.4±0.2 0.13±0.05 ≤1.50 0.28±0.10 200 1.6-2.7
HCB-3.5 Φ3.5 3.9±0.2 0.13±0.05 ≤1.80 0.28±0.10 200 1.9-3.2
HCB-4.0 Φ4.0 4.4±0.2 0.15±0.05 ≤2.00 0.30±0.10 200 2.1-3.6
HCB-4.5 Φ4.5 4.9±0.2 0.15±0.05 ≤2.30 0.30±0.10 100 2.4-4.0
HCB-5.0 Φ5.0 5.5±0.2 0.15±0.05 ≤2.50 0.32±0.10 100 2.6-4.5
HCB-6.0 Φ6.0 6.5±0.2 0.15±0.05 ≤3.00 0.32±0.10 100 3.1-5.4
HCB-7.0 Φ7.0 7.5±0.3 0.15±0.05 ≤3.50 0.32±0.10 200 3.7-6.3
HCB-8.0 Φ8.0 8.5±0.3 0.15±0.05 ≤4.00 0.32±0.10 200 4.2-7.2
HCB-9.0 Φ9.0 9.5±0.3 0.15±0.05 ≤4.50 0.35±0.10 200 4.7-8.0
HCB-10 Φ10 10.5±0.3 0.15±0.05 ≤5.00 0.35±0.10 200 5.2-9.0
HCB-11 Φ11 11.5±0.3 0.18±0.05 ≤5.50 0.40±0.10 200 5.7-10.0
HCB-12 Φ12 12.5±0.3 0.20±0.05 ≤6.00 0.40±0.10 200 6.2-11
HCB-13 Φ13 13.5±0.3 0.20±0.05 ≤6.50 0.40±0.10 200 6.7-12
HCB-14 Φ14 14.5±0.3 0.20±0.05 ≤7.00 0.60±0.10 200 7.3-13
HCB-15 Φ15 15.5±0.4 0.20±0.05 ≤7.50 0.40±0.10 200 7.8-14
HCB-16 Φ16 16.5±0.4 0.22±0.05 ≤8.00 0.40±0.10 200 8.3-15
HCB-17 Φ17 17.5±0.4 0.22±0.05 ≤8.50 0.40±0.10 200 8.8-16
HCB-18 Φ18 18.5±0.4 0.22±0.05 ≤9.00 0.42±0.10 200 9.3-17
HCB-20 Φ20 20.5±0.5 0.25±0.05 ≤10.0 0.45±0.10 200 10.5-19
HCB-22 Φ22 22.5±0.5 0.25±0.05 ≤11.0 0.45±0.10 200 11.5-20.5
HCB-25 Φ25 25.0±0.5 0.25±0.05 ≤12.5 0.45±0.15 100 13-24









]]> http://www.wiring-ducts.com/heat-shrinkable-tube/feed/ 0 RCCN HSTYG Heat Shrinkable Tubing http://www.wiring-ducts.com/yellow-green-heat-shrink-tubing/ http://www.wiring-ducts.com/yellow-green-heat-shrink-tubing/#comments Wed, 12 Sep 2012 06:22:04 +0000 admin http://www.wiring-ducts.com/?p=456

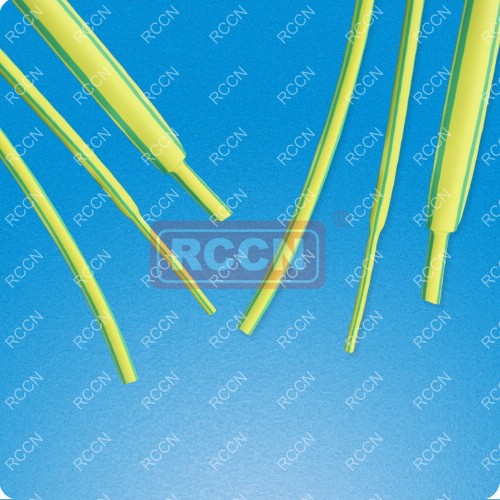

Main Material: PE of soft,fireproof,enviroment protected,halegon free
Approved by UL 224,rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 fireproo。
Approved by CSA 224,rating sed temperture 125 cent degree,
rating voltage 600 V and VW-1 heat-resistant热。
Suitable temperture: – 55 cent degree to 125 cent degree
Available Color:yellow with green
Ratio of shrinking: 2:1

Item No.


Metric
inner dia.


As Supplied (mm)
After Shrinkage (mm)
 Std.Pkg.
M
Suitable
scope
MM
Inside
Diameter
(min.)
Wall
Thickness
(nominal)
Inside
Diameter
(max.)
Wall
Thickness
(nominal)
HST-1YG Φ1.0 1.5±0.3 0.15±0.08 ≤0.65 0.28±0.10 200 0.75-0.9
HST-1.5YG Φ1.5 2.0±0.3 0.15±0.08 ≤0.65 0.28±0.10 200 0.75-0.9
HST-2YG
 		 Φ2.0 2.5±0.3 0.18±0.08 ≤1.00 0.40±0.10 200 1.1-1.8
HST-2.5YG Φ2.5 3.0±0.3 0.18±0.08 ≤1.30 0.40±0.10 200 1.35-2.3
HST-3YG Φ3.0 3.5±0.4 0.18±0.08 ≤1.50 0.40±0.10 200 1.6-2.7
HST-3.5 YG Φ3.5 4.0±0.4 0.22±0.08 ≤1.80 0.42±0.10 200 1.85-3.2
HST-4YG Φ4.0 4.5±0.4 0.25±0.08 ≤2.00 0.45±0.10 200 2.1-3.6
HST-4.5YG Φ4.5 5.0±0.4 0.25±0.08 ≤2.30 0.50±0.10 100 2.35-4.0
HST-5YG Φ5.0 5.5±0.4 0.25±0.08 ≤2.50 0.55±0.10 100 2.6-4.5
HST-6YG Φ6.0 6.5±0.4 0.28±0.08 ≤3.00 0.55±0.10 100 3.1-5.4
HST-7YG Φ7.0 7.5±0.4 0.28±0.08 ≤3.50 0.55±0.10 100 3.7-6.3
HST-8YG Φ8.0 8.5±0.5 0.28±0.08 ≤4.00 0.60±0.10 100 4.2-7.2
HST-9YG Φ9.0 9.5±0.5 0.30±0.10 ≤4.50 0.60±0.10 100 4.7-8.0
HST-10YG Φ10 10.8±0.5 0.30±0.10 ≤5.00 0.60±0.10 100 5.2-9.0
HST-11YG Φ11 11.5±0.5 0.30±0.10 ≤5.50 0.60±0.10 100 5.7-10
HST-12YG Φ12 12.5±0.5 0.30±0.10 ≤6.00 0.65±0.10 100 6.2-11
HST-13YG Φ13 13.5±0.5 0.35±0.12 ≤6.50 0.65±0.10 100 6.7-12
HST-14YG Φ14 14.5±0.5 0.35±0.12 ≤7.00 0.70±0.10 100 7.3-13
HST-15YG Φ15 15.5±0.6 0.40±0.12 ≤7.50 0.75±0.10 100 7.8-14
HST-16YG Φ16 16.5±0.6 0.40±0.12 ≤8.00 0.75±0.10 100 8.3-15
HST-17YG Φ17 17.5±0.6 0.40±0.12 ≤8.50 0.75±0.10 100 8.8-16
HST-18YG Φ18 19.0±0.7 0.40±0.15 ≤9.00 0.80±0.15 100 9.3-17
HST-20YG Φ20 22.0±0.7 0 0.40±0.15 ≤10.00 0.82±0.15 100 10.4-19
HST-22YG Φ22 24.0±0.7 0.40±0.15 ≤11.00 0.82±0.15 100 11.4-21
HST-25YG Φ25 26.0±0.7 0.55±0.15 ≤12.50 1.00±0.15 50 12.8-24
HST-28YG Φ28 29.0±0.7 0.55±0.15 ≤14.00 1.00±0.15 50 14.4-29
HST-30YG Φ30 31.5±0.7 0.55±0.15 ≤15.00 1.05±0.15 50 16-29
HST-35YG Φ35 36.5±0.7 0.55±0.1 ≤17.50 1.15±0.15 50 18-34
HST-40YG Φ40 41.5±0.7 0.55±0.15 ≤20.00 1.20±0.15 50 21-39
HST-50YG Φ50 51.0±0.7 0.55±0.15 ≤25.00 1.20±0.15 25 26-49
HST-60YG Φ60 60.0±0.8 0.60±0.15 ≤31.00 1.30±0.20 25 35-55
HST-70YG Φ70 70.0±0.8 0.65±0.15 ≤36.00 1.47±0.20 25 40-65
HST-80YG Φ80 80.0±0.8 0.70±0.15 ≤41.00 1.47±0.20 25 45-75
HST-90YG Φ90 90.5±0.8 0.70±0.15 ≤46.00 1.47±0.20 25 50-88
HST-100YG Φ100 100.5±0.8 0.70±0.20 ≤51.00 1.47±0.20 25 55-95
HST-120YG Φ120 120.5±0.8 0.70±0.20 ≤61.00 1.56±0.20 15 65-115
HST-150YG
 		 Φ150 150.5±0.8 0.70±0.20 ≤76.00 1.56±0.20 15 80-115
HST-180YG Φ180 180.5±0.8 0.70±0.20 ≤91.00 1.56±0.20 15 95-115







]]> http://www.wiring-ducts.com/yellow-green-heat-shrink-tubing/feed/ 0 RCCN SCM Heat-Shrinkable Tubing With Inner Glue http://www.wiring-ducts.com/dual-wall-heat-shrinkable-tube/ http://www.wiring-ducts.com/dual-wall-heat-shrinkable-tube/#comments Wed, 12 Sep 2012 06:21:45 +0000 admin http://www.wiring-ducts.com/?p=454

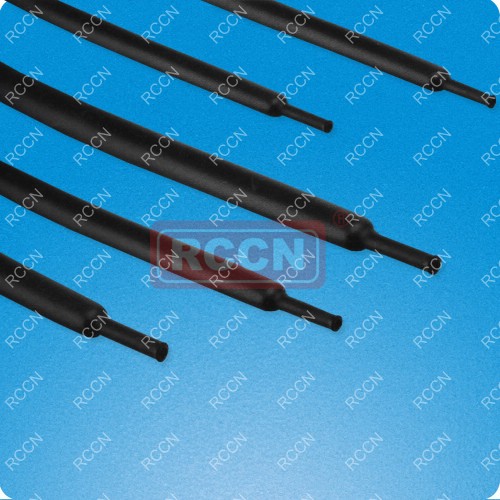

Material: PE of soft,fireproof,enviroment protected,halegon free
Suitable temperture: – 80 cent degree to 125 cent degree
Available Color: Black
Ratio of shrinking: 3:1
Item No.
 Pro-shrinking


After shrinking Thickness
Std.Pkg.
M
Metric
inner dia.		 Inner dia. D
Thickness W
Inner dia. D1
SCM-01 1/8 Φ3.2 3.2±0.6
 		 0.30±0.08 ≤1.0 0.95±0.08 200 1.0~3.1
SCM-02 3/16 Φ4.8 4.8±0.6 0.46±0.08 ≤1.6 1.10±0.08 100 1.8~4.6
SCM-03S 1/4 Φ6.4 6.4±0.6 0.50±0.08 ≤2.2 1.20±0.08 100 2.4~6.4
SCM-03L 5/16 Φ7.9 7.9±0.6 0.52±0.08 ≤2.7 1.30±0.08 100 2.9~7.7
SCM-04 3/8 Φ9.5 9.5±0.6 0.55±0.08 ≤3.2 1.40±0.08 50 3.4~9.4
SCM-05 1/2 Φ12.7 12.7±0.6 0.68±0.08 ≤4.2 1.50±1.0 1.22 meters / support 4.4~12.5
SCM-06 5/8 Φ15 15.0±0.6 0.71±0.10 ≤5.2 1.80±1.0 1.22 meters / support 5.4~14.8
SCM-07 3/4 Φ19.1 19.0±0.8 0.76±0.10 ≤6.3 2.00±1.0 1.22 meters / support 6.5~18.8
SCM-11 1 Φ25.4 25.4±0.8 0.78±0.10 ≤8.5 2.10±1.0 1.22 meters / support 8.8~25
SCM-13 1 1/4 Φ30 30.0±0.8 0.80±0.10 ≤10.2 2.20±1.0 1.22 meters / support 11~30
SCM-15 1 1/2 Φ39 39.1±1.0 0.85±0.10 ≤13.5 2.40±1.0 1.22 meters / support 14~40
SCM-17 2 Φ50 50.0±1.0 0.95±0.10 ≤17.0 2.80±1.0 1.22 meters / support 14~44
SCM-20 2 Φ52 52.0±1.0 0.95±0.10 ≤17.0 3.00±1.0 1.22 meters / support 18~49
SCM-23 2 1/2 Φ64 64.1±1.5 0.95±0.10 ≤21.0 3.00±0.15 1.22 meters / support 22~62
SCM-27 3 Φ76 75.0±1.5 1.00±0.15 ≤25.0 3.20±0.15 1.22 meters / support 26~75
SCM-35 3 1/2 Φ90 90.0±1.5 1.00±0.15 ≤30.0 3.30±0.15 1.22 meters / support 32~88
SCM-40 4 Φ100 100.01.5 1.20±0.15 ≤34.0 3.50±0.15 1.22 meters / support 36~99
SCM-50 5 Φ125 125.0±1.5 1.20±0.15 ≤42.0 3.50±0.15 1.22 meters / support 44~125











]]> http://www.wiring-ducts.com/dual-wall-heat-shrinkable-tube/feed/ 0 RCCN W3F2 http://www.wiring-ducts.com/rccn-w3f2/ http://www.wiring-ducts.com/rccn-w3f2/#comments Wed, 12 Sep 2012 06:20:11 +0000 admin http://www.wiring-ducts.com/?p=2409

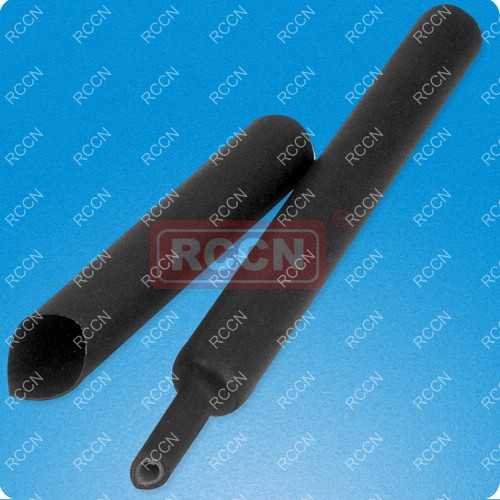

Material: PE of soft,fireproof,enviroment protected,halegon free
Inside material： hot melt adhesive
Operate temperature：-45℃ to 125℃；shrink from 70℃,finished at 125℃
Use：heated by hot gun
Color：black
Rate：3:1
Item No.


Metric
inner dia.
 Pro-shrinking

After shrinking Std.Pkg.
M
Suitable
scope
MM

Inner dia.D
Rubber
thickness
Inner dia.D1
Total
thickness W
W3F2-1/8 1/8 Φ3.2 ≥ 3.2 0.45±0.10 ≤1.0 0.95±0.15 200 1.0~3.1
W3F2-3/16 3/16 Φ4.8 ≥ 4.8 0.60±0.10 ≤1.6 1.20±0.15 100 1.8~4.6
W3F2-1/4 1/4 Φ6.4 ≥ 6.4 0.70±0.10 ≤2.2 1.35±0.15 100 2.4~6.4
W3F2-5/16 5/16 Φ7.9 ≥ 7.9 0.75±0.10 ≤2.7 1.50±0.15 100 2.9~7.7
W3F2-3/8 3/8 Φ9.5 ≥ 9.5 0.85±0.10 ≤3.2 1.65±0.15 50 3.4~9.4
W3F2-1/2 1/2 Φ12.7 ≥ 12.7 0.90±0.10 ≤4.2 1.80±0.20 1.22米/支 4.4~12.5
W3F2-5/8 5/8 Φ15 ≥ 15.0 0.90±0.10 ≤5.2 1.80±0.20 1.22米/支 5.4~14.8
W3F2-3/4 3/4 Φ19.1 ≥ 19.0 1.00±0.10 ≤6.3 2.00±0.20 1.22米/支 6.5~18.8
W3F2-1 1 Φ25.4 ≥ 25.4 1.05±0.10 ≤8.5 2.10±0.20 1.22米/支 8.8~25
W3F2-1 1/4 1 1/4 Φ30 ≥ 30.0 1.05±0.10 ≤10.2 2.20±0.20 1.22米/支 11~30
W3F2-1 1/2 1 1/ Φ38.1 ≥ 38.1 1.15±0.10 ≤13.5 2.40±0.20 1.22米/支 14~40







]]> http://www.wiring-ducts.com/rccn-w3f2/feed/ 0 RCCN KVSBI Sei Irrax Rubber Tubing http://www.wiring-ducts.com/rccn-kvsbi-sei-irrax-rubber-tubing/ http://www.wiring-ducts.com/rccn-kvsbi-sei-irrax-rubber-tubing/#comments Wed, 12 Sep 2012 06:18:24 +0000 admin http://www.wiring-ducts.com/?p=2407

Material:PE complex substance
Features:protect in high voltage
Temperature:shrinking from 70℃，≤125℃full shrinking；operate
temperature:-40℃-125℃
Color:black、yellow、green、red。
Delivery time:10 days-14 days



Item No.
Width of the
first range
mm
Pro-shrinking
 After shrinking Suitable
scope
mm
Std.Pkg.
M
Inner D W Inner Thickness
1KV
1KVSBI-30 30 31.5±1.0 0.50±0.15 ≤15 0.95±0.15 16-30 50
1KVSBI-35 35 36.5±1.5 0.55±0.15 ≤18 1.00±0.15 18-35 50
1KVSBI-40 40 40.5±1.5 0.55±0.15 ≤20 1.00±0.15 20-40 50
1KVSBI-45 45 45.5±1.5 0.55±0.15 ≤23 1.00±0.15 23-45 25
1KVSBI-50 50 50.5±2.0 0.55±0.15 ≤25 1.00±0.20 25-50 25
1KVSBI-60 60 60±3.0 0.60±0.15 ≤30 1.30±0.20 30-60 25
1KVSBI-70 70 70±3.0 0.65±0.20 ≤35 1.30±0.20 35-70 25
1KVSBI-80 80/100 80±3.0 0.65±0.20 ≤40 1.46±0.20 40-80 25
1KVSBI-90 100 90±4.0 0.65±0.20 ≤43 1.46±0.20 43-90 25
1KVSBI-100 100/120 100±4.0 0.65±0.20 ≤50 1.46±0.20 50-100 25
1KVSBI-120 150 120±4.0 0.65±0.20 ≤60 1.46±0.20 60-120 15
1KVSBI-150 180 150±4.0 0.65±0.20 ≤75 1.46±0.20 75-150 15
1KVSBI-180 200 180±4.0 0.65±0.20 ≤90 1.46±0.20 90-180 15
10KV
10KVSBI-15/6 15/12 15±0.8 1.0±0.2 ≤6 2.5±0.2 25 6-15
10KVSBI-20/8 20/15 20±0.8 1.0±0.2 ≤8 2.5±0.2 25 8-20
10KVSBI-25/10 25/18 25±0.8 1.0±0.2 ≤10 2.5±0.2 25 10-25
10KVSBI-30/12 30/20 30±0.8 1.0±0.2 ≤12 2.5±0.2 25 12-30
10KVSBI-40/16 40/30 40±0.8 1.2±0.2 ≤16 2.8±0.3 25 16-40
10KVSBI-50/20 50/35 50±2.0 1.2±0.2 ≤20 2.8±0.3 25 20-50
10KVSBI-60/24 60/45 60±3.0 1.2±0.2 ≤24 2.8±0.3 25 24-60
10KVSBI-70/28 70/50 70±3.0 1.2±0.3 ≤28 2.8±0.3 25 28-70
10KVSBI-80/32 80/55 80±3.0 1.2±0.3 ≤32 2.8±0.3 25 32-80
10KVSBI-100/40 100/75 100±4.0 1.2±0.3 ≤40 2.8±0.3 25 40-100
10KVSBI-120/48 120/85 120±4.0 1.2±0.3 ≤48 2.8±0.3 25 48-120
10KVSBI-150/60 150/105 150±4.0 1.2±0.3 ≤60 2.8±0.3 25 60-150
10KVSBI-180/72 180/120 180±5.0 1.2±0.3 ≤72 2.8±0.3 25 72-180
30KV
30KVSBI-30/15 30 30±1.0 1.9±0.5 ≤15 4.0±0.3 15 15-30
30KVSBI-35/18 30/40 35±1.0 1.9±0.5 ≤18 4.0±0.3 15 18-35
30KVSBI-40/20 40 40±1.0 1.9±0.5 ≤20 4.0±0.3 15 20-40
30KVSBI-50/25 50 50±2.0 1.9±0.5 ≤25 4.0±0.3 15 25-50
30KVSBI-60/30 60 60±2.0 1.9±0.5 ≤30 4.0±0.3 15 30-60
30KVSBI-70/35 70 70±2.0 1.9±0.5 ≤35 4.0±0.3 15 35-70
30KVSBI-80/40 80/100 80±3.0 1.9±0.5 ≤40 4.0±0.3 25 40-80
30KVSBI-100/50 100/120 100±4.0 1.9±0.5 ≤50 4.0±0.3 25 50-100
30KVSBI-120/60 150 120±4.0 1.9±0.5 ≤60 4.0±0.3 25 60-120
30KVSBI-150/75 180 150±4.0 1.9±0.5 ≤75 4.0±0.3 25 75-150







]]> http://www.wiring-ducts.com/rccn-kvsbi-sei-irrax-rubber-tubing/feed/ 0 RCCN SCM Heat Shrinkable Tubing http://www.wiring-ducts.com/adhesive-lined-semi-rigid-heat-shrinkable-tube/ http://www.wiring-ducts.com/adhesive-lined-semi-rigid-heat-shrinkable-tube/#comments Wed, 12 Sep 2012 06:15:24 +0000 admin http://www.wiring-ducts.com/?p=452



Main Material: PE of soft,fireproof,enviroment protected,halegon free
Suitable temperture: – 45 cent degree to 125 cent degree
Available Color: Black
Ratio of shrinking: 4:1
Technical Data:

Property

Test Method

Stantard
Tensile Strength(MPa) ASTM D2671 ≥14
Elongation at Brealk ASTM D2671 ≥200
Longitudinal shrink ratio .224 ≤±10%
Volume Resistance ASTM D876 ≥1×1014
Flame Resistance .224 Outer layer is self-extinct
Copper stability 158℃,168hrs .224 Pass
Water Absorption ASTM D570 ≤0.5%
Hot Melting Adhesive Property

Property

Test Method



Stantard


Water Absorption ASTM-D570 <0.2%
Vicat Softening Point ASTM-E8 95℃
Peel Strength(PE) ASTM-D1000 120N/25m
Peel Strength(AL) ASTM-D1000 80N/25m

Item No.


Metric
inner dia.
 Pro-shrinking
After Shrinkage (mm)
 Std.Pkg.
M
Suitable
scope
inch mm Inner D Max.Inner D1
Total wall
thickness
Rubber
thickness
SCM6-1.2 0.236 Φ6 6±0.08 1.27 1.30±0.15 0.56±0.15 1.22/支 1.27-6
SCM8-1.6 0.315 Φ8 8±0.08 1.65 1.65±0.15 0.76±0.15 1.22/支 1.65-8
SCM12-2.4 0.472 Φ12 12±0.08 2.41 2.00±0.15 1.02±0.15 1.22/支 2.41-12
SCM18-4.4 0.708 Φ18 18±0.08 4.45 2.50±0.15 1.37±0.15 1.22/支 4.45-18









]]> http://www.wiring-ducts.com/adhesive-lined-semi-rigid-heat-shrinkable-tube/feed/ 0 RCCN EPDM Tubing http://www.wiring-ducts.com/rccn-epdm-tubing/ http://www.wiring-ducts.com/rccn-epdm-tubing/#comments Wed, 12 Sep 2012 06:12:46 +0000 admin http://www.wiring-ducts.com/?p=2402



Material：EPDM rubber
Features：aging resistant environment，under ground,lower
temperature resistant
Operate temperature：-50℃ to 200℃
Color：black
Item No.



Size
mm



 Suitable cable
outer dia.		 Thickness
after shrinking		 Length/PCS
mm
EPDM20 Φ20 9-17 3.1±0.2 120-180
EPDM25 Φ25 10-20 3.7±0.2 180-280
EPDM32 Φ32 12-28 3.9±0.2 230-300
EPDM35 Φ35 13-31 3.9±0.2 230-280
EPDM40 Φ40 17.5-33 4.1±0.2 150-350
EPDM53 Φ53 25-50 4.5±0.2 150-230
EPDM70 Φ70 28-65 5.0±0.2 150-300
EPDM104 Φ104 43-94 5.5±0.2 230





]]> http://www.wiring-ducts.com/rccn-epdm-tubing/feed/ 0 RCCN SRT Silicone Rubber Tubing http://www.wiring-ducts.com/rccn-srt-silicone-rubber-tubing/ http://www.wiring-ducts.com/rccn-srt-silicone-rubber-tubing/#comments Wed, 12 Sep 2012 06:11:25 +0000 admin http://www.wiring-ducts.com/?p=2399

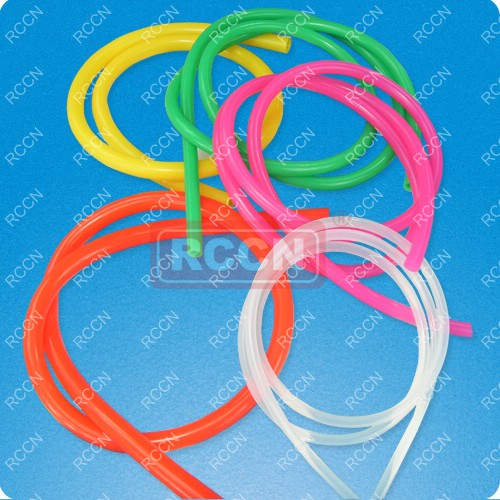

Material:silicon rubber
Features:soft、fireproof、innocuity
Operate temperature:-60℃ to 200℃；
Color:red、blue、white、gray、green、transparent



Item No.
Metric
inner dia.
 Inner dia. D

 Voltage for part no.choice V and wall thickness W

Std.Pkg.
M
mm 2500V 4000V 6000V 7000V
SRT-0.8 Φ0.8 0.8±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25
200
SRT-1 Φ1.0 1.0±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 200
SRT-1.5 Φ1.5 1.5±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 200
SRT-2 Φ2.0 2.0±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 100
SRT-2.5 Φ2.5 2.5±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 100
SRT-3 Φ3.0 3.0±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 100
SRT-3.5 Φ3.5 3.5±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 100
SRT-4 Φ4.0 4.0±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 100
SRT-4.5 Φ4.5 4.5±0.10 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 100
SRT-5 Φ5.0 5.0±0.2 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-5.5 Φ5.5 5.5±0.2 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-6 Φ6.0 6.0±0.2 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-6.5 Φ6.5 6.5±0.2 0.5±0.1 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-7 Φ7.0 7.0±0.2 - 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-7.5 Φ7.5 7.5±0.2 - 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-8 Φ8.0 8.0±0.25 - 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-9 Φ9.0 9.0±0.25 - 1.0±0.15 1.5±0.20 2.0±0.25 25
SRT-10 Φ10 10±0.25 - 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-11 Φ11 11±0.3 - 1.0±0.15 1.5±0.20 2.0±0.25 25
SRT-12 Φ12 12±0.3 - 1.0±0.15 1.5±0.20 2.0±0.25 25
SRT-13 Φ13 13±0.3 - 1.0±0.15 1.5±0.20 2.0±0.25 50
SRT-14 Φ14 14±0.3 -   1.5±0.20 2.0±0.25 50
SRT-15 Φ15 15±0.3 -   1.5±0.20 2.0±0.25 25
SRT-20 Φ20 20.0±0.3 -   1.5±0.20 2.5±0.30 10
SRT-22 Φ22 22.0±0.3 -   - 3.0±0.30 10
SRT-25 Φ25 25.0±0.3 -   - 3.0±0.30 10
SRT-30 Φ30 30.0±0.3 -   - 4.0±0.30 10
SRT-32 Φ32 32.0±0.3 -   3.0±0.20 4.0±0.30 10
SRT-38 Φ38 38.0±0.3 -   - 3.0±0.30 10







]]> http://www.wiring-ducts.com/rccn-srt-silicone-rubber-tubing/feed/ 0
