wiring duct-RCCN » wiring duct http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN Wiring Duct VDRF http://www.wiring-ducts.com/wiring-duct-vdrf/ http://www.wiring-ducts.com/wiring-duct-vdrf/#comments Mon, 10 Sep 2012 09:05:18 +0000 admin http://www.wiring-ducts.com/?p=1658

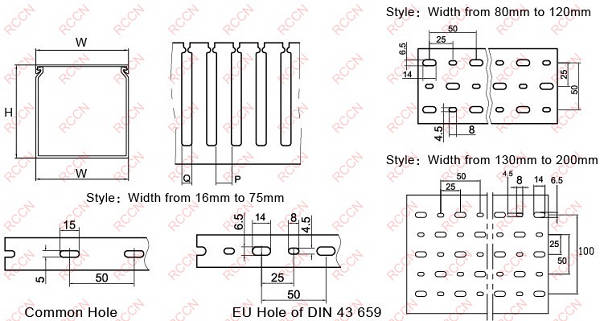

线槽图纸

Wide slot/finger design provides greater sidewall rigidity and canbe used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS





Item No.

W*H

Q

P

Wire
capability
/2.0sp

pack/M
Gray White Blue Black
VDR1616F VDR1616W VDR1616E VDR1616B 16*16 8 10 3~10pcs

300M
*VDR1520F VDR1520W VDR1520E VDR1520B 15*20 8.5 12 8~12pcs 260M
VDR2020F VDR2020W VDR2020E VDR2020B 20*20 8.5 12 10~20pcs 240M
VDR1525F VDR1525W VDR1525E VDR1525B 15*25 8 10 5~15pcs 260M
VDR2025F VDR2025W VDR2025E VDR2025B 20*25 8 10 5~15pcs 200M
VDR2525F VDR2525W VDR2525E VDR2525B 25*25 8 10 10~25pcs 200M
VDR3025F VDR3025W VDR3025E VDR3025B 30*25 8 10 12~28pcs 160M
VDR1530F VDR1530W VDR1530E VDR1530B 15*30 8 10 8~15pcs 180M
VDR2030F VDR2030W VDR2030E VDR2030B 20*30 8 12 25~35pcs 160M
VDR2530F VDR2530W VDR2530E VDR2530B 25*30 8 12 25~35pcs 160M
VDR3030F VDR3030W VDR3030E VDR3030B 30*30 8 12 25~35pcs 140M
VDR4030F VDR4030W VDR4030E VDR4030B 40*30 8 12 30~40pcs 100M
*VDR3333F VDR3333W VDR3333E VDR3333B 33*33 8 12 35~45pcs 160M
VDR2035F VDR2035W VDR2035E VDR2035B 20*35 8 12 30~40pcs 100M
VDR3535F VDR3535W VDR3535E VDR3535B 35*35 8 12 35~45pcs 112M
VDR5035F VDR5035W VDR5035E VDR5035B 50*35 8 12 40~60pcs 88M
*VDR2040F VDR2040W VDR2040E VDR2040B 20*40 8 12 16~22pcs 110M
VDR2540F VDR2540W VDR2540E VDR2540B 25*40 8 12 20~25pcs 112M
VDR4040F VDR4040W VDR4040E VDR4040B 40*40 8 12 60~70pcs 100M
VDR6040F VDR6040W VDR6040E VDR6040B 60*40 8 12 100~115pcs 68M
VDR8040F VDR8040W VDR8040E VDR8040B 80*40 8 12 120~135pcs 48M
VDR10040F VDR10040W VDR10040E VDR10040B 100*40 8 12 120~135pcs 32M
VDR2545F VDR2545W VDR2545E VDR2545B 25*45 8 12 20~25pcs 104M
VDR3345F VDR3345W VDR3345E VDR3345B 33*45 8 12 40~55pcs 108M
VDR4545F VDR4545W VDR4545E VDR4545B 45*45 8 12 60~70pcs 72M
VDR6545F VDR6545W VDR6545E VDR6545B 65*45 8 12 110~120pcs 56M
*VDR2050F VDR2050W VDR2050E VDR2050B 20*50 8 12 18~28pcs 120M
VDR2550F VDR2550W VDR2550E VDR2550B 25*50 8 12 20~30pcs 100M
VDR3050F VDR3050W VDR3050E VDR3050B 30*50 8 12 25~40pcs 84M
VDR3550F VDR3550W VDR3550E VDR3550B 35*50 8 12 40~60pcs 80M
VDR4050F VDR4050W VDR4050E VDR4050B 40*50 8 12 60~70pcs 68M
VDR4550F VDR4550W VDR4550E VDR4550B 45*50 8 12 70~80pcs 60M
VDR5050F VDR5050W VDR5050E VDR5050B 50*50 8 12 80~90pcs 60M
VDR6050F VDR6050W VDR6050E VDR6050B 60*50 8 12 100~120pcs 48M
VDR8050F VDR8050W VDR8050E VDR8050B 80*50 8 12 160~180pcs 40M
VDR10050F VDR10050W VDR10050E VDR10050B 100*50 8 12 200~250pcs 26M
VDR12555F VDR12555W VDR12555E VDR12555B 125*55 8 12 220~270pcs 20M
*VDR2060F VDR2060W VDR2060E VDR2060B 20*60 8 12 35~45pcs 100M
VDR2560F VDR2560W VDR2560E VDR2560B 25*60 8 12 40~50pcs 100M
VDR3060F VDR3060W VDR3060E VDR3060B 30*60 8 12 60~80pcs 80M
*VDR3560F VDR3560W VDR3560E VDR3560B 35*60 8 12 90~105pcs 78M
VDR4060F VDR4060W VDR4060E VDR4060B 40*60 8 12 100~115pcs 60M
VDR4560F VDR4560W VDR4560E VDR4560B 45*60 8 12 110~125pcs 30M
VDR5060F VDR5060W VDR5060E VDR5060B 50*60 8 12 120~135pcs 60M
VDR6060F VDR6060W VDR6060E VDR6060B 60*60 8 12 120~135pcs 48M
VDR8060F VDR8060W VDR8060E VDR8060B 80*60 8 12 180~210pcs 36M
VDR10060F VDR10060W VDR10060E VDR10060B 100*60 8 12 240~290pcs 28M
VDR11060F VDR11060W VDR11060E VDR11060B 110*60 8 12 250~300pcs 48M
*VDR12060F VDR12060W VDR12060E VDR12060B 120*60 8 12 260~320pcs 48M
VDR2565F VDR2565W VDR2565E VDR2565B 25*65 8 12 40~50pcs 88M
VDR3365F VDR3365W VDR3365E VDR3365B 33*65 8 12 40~70pcs 80M
VDR4565F VDR4565W VDR4565E VDR4565B 45*65 8 12 110~120pcs 52M
VDR6565F VDR6565W VDR6565E VDR6565B 65*65 8 12 180~200pcs 44M
VDR7265F VDR7265W VDR7265E VDR7265B 72*65 8 12 180~230pcs 42M
VDR5075F VDR5075W VDR5075E VDR5075B 50*75 8 12 180~210pcs 32M
VDR7575F VDR7575W VDR7575E VDR7575B 75*75 8 12 200~240pcs 24M
VDR2580F VDR2580W VDR2580E VDR2580B 25*80 8 12 100~120pcs 72M
VDR3080F VDR3080W VDR3080E VDR3080B 30*80 8 12 110~125pcs 56M
VDR3580F VDR3580W VDR3580E VDR3580B 35*80 8 12 110~130pcs 56M
VDR4080F VDR4080W VDR4080E VDR4080B 40*80 8 12 140~160pcs 48M
VDR4580F VDR4580W VDR4580E VDR4580B 45*80 8 12 140~160pcs 40M
VDR5080F VDR5080W VDR5080E VDR5080B 5080 8 12 160~180pcs 40M
VDR5580F VDR5580W VDR5580E VDR5580B 55*80 8 12 160~180pcs 32M
VDR6080F VDR6080W VDR6080E VDR6080B 60*80 8 12 180~210pcs 32M
VDR8080F VDR8080W VDR8080E VDR8080B 80*80 8 12 240~290pcs 24M
VDR10080F VDR10080W VDR10080E VDR10080B 100*80 8 12 260~350pcs 24M
VDR12080F VDR12080W VDR12080E VDR12080B 120*80 8 12 280~380pcs 16M
VDR14080F VDR14080W VDR14080E VDR14080B 140*80 8 12 350~450pcs 16M
VDR25100F VDR25100W VDR25100E VDR25100B 25*100 8 12 110~160pcs 60M
VDR33100F VDR33100W VDR33100E VDR33100B 33*100 8 12 130~165pcs 44M
VDR40100F VDR40100W VDR40100E VDR40100B 40*100 8 12 130~175pcs 40M
VDR50100F VDR50100W VDR50100E VDR50100B 50*100 8 12 220~250pcs 40M
VDR60100F VDR60100W VDR60100E VDR60100B 60*100 8 12 240~290pcs 32M
VDR75100F VDR75100W VDR75100E VDR75100B 75*100 8 12 260~350pcs 24M
VDR80100F VDR80100W VDR80100E VDR80100B 80*100 8 12 260~350pcs 24M
VDR100100F VDR100100W VDR100100E VDR100100B 100*100 8 12 300~400pcs 24M
VDR120100F VDR120100W VDR120100E VDR120100B 120*100 8 12 350~450pcs 16M
VDR150100F VDR150100W VDR150100E VDR150100B 150*100 8 12 400~650pcs 16M
*VDR200100F VDR200100W VDR200100E VDR200100B 200*100 8 12 600~800pcs 16M
VDR100130F VDR100130W VDR100130E VDR100130B 100*130 8 12 350~450pcs 24M
*VDR200150F VDR200150W VDR200150E VDR200150B 200*150 8 12 900~1200pcs 10M

















Features Advantages Benefits
Wide finger and slot design
Can be used with a wide
range of wire and		 Finger 12mm Slot 8 mm,Rigid fingers bundle sizes
Rohs approved
Enviroment-friendly
Material		 Approved by EU Rohs,
Compliant with US UL 94V-0,good
inflaming		 Eliminates health concerns associated with PVC
that contains lead
Smooth rounded edges Smooth edges in duct slots and at top of duct fingers Protects hands and wiring/cabling from abrasion
Non-slip cover (co-extruded
non-slip liner inside
duct covers)		 Will not slide easily when installed on
duct base		 Cover stays in place during shipment,
vibration and when in a vertical orientation,
eliminating rework
Flush cover designGreater
capacity than traditional
duct designs		 Cover sits flush with sidewall Can potentially use a smaller size for
same number of wires
Provides a neat and finished appearance
Slot smooth Smooth adge after punching No need to get offer abrasion, save time
V-shaped slot lead-in
V-shape funnels wires
into slot for		 easier insertion Speeds wire installation
Restricted slot designOnce
inserted wires are retained
in the slot		 with or without the cover being installed Eliminates hassle and saves time during
installation and maintenance
Four different colors Suitable to different environments using Can meet different customers’request in
different project
Approved by many
certificates		 America UL,Canada CULUS, EuropeCE ,
ROHS,REACH
Flamility and low smoking certificate		 Can provide related certificates of the
projects or parts need



RCCN VDRFZ Wide Slot Wiring Duct









线槽图纸

Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of , it makes the fingers easy to separate from the no need to us cutter.
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS


Item No.

W*H

Slot
width
Q

Finger
width
P

Wire
capability
/2.0sp

PACK/M
Gray White Blue Black
VDR2525FZ VDR2525FZW VDR2525FZE VDR2525FZB 25*25 8 10 10~25pcs 200M
VDR2530FZ VDR2530FZW VDR2530FZE VDR2530FZB 25*30 8 12 25~35pcs 160M
VDR3030FZ VDR3030FZW VDR3030FZE VDR3030FZB 30*30 8 12 25~35pcs 140M
VDR2540FZ VDR2540FZW VDR2540FZE VDR2540FZB 25*40 8 12 20~25pcs 112M
VDR4040FZ VDR4040FZW VDR4040FZE VDR4040FZB 40*40 8 12 60~70pcs 100M
VDR6040FZ VDR6040FZW VDR6040FZE VDR6040FZB 60*40 8 12 100~115pcs 68M
VDR8040FZ VDR8040FZW VDR8040FZE VDR8040FZB 80*40 8 12 120~135pcs 48M
VDR10040FZ VDR10040FZW VDR10040FZE VDR10040FZB 100*40 8 12 120~135pcs 32M
VDR2550FZ VDR2550FZW VDR2550FZE VDR2550FZB 25*50 8 12 20~30pcs 100M
VDR3050FZ VDR3050FZW VDR3050FZE VDR3050FZB 30*50 8 12 25~40pcs 84M
VDR3550FZ VDR3550FZW VDR3550FZE VDR3550FZB 35*50 8 12 40~60pcs 80M
VDR4050FZ VDR4050FZW VDR4050FZE VDR4050FZB 40*50 8 12 60~70pcs 68M
VDR4550FZ VDR4550FZW VDR4550FZE VDR4550FZB 45*50 8 12 70~80pcs 60M
VDR5050FZ VDR5050FZW VDR5050FZE VDR5050FZB 50*50 8 12 80~90pcs 60M
VDR6050FZ VDR6050FZW VDR6050FZE VDR6050FZB 60*50 8 12 100~120pcs 48M
VDR8050FZ VDR8050FZW VDR8050FZE VDR8050FZB 80*50 8 12 160~180pcs 40M
VDR10050FZ VDR10050FZW VDR10050FZE VDR10050FZB 100*50 8 12 200~250pcs 26M
VDR2560FZ VDR2560FZW VDR2560FZE VDR2560FZB 25*60 8 12 40~50pcs 100M
VDR3060FZ VDR3060FZW VDR3060FZE VDR3060FZB 30*60 8 12 60~80pcs 80M
VDR4060FZ VDR4060FZW VDR4060FZE VDR4060FZB 40*60 8 12 100~115pcs 60M
VDR4560FZ VDR4560FZW VDR4560FZE VDR4560FZB 45*60 8 12 110~125pcs 30M
VDR5060FZ VDR5060FZW VDR5060FZE VDR5060FZB 50*60 8 12 120~135pcs 60M
VDR6060FZ VDR6060FZW VDR6060FZE VDR6060FZB 60*60 8 12 120~135pcs 48M
VDR8060FZ VDR8060FZW VDR8060FZE VDR8060FZB 80*60 8 12 180~210pcs 36M
VDR10060FZ VDR10060FZW VDR10060FZE VDR10060FZB 100*60 8 12 240~290pcs 28M
VDR11060FZ VDR11060FZW VDR11060FZE VDR11060FZB 110*60 8 12 250~300pcs 48M
VDR12060FZ VDR12060FZW VDR12060FZE VDR12060FZB 120*60 8 12 260~320pcs 48M
VDR2580FZ VDR2580FZW VDR2580FZE VDR2580FZB 25*80 8 12 100~120pcs 72M
VDR3080FZ VDR3080FZW VDR3080FZE VDR3080FZB 30*80 8 12 110~125pcs 56M
VDR3580FZ VDR3580FZW VDR3580FZE VDR3580FZB 35*80 8 12 110~130pcs 56M
VDR4080FZ VDR4080FZW VDR4080FZE VDR4080FZB 40*80 8 12 140~160pcs 48M
VDR4580FZ VDR4580FZW VDR4580FZE VDR4580FZB 45*80 8 12 140~160pcs 40M
VDR5080FZ VDR5080FZW VDR5080FZE VDR5080FZB 5080 8 12 160~180pcs 40M
VDR5580FZ VDR5580FZW VDR5580FZE VDR5580FZB 55*80 8 12 160~180pcs 32M
VDR6080FZ VDR6080FZW VDR6080FZE VDR6080FZB 60*80 8 12 180~210pcs 32M
VDR8080FZ VDR8080FZW VDR8080FZE VDR8080FZB 80*80 8 12 240~290pcs 24M
VDR10080FZ VDR10080FZW VDR10080FZE VDR10080FZB 100*80 8 12 260~350pcs 24M
VDR12080FZ VDR12080FZW VDR12080FZE VDR12080FZB 120*80 8 12 280~380pcs 16M
VDR14080FZ VDR14080FZW VDR14080FZE VDR14080FZB 140*80 8 12 350~450pcs 16M
VDR25100FZ VDR25100FZW VDR25100FZE VDR25100FZB 25*100 8 12 110~160pcs 60M
VDR33100FZ VDR33100FZW VDR33100FZE VDR33100FZB 33*100 8 12 130~165pcs 44M
VDR40100FZ VDR40100FZW VDR40100FZE VDR40100FZB 40*100 8 12 130~175pcs 40M
VDR50100FZ VDR50100FZW VDR50100FZE VDR50100FZB 50*100 8 12 220~250pcs 40M
VDR60100FZ VDR60100FZW VDR60100FZE VDR60100FZB 60*100 8 12 240~290pcs 32M
VDR75100FZ VDR75100FZW VDR75100FZE VDR75100FZB 75*100 8 12 260~350pcs 24M
VDR80100FZ VDR80100FZW VDR80100FZE VDR80100FZB 80*100 8 12 260~350pcs 24M
VDR100100FZ VDR100100FZW VDR100100FZE VDR100100FZB 100*100 8 12 300~400pcs 24M
VDR120100FZ VDR120100FZW VDR120100FZE VDR120100FZB 120*100 8 12 350~450pcs 16M
VDR150100FZ VDR150100FZW VDR150100FZE VDR150100FZB 150*100 8 12 400~650pcs 16M
*VDR200100FZ VDR200100FZW VDR200100FZE VDR200100FZB 200*100 8 12 600~900pcs 12M
*VDR200150FZ VDR200150FZW VDR200150FZE VDR200150FZB 200*150 8 12 900~1200pcs 10M





















Features Advantages Benefits
Wide slot & wide finger Finger width 12mm，Slot width 8mm,High rigid fingers Suitable to big wire or bundles wire
Enviroment-friendly
and flammability
resisit material		 Products approved by EU ROHS，
compliant with UL,good flammability resisit		 Eliminates health concerns associated
with PVC that contains lead Eliminates
the need to deburr saving installation time
Smooth rounded edges Exclusive RCCN ® process rounds the
edges in duct slots and at top of duct fingers		 Protects hands and wiring/cabling from abrasion
Non-slip cover (co-extruded
non-slip liner inside duct
covers)		 Non-slip cover (co-extruded
non-slip liner inside duct covers)		 Cover stays in place during shipment,
vibration and when in a vertical orientation,
eliminating rework
Double scoreline Upper scoreline at base of finger allows fingers
to be broken out without tools
Lower scoreline at base of duct allows sidewall
sections to be removed		 Allows quick modification for larger cabling
bundles saving installation time leading to a lower
installed cost
Easier to create tee and corner junctions with full
wire carrying capacity
Flush cover design Greater capacity than traditional duct designs
Cover sits flush with sidewall		 Can potentially use a smaller size wiring duct for
same number of wires
Provides a neat and finished appearance
Smooth edge after punching Provides a smooth burr-free edge when
sidewalls or fingers are broken out		 Eliminates the need to deburr saving
installation time
V-shaped slot lead-in V-shape funnels wires into slot for
easier insertion		 Speeds wire installation
Double restricted slot design Once inserted wires are retained in the slot
with or without the cover being installed		 Eliminates hassle and saves time during
installation and maintenance
Four different colors
are available		 Suitable to different projects request Can meet customers request in
different project conditions in time
Approved by many
nternational tests		 America UL,Canada CULUS, EuropeCE ,
ROHS,REACH
Flamility and low smoking certificate		 Can provide related certificates of the
projects or parts need








RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M











]]> http://www.wiring-ducts.com/wiring-duct-vdrf/feed/ 0 RCCN HVDRF Wiring Duct http://www.wiring-ducts.com/wiring-duct-hvdrf/ http://www.wiring-ducts.com/wiring-duct-hvdrf/#comments Mon, 10 Sep 2012 08:31:00 +0000 admin http://www.wiring-ducts.com/?p=722



Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware

Certificates:UL:E306674 CE:EN50085 RoHS,REACH

Made of rigid PVC

UL Recognized continuous use temperature: 50°C (122°F)

UL94 Flammability Rating of V-0

Provided with mounting holes

Available color:gray.white.blue.black and other special colors

Work Temperature:-40°C to 65°C

Special length come with MOQ request

Comment：gray is the common color, other color need more MOQ



Item No. W*H  Slot

width

Q

 Finger

width

P

 Wire

capability

/2.0sp

 PACK
Gray White Blue Black
HVDR1616F HVDR1616W HVDR1616E HVDR1616B 16*16 5 5 3~10pcs 300M
HVDR1520F HVDR1520W HVDR1520E HVDR1520B 15*20 4 6 8~12pcs 260M
HVDR2020F HVDR2020W HVDR2020E HVDR2020B 20*20 4 6 10~20pcs 240M
HVDR4020F HVDR4020W HVDR4020E HVDR4020B 40*20 4 6 12~28pcs 140M
HVDR1525F HVDR1525W HVDR1525E HVDR1525B 15*25 5 6 5~15pcs 260M
HVDR2025F HVDR2025W HVDR2025E HVDR2025B 20*20 4 6 5~15pcs 200M
HVDR2525F HVDR2525W HVDR2525E HVDR2525B 25*25 4 6 10~25pcs 200M
HVDR3025F HVDR3025W HVDR3025E HVDR3025B 30*25 4 6 12~28pcs 160M
HVDR5025F HVDR5025W HVDR5025E HVDR5025B 50*25 4 6 20~30pcs 100M
HVDR2530F HVDR2530W HVDR2530E HVDR2530B 25*30 4 6 25~35pcs 160M
HVDR3030F HVDR3030W HVDR3030E HVDR3030B 30*30 4 6 25~35pcs 140M
HVDR4030F HVDR4030W HVDR4030E HVDR4030B 40*30 4 6 30~40pcs 100M
HVDR2233F HVDR2233W HVDR2233E HVDR2233B 22*33 5 6 30~45pcs 160M
*HVDR3333F HVDR3333W HVDR3333E HVDR3333B 33*33 4 6 35~45pcs 160M
HVDR2035F HVDR2035W HVDR2035E HVDR2035B 20*35 4 6 30~40pcs 100M
HVDR3535F HVDR3535W HVDR3535E HVDR3535B 35*35 4 6 35~45pcs 112M
HVDR5035F HVDR5035W HVDR5035E HVDR5035B 50*35 4 6 40~60pcs 88M
*HVDR2040F HVDR2040W HVDR2040E HVDR2040B 20*40 4 6 16~22pcs 110M
HVDR2540F HVDR2540W HVDR2540E HVDR2540B 25*40 4 6 20~25pcs 112M
HVDR4040F HVDR4040W HVDR4040E HVDR4040B 40*40 4 6 60~70pcs 100M
HVDR6040F HVDR6040W HVDR6040E HVDR6040B 60*40 4 6 100~115pcs 68M
HVDR8040F HVDR8040W HVDR8040E HVDR8040B 80*40 4 6 120~135pcs 48M
HVDR10040F HVDR10040W HVDR10040E HVDR10040B 100*40 4 6 120~135pcs 32M
HVDR2545F HVDR2545W HVDR2545E HVDR2545B 25*45 4 6 20~25pcs 104M
HVDR3345F HVDR3345W HVDR3345E HVDR3345B 33*45 4 6 40~55pcs 108M
HVDR4545F HVDR4545W HVDR4545E HVDR4545B 45*45 4 6 60~70pcs 72M
HVDR6545F HVDR6545W HVDR6545E HVDR6545B 65*45 4 6 110~120pcs 56M
*HVDR2050F HVDR2050W HVDR2050E HVDR2050B 20*50 4 6 18~28pcs 100M
HVDR2550F HVDR2550W HVDR2550E HVDR2550B 25*50 4 6 20~30pcs 100M
HVDR3050F HVDR3050W HVDR3050E HVDR3050B 30*50 4 6 25~40pcs 84M
HVDR3550F HVDR3550W HVDR3550E HVDR3550B 35*50 4 6 40~60pcs 80M
HVDR4050F HVDR4050W HVDR4050E HVDR4050B 40*50 4 6 60~70pcs 68M
HVDR4550F HVDR4550W HVDR4550E HVDR4550B 45*50 4 6 70~80pcs 60M
HVDR5050F HVDR5050W HVDR5050E HVDR5050B 50*50 4 6 80~90pcs 50M
HVDR5550F HVDR5550W HVDR5550E HVDR5550B 55*50 4 6 80~90pcs 48M
HVDR6050F HVDR6050W HVDR6050E HVDR6050B 60*50 4 6 100~120pcs 48M
HVDR8050F HVDR8050W HVDR8050E HVDR8050B 80*50 4 6 160~180pcs 40M
HVDR10050F HVDR10050W HVDR1005E HVDR10050B 100*50 4 6 200~250pcs 26M
HVDR12555F HVDR12555W HVDR12555E HVDR12555B 125*55 4 6 220~270pcs 20M
HVDR2060F HVDR2060W HVDR2060E HVDR2060B 20*60 4 6 35~45pcs 100M
HVDR2560F HVDR2560W HVDR2560E HVDR2560B 25*60 4 6 40~50pcs 100M
HVDR3060F HVDR3060W HVDR3060E HVDR3060B 30*60 4 6 60~80pcs 80M
*HVDR3560F HVDR3560W HVDR3560E HVDR3560B 35*60 4 6 90~105pcs 78M
HVDR4060F HVDR4060W HVDR4060E HVDR4060B 40*60 4 6 100~115pcs 60M
HVDR4560F HVDR4560W HVDR4560E HVDR4560B 45*60 4 6 110~125pcs 30M
HVDR5060F HVDR5060W HVDR5060E HVDR5060B 50*60 4 6 120~135pcs 60M
HVDR6060F HVDR6060W HVDR6060E HVDR6060B 60*60 4 6 120~135pcs 48M
HVDR8060F HVDR8060W HVDR8060E HVDR8060B 80*60 4 6 180~210pcs 36M
HVDR10060F HVDR10060W HVDR10060E HVDR10060B 100*60 4 6 240~290pcs 28M
HVDR11060F HVDR11060W HVDR11060E HVDR11060B 110*60 4 6 250~300pcs 48M
*HVDR12060F HVDR12060W HVDR12060E HVDR12060B 120*60 4 6 260~320pcs 48M
HVDR15060F HVDR15060W HVDR15060E HVDR15060B 150*60 4 6 300~360pcs 16M
HVDR2565F HVDR2565W HVDR2565E HVDR2565B 25*65 4 6 40~50pcs 88M
HVDR3365F HVDR3365W HVDR3365E HVDR3365B 33*65 4 6 40~70pcs 80M
HVDR4565F HVDR4565W HVDR4565E HVDR4565B 45*65 4 6 110~120pcs 52M
HVDR6565F HVDR6565W HVDR6565E HVDR6565B 65*65 4 6 180~200pcs 44M
HVDR7265F HVDR7265W HVDR7265E HVDR7265B 72*65 4 6 180~230pcs 42M
HVDR5075F HVDR5075W HVDR5075E HVDR5075B 50*75 4 6 180~210pcs 42M
HVDR7575F HVDR7575W HVDR7575E HVDR7575B 75*75 4 6 200~240pcs 40M
HVDR2580F HVDR2580W HVDR2580E HVDR2580B 25*80 4 6 100~120pcs 72M
HVDR3080F HVDR3080W HVDR3080E HVDR3080B 30*80 4 6 110~125pcs 56M
HVDR3580F HVDR3580W HVDR3580E HVDR3580B 35*80 4 6 110~130pcs 56M
HVDR4080F HVDR4080W HVDR4080E HVDR4080B 40*80 4 6 140~160pcs 48M
HVDR4580F HVDR4580W HVDR4580E HVDR4580B 45*80 4 6 140~160pcs 40M
HVDR5080F HVDR5080W HVDR5080E HVDR5080B 50*80 4 6 160~180pcs 40M
HVDR5580F HVDR5580W HVDR5580E HVDR5580B 55*80 4 6 160~180pcs 32M
HVDR6080F HVDR6080W HVDR6080E HVDR6080B 60*80 4 6 180~210pcs 32M
HVDR8080F HVDR8080W HVDR8080E HVDR8080B 80*80 4 6 240~290pcs 24M
HVDR10080F HVDR10080W HVDR10080E HVDR10080B 100*80 4 6 260~350pcs 24M
HVDR12080F HVDR12080W HVDR12080E HVDR12080B 120*80 4 6 280~380pcs 16M
HVDR14080F HVDR14080W HVDR14080E HVDR14080B 140*80 4 6 350~450pcs 16M
HVDR25100F HVDR25100W HVDR25100E HVDR25100B 25*100 4 6 110~160pcs 60M
HVDR33100F HVDR33100W HVDR33100E HVDR33100B 33*100 4 6 130~175pcs 44M
HVDR40100F HVDR40100W HVDR40100E HVDR40100B 40*100 4 6 130~175pcs 40M
HVDR50100F HVDR50100W HVDR50100E HVDR50100B 50*100 4 6 220~250pcs 40M
HVDR60100F HVDR60100W HVDR60100E HVDR60100B 60*100 4 6 240~290pcs 32M
HVDR70100F HVDR70100W HVDR70100E HVDR70100B 70*100 4 6 250~310pcs 24M
HVDR75100F HVDR75100W HVDR75100E HVDR75100B 75*100 4 6 260~350pcs 24M
HVDR80100F HVDR80100W HVDR80100E HVDR80100B 80*100 4 6 260~350pcs 24M
HVDR100100F HVDR100100W HVDR100100E HVDR100100B 100*100 4 6 300~400pcs 24M
HVDR120100F HVDR120100W HVDR120100E HVDR120100B 120*100 4 6 350~450pcs 16M
HVDR150100F HVDR150100W HVDR150100E HVDR150100B 150*100 4 6 400~650pcs 16M
*HVDR200100F HVDR200100W HVDR200100E HVDR200100B 200*100 4 6 600~800pcs 16M
HVDR100130F HVDR100130W HVDR100130E HVDR100130B 100*130 4 6 350~450pcs 16M
*HVDR200150F HVDR200150W HVDR200150E HVDR200150B 200*150 4 6 900~1200pcs 16M















RCCN  Din Rails



Material:high quality and strength cold rolled steel with electroplate

EN50022 Product standard: EN50022

Color: yellow plated nickle,silver plated zinc

Operated temperature:-40°C standing heat to 100°C

Use way: fixed on the panel then installed with electric parts

Features: perfect design,with huge pressure,exactly dia., rust resistant

Special length or special hole come with MOQ., Rohs approved products are available.

TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.

Outer width/Outer height/

Thickness/Length

 Material Length

per pcs

 Packing/

carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M







]]> http://www.wiring-ducts.com/wiring-duct-hvdrf/feed/ 0 RCCN VDRC Wide Close Slot Wiring Duct http://www.wiring-ducts.com/close-wiring-duct-vdc/ http://www.wiring-ducts.com/close-wiring-duct-vdc/#comments Mon, 10 Sep 2012 08:29:05 +0000 admin http://www.wiring-ducts.com/?p=700



Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。Made of rigid PVC
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request






Item No.

W*H

Q

P

Wire
capability
/2.0sp

pack/M
Gray White Blue Black
VDR1520C VDR1520CW VDR1520CE VDR1520CB 15*20 8.5 11.5 8-12pcs 260M
VDR2020C VDR2020CW VDR2020CE VDR2020CB 20*20 8.5 11.5 10-20pcs 240M
VDR4020C VDR4020CW VDR4020CE VDR4020CB 40*20 8.5 11.5 15-30pcs
140M
VDR1525C VDR1525CW VDR1525CE VDR1525CB 15*25 8.5 11.5 5-15pcs 260M
VDR2025C VDR2025CW VDR2025CE VDR2025CB 20*25 8.5 11.5 5-15pcs 200M
VDR2525C VDR2525CW VDR2525CE VDR2525CB 25*25 8.5 11.5 10-25pcs 200M
VDR3025C VDR3025CW VDR3025CE VDR3025CB 30*25 8.5 11.5 12-28pcs 160M
VDR4025C VDR4025CW VDR4025CE VDR4025CB 40*25 8.5 11.5 20-35pcs 100M
VDR5025C VDR5025CW VDR5025CE VDR5025CB 50*25 8.5 11.5 12-25pcs 100M
VDR1530C VDR1530CW VDR1530CE VDR1530CB 15*30 8.5 11.5 8-15pcs 180M
VDR2030C VDR2030CW VDR2030CE VDR2030CB 20*30 8.5 11.5 25~35pcs 180M
VDR2530C VDR2530CW VDR2530CE VDR2530CB 25*30 8.5 11.5 25~35pcs 160M
VDR3030C VDR3030CW VDR3030CE VDR3030CB 30*30 8.5 11.5 25~35pcs 140M
VDR4030C VDR4030CW VDR4030CE VDR4030CB 40*30 8.5 11.5 30~40pcs 100M
VDR5030C VDR5030CW VDR5030CE VDR5030CB 50*30 8.5 11.5 40-50pcs 80M
VDR6030C VDR6030CW VDR6030CE VDR6030CB 60*30 8.5 11.5 50-60pcs 60M
VDR2233C VDR2233CW VDR2233CE VDR2233CB 22*33 8.5 11.5 25-35pcs 160M
VDR3333C VDR3333CW VDR3333CE VDR3333CB 33*33 8.5 11.5 35-45pcs 160M
VDR2035C VDR2035CW VDR2035CE VDR2035CB 20*35 8.5 11.5 30~40pcs 100M
VDR3535C VDR3535CW VDR3535CE VDR3535CB 35*35 8.5 11.5 35~45pcs 112M
VDR5035C VDR5035CW VDR5035CE VDR5035CB 50*35 8.5 11.5 40~60pcs 88M
VDR2040C VDR2040CW VDR2040CE VDR2040CB 20*40 8.5 11.5 16~22pcs 110M
VDR2540C VDR2540CW VDR2540CE VDR2540CB 25*40 8.5 11.5 20~25pcs 112M
VDR3540C VDR3540CW VDR3540CE VDR3540CB 35*40 8.5 11.5 35-45pcs 100M
VDR4040C VDR4040CW VDR4040CE VDR4040CB 40*40 8.5 11.5 60~70pcs 100M
VDR6040C VDR6040CW VDR6040CE VDR6040CB 60*40 8.5 11.5 100~115pcs 68M
VDR8040C VDR8040CW VDR8040CE VDR8040CB 80*40 8.5 11.5 120~135pcs 48M
VDR10040C VDR10040CW VDR10040CE VDR10040CB 100*40 8.5 11.5 120~135pcs 32M
VDR12040C VDR15040CW VDR12040CE VDR12040CB 120*40 8.5 11.5 140-155pcs
/
VDR2545C VDR2545CW VDR2545CE VDR2545CB 25*45 8.5 11.5 20~25pcs 104M
VDR3345C VDR3345CW VDR3345CE VDR3345CB 33*45 8.5 11.5 40~55pcs 108M
VDR4545C VDR4545CW VDR4545CE VDR4545CB 45*45 8.5 11.5 60~70pcs 72M
VDR6545C VDR6545CW VDR6545CE VDR6545CB 65*45 8.5 11.5 110~120pcs 56M
VDR2050C VDR2050CW VDR2050CE VDR2050CB 20*50 8.5 11.5 18~28pcs 120M
VDR2550C VDR2550CW VDR2550CE VDR2550CB 25*50 8.5 11.5 20~30pcs 100M
VDR3050C VDR3050CW VDR3050CE VDR3050CB 30*50 8.5 11.5 25~40pcs 84M
VDR3550C VDR3550CW VDR3550CE VDR3550CB 35*50 8.5 11.5 40~60pcs 80M
VDR4050C VDR4050CW VDR4050CE VDR4050CB 40*50 8.5 11.5 60~70pcs 68M
VDR4550C VDR4550CW VDR4550CE VDR4550CB 45*50 8.5 11.5 70~80pcs 60M
VDR5050C VDR5050CW VDR5050CE VDR5050CB 50*50 8.5 11.5 80~90pcs 60M
VDR5550C VDR5550CW VDR5550CE VDR5550CB 55*50 8.5 11.5 90~100pcs 60M
VDR6050C VDR6050CW VDR6050CE VDR6050CB 60*50 8.5 11.5 100~120pcs 48M
VDR7550C VDR7550CW VDR7550CE VDR7550CB 75*50 8.5 11.5 150-170pcs 40M
VDR8050C VDR8050CW VDR8050CE VDR8050CB 80*50 8.5 11.5 160~180pcs 40M
VDR10050C VDR10050CW VDR10050CE VDR10050CB 100*50 8.5 11.5 200~250pcs 26M
VDR12555C VDR12555CW VDR12555CE VDR12555CB 125*55 8.5 11.5 220-270pcs 20M
VDR2060C VDR2060CW VDR2060CE VDR2060CB 20*60 8.5 11.5 35-45pcs 100M
VDR2560C VDR2560CW VDR2560CE VDR2560CB 25*60 8.5 11.5 40~50pcs 100M
VDR3060C VDR3060CW VDR3060CE VDR3060CB 30*60 8.5 11.5 60~80pcs 80M
*VDR3560C VDR3560CW VDR3560CE VDR3560CB 35*60 8.5 11.5 90~105pcs 60M
VDR4060C VDR4060CW VDR4060CE VDR4060CB 40*60 8.5 11.5 100~115pcs 60M
VDR4560C VDR4560CW VDR4560CE VDR4560CB 45*60 8.5 11.5 110~125pcs 30M
VDR5060C VDR5060CW VDR5060CE VDR5060CB 50*60 8.5 11.5 120~135pcs 60M
VDR6060C VDR6060CW VDR6060CE VDR6060CB 60*60 8.5 11.5 120~135pcs 48M
VDR8060C VDR8060CW VDR8060CE VDR8060CB 80*60 8.5 11.5 180~210pcs 36M
VDR10060C VDR10060CW VDR10060CE VDR10060CB 100*60 8.5 11.5 240~290pcs 28M
VDR11060C VDR11060CW VDR11060CE VDR11060CB 110*60 8.5 11.5 250~300pcs 48M
*VDR12060C VDR12060CW VDR12060CE VDR12060CB 120*60 8.5 11.5 260~320pcs 48M
VDR15060C VDR15060CW VDR15060CE VDR15060CB 150*60 8.5 11.5 300~360pcs 16M
VDR2565C VDR2565CW VDR2565CE VDR2565CB 25*65 8.5 11.5 40~50pcs 88M
VDR3365C VDR3365CW VDR3365CE VDR3365CB 33*65 8.5 11.5 40~70pcs 80M
VDR4565C VDR4565CW VDR4565CE VDR4565CB 45*65 8.5 11.5 110~120pcs 52M
VDR6565C VDR6565CW VDR6565CE VDR6565CB 65*65 8.5 11.5 180~200pcs 44M
VDR7265C VDR7265CW VDR7265CE VDR7265CB 72*65 8.5 11.5 180-230pcs
/
VDR5075C VDR5075CW VDR5075CE VDR5075CB 50*75 8.5 11.5 180~210pcs 32M
VDR7575C VDR7575CW VDR7575CE VDR7575CB 75*75 8.5 11.5 200~240pcs 24M
VDR10075C VDR10075CW VDR10075CE VDR10075CB 100*75 10 10 250-290pcs 24M
VDR2580C VDR2580CW VDR2580CE VDR2580CB 25*80 10 10 100~120pcs 72M
VDR3080C VDR3080CW VDR3080CE VDR3080CB 30*80 10 10 110~125pcs 56M
VDR3580C VDR3580CW VDR3580CE VDR3580CB 35*80 10 10 110~130pcs 56M
VDR4080C VDR4080CW VDR4080CE VDR4080CB 40*80 10 10 140~160pcs 48M
VDR4580C VDR4580CW VDR4580CE VDR4580CB 45*80 10 10 140~160pcs 40M
VDR5080C VDR5080CW VDR5080CE VDR5080CB 50*80 10 10 160~180pcs 40M
VDR5580C VDR5580CW VDR5580CE VDR5580CB 55*80 10 10 160~180pcs 32M
VDR6080C VDR6080CW VDR6080CE VDR6080CB 60*80 10 10 180~210pcs 32M
VDR8080C VDR8080CW VDR8080CE VDR8080CB 80*80 10 10 240~290pcs 24M
VDR10080C VDR10080CW VDR10080CE VDR10080CB 100*80 10 10 260~350pcs 24M
VDR12080C VDR12080CW VDR12080CE VDR12080CB 120*80 10 10 280~380pcs 16M
VDR14080C VDR14080CW VDR14080CE VDR14080CB 140*80 10 10 350~450pcs 16M
VDR25100C VDR25100CW VDR25100CE VDR25100CB 25*100 10 10 110~160pcs 60M
VDR33100C VDR33100CW VDR33100CE VDR33100CB 33*100 10 10 130~165pcs 44M
VDR40100C VDR40100CW VDR40100CE VDR40100CB 40*100 10 10 130~175pcs 40M
VDR50100C VDR50100CW VDR50100CE VDR50100CB 50*100 10 10 220~250pcs 40M
VDR60100C VDR60100CW VDR60100CE VDR60100CB 60*100 10 10 240~290pcs 32M
VDR70100C VDR70100CW VDR70100CE VDR70100CB 70*100 10 10 250~280pcs 24M
VDR75100C VDR75100CW VDR75100CE VDR75100CB 75*100 10 10 260~350pcs 24M
VDR80100C VDR80100CW VDR80100CE VDR80100CB 80*100 10 10 260~350pcs 24M
VDR100100C VDR100100CW VDR100100CE VDR100100CB 100*100 10 10 300~400pcs 24M
VDR120100C VDR120100CW VDR120100CE VDR120100CB 120*100 10 10 350~450pcs 20M
VDR150100C VDR150100CW VDR150100CE VDR150100CB 150*100 10 10 400~650pcs 16M
VDR100130C VDR100130CW VDR100130CE VDR100130CB 100*130 10 10 350-450pcs 16M
VDR200100C VDR200100CW VDR200100CE VDR200100CB 200*100 10 10 600-800pcs
/
VDR200150C VDR200150CW VDR200150CE VDR200150CB 200*150 10 10 900-1200pcs
/




















RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS



Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M









]]> http://www.wiring-ducts.com/close-wiring-duct-vdc/feed/ 0 RCCN Solid Wiring Duct http://www.wiring-ducts.com/solid-wiring-duct/ http://www.wiring-ducts.com/solid-wiring-duct/#comments Mon, 10 Sep 2012 08:28:25 +0000 admin http://www.wiring-ducts.com/?p=2138

Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。Made of rigid PVC
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Special length come with MOQ request






Item No.

W*H

    Wire
capability/2.0sp

Pack/M
Gray White Blue Black
SDR1616 SDR1616W SDR1616E SDR1616B 16*16 3~10pcs 300M
*SDR2516 SDR2516W SDR2516E SDR2516B 25*16 5~15pcs 240M
*SDR4016 SDR4016W SDR4016E SDR4016B 40*16 15~30pcs 200M
SDR1520 SDR1520W SDR1520E SDR1520B 15*20 8~12pcs 260M
SDR2020 SDR2020W SDR2020E SDR2020B 20*20 10~20pcs 240M
SDR4020 SDR4020W SDR4020E SDR4020B 40*20 20-30pcs 140M
SDR1525 SDR1525W SDR1525E SDR1525B 15*25 5~15pcs 260M
SDR2025 SDR2025W SDR2025E SDR2025B 20*25 5~15pcs 200M
SDR2525 SDR2525W SDR2525E SDR2525B 25*25 10~25pcs 200M
SDR3025 SDR3025W SDR3025E SDR3025B 30*25 12~28pcs 160M
*SDR4025 SDR4025W SDR4025E SDR4025B 40*25 20~25pcs 120M
*SDR5025 SDR5025W SDR5025E SDR5025B 50*25 20~25pcs 100M
SDR1530 SDR1530W SDR1530E SDR1530B 15*30 8~15pcs 200M
SDR2030 SDR2030W SDR2030E SDR2030B 20*30 25~35pcs 180M
SDR2530 SDR2530W SDR2530E SDR2530B 25*30 25~35pcs 160M
SDR3030 SDR3030W SDR3030E SDR3030B 30*30 25~35pcs 140M
SDR4030 SDR4030W SDR4030E SDR4030B 40*30 30~40pcs 100M
GDR5030 GDR5030W GDR5030E GDR5030B 50*30 40-50pcs 80M
GDR6030 GDR6030W GDR6030E GDR6030B 60*30 50-60pcs 60M
SDR2233 SDR2233W SDR2233E SDR2233B 22*33 15~25pcs 180M
SDR3333 SDR3333W SDR3333E SDR3333B 33*33 30~40pcs 160M
SDR2035 SDR2035W SDR2035E SDR2035B 20*35 30~40pcs 100M
SDR3535 SDR3535W SDR3535E SDR3535B 35*35 35~45pcs 112M
SDR5035 SDR5035W SDR5035E SDR5035B 50*35 40~60pcs 88M
*SDR2040 SDR2040W SDR2040E SDR2040B 20*40 20~25pcs 110M
SDR2540 SDR2540W SDR2540E SDR2540B 25*40 20~25pcs 112M
SDR3540 SDR3540W SDR3540E SDR3540B 35*40 50-60pcs 100M
SDR4040 SDR4040W SDR4040E SDR4040B 40*40 60~70pcs 100M
SDR6040 SDR6040W SDR6040E SDR6040B 60*40 100~115pcs 68M
SDR8040 SDR8040W SDR8040E SDR8040B 80*40 120~135pcs 48M
SDR10040 SDR10040W SDR10040E SDR10040B 100*40 120~135pcs 32M
SDR12040 SDR12040W SDR12040E SDR12040B 120*40 140-165pcs
/
SDR2545 SDR2545W SDR2545E SDR2545B 25*45 20~25pcs

104M
SDR3345 SDR3345W SDR3345E SDR3345B 33*45 40~55pcs 108M
SDR4545 SDR4545W SDR4545E SDR4545B 45*45 60~70pcs 72M
SDR6545 SDR6545W SDR6545E SDR6545B 65*45 110~120pcs 56M
SDR2050 SDR2050W SDR2050E SDR2050B 20*50 20~30pcs 100M
SDR2550 SDR2550W SDR2550E SDR2550B 25*50 20~30pcs 100M
SDR3050 SDR3050W SDR3050E SDR3050B 30*50 25~40pcs 84M
SDR3550 SDR3550W SDR3550E SDR3550B 35*50 40~60pcs 80M
SDR4050 SDR4050W SDR4050E SDR4050B 40*50 60~70pcs 68M
SDR4550 SDR4550W SDR4550E SDR4550B 45*50 70~80pcs 60M
SDR5050 SDR5050W SDR5050E SDR5050B 50*50 80~90pcs 60M
SDR5550 SDR5550W SDR5550E SDR5550B 55*50 85~95pcs 50M
SDR6050 SDR6050W SDR6050E SDR6050B 60*50 100~120pcs 48M
SDR7550 SDR7550W SDR7550E SDR7550B 75*50 140~160pcs 40M
SDR8050 SDR8050W SDR8050E SDR8050B 80*50 160~180pcs 40M
SDR10050 SDR10050W SDR10050E SDR10050B 100*50 200~250pcs 26M
SDR12555 SDR12555W SDR12555E SDR12555B 125*55 220~270pcs 20M
SDR2060 SDR2060W SDR2060E SDR2060B 20*60 5~45pcs 100M
SDR2560 SDR2560W SDR2560E SDR2560B 25*60 40~50pcs 100M
SDR3060 SDR3060W SDR3060E SDR3060B 30*60 60~80pcs 80M
*SDR3560 SDR3560W SDR3560E SDR3560B 35*60 65~85pcs 70M
SDR4060 SDR4060W SDR4060E SDR4060B 40*60 100~115pcs 60M
SDR4560 SDR4560W SDR4560E SDR4560B 45*60 110~125pcs 30M
SDR5060 SDR5060W SDR5060E SDR5060B 50*60 120~135pcs 60M
SDR6060 SDR6060W SDR6060E SDR6060B 60*60 120~135pcs 48M
SDR8060 SDR8060W SDR8060E SDR8060B 80*60 180~210pcs 36M
SDR10060 SDR10060W SDR10060E SDR10060B 100*60 240~290pcs 28M
SDR11060 SDR11060W SDR11060E SDR11060B 110*60 250~300pcs 48M
*SDR12060 SDR12060W SDR12060E SDR12060B 120*60 260~320pcs 48M
SDE15060 SDE15060W SDE15060E SDE15060B 150*60 300-360pcs 16M
SDR2565 SDR2565W SDR2565E SDR2565B 25*65 40~50pcs 88M
SDR3365 SDR3365W SDR3365E SDR3365B 33*65 40~70pcs 80M
SDR4565 SDR4565W SDR4565E SDR4565B 45*65 110~120pcs 52M
SDR6565 SDR6565W SDR6565E SDR6565B 65*65 180~200pcs 44M
SDR7265 SDR7265W SDR7265E SDR7265B 72*65 190~210pcs 40M
SDR2575 SDR2575W SDR2575E SDR2575B 25*75 140-170pcs
/
SDR3575 SDR3575W SDR3575E SDR3575B 35*75 160-190pcs
/
SDR5075 SDR5075W SDR5075E SDR5075B 50*75 180~210pcs 32M
SDR7575 SDR7575W SDR7575E SDR7575B 75*75 200~240pcs 24M
SDR10075 SDR10075W SDR10075E SDR10075B 100*75 220~260pcs 24M
SDR2580 SDR2580W SDR2580E SDR2580B 25*80 100~120pcs 72M
SDR3080 SDR3080W SDR3080E SDR3080B 30*80 110~125pcs 56M
SDR3580 SDR3580W SDR3580E SDR3580B 35*80 110~130pcs 56M
SDR4080 SDR4080W SDR4080E SDR4080B 40*80 140~160pcs 48M
SDR4580 SDR4580W SDR4580E SDR4580B 45*80 140~160pcs 40M
SDR5080 SDR5080W SDR5080E SDR5080B 50*80 160~180pcs 40M
SDR5580 SDR5580W SDR5580E SDR5580B 55*80 160~180pcs 32M
SDR6080 SDR6080W SDR6080E SDR6080B 60*80 180~210pcs 32M
SDR8080 SDR8080W SDR8080E SDR8080B 80*80 240~290pcs 24M
SDR10080 SDR10080W SDR10080E SDR10080B 100*80 260~350pcs 24M
SDR12080 SDR12080W SDR12080E SDR12080B 120*80 280~380pcs 16M
SDR14080 SDR14080W SDR14080E SDR14080B 140*80 350~450pcs 16M
SDR25100 SDR25100W SDR25100E SDR25100B 25*100 110~160pcs 60M
SDR33100 SDR33100W SDR33100E SDR33100B 33*100 130~165pcs 44M
SDR40100 SDR40100W SDR40100E SDR40100B 40*100 130~175pcs 40M
SDR50100 SDR50100W SDR50100E SDR50100B 50*100 220~250pcs 40M
SDR60100 SDR60100W SDR60100E SDR60100B 60*100 240~290pcs 32M
SDR70100 SDR70100W SDR70100E SDR70100B 70*100 240~290pcs 32M
SDR75100 SDR75100W SDR75100E SDR75100B 75*100 260~350pcs 24M
SDR80100 SDR80100W SDR80100E SDR80100B 80*100 260~350pcs 24M
SDR100100 SDR100100W SDR100100E SDR100100B 100*100 300~400pcs 24M
SDR120100 SDR120100W SDR120100E SDR120100B 120*100 350~450pcs 16M
SDR150100 SDR150100W SDR150100E SDR150100B 150*100 400~650pcs 16M
SDR100130 SDR100130W SDR100130E SDR100130B 100*130 350~450pcs 16M
*SDR200100 SDR200100W SDR200100E SDR200100B 200*100 600~800pcs 12M
*SDR200150 *SDR200150W *SDR200150E *SDR200150B 200*150 900~1200pcs 10M
*SDR200200 SDR200200W SDR200200E SDR200200B 200*200 1200-1600pcs
/


















RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M













]]> http://www.wiring-ducts.com/solid-wiring-duct/feed/ 0 RCCN VDR Wide SLot Wiring Duct http://www.wiring-ducts.com/vdr-wide-slot-wiring-duct/ http://www.wiring-ducts.com/vdr-wide-slot-wiring-duct/#comments Mon, 10 Sep 2012 08:27:56 +0000 admin http://www.wiring-ducts.com/?p=1644

线槽图纸
Wide slot/finger design provides greater sidewall rigidity and can  be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard  Length:2M/PCS



Item No. W*H Q P     Wire
capability
/2.0sp		 PACK
Gray White Blue Black
VDR2580 VDR2580W VDR2580E VDR2580B 25*80 8 12 100~120pcs 72M
VDR3080 VDR3080W VDR3080E VDR3080B 30*80 8 12 110~125pcs 56M
VDR3580 VDR3580W VDR3580E VDR3580B 35*80 8 12 110~130pcs 56M
VDR4080 VDR4080W VDR4080E VDR4080B 40*80 8 12 140~160pcs 48M
VDR4580 VDR4580W VDR4580E VDR4580B 45*80 8 12 140~160pcs 40M
VDR5080 VDR5080W VDR5080E VDR5080B 50*80 8 12 160~180pcs 40M
VDR5580 VDR5580W VDR5580E VDR5580B 55*80 8 12 160~180pcs 32M
VDR6080 VDR6080W VDR6080E VDR6080B 60*80 8 12 180~210pcs 32M
VDR8080 VDR8080W VDR8080E VDR8080B 80*80 8 12 240~290pcs 24M
VDR10080 VDR10080W VDR10080E VDR10080B 100*80 8 12 260~350pcs 24M
VDR12080 VDR12080W VDR12080E VDR12080B 120*80 8 12 280~380pcs 16M
VDR14080 VDR14080W VDR14080E VDR14080B 140*80 8 12 350~450pcs 16M
VDR25100 VDR25100W VDR25100E VDR25100B 25*100 8 12 110~160pcs 60M
VDR33100 VDR33100W VDR33100E VDR33100B 33*100 8 12 130~165pcs 44M
VDR40100 VDR40100W VDR40100E VDR40100B 40*100 8 12 130~175pcs 40M
VDR50100 VDR50100W VDR50100E VDR50100B 50*100 8 12 220~250pcs 40M
VDR60100 VDR60100W VDR60100E VDR60100B 60*100 8 12 240~290pcs 32M
VDR70100 VDR70100W VDR70100E VDR70100B 70*100 8 12 240~290pcs 32M
VDR75100 VDR75100W VDR75100E VDR75100B 75*100 8 12 260~350pcs 24M
VDR80100 VDR80100W VDR80100E VDR80100B 80*100 8 12 260~350pcs 24M
VDR100100 VDR100100W VDR100100E VDR100100B 100*100 8 12 300~400pcs 24M
VDR120100 VDR120100W VDR120100E VDR120100B 120*100 8 12 350~450pcs 16M
VDR150100 VDR150100W VDR150100E VDR150100B 150*100 8 12 400~650pcs 16M












RCCN  Din Rails



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS
Item No.
Outer width/Outer height/
Thickness/Length		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M



]]> http://www.wiring-ducts.com/vdr-wide-slot-wiring-duct/feed/ 0 RCCN HVDRT Wiring Duct http://www.wiring-ducts.com/rccn-hvdrt-wiring-duct/ http://www.wiring-ducts.com/rccn-hvdrt-wiring-duct/#comments Mon, 10 Sep 2012 08:26:29 +0000 admin http://www.wiring-ducts.com/?p=1624



线槽图纸

Taiwan standard Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other
hardware
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
 Length Standard:2M/PCS






Item No.

W*H

Q

 P

   Wire
capability
  /2.0sp

Pakc/M
Gray White Blue Black
HVDR2025T HVDR2025TW HVDR2025TE HVDR2025TB 20*25 5 8 5~15pcs 200M
HVDR2525T HVDR2525TW HVDR2525TE HVDR2525TB 25*25 5 8 10~pcs 200M
HVDR3025T HVDR3025TW HVDR3025TE HVDR3025TB 30*25 5 8 12~28pcs 160M
HVDR2530T HVDR2530TW HVDR2530TE HVDR2530TB 25*30 5 8 25~35pcs 160M
HVDR3030T HVDR3030TW HVDR3030TE HVDR3030TB 3030 5 8 25~35pcs 140M
HVDR4030T HVDR4030TW HVDR4030TE HVDR4030TB 40*30 5 8 30~40pcs 100M
HVDR2540T HVDR2540TW HVDR2540TE HVDR2540TB 25*40 5 8 20~25pcs 112M
HVDR4040T HVDR4040TW HVDR4040TE HVDR4040TB 40*40 5 8 60~70pcs 100M
HVDR6040T HVDR6040TW HVDR6040TE HVDR6040TB 60*40 5 8 100~115pcs 68M
HVDR8040T HVDR8040TW HVDR8040TE HVDR8040TB 80*40 5 8 120~135pcs 48M
HVDR10040T HVDR10040TW HVDR10040TE HVDR10040TB 100*40 5 8 120~135pcs 32M
HVDR2545T HVDR2545TW HVDR2545TE HVDR2545TB 25*45 5 8 20~25pcs 104M
HVDR3345T HVDR3345TW HVDR3345TE HVDR3345TB 33*45 5 8 40~55pcs 108M
HVDR4545T HVDR4545TW HVDR4545TE HVDR4545TB 45*45 5 8 60~70pcs 72M
HVDR6545T HVDR6545TW HVDR6545TE HVDR6545TB 65*45 5 8 110~120pcs 56M
HVDR2550T HVDR2550TW HVDR2550TE HVDR2550TB 25*50 5 8 20~30pcs

100M
HVDR3050T HVDR3050TW HVDR3050TE HVDR3050TB 30*50 5 8 25~40pcs 84M
HVDR3550T HVDR3550TW HVDR3550TE HVDR3550TB 35*50 5 8 40~60pcs 80M
HVDR4050T HVDR4050TW HVDR4050TE HVDR4050TB 40*50 5 8 60~70pcs 68M
HVDR4550T HVDR4550TW HVDR4550TE HVDR4550TB 45*50 5 8 70~80pcs 60M
HVDR5050T HVDR5050W HVDR5050TE HVDR5050TB 50*50 5 8 80~90pcs 60M
HVDR5550T HVDR5550W HVDR5550TE HVDR5550TB 50*50 5 8 80~90pcs 48M
HVDR6050T HVDR6050TW HVDR6050TE HVDR6050TB 60*50 5 8 100~120pcs 48M
HVDR8050T HVDR8050TW HVDR8050TE HVDR8050TB 80*50 5 8 160~180pcs 40M
HVDR10050T HVDR10050TW HVDR10050TE HVDR10050TB 100*50 5 8 200~250pcs 26M
HVDR2060T HVDR2060TW HVDR2060TE HVDR2060TB 20*60 5 8 35~45pcs 100M
HVDR2560T HVDR2560TW HVDR2560TE HVDR2560TB 25*60 5 8 40~50pcs 100M
HVDR3060T HVDR3060TW HVDR3060TE HVDR3060TB 30*60 5 8 60~80pcs 80M
HVDR4060T HVDR4060TW HVDR4060TE HVDR4060TB 40*60 5 8 100~115pcs 60M
HVDR4560T HVDR4560TW HVDR4560TE HVDR4560TB 45*60 5 8 110~125pcs 30M
HVDR5060T HVDR5060TW HVDR5060TE HVDR5060TB 50*60 5 8 120~135pcs 60M
HVDR6060T HVDR6060TW HVDR6060TE HVDR6060TB 60*60 5 8 120~135pcs 48M
HVDR8060T HVDR8060TW HVDR8060TE HVDR8060TB 80*60 5 8 180~210pcs 36M
HVDR10060T HVDR10060TW HVDR10060TE HVDR10060TB 100*60 5 8 240~290pcs 28M
HVDR11060T HVDR11060TW HVDR11060TE HVDR11060TB 110*60 5 8 250~300pcs 48M
HVDR12060T HVDR12060TW HVDR12060TE HVDR12060TB 120*60 5 8 260~320pcs 48M
HVDR2565T HVDR2565TW HVDR2565TE HVDR2565TB 25*65 5 8 40~50pcs 96M
HVDR3365T HVDR3365TW HVDR3365TE HVDR3365TB 33*65 5 8 40~70pcs 80M
HVDR4565T HVDR4565TW HVDR4565TE HVDR4565TB 45*65 5 8 110~120pcs 52M
HVDR6565T HVDR6565TW HVDR6565TE HVDR6565TB 65*65 5 8 180~200pcs 44M
HVDR2580T HVDR2580TW HVDR2580TE HVDR2580TB 25*80 5 8 100~120pcs 72M
HVDR3080T HVDR3080TW HVDR3080TE HVDR3080TB 30*80 5 8 110~125pcs 56M
HVDR3580T HVDR3580TW HVDR3580TE HVDR3580TB 35*80 5 8 110~130pcs 56M
HVDR4080T HVDR4080TW HVDR4080TE HVDR4080TB 40*80 5 8 140~160pcs 48M
HVDR4580T HVDR4580TW HVDR4580TE HVDR4580TB 45*80 5 8 140~160pcs 40M
HVDR5080T HVDR5080TW HVDR5080TE HVDR5080TB 50*80 5 8 160~180pcs 40M
HVDR5580T HVDR5580TW HVDR5580TE HVDR5580TB 55*80 5 8 160~180pcs 32M
HVDR6080T HVDR6080TW HVDR6080TE HVDR6080TB 60*80 5 8 180~210pcs 32M
HVDR8080T HVDR8080TW HVDR8080TE HVDR8080TB 80*80 5 8 240~290pcs 24M
HVDR10080T HVDR10080TW HVDR10080TE HVDR10080TB 100*80 5 8 260~350pcs 24M
HVDR12080T HVDR12080TW HVDR12080TE HVDR12080TB 120*80 5 8 280~380pcs 16M
HVDR14080T HVDR14080TW HVDR14080TE HVDR14080TB 140*80 5 8 350~450pcs 16M
HVDR25100T HVDR25100TW HVDR25100TE HVDR25100TB 25*100 5 8 110~160 pcs 60M
HVDR33100T HVDR33100TW HVDR33100TE HVDR33100TB 33*100 5 8 130~165 pcs 44M
HVDR40100T HVDR40100TW HVDR40100TE HVDR40100TB 40*100 5 8 130~175 pcs 40M
HVDR50100T HVDR50100TW HVDR50100TE HVDR50100TB 50*100 5 8 220~250 pcs 40M
HVDR60100T HVDR60100TW HVDR60100TE HVDR60100TB 60*100 5 8 240~290 pcs 32M
HVDR70100T HVDR70100TW HVDR70100TE HVDR70100TB 70*100 5 8 250~340 pcs 24M
HVDR75100T HVDR75100TW HVDR75100TE HVDR75100TB 75*100 5 8 260~350 pcs 24M
HVDR80100T HVDR80100TW HVDR80100TE HVDR80100TB 80*100 5 8 260~350 pcs 24M
HVDR100100T HVDR100100TW HVDR100100TE HVDR100100TB 100*100 5 8 300~400pcs 24M
















RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M









]]> http://www.wiring-ducts.com/rccn-hvdrt-wiring-duct/feed/ 0 RCCN GDRF Wire Trunking http://www.wiring-ducts.com/gdrf-wire-trunking/ http://www.wiring-ducts.com/gdrf-wire-trunking/#comments Mon, 10 Sep 2012 08:25:25 +0000 admin http://www.wiring-ducts.com/?p=1636



线槽图纸


Europe standard Wide slot/finger design provides greater sidewall
rigidity and can be used with a wide range of wire bundle sizes.
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Comment：gray is the common color, other color need more MOQ





Item No.

W*H

Q

 P

Wire
capability
/2.0sp

pack/M
Gray White Blue Black
GDR2025F GDR2025FW GDR2025FE GDR2025FB 20*25 6 6.5 5~15pcs

200M
GDR2525F GDR2525FW GDR2525FE GDR2525FB 25*25 6 6.5 10~25pcs 200M
GDR3025F GDR3025FW GDR3025FE GDR3025FB 30*25 6 6.5 12~28pcs 160M
GDR2530F GDR2530FW GDR2530FE GDR2530FB 25*30 6 6.5 25~35pcs 160M
GDR3030F GDR3030FW GDR3030FE GDR3030FB 30*30 6 6.5 25~35pcs 140M
GDR4030F GDR4030FW GDR4030FE GDR4030FB 40*30 6 6.5 30~40pcs 100M
GDR2540F GDR2540FW GDR2540FE GDR2540FB 25*40 6 6.5 20~25pcs 112M
GDR4040F GDR4040FW GDR4040FE GDR4040FB 40*40 6 6.5 60~70pcs 100M
GDR6040F GDR6040FW GDR6040FE GDR6040FB 60*40 6 6.5 100~115pcs 68M
GDR8040F GDR8040FW GDR8040FE GDR8040FB 80*40 6 6.5 120~135pcs 48M
GDR10040F GDR10040FW GDR10040FE GDR10040FB 100*40 6 6.5 120~135pcs 32M
GDR2550F GDR2550FW GDR2550FE GDR2550FB 25*50 6 6.5 20~30pcs 100M
GDR3050F GDR3050FW GDR3050FE GDR3050FB 30*50 6 6.5 25~40pcs 84M
GDR3550F GDR3550FW GDR3550FE GDR3550FB 35*50 6 6.5 40~60pcs 80M
GDR4050F GDR4050FW GDR4050FE GDR4050FB 40*50 6 6.5 60~70pcs 68M
GDR4550F GDR4550FW GDR4550FE GDR4550FB 45*50 6 6.5 70~80pcs 60M
GDR5050F GDR5050FW GDR5050FE GDR5050FB 50*50 6 6.5 80~90pcs 60M
GDR6050F GDR6050FW GDR6050FE GDR6050FB 60*50 6 6.5 100~120pcs 48M
GDR8050F GDR8050FW GDR8050FE GDR8050FB 80*50 6 6.5 160~180pcs 40M
GDR10050F GDR10050FW GDR10050FE GDR10050FB 100*50 6 6.5 200~250pcs 26M





Item No.

W*H

Q

 p

Wire
capability
/2.0sp

pack/M
Gray White Blue Black
GDR2560F1 GDR2560F1W GDR2560F1E GDR2560F1B 25*60 6 6.5 40~50pcs 100M
GDR3060F1 GDR3060F1W GDR3060F1E GDR3060F1B 30*60 6 6.5 60~80pcs 80M
GDR4060F1 GDR4060F1W GDR4060F1E GDR4060F1B 40*60 6 6.5 100~115pcs 60M
GDR4560F1 GDR4560F1W GDR4560F1E GDR4560F1B 45*60 6 6.5 110~120pcs 30M
GDR5060F1 GDR5060F1W GDR5060F1E GDR5060F1B 50*60 6 6.5 120~135pcs 60M
GDR6060F1 GDR6060F1W GDR6060F1E GDR6060F1B 60*60 6 6.5 120~135pcs 48M
GDR8060F1 GDR8060F1W GDR8060F1E GDR8060F1B 80*60 6 6.5 180~210pcs 36M
GDR10060F1 GDR10060F1W GDR10060F1E GDR10060F1B 100*60 6 6.5 240~290pcs 28M
GDR11060F1 GDR11060F1W GDR11060F1E GDR11060F1B 110*60 6 6.5 250~300pcs 48M
*GDR12060F1 GDR12060F1W GDR12060F1E GDR12060F1B 120*60 6 6.5 260~320pcs 50M
GDR2580F1 GDR2580F1W GDR2580F1E GDR2580F1B 25*80 6 6.5 100~115pcs 72M
GDR3080F1 GDR3080F1W GDR3080F1E GDR3080F1B 3080 6 6.5 110~125pcs 56M
GDR3580F1 GDR3580F1W GDR3580F1E GDR3580F1B 35*80 6 6.5 110~125pcs 56M
GDR4080F1 GDR4080F1W GDR4080F1E GDR4080F1B 40*80 6 6.5 140~160pcs 48M
GDR4580F1 GDR4580F1W GDR4580F1E GDR4580F1B 45*80 6 6.5 140~160pcs 40M
GDR5080F1 GDR5080F1W GDR5080F1E GDR5080F1B 50*80 6 6.5 160~180pcs 40M
GDR6080F1 GDR6080F1W GDR6080F1E GDR6080F1B 60*80 6 6.5 180~210pcs 32M
GDR8080F1 GDR8080F1W GDR8080F1E GDR8080F1B 80*80 6 6.5 240~290pcs 24M
GDR10080F1 GDR10080F1W GDR10080F1E GDR10080F1B 100*80 6 6.5 260~350pcs 24M
GDR12080F1 GDR12080F1W GDR12080F1E GDR12080F1B 120*80 6 6.5 280~380pcs 16M
GDR14080F1 GDR14080F1W GDR14080F1E GDR14080F1B 140*80 6 6.5 350~450pcs 16M
GDR2580F2 GDR2580F2W GDR2580F2E GDR2580F2B 25*80 6 6.5 100~115pcs 72M
GDR3080F2 GDR3080F2W GDR3080F2E GDR3080F2B 30*80 6 6.5 110~125pcs 56M
GDR3580F2 GDR3580F2W GDR3580F2E GDR3580F2B 35*80 6 6.5 110~130pcs 56M
GDR4080F2 GDR4080F2W GDR4080F2E GDR4080F2B 40*80 6 6.5 140~160pcs 48M
GDR4580F2 GDR4580F2W GDR4580F2E GDR4580F2B 45*80 6 6.5 140~160pcs 40M
GDR5080F2 GDR5080F2W GDR5080F2E GDR5080F2B 50*80 6 6.5 160~180pcs 40M
GDR5580F2 GDR5580F2W GDR5580F2E GDR5580F2B 55*80 6 6.5 160~180pcs 32M
GDR6080F2 GDR6080F2W GDR6080F2E GDR6080F2B 60*80   6.5 180~210pcs 32M
GDR8080F2 GDR8080F2W GDR8080F2E GDR8080F2B 80*80 6 6.5 240~290pcs 24M
GDR10080F2 GDR10080F2W GDR10080F2E GDR10080F2B 100*80 6 6.5 260~350pcs 24M
GDR12080F2 GDR12080F2W GDR12080F2E GDR12080F2B 120*80 6 6.5 280~380pcs 16M
GDR14080F2 GDR14080F2W GDR14080F2E GDR14080F2B 140*80 6 6.5 350~450pcs 16M
*GDR25100F2 GDR25100F2W GDR25100F2E GDR25100F2B 25*100 6 6.5 110~160pcs 60M
*GDR33100F2 GDR33100F2W GDR33100F2E GDR33100F2B 33*100 6 6.5 130~165pcs 44M
*GDR40100F2 GDR40100F2W GDR40100F2E GDR40100F2B 40*100 6 6.5 130~175pcs 40M
*GDR50100F2 GDR50100F2W GDR50100F2E GDR50100F2B 50*100 6 6.5 220~250pcs 40M
*GDR60100F2 GDR60100F2W GDR60100F2E GDR60100F2B 60*100 6 6.5 240~290pcs 32M
*GDR75100F2 GDR75100F2W GDR75100F2E GDR75100F2B 75*100 6 6.5 260~350pcs 24M
*GDR80100F2 GDR80100F2W GDR80100F2E GDR80100F2B 80*100 6 6.5 260~350pcs 24M
*GDR100100F2 GDR100100F2W GDR100100F2E GDR100100F2B 100*100 6 6.5 300~400pcs 24M
*GDR120100F2 GDR120100F2W GDR120100F2E GDR120100F2B 120*100 6 6.5 350~450pcs 16M
*GDR150100F2 GDR150100F2W GDR150100F2E GDR150100F2B 150*100 6 6.5 400~650pcs 16M




















线槽图纸

Europe standard Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of , it makes
the fingers easy to separate from the trunking no need to us cutter.
Standard  Length:2M/PCS





Item No.

W*H

Q

P

Wire
capability
/2.0sp

PACK/M
Gray White Blue Black
GDR2025FZ GDR2025FZW GDR2025FZE GDR2025FZB 20*25 6 6.5 5~15pcs 200M
GDR2525FZ GDR2525FZW GDR2525FZE GDR2525FZB 25*25 6 6.5 10~25pcs 200M
GDR3025FZ GDR3025FZW GDR3025FZE GDR3025FZB 30*25 6 6.5 12~28pcs 160M
GDR2530FZ GDR2530FZW GDR2530FZE GDR2530FZB 25*30 6 6.5 25~35pcs 160M
GDR3030FZ GDR3030FZW GDR3030FZE GDR3030FZB 30*30 6 6.5 25~35pcs 140M
GDR4030FZ GDR4030FZW GDR4030FZE GDR4030FZB 40*30 6 6.5 30~40pcs 100M
GDR2540FZ GDR2540FZW GDR2540FZE GDR2540FZB 25*40 6 6.5 20~25pcs 112M
GDR4040FZ GDR4040FZW GDR4040FZE GDR4040FZB 40*40 6 6.5 60~70pcs 100M
GDR6040FZ GDR6040FZW GDR6040FZE GDR6040FZB 60*40 6 6.5 100~115pcs 68M
GDR8040FZ GDR8040FZW GDR8040FZE GDR8040FZB 80*40 6 6.5 120~135pcs 48M
GDR10040FZ GDR10040FZW GDR10040FZE GDR10040FZB 100*40 6 6.5 120~135pcs 32M
GDR2550FZ GDR2550FZW GDR2550FZE GDR2550FZB 25*50 6 6.5 20~30pcs 100M
GDR3050FZ GDR3050FZW GDR3050FZE GDR3050FZB 30*50 6 6.5 25~40pcs 84M
GDR3550FZ GDR3550FZW GDR3550FZE GDR3550FZB 35*50 6 6.5 40~60pcs 80M
GDR4050FZ GDR4050FZW GDR4050FZE GDR4050FZB 40*50 6 6.5 60~70pcs 68M
GDR4550FZ GDR4550FZW GDR4550FZE GDR4550FZB 45*50 6 6.5 70~80pcs 60M
GDR5050FZ GDR5050FZW GDR5050FZE GDR5050FZB 50*50 6 6.5 80~90pcs 60M
GDR6050FZ GDR6050FZW GDR6050FZE GDR6050FZB 60*50 6 6.5 100~120pcs 48M
GDR8050FZ GDR8050FZW GDR8050FZE GDR8050FZB 80*50 6 6.5 160~180pcs 40M
GDR10050FZ GDR10050FZW GDR10050FZE GDR10050FZB 100*50 6 6.5 200~250pcs 26M
GDR2560FZ1 GDR2560FZ1W GDR2560FZ1E GDR2560FZ1B 25*60 6 6.5 40~50pcs

96M
GDR3060FZ1 GDR3060FZ1W GDR3060FZ1E GDR3060FZ1B 30*60 6 6.5 60~80pcs 80M
GDR4060FZ1 GDR4060FZ1W GDR4060FZ1E GDR4060FZ1B 40*60 6 6.5 100~115pcs 60M
GDR4560FZ1 GDR4560FZ1W GDR4560FZ1E GDR4560FZ1B 45*60 6 6.5 110~120pcs 30M
GDR5060FZ1 GDR5060FZ1W GDR5060FZ1E GDR5060FZ1B 50*60 6 6.5 120~135pcs 60M
GDR6060FZ1 GDR6060FZ1W GDR6060FZ1E GDR6060FZ1B 60*60 6 6.5 120~135pcs 48M
GDR8060FZ1 GDR8060FZ1W GDR8060FZ1E GDR8060FZ1B 80*60 6 6.5 180~210pcs 36M
GDR10060FZ1 GDR10060FZ1W GDR10060FZ1E GDR10060FZ1B 100*60 6 6.5 240~290pcs 28M
GDR11060FZ1 GDR11060FZ1W GDR11060FZ1E GDR11060FZ1B 110*60 6 6.5 250~300pcs 48M
*GDR12060FZ1 GDR12060FZ1W GDR12060FZ1E GDR12060FZ1B 120*120 6 6.5 260~320pcs 48M
GDR2580FZ1 GDR2580FZ1W GDR2580FZ1E GDR2580FZ1B 25*80 6 6.5 100~120pcs 72M
GDR3080FZ1 GDR3080FZ1W GDR3080FZ1E GDR3080FZ1B 30*80 6 6.5 110~125pcs 56M
GDR3580FZ1 GDR3580FZ1W GDR3580FZ1E GDR3580FZ1B 35*80 6 6.5 110~130pcs 56M
GDR4080FZ1 GDR4080FZ1W GDR4080FZ1E GDR4080FZ1B 40*80 6 6.5 140~160pcs 48M
GDR4580FZ1 GDR4580FZ1W GDR4580FZ1E GDR4580FZ1B 45*80 6 6.5 140~160pcs 40M
GDR5080FZ1 GDR5080FZ1W GDR5080FZ1E GDR5080FZ1B 50*80 6 6.5 160~180pcs 40M
GDR6080FZ1 GDR6080FZ1W GDR6080FZ1E GDR6080FZ1B 60*80 6 6.5 180~210pcs 32M
GDR8080FZ1 GDR8080FZ1W GDR8080FZ1E GDR8080FZ1B 80*80 6 6.5 240~290pcs 24M
GDR10080FZ1 GDR10080FZ1W GDR10080FZ1E GDR10080FZ1B 100*80 6 6.5 260~350pcs 24M
GDR12080FZ1 GDR12080FZ1W GDR12080FZ1E GDR12080FZ1B 120*80 6 6.5 280~380pcs 16M
GDR14080FZ1 GDR14080FZ1W GDR14080FZ1E GDR14080FZ1B 140*80 6 6.5 350~450pcs 16M
GDR2580FZ2 GDR2580FZ2W GDR2580FZ2E GDR2580FZ2B 25*80 6 6.5 100~120pcs 72M
GDR3080FZ2 GDR3080FZ2W GDR3080FZ2E GDR3080FZ2B 30*80 6 6.5 110~125pcs 56M
GDR3580FZ2 GDR3580FZ2W GDR3580FZ2E GDR3580FZ2B 35*80 6 6.5 110~130pcs 56M
GDR4080FZ2 GDR4080FZ2W GDR4080FZ2E GDR4080FZ2B 40*80 6 6.5 140~160pcs 48M
GDR4580FZ2 GDR4580FZ2W GDR4580FZ2E GDR4580FZ2B 45*80 6 6.5 140~160pcs 40M
GDR5080FZ2 GDR5080FZ2W GDR5080FZ2E GDR5080FZ2B 50*80 6 6.5 160~180pcs 40M
GDR5580FZ2 GDR5580FZ2W GDR5580FZ2E GDR5580FZ2B 55*80 6 6.5 160~180pcs 32M
GDR6080FZ2 GDR6080FZ2W GDR6080FZ2E GDR6080FZ2B 60*80 6 6.5 180~210pcs 32M
GDR8080FZ2 GDR8080FZ2W GDR8080FZ2E GDR8080FZ2B 80*80 6 6.5 240~290pcs 24M
GDR10080FZ2 GDR10080FZ2W GDR10080FZ2E GDR10080FZ2B 100*80 6 6.5 260~350pcs 24M
GDR12080FZ2 GDR12080FZ2W GDR12080FZ2E GDR12080FZ2B 120*80 6 6.5 280~380pcs 16M
GDR14080FZ2 GDR14080FZ2W GDR14080FZ2E GDR14080FZ2B 140*80 6 6.5 350~450pcs 16M
GDR25100FZ2 GDR25100FZ2W GDR25100FZ2E GDR25100FZ2B 25*100 6 6.5 110~160pcs 60M
GDR33100FZ2 GDR33100FZ2W GDR33100FZ2E GDR33100FZ2B 33*100 6 6.5 130~165pcs 44M
GDR40100FZ2 GDR40100FZ2W GDR40100FZ2E GDR40100FZ2B 40*100 6 6.5 130~175pcs 40M
GDR50100FZ2 GDR50100FZ2W GDR50100FZ2E GDR50100FZ2B 50*100 6 6.5 220~250pcs 40M
GDR60100FZ2 GDR60100FZ2W GDR60100FZ2E GDR60100FZ2B 60*100 6 6.5 240~290pcs 32M
GDR75100FZ2 GDR75100FZ2W GDR75100FZ2E GDR75100FZ2B 75*100 6 6.5 260~350pcs 24M
GDR80100FZ2 GDR80100FZ2W GDR80100FZ2E GDR80100FZ2B 80*100 6 6.5 260~350pcs 24M
GDR100100FZ2 GDR100100FZ2W GDR100100FZ2E GDR100100FZ2B 100*100 6 6.5 300~400pcs 24M
GDR120100FZ2 GDR120100FZ2W GDR120100FZ2E GDR120100FZ2B 120*100 6 6.5 350~450pcs 16M
GDR150100FZ2 GDR150100FZ2W GDR150100FZ2E GDR150100FZ2B 150*100 6 6.5 400~650pcs 16M












RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M











]]> http://www.wiring-ducts.com/gdrf-wire-trunking/feed/ 0 RCCN HVDR Narrow Slot Wiring Duct http://www.wiring-ducts.com/hvdr-narrow-slot-wiring-duct/ http://www.wiring-ducts.com/hvdr-narrow-slot-wiring-duct/#comments Mon, 10 Sep 2012 08:25:03 +0000 admin http://www.wiring-ducts.com/?p=1641

American standard Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal locks
and other hardware used countries such as USA,
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C





Item No. W*H Q P Wire
capability
/2.0sp		 Pack/M
Gray White Blue Black
HVDR1616 HVDR1616W HVDR1616E HVDR1616B 16*16 5 8 3~10pcs 300M
HVDR1525 HVDR1525W HVDR1525E HVDR1525B 15*25 5 8 5~15pcs 260M
HVDR2025 HVDR2025W HVDR2025E HVDR2025B 20*20 5 8 5~15pcs 200M
HVDR2525 HVDR2525W HVDR2525E HVDR2525B 25*25 5 8 10~25pcs 200M
HVDR3025 HVDR3025W HVDR3025E HVDR3025B 30*25 5 8 12~28pcs 160M
HVDR2530 HVDR2530W HVDR2530E HVDR2530B 25*30 5 8 25~35pcs 160M
HVDR3030 HVDR3030W HVDR3030E HVDR3030B 30*30 5 8 25~35pcs 140M
HVDR4030 HVDR4030W HVDR4030E HVDR4030B 40*30 5 8 30~40pcs 100M
HVDR3535 HVDR3535W HVDR3535E HVDR3535B 35*35 5 8 35~45pcs 112M
HVDR5035 HVDR5035W HVDR5035E HVDR5035B 50*35 5 8 40~60pcs 88M
HVDR2540 HVDR2540W HVDR2540E HVDR2540B 25*40 5 8 20~25pcs 112M
HVDR4040 HVDR4040W HVDR4040E HVDR4040B 40*40 5 8 60~70pcs 100M
HVDR6040 HVDR6040W HVDR6040E HVDR6040B 60*40 5 8 100~115pcs 68M
HVDR8040 HVDR8040W HVDR8040E HVDR8040B 80*40 5 8 120~135pcs 48M
HVDR10040 HVDR10040W HVDR10040E HVDR10040B 100*40 5 8 120~135pcs 32M
HVDR2545 HVDR2545W HVDR2545E HVDR2545B 25*45 5 8 20~25pcs 104M
HVDR3345 HVDR3345W HVDR3345E HVDR3345B 33*45 5 8 40~55pcs 108M
HVDR4545 HVDR4545W HVDR4545E HVDR4545B 45*45 5 8 60~70pcs 72M
HVDR6545 HVDR6545W HVDR6545E HVDR6545B 65*45 5 8 110~120pcs 56M
HVDR2550 HVDR2550W HVDR2550E HVDR2550B 25*50 5 8 20~30pcs 100M
HVDR3050 HVDR3050W HVDR3050E HVDR3050B 30*50 5 8 25~40pcs 84M
HVDR3550 HVDR3550W HVDR3550E HVDR3550B 35*50 5 8 40~60pcs 80M
HVDR4050 HVDR4050W HVDR4050E HVDR4050B 40*50 5 8 60~70pcs 68M
HVDR4550 HVDR4550W HVDR4550E HVDR4550B 45*50 5 8 70~80pcs 60M
HVDR5050 HVDR5050W HVDR5050E HVDR5050B 50*50 5 8 80~90pcs 50M
HVDR6050 HVDR6050W HVDR6050E HVDR6050B 60*50 5 8 100~120pcs 48M
HVDR8050 HVDR8050W HVDR8050E HVDR8050B 80*50 5 8 160~180pcs 40M
HVDR10050 HVDR10050W HVDR1005E HVDR10050B 100*50 5 8 200~250pcs 26M
HVDR2560 HVDR2560W HVDR2560E HVDR2560B 25*60 5 8 40~50pcs 100M
HVDR3060 HVDR3060W HVDR3060E HVDR3060B 30*60 5 8 60~80pcs 80M
HVDR4060 HVDR4060W HVDR4060E HVDR4060B 40*60 5 8 100~115pcs 60M
HVDR4560 HVDR4560W HVDR4560E HVDR4560B 45*60 5 8 110~125pcs 30M
HVDR5060 HVDR5060W HVDR5060E HVDR5060B 50*60 5 8 120~135pcs 60M
HVDR6060 HVDR6060W HVDR6060E HVDR6060B 60*60 5 8 120~135pcs 48M
HVDR8060 HVDR8060W HVDR8060E HVDR8060B 80*60 5 8 180~210pcs 36M
HVDR10060 HVDR10060W HVDR10060E HVDR10060B 100*60 5 8 240~290pcs 28M
HVDR11060 HVDR11060W HVDR11060E HVDR11060B 110*60 5 8 250~300pcs 48M
HVDR2565 HVDR2565W HVDR2565E HVDR2565B 25*65 5 8 40~50pcs 88M
HVDR3365 HVDR3365W HVDR3365E HVDR3365B 33*65 5 8 40~70pcs 80M
HVDR4565 HVDR4565W HVDR4565E HVDR4565B 45*65 5 8 110~120pcs 52M
HVDR6565 HVDR6565W HVDR6565E HVDR6565B 65*65 5 8 180~200pcs 44M
HVDR2580 HVDR2580W HVDR2580E HVDR2580B 25*80 5 8 100~120pcs 72M
HVDR3080 HVDR3080W HVDR3080E HVDR3080B 30*80 5 8 110~125pcs 56M
HVDR3580 HVDR3580W HVDR3580E HVDR3580B 35*80 5 8 110~130pcs 56M
HVDR4080 HVDR4080W HVDR4080E HVDR4080B 40*80 5 8 140~160pcs 48M
HVDR4580 HVDR4580W HVDR4580E HVDR4580B 45*80 5 8 140~160pcs 40M
HVDR5080 HVDR5080W HVDR5080E HVDR5080B 50*80 5 8 160~180pcs 40M
HVDR5580 HVDR5580W HVDR5580E HVDR5580B 55*80 5 8 160~180pcs 32M
HVDR6080 HVDR6080W HVDR6080E HVDR6080B 60*80 5 8 180~210pcs 32M
HVDR8080 HVDR8080W HVDR8080E HVDR8080B 80*80 5 8 240~290pcs 24M
HVDR10080 HVDR10080W HVDR10080E HVDR10080B 100*80 5 8 260~350pcs 24M
HVDR12080 HVDR12080W HVDR12080E HVDR12080B 120*80 5 8 280~380pcs 16M
HVDR14080 HVDR14080W HVDR14080E HVDR14080B 140*80 5 8 350~450pcs 16M
HVDR25100 HVDR25100W HVDR25100E HVDR25100B 25*100 5 8 110~160pcs 60M
HVDR33100 HVDR33100W HVDR33100E HVDR33100B 33*100 5 8 130~175pcs 44M
HVDR40100 HVDR40100W HVDR40100E HVDR40100B 40*100 5 8 130~175pcs 40M
HVDR50100 HVDR50100W HVDR50100E HVDR50100B 50*100 5 8 220~250pcs 40M
HVDR60100 HVDR60100W HVDR60100E HVDR60100B 60*100 5 8 240~290pcs 32M
HVDR75100 HVDR75100W HVDR75100E HVDR75100B 75*100 5 8 260~350pcs 24M
HVDR80100 HVDR80100W HVDR80100E HVDR80100B 80*100 5 8 260~350pcs 24M
HVDR100100 HVDR100100W HVDR100100E HVDR100100B 100*100 5 8 300~400pcs 24M












RCCN  Din Rails



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS
Item No.
Outer width/Outer height/
Thickness/Length		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M



]]> http://www.wiring-ducts.com/hvdr-narrow-slot-wiring-duct/feed/ 0 RCCN VDRHF/HVDRHF Halogen Free Wiring Duct http://www.wiring-ducts.com/vdrhf-halogen-free-wiring-ductblue-2/ http://www.wiring-ducts.com/vdrhf-halogen-free-wiring-ductblue-2/#comments Mon, 10 Sep 2012 08:24:45 +0000 admin http://www.wiring-ducts.com/?p=2609



线槽图纸

• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0
• Narrow slot/finger design
• Provided with DIN 43 659 mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths





Item No.

W*H

Q

P

pack/M
Gray White Blue Black
VDR1616F/HF VDR1616FW/HF VDR1616FE/HF VDR1616FB/HF 16*16 8 10 300M
VDR2516F/HF VDR2516FW/HF VDR2516FE/HF VDR2516FB/HF 25*16 8 10 260M
VDR1520F/HF VDR1520FW/HF VDR1520FE/HF VDR1520FB/HF 15*20 8.5 12 260M
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20*20 8.5 12 240M
VDR4020F/HF VDR4020FW/HF VDR4020FE/HF VDR4020FB/HF 40*20 8 12 140M
VDR1525F/HF VDR1525FW/HF VDR1525FE/HF VDR1525FB/HF 15*25 8 12 260M
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20*25 8 12 200M
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25*25 8 12 200M
VDR3025F/HF VDR3025FW/HF VDR3025FE/HF VDR3025FB/HF 30*25 8 12 160M
VDR4025F/HF VDR4025FW/HF VDR4025FE/HF VDR4025FB/HF 40*25 8 12 100M
VDR5025F/HF VDR5025FW/HF VDR5025EF/HF VDR5025FB/HF 50*25 8 12 100M
VDR1530F/HF VDR1530FW/HF VDR1530FE/HF VDR1530FB/HF 15*30 8 12 180M
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20*30 8 12 130M
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25*30 8 12 130M
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30*30 8 12 140M
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40*30 8 12 100M
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50*30 8 12 80M
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60*30 8 12 60M
VDR2233F/HF VDR2233FW/HF VDR2233FE/HF VDR2233FB/HF 22*33 8 12 160M
VDR3333F/HF VDR3333FW/HF VDR3333FE/HF VDR3333FB/HF 33*33 8 12 160M
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20*35 8 12 100M
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35*35 8 12 112M
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50*35 8 12 88M
VDR2040F/HF VDR2040FW/HF VDR2040FE/HF VDR2040FB/HF 20*40 8 12 110M
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB/HF 25*40 8 12 112M
VDR3540F/HF VDR3540FW/HF VDR3540FE/HF VDR3540FB/HF 35*40 8 12 100M
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40*40 8 12 100M
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60*40 8 12 68M
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80*40 8 12 48M
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100*40 8 12 32M
VDR12040F/HF VDR12040FW/HF VDR12040FE/HF VDR12040FB/HF 100*40 8 12
/
VDR2545F/HF VDR2545FW/HF VDR2545FE/HF VDR2545FB/HF 25*45 8 12 104M
VDR3345F/HF VDR3345FW/HF VDR3345FE/HF VDR3345FB/HF 33*45 8 12 108M
VDR4545F/HF VDR4545FW/HF VDR4545FE/HF VDR4545FB/HF 45*45 8 12 72M
VDR6545F/HF VDR6545FW/HF VDR6545FE/HF VDR6545FB/HF 65*45 8 12 56M
VDR2050F/HF VDR2050FW/HF VDR2050FE/HF VDR2050FB/HF 20*50 8 12 100M
VDR2550F/HF VDR2550FW/HF VDR2550FE/HF VDR2550FB/HF 25*50 8 12 100M
VDR3050F/HF VDR3050FW/HF VDR3050FE/HF VDR3050FB/HF 30*50 8 12 84M
VDR3550F/HF VDR3550FW/HF VDR3550FE/HF VDR3550FB/HF 35*50 8 12 80M
VDR4050F/HF VDR4050FW/HF VDR4050FE/HF VDR4050FB/HF 40*50 8 12 68M
VDR4550F/HF VDR4550FW/HF VDR4550FE/HF VDR4550FB/HF 45*50 8 12 60M
VDR5050F/HF VDR5050FW/HF VDR5050FE/HF VDR5050FB/HF 50*50 8 12 50M
VDR5550F/HF VDR5550FW/HF VDR5550FE/HF VDR5550FB/HF 55*50 8 12 48M
VDR6050F/HF VDR6050FW/HF VDR6050FE/HF VDR6050FB/HF 60*50 8 12 48M
VDR7550F/HF VDR7550FW/HF VDR7550FE/HF VDR7550FB/HF 75*50 8 12 40M
VDR8050F/HF VDR8050FW/HF VDR8050FE/HF VDR8050FB/HF 80*50 8 12 40M
VDR10050F/HF VDR10050FW/HF VDR10050FE/HF VDR10050FB/HF 100*50 8 12 26M
VDR12555F/HF VDR12555FW/HF VDR12555FE/HF VDR12555FB/HF 125*55 8 12 26M
VDR2060F/HF VDR2060FW/HF VDR2060FE/HF VDR2060FB/HF 20*60 8 12 100M
VDR2560F/HF VDR2560FW/HF VDR2560FE/HF VDR2560FB/HF 25*60 8 12 100M
VDR3060F/HF VDR3060FW/HF VDR3060FE/HF VDR3060FB/HF 30*60 8 12 80M
VDR3560F/HF VDR3560FW/HF VDR3560FE/HF VDR3560FB/HF 35*60 8 12 78M
VDR4060F/HF VDR4060FW/HF VDR4060FE/HF VDR4060FB/HF 40*60 8 12 60M
VDR4560F/HF VDR4560FW/HF VDR4560FE/HF VDR4560FB/HF 45*60 8 12 30M
VDR5060F/HF VDR5060FW/HF VDR5060FE/HF VDR5060FB/HF 50*60 8 12 60M
VDR6060F/HF VDR6060FW/HF VDR6060FE/HF VDR6060FB/HF 60*60 8 12 48M
VDR8060F/HF VDR8060FW/HF VDR8060FE/HF VDR8060FB/HF 80*60 8 12 36M
VDR10060F/HF VDR10060FW/HF VDR10060FE/HF VDR10060FB/HF 100*60 8 12 28M
VDR11060F/HF VDR11060FW/HF VDR11060FE/HF VDR11060FB/HF 110*60 8 12 48M
VDR12060F/HF VDR12060FW/HF VDR12060FE/HF VDR12060FB/HF 120*60 8 12 48M
VDR15060F/HF VDR15060FW/HF VDR15060FE/HF VDR15060FB/HF 150*60 8 12 16M
VDR2565F/HF VDR2565FW/HF VDR2565FE/HF VDR2565FB/HF 25*65 8 12 88M
VDR3365F/HF VDR3365FW/HF VDR3365FE/HF VDR3365FB/HF 33*65 8 12 80M
VDR4565F/HF VDR4565FW/HF VDR4565FE/HF VDR4565FB/HF 45*65 8 12 52M
VDR6565F/HF VDR6565FW/HF VDR6565FE/HF VDR6565FB/HF 65*65 8 12 44M
VDR7265F/HF VDR7265FW/HF VDR7265FE/HF VDR7265FB/HF 72*65 8 12 42M
VDR2575F/HF VDR2575FW/HF VDR2575FE/HF VDR2575FB/HF 25*75 8 12
/
VDR5075F/HF VDR5075FW/HF VDR5075FE/HF VDR5075FB/HF 50*75 8 12 42M
VDR7575F/HF VDR7575FW/HF VDR7575FE/HF VDR7575FB/HF 75*75 8 12 40M
VDR10075F/HF VDR10075FW/HF VDR10075FE/HF VDR10075FB/HF 100*75 8 12 24M
VDR2580F/HF VDR2580FW/HF VDR2580FE/HF VDR2580FB/HF 25*80 8 12 72M
VDR3080F/HF VDR3080FW/HF VDR3080FE/HF VDR3080FB/HF 30*80 8 12 56M
VDR3580F/HF VDR3580FW/HF VDR3580FE/HF VDR3580FB/HF 35*80 8 12 56M
VDR4080F/HF VDR4080FW/HF VDR4080FE/HF VDR4080FB/HF 40*80 8 12 48M
VDR4580F/HF VDR4580FW/HF VDR4580FE/HF VDR4580FB/HF 45*80 8 12 40M
VDR5080F/HF VDR5080FW/HF VDR5080FE/HF VDR5080FB/HF 50*80 8 12 40M
VDR5580F/HF VDR5580FW/HF VDR5580FE/HF VDR5580FB/HF 55*80 8 12 32M
VDR6080F/HF VDR6080FW/HF VDR6080FE/HF VDR6080FB/HF 60*80 8 12 32M
VDR8080F/HF VDR8080FW/HF VDR8080FE/HF VDR8080FB/HF 80*80 8 12 24M
VDR10080F/HF VDR10080FW/HF VDR10080FE/HF VDR10080FB/HF 100*80 8 12 24M
VDR12080F/HF VDR12080FW/HF VDR12080FE/HF VDR12080FB/HF 120*80 8 12 16M
VDR14080F/HF VDR14080FW/HF VDR14080FE/HF VDR14080FB/HF 140*80 8 12 16M
VDR16080F/HF VDR16080FW/HF VDR16080FE/HF VDR16080FB/HF 160*80 8 12
/
VDR25100F/HF VDR25100FW/HF VDR25100FE/HF VDR25100FB/HF 25*100 8 12 60M
VDR33100F/HF VDR33100FW/HF VDR33100FE/HF VDR33100FB/HF 33*100 8 12 44M
VDR40100F/HF VDR40100FW/HF VDR40100FE/HF VDR40100FB/HF 40*100 8 12 40M
VDR50100F/HF VDR50100FW/HF VDR50100FE/HF VDR50100FB/HF 50*100 8 12 40M
VDR60100F/HF VDR60100FW/HF VDR60100FE/HF VDR60100FB/HF 60*100 8 12 32M
VDR70100F/HF VDR70100FW/HF VDR70100FE/HF VDR70100FB/HF 70*100 8 12 24M
VDR75100F/HF VDR75100FW/HF VDR75100FE/HF VDR75100FB/HF 75*100 8 12 24M
VDR80100F/HF VDR80100FW/HF VDR80100FE/HF VDR80100FB/HF 80*100 8 12 24M
VDR100100F/HF VDR100100FW/HF VDR100100FE/HF VDR100100FB/HF 100*100 8 12 24M
VDR120100F/HF VDR120100FW/HF VDR120100FE/HF VDR120100FB/HF 120*100 8 12 16M
VDR150100F/HF VDR150100FW/HF VDR150100FE/HF VDR150100FB/HF 150*100 8 12 16M
VDR160100F/HF VDR160100FW/HF VDR160100FE/HF VDR160100FB/HF 160*100 8 12
/
VDR100130F/HF VDR100130FW/HF VDR100130FE/HF VDR100130FB/HF 100*130 8 12
/
VDR200100F/HF VDR200100FW/HF VDR200100FE/HF VDR200100FB/HF 200*100 8 12 16M
VDR200150F/HF VDR200150FW/HF VDR200150FE/HF VDR200150FB/HF 200*150 8 12 16M







Item No.



W*H



Q



P

Wire capability/2.0sp
Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 3-10pcs
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 8-12pcs
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 8-12pcs
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 10-20pcs
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 15-30pcs
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 5-15pcs
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 5-15pcs
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 10-25pcs
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 12-28pcs
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 20-35pcs
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 12-28pcs
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 8-15pcs
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 25-35pcs
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 25-35pcs
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 35-35pcs
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 30-40pcs
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 40-50pcs
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 50-60pcs
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 25-35pcs
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 35-45pcs
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 30-40pcs
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 40-50pcs
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 40-60pcs
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 16-22pcs
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 20-35pcs
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 30-45pcs
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 60-70pcs
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 100-115pcs
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 120-135pcs
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 120-135pcs
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6 140-155pcs
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 20-25pcs
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 40-55pcs
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 60-70pcs
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 110-120pcs
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 18-28pcs
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 20-30pcs
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 25-40pcs
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 40-60pcs
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 60-70pcs
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 70-80pcs
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 80-90pcs
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 85-95pcs
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 100-120pcs
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 150-170pcs
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 160-180pcs
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 200-250pcs
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 220-270pcs
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 35-40pcs
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 40-50pcs
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 50-80pcs
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 90-105pcs
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 100-115pcs
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 110-125pcs
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 120-135pcs
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 120-135pcs
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 180-210pcs
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 240-290pcs
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 250-300pcs
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 260-320pcs
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 300-360pcs
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 40-50pcs
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 40-70pcs
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 110-120pcs
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 180-200pcs
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 180-230pcs
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6 180-210pcs
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 180-210pcs
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 200-240pcs
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 250-290pcs
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 100-120pcs
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 110-125pcs
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 110-130pcs
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 140-160pcs
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 140-160pcs
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 160-180pcs
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 160-180pcs
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 180-210pcs
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 240-290pcs
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 260-350pcs
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 280-380pcs
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 350-450pcs
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6 450-550pcs
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 110-160pcs
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 130-165pcs
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 130-175pcs
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 220-250pcs
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 240-290pcs
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 250-340pcs
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 260-350pcs
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 260-350pcs
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 300-400pcs
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 350-450pcs
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 400-650pcs
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6 500-750pcs
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6 350-450pcs
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 600-800pcs
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 900-1200pcs












RCCN  Din Rails












Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M










]]> http://www.wiring-ducts.com/vdrhf-halogen-free-wiring-ductblue-2/feed/ 0 RCCN HVDRHF Halogen Free Wiring Duct http://www.wiring-ducts.com/vdrhf-halogen-free-wiring-ductblue/ http://www.wiring-ducts.com/vdrhf-halogen-free-wiring-ductblue/#comments Mon, 10 Sep 2012 08:23:34 +0000 admin http://www.wiring-ducts.com/?p=1639



线槽图纸

• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0
• Narrow slot/finger design
• Provided with DIN 43 659 mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths





Item No.

W*H

Q

P

pack/M
Gray White Blue Black
VDR1616F/HF VDR1616FW/HF VDR1616FE/HF VDR1616FB/HF 16*16 8 10 300M
VDR2516F/HF VDR2516FW/HF VDR2516FE/HF VDR2516FB/HF 25*16 8 10 260M
VDR1520F/HF VDR1520FW/HF VDR1520FE/HF VDR1520FB/HF 15*20 8.5 12 260M
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20*20 8.5 12 240M
VDR4020F/HF VDR4020FW/HF VDR4020FE/HF VDR4020FB/HF 40*20 8 12 140M
VDR1525F/HF VDR1525FW/HF VDR1525FE/HF VDR1525FB/HF 15*25 8 12 260M
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20*25 8 12 200M
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25*25 8 12 200M
VDR3025F/HF VDR3025FW/HF VDR3025FE/HF VDR3025FB/HF 30*25 8 12 160M
VDR4025F/HF VDR4025FW/HF VDR4025FE/HF VDR4025FB/HF 40*25 8 12 100M
VDR5025F/HF VDR5025FW/HF VDR5025EF/HF VDR5025FB/HF 50*25 8 12 100M
VDR1530F/HF VDR1530FW/HF VDR1530FE/HF VDR1530FB/HF 15*30 8 12 180M
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20*30 8 12 130M
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25*30 8 12 130M
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30*30 8 12 140M
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40*30 8 12 100M
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50*30 8 12 80M
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60*30 8 12 60M
VDR2233F/HF VDR2233FW/HF VDR2233FE/HF VDR2233FB/HF 22*33 8 12 160M
VDR3333F/HF VDR3333FW/HF VDR3333FE/HF VDR3333FB/HF 33*33 8 12 160M
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20*35 8 12 100M
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35*35 8 12 112M
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50*35 8 12 88M
VDR2040F/HF VDR2040FW/HF VDR2040FE/HF VDR2040FB/HF 20*40 8 12 110M
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB/HF 25*40 8 12 112M
VDR3540F/HF VDR3540FW/HF VDR3540FE/HF VDR3540FB/HF 35*40 8 12 100M
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40*40 8 12 100M
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60*40 8 12 68M
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80*40 8 12 48M
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100*40 8 12 32M
VDR12040F/HF VDR12040FW/HF VDR12040FE/HF VDR12040FB/HF 100*40 8 12
/
VDR2545F/HF VDR2545FW/HF VDR2545FE/HF VDR2545FB/HF 25*45 8 12 104M
VDR3345F/HF VDR3345FW/HF VDR3345FE/HF VDR3345FB/HF 33*45 8 12 108M
VDR4545F/HF VDR4545FW/HF VDR4545FE/HF VDR4545FB/HF 45*45 8 12 72M
VDR6545F/HF VDR6545FW/HF VDR6545FE/HF VDR6545FB/HF 65*45 8 12 56M
VDR2050F/HF VDR2050FW/HF VDR2050FE/HF VDR2050FB/HF 20*50 8 12 100M
VDR2550F/HF VDR2550FW/HF VDR2550FE/HF VDR2550FB/HF 25*50 8 12 100M
VDR3050F/HF VDR3050FW/HF VDR3050FE/HF VDR3050FB/HF 30*50 8 12 84M
VDR3550F/HF VDR3550FW/HF VDR3550FE/HF VDR3550FB/HF 35*50 8 12 80M
VDR4050F/HF VDR4050FW/HF VDR4050FE/HF VDR4050FB/HF 40*50 8 12 68M
VDR4550F/HF VDR4550FW/HF VDR4550FE/HF VDR4550FB/HF 45*50 8 12 60M
VDR5050F/HF VDR5050FW/HF VDR5050FE/HF VDR5050FB/HF 50*50 8 12 50M
VDR5550F/HF VDR5550FW/HF VDR5550FE/HF VDR5550FB/HF 55*50 8 12 48M
VDR6050F/HF VDR6050FW/HF VDR6050FE/HF VDR6050FB/HF 60*50 8 12 48M
VDR7550F/HF VDR7550FW/HF VDR7550FE/HF VDR7550FB/HF 75*50 8 12 40M
VDR8050F/HF VDR8050FW/HF VDR8050FE/HF VDR8050FB/HF 80*50 8 12 40M
VDR10050F/HF VDR10050FW/HF VDR10050FE/HF VDR10050FB/HF 100*50 8 12 26M
VDR12555F/HF VDR12555FW/HF VDR12555FE/HF VDR12555FB/HF 125*55 8 12 26M
VDR2060F/HF VDR2060FW/HF VDR2060FE/HF VDR2060FB/HF 20*60 8 12 100M
VDR2560F/HF VDR2560FW/HF VDR2560FE/HF VDR2560FB/HF 25*60 8 12 100M
VDR3060F/HF VDR3060FW/HF VDR3060FE/HF VDR3060FB/HF 30*60 8 12 80M
VDR3560F/HF VDR3560FW/HF VDR3560FE/HF VDR3560FB/HF 35*60 8 12 78M
VDR4060F/HF VDR4060FW/HF VDR4060FE/HF VDR4060FB/HF 40*60 8 12 60M
VDR4560F/HF VDR4560FW/HF VDR4560FE/HF VDR4560FB/HF 45*60 8 12 30M
VDR5060F/HF VDR5060FW/HF VDR5060FE/HF VDR5060FB/HF 50*60 8 12 60M
VDR6060F/HF VDR6060FW/HF VDR6060FE/HF VDR6060FB/HF 60*60 8 12 48M
VDR8060F/HF VDR8060FW/HF VDR8060FE/HF VDR8060FB/HF 80*60 8 12 36M
VDR10060F/HF VDR10060FW/HF VDR10060FE/HF VDR10060FB/HF 100*60 8 12 28M
VDR11060F/HF VDR11060FW/HF VDR11060FE/HF VDR11060FB/HF 110*60 8 12 48M
VDR12060F/HF VDR12060FW/HF VDR12060FE/HF VDR12060FB/HF 120*60 8 12 48M
VDR15060F/HF VDR15060FW/HF VDR15060FE/HF VDR15060FB/HF 150*60 8 12 16M
VDR2565F/HF VDR2565FW/HF VDR2565FE/HF VDR2565FB/HF 25*65 8 12 88M
VDR3365F/HF VDR3365FW/HF VDR3365FE/HF VDR3365FB/HF 33*65 8 12 80M
VDR4565F/HF VDR4565FW/HF VDR4565FE/HF VDR4565FB/HF 45*65 8 12 52M
VDR6565F/HF VDR6565FW/HF VDR6565FE/HF VDR6565FB/HF 65*65 8 12 44M
VDR7265F/HF VDR7265FW/HF VDR7265FE/HF VDR7265FB/HF 72*65 8 12 42M
VDR2575F/HF VDR2575FW/HF VDR2575FE/HF VDR2575FB/HF 25*75 8 12
/
VDR5075F/HF VDR5075FW/HF VDR5075FE/HF VDR5075FB/HF 50*75 8 12 42M
VDR7575F/HF VDR7575FW/HF VDR7575FE/HF VDR7575FB/HF 75*75 8 12 40M
VDR10075F/HF VDR10075FW/HF VDR10075FE/HF VDR10075FB/HF 100*75 8 12 24M
VDR2580F/HF VDR2580FW/HF VDR2580FE/HF VDR2580FB/HF 25*80 8 12 72M
VDR3080F/HF VDR3080FW/HF VDR3080FE/HF VDR3080FB/HF 30*80 8 12 56M
VDR3580F/HF VDR3580FW/HF VDR3580FE/HF VDR3580FB/HF 35*80 8 12 56M
VDR4080F/HF VDR4080FW/HF VDR4080FE/HF VDR4080FB/HF 40*80 8 12 48M
VDR4580F/HF VDR4580FW/HF VDR4580FE/HF VDR4580FB/HF 45*80 8 12 40M
VDR5080F/HF VDR5080FW/HF VDR5080FE/HF VDR5080FB/HF 50*80 8 12 40M
VDR5580F/HF VDR5580FW/HF VDR5580FE/HF VDR5580FB/HF 55*80 8 12 32M
VDR6080F/HF VDR6080FW/HF VDR6080FE/HF VDR6080FB/HF 60*80 8 12 32M
VDR8080F/HF VDR8080FW/HF VDR8080FE/HF VDR8080FB/HF 80*80 8 12 24M
VDR10080F/HF VDR10080FW/HF VDR10080FE/HF VDR10080FB/HF 100*80 8 12 24M
VDR12080F/HF VDR12080FW/HF VDR12080FE/HF VDR12080FB/HF 120*80 8 12 16M
VDR14080F/HF VDR14080FW/HF VDR14080FE/HF VDR14080FB/HF 140*80 8 12 16M
VDR16080F/HF VDR16080FW/HF VDR16080FE/HF VDR16080FB/HF 160*80 8 12
/
VDR25100F/HF VDR25100FW/HF VDR25100FE/HF VDR25100FB/HF 25*100 8 12 60M
VDR33100F/HF VDR33100FW/HF VDR33100FE/HF VDR33100FB/HF 33*100 8 12 44M
VDR40100F/HF VDR40100FW/HF VDR40100FE/HF VDR40100FB/HF 40*100 8 12 40M
VDR50100F/HF VDR50100FW/HF VDR50100FE/HF VDR50100FB/HF 50*100 8 12 40M
VDR60100F/HF VDR60100FW/HF VDR60100FE/HF VDR60100FB/HF 60*100 8 12 32M
VDR70100F/HF VDR70100FW/HF VDR70100FE/HF VDR70100FB/HF 70*100 8 12 24M
VDR75100F/HF VDR75100FW/HF VDR75100FE/HF VDR75100FB/HF 75*100 8 12 24M
VDR80100F/HF VDR80100FW/HF VDR80100FE/HF VDR80100FB/HF 80*100 8 12 24M
VDR100100F/HF VDR100100FW/HF VDR100100FE/HF VDR100100FB/HF 100*100 8 12 24M
VDR120100F/HF VDR120100FW/HF VDR120100FE/HF VDR120100FB/HF 120*100 8 12 16M
VDR150100F/HF VDR150100FW/HF VDR150100FE/HF VDR150100FB/HF 150*100 8 12 16M
VDR160100F/HF VDR160100FW/HF VDR160100FE/HF VDR160100FB/HF 160*100 8 12
/
VDR100130F/HF VDR100130FW/HF VDR100130FE/HF VDR100130FB/HF 100*130 8 12
/
VDR200100F/HF VDR200100FW/HF VDR200100FE/HF VDR200100FB/HF 200*100 8 12 16M
VDR200150F/HF VDR200150FW/HF VDR200150FE/HF VDR200150FB/HF 200*150 8 12 16M







Item No.



W*H



Q



P

Wire capability/2.0sp
Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 3-10pcs
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 8-12pcs
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 8-12pcs
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 10-20pcs
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 15-30pcs
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 5-15pcs
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 5-15pcs
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 10-25pcs
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 12-28pcs
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 20-35pcs
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 12-28pcs
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 8-15pcs
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 25-35pcs
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 25-35pcs
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 35-35pcs
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 30-40pcs
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 40-50pcs
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 50-60pcs
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 25-35pcs
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 35-45pcs
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 30-40pcs
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 40-50pcs
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 40-60pcs
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 16-22pcs
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 20-35pcs
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 30-45pcs
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 60-70pcs
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 100-115pcs
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 120-135pcs
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 120-135pcs
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6 140-155pcs
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 20-25pcs
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 40-55pcs
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 60-70pcs
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 110-120pcs
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 18-28pcs
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 20-30pcs
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 25-40pcs
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 40-60pcs
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 60-70pcs
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 70-80pcs
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 80-90pcs
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 85-95pcs
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 100-120pcs
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 150-170pcs
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 160-180pcs
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 200-250pcs
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 220-270pcs
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 35-40pcs
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 40-50pcs
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 50-80pcs
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 90-105pcs
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 100-115pcs
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 110-125pcs
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 120-135pcs
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 120-135pcs
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 180-210pcs
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 240-290pcs
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 250-300pcs
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 260-320pcs
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 300-360pcs
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 40-50pcs
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 40-70pcs
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 110-120pcs
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 180-200pcs
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 180-230pcs
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6 180-210pcs
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 180-210pcs
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 200-240pcs
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 250-290pcs
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 100-120pcs
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 110-125pcs
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 110-130pcs
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 140-160pcs
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 140-160pcs
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 160-180pcs
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 160-180pcs
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 180-210pcs
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 240-290pcs
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 260-350pcs
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 280-380pcs
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 350-450pcs
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6 450-550pcs
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 110-160pcs
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 130-165pcs
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 130-175pcs
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 220-250pcs
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 240-290pcs
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 250-340pcs
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 260-350pcs
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 260-350pcs
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 300-400pcs
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 350-450pcs
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 400-650pcs
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6 500-750pcs
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6 350-450pcs
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 600-800pcs
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 900-1200pcs












RCCN  Din Rails












Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M










]]> http://www.wiring-ducts.com/vdrhf-halogen-free-wiring-ductblue/feed/ 0
