wiring duct-RCCN » brass cable gland http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 Brass Cable Gland http://www.wiring-ducts.com/brass-cable-gland/ http://www.wiring-ducts.com/brass-cable-gland/#comments Thu, 11 Jul 2013 17:17:52 +0000 admin http://www.wiring-ducts.com/?p=3646




Thread:Metric

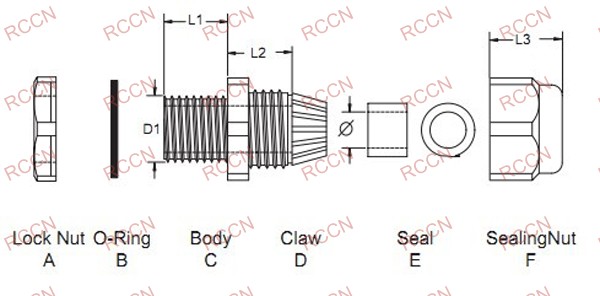

Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease

Thread
length



Item No

Thread

CableRange

Φ

Thread

O.D.

D1

Panel

Mounting

Hole

Thread

Length

L1

Joint

Length

L2+L3



Spanner

size

A&F

Std.Pkg

Pcs

Standard
thread



 A-M12*1.5 M12*1.5 3-6.5 12 12-12.3 6 19 16 100PCS
A-M16*1.5 M16*1.5 4-8 16 16-16.3 7 20 18
A-M18*1.5 M18*1.5 5-10 18 18-18.3 7 22 20
A-M20*1.5 M20*1.5 6-12 20 20-20.3 8 23 22
A-M25*1.5 M25*1.5 10-14 25 25-25.4 8 23 27
A-M32*1.5 M32*1.5 13-18 32 32-32.4 9 32 34 10PCS
A-M40*1.5 M40*1.5 18-25 40 40-40.4 9 32 45
A-M50*1.5 M50*1.5 22-32 50 50-50.4 9 38 56
A-M63*1.5 M63*1.5 34-44 63 63-63.4 14 38 70

Length
added
thread

 A-M12*1.5L M12*1.5 3-6.5 12 12-12.3 12 19 16 100PCS
A-M16*1.5L M16*1.5 4-8 16 16-16.3 12 20 18
A-M18*1.5L M18*1.5 5-10 18 18-18.3 12 22 20
A-M20*1.5L M20*1.5 6-12 20 20-20.3 12 23 22
A-M25*1.5L M25*1.5 10-14 25 25-25.4 12 23 27
A-M32*1.5L M32*1.5 13-18 32 32-32.4 15 32 34 10PCS
A-M40*1.5L M40*1.5 18-25 40 40-40.4 15 32 45
A-M50*1.5L M50*1.5 22-32 50 50-50.4 15 38 56
A-M63*1.5L M63*1.5 34-44 63 63-63.4 18 38 70







Thread
length

Item No

Thread

CableRange

Φ

Thread

O.D.

D1

Panel

Mounting

Hole

Thread

Length

L1

Spanner

size

A&F

Std.Pkg

Pcs

Standard
thread

 A-M12*1.5(3-6.5) M12*1.5 3-6.5 12 12-12.3 7 14 100PCS
A-M14*1.5(3-6.5) M14*1.5 3-6.5 14 14-14.3 7 14
A-M14*1.5(4-8) M14*1.5 4-8 14 14-14.3 7 17
A-M16*1.5(4-8) M16*1.5 4-8 16 16-16.3 7 17
A-M16*1.5(5-10) M16*1.5 5-10 16 16-16.3 8 20
A-M18*1.5(6-12) M18*1.5 6-12 18 18-18.3 8 20
A-M20*1.5(6-12) M20*1.5 6-12 20 20-20.3 8 22
A-M22*1.5(10-14) M22*1.5 10-14 22 22-22.3 9 24
A-M24*1.5(10-14) M24*1.5 10-14 24 24-24.3 10 27
A-M25*1.5(10-14) M25*1.5 10-14 25 25-25.4 11 27 50PCS
A-M25*1.5(13-18) M25*1.5 13-18 25 25-25.4 11 30
A-M27*2.0(13-18) M27*2.0 13-18 27 27-27.4 11 30
A-M30*2.0(13-18) M30*2.0 13-18 30 30-30.4 11 32
A-M32*1.5(13-18) M32*1.5 13-18 32 32-32.4 11 34
A-M32*1.5(15-25) M32*1.5 15-25 32 32-32.4 11 40
A-M33*2.0(15-25) M33*2.0 15-25 33 33-3.4 11 40
A-M36*2.0(15-25) M36*2.0 15-25 36 36-36.4 11 42
A-M40*1.5(15-25) M40*1.5 15-25 40 40-40.4 12 43 10PCS
A-M40*1.5(22-32) M40*1.5 22-32 40 40-40.4 12 50
A-M42*2.0(22-32) M42*2.0 22-32 42 42-42.4 12 50
A-M48*2.0(22-32) M48*2.0 22-32 48 48-48.4 13 50
A-M50*1.5(22-32) M50*1.5 22-32 50 50-50.4 13 55 5PCS
A-M50*1.5(30-38) M50*1.5 30-38 50 50-50.4 13 57
A-M54*2.0(30-38) M54*2.0 30-38 54 54-54.4 14 60
A-M56*2.0(30-38) M56*2.0 30-38 56 56-56.4 14 60
A-M60*2.0(34-44) M60*2.0 34-44 60 60-60.4 14 64
A-M63*1.5(34-44) M63*1.5 34-44 63 63-63.4 14 68
A-M64*2.0(34-44) M64*2.0 34-44 64 64-64.4 14 68

Length
added
thread

 A-M12*1.5L(3-6.5) M12*1.5 3-6.5 12 12-12.3 12 14 100PCS
A-M14*1.5L(3-6.5) M14*1.5 3-6.5 14 14-14.3 12 14
A-M14*1.5L(4-8) M14*1.5 4-8 14 14-14.3 12 17
A-M16*1.5L(4-8) M16*1.5 4-8 16 16-16.3 12 17
A-M16*1.5L(5-10) M16*1.5 5-10 16 16-16.3 12 20
A-M18*1.5L(6-12) M18*1.5 6-12 18 18-18.3 12 20
A-M20*1.5L(6-12) M20*1.5 6-12 20 20-20.3 12 22
A-M22*1.5L(10-14) M22*1.5 10-14 22 22-22.3 12 24
A-M24*1.5L(10-14) M24*1.5 10-14 24 24-24.3 10 27
A-M25*1.5L(10-14) M25*1.5 10-14 25 25-25.4 15 27 50PCS
A-M25*1.5L(13-18) M25*1.5 13-18 25 25-25.4 15 30
A-M27*2.0L(13-18) M27*2.0 13-18 27 27-27.4 15 30
A-M30*2.0L(13-18) M30*2.0 13-18 30 30-30.4 15 32
A-M32*1.5L(13-18) M32*1.5 13-18 32 32-32.4 15 34
A-M32*1.5L(18-25) M32*1.5 18-25 32 32-32.4 15 40
A-M33*2.0L(18-25) M33*2.0 18-25 33 33-3.4 15 40
A-M36*2.0L(18-25) M36*2.0 18-25 36 36-36.4 15 42
A-M40*1.5L(18-25) M40*1.5 18-25 40 40-40.4 15 43 10PCS
A-M40*1.5L(22-32) M40*1.5 22-32 40 40-40.4 15 50
A-M42*2.0L(22-32) M42*2.0 22-32 42 42-42.4 15 50
A-M48*2.0L(22-32) M48*2.0 22-32 48 48-48.4 15 50
A-M50*1.5L(22-32) M50*1.5 22-32 50 50-50.4 15 55 5PCS
A-M50*1.5L(30-38) M50*1.5 30-38 50 50-50.4 15 57
A-M54*2.0L(30-38) M54*2.0 30-38 54 54-54.4 18 60
A-M56*2.0L(30-38) M56*2.0 30-38 56 56-56.4 18 60
A-M60*2.0L(34-44) M60*2.0 34-44 60 60-60.4 18 64
A-M63*1.5L(34-44) M63*1.5 34-44 63 63-63.4 18 68
A-M64*2.0L(34-44) M64*2.0 34-44 64 64-64.4 18 68



]]> http://www.wiring-ducts.com/brass-cable-gland/feed/ 0 brass cable gland A-M http://www.wiring-ducts.com/brass-cable-gland-a-m/ http://www.wiring-ducts.com/brass-cable-gland-a-m/#comments Sun, 16 Jun 2013 12:15:56 +0000 admin http://www.wiring-ducts.com/?p=3584




Thread:Metric

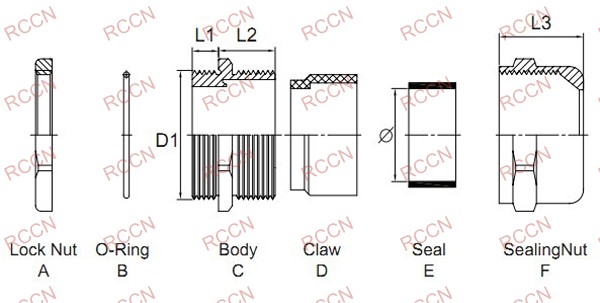

Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
Thread

length

  Item No Thread Cable

Range

Φ

 Thread

O.D.

D1

 Panel

Mounting

Hole

 Thread

Length

L1

 Joint

Length

L2+L3

  Spanner

size

A&F

 Std.

Pkg

Pcs
Standard
thread  		 A-M12*1.5(3-6.5) M12*1.5 3-6.5 12 12-12.3 6 19 16 100PCS
A-M16*1.5(4-8) M16*1.5 4-8 16 16-16.3 7 20 18
A-M18*1.5(5-10) M18*1.5 5-10 18 18-18.3 7 22 20
A-M20*1.5(6-12) M20*1.5 6-12 20 20-20.3 8 23 22
A-M22*1.5(10-14) M22*1.5 10-14 22 22-22.3 8 23 24
A-M25*1.5(10-14) M25*1.5 10-14 25 25-25.4 8 23 28/24
A-M25*1.5(13-18) M25*1.5 13-18 25 25-25.4 9 32 30 10PCS
A-M32*1.5(13-18) M32*1.5 13-18 32 32-32.4 9 32 36/30
A-M32*1.5(15-25) M32*1.5 15-25 32 32-32.4 9 32 40
A-M40*1.5(15-25) M40*1.5 15-25 40 40-40.4 9 32 44/40
A-M40*1.5(22-32) M40*1.5 22-32 40 40-40.4 9 38 50
A-M50*1.5(22-32) M50*1.5 22-32 50 50-50.4 9 38 54/50
A-M50*1.5(30-38) M50*1.5 30-38 50 50-50.4 10 38 58
A-M63*1.5(34-44) M63*1.5 34-44 63 63-63.4 14 38 68/64
Length
added
thread		 A-M12*1.5L(3-6.5) M12*1.5 3-6.5 12 12-12.3 12 19 16 100PCS
A-M16*1.5L(4-8) M16*1.5 4-8 16 16-16.3 12 20 18
A-M18*1.5L(5-10) M18*1.5 5-10 18 18-18.3 12 22 20
A-M20*1.5L(6-12) M20*1.5 6-12 20 20-20.3 12 23 22
A-M22*1.5(10-14) M22*1.5 10-14 22 22-22.3 12 23 24
A-M25*1.5L(10-14) M25*1.5 10-14 25 25-25.4 12 23 28/24
A-M25*1.5(13-18) M25*1.5 13-18 25 25-25.4 12 32 30 10PCS
A-M32*1.5L(13-18) M32*1.5 13-18 32 32-32.4 15 32 36/30
A-M32*1.5(13-18) M32*1.5 13-18 32 32-32.4 15 32 40
A-M40*1.5L(18-25) M40*1.5 18-25 40 40-40.4 15 32 44/40
A-M40*1.5(22-32) M40*1.5 22-32 40 40-40.4 15 38 50
A-M50*1.5L(22-32) M50*1.5 22-32 50 50-50.4 15 38 54/50
A-M50*1.5(30-38) M50*1.5 30-38 50 50-50.4 15 38 58
A-M63*1.5L(34-44) M63*1.5 34-44 63 63-63.4 18 38 68/64





]]> http://www.wiring-ducts.com/brass-cable-gland-a-m/feed/ 0 RCCN A-PG Brass Cable Gland http://www.wiring-ducts.com/a-pg-brass-cable-gland/ http://www.wiring-ducts.com/a-pg-brass-cable-gland/#comments Wed, 30 Sep 2009 07:31:26 +0000 admin http://www.wiring-ducts.com/?p=2442




Thread:DIN PG
Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
Large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
Withstand impregnant like acid,alkali,alcohol,oil,grease

Item No

Thread

CableRange

Φ

O.D.

D1

Panel

Mounting

Hole

Thread

Length

L1

Joint

Length

L2+L3

Spanner

size

A&F

Std.Pkg

Pcs
A-PG-7(2-6.5) PG-7 2-6.5 12.5 12.5-12.8 7 19 16 100PCS
A-PG-9(3-8) PG-9 3-8 15.2 15.2-15.8 7 20 18
A-PG-11(4-10) PG-11 4-10 18.6 18.6-18.9 7 22 20
A-PG-13.5(5-12) PG-13.5 5-12 20.4 20.4-20.7 8 23 22
A-PG-16(8-14) PG-16 8-14 22.5 22.5-22.8 9 23 24
A-PG-21(10-18) PG-21 10-18 28.3 28.3-28.7 10 28 30 20PCS
A-PG-29(15-25) PG-29 15-25 37.0 37.0-37.4 11 32 40
A-PG-36(20-32) PG-36 20-32 47.0 47.0-47.4 11 38 50 10PCS
A-PG-42(25-38) PG-42 25-38 54.0 54.0-54.4 11 38 58
A-PG-48(30-44) PG-48 30-44 59.3 59.3-59.7 14 38 64

Length added thread


A-PG-7L(2-6.5) PG-7 2-6.5 12.5 12.5-12.8 12 19 16 100PCS
A-PG-9L(3-8) PG-9 3-8 15.2 15.2-15.8 12 20 18
A-PG-11L(4-10) PG-11 4-10 18.6 18.6-18.9 12 22 20
A-PG-13.5L(5-12) PG-13.5 5-12 20.4 20.4-20.7 12 23 22
A-PG-16L(8-14) PG-16 8-14 22.5 22.5-22.8 12 23 24
A-PG-21L(10-18) PG-21 10-18 28.3 28.3-28.7 15 28 30 20PCS
A-PG-29L(15-25) PG-29 15-25 37.0 37.0-37.4 15 32 40
A-PG-36L(20-32) PG-36 20-32 47.0 47.0-47.4 15 38 50 10PCS
A-PG-42L(25-38) PG-42 25-38 54.0 54.0-54.4 15 38 58
A-PG-48L(30-44) PG-48 30-44 59.3 59.3-59.7 18 38 64







]]> http://www.wiring-ducts.com/a-pg-brass-cable-gland/feed/ 0 RCCN brass cable gland type-M http://www.wiring-ducts.com/brass-cable-gland-type-m/ http://www.wiring-ducts.com/brass-cable-gland-type-m/#comments Wed, 30 Sep 2009 06:57:10 +0000 admin http://www.wiring-ducts.com/?p=272




Thread:Metric。
Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the suitable use way
Operate temperature:-40°C to 100°C
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use

Item No. Thread CableRange
￠		 Thread
O.D.
D1		 Panel
Mounting
Hole		 Thread
Length
L1		 Joint
Length
L2+L3		 Spanner
size
A&F		 Std.Pkg.
pcs
M12×1.5 M12×1.5 3-6 12 12-12.3 6 19 16 100PCS
M16×1.5 M16×1.5 4-8 16 16-16.3 7 20 18
M20×1.5 M20×1.5 8-12 20 20-20.3 8 23 22
M25×1.5 M25×1.5 10-14 25 25-25.4 10 23 28 50PCS
M32×1.5 M32×1.5 15-22 32 32-32.4 11 32 36
M40×1.5 M40×1.5 18-25 40 40-40.4 12 32 42 10PCS
M50×1.5 M50×1.5 26-32 50 50-50.4 13 38 56
M63×1.5 M63×1.5 37-44 63 63-63.4 14 38 70
M72×2.0 M72×2.0 42-52 72 72-72.4 15 38 75 5PCS
M88×2.0 M88×2.0 55-62 88 88-88.4 20 45 80
M100×2.0 M100×2.0 78-84 100 102 20 50 90
 Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3 SpannersizeA&F  Std.PkgPcs
M12*1.5 M12*1.5 3-6 12 12-12.3 7 19 16 100PCS
M14*1.5 M14*1.5 3-6 14 14-14.3 7 19 16
M16*1.5 M16*1.5 4-8 16 16-16.3 8 20 18
M18*1.5 M18*1.5 6-10 18 18-18.3 8 22 20
M20*1.5 M20*1.5 8-12 20 20-20.3 8 23 22
M22*1.5 M22*1.5 10-14 22 22-22.3 9 23 24
M24*1.5 M24*1.5 10-14 24 24-24.3 10 23 27 50PCS
M25*1.5 M25*1.5 11-16 25 25-25.4 11 23 28
M27*2.0 M27*2.0 13-18 27 27-27.4 11 28 30
M30*2.0 M30*2.0 14-20 30 30-30.4 11 28 32
M32*1.5 M32*1.5 15-22 32 32-32.4 11 32 36
M33*2.0 M33*2.0 15-22 33 33-33.4 11 32 36
M36*2.0 M36*2.0 18-25 36 36-36.4 11 32 42
M40*1.5 M40*1.5 22-28 40 40-40.4 12 32 45 10PCS
M42*2.0 M42*2.0 24-30 42 42-42.4 12 36 48
M48*2.0 M48*2.0 25-32 48 48-48.4 13 38 52
M50*1.5 M50*1.5 28-36 50 50-50.4 13 38 56 5PCS
M54*2.0 M54*2.0 32-38 54 54-54.4 14 38 60
M56*2.0 M56*2.0 32-38 56 56-56.4 14 38 60
M60*2.0 M60*2.0 37-44 60 60-60.4 14 38 64
M63*1.5 M63*1.5 37-44 63 63-63.4 14 38 70
M64*2.0 M64*2.0 37-44 64 64-64.4 14 38 68
M72*2.0 M72*2.0 42-52 72 72-72.4 15 40 77
M76*2.0 M76*2.0 45-55 72 76-76.4 15 40 77
M80*2.0 M80*2.0 50-60 80 80-80.4 18 44 88
M88*2.0 M88*2.0 60-70 88 88-88.4 20 45 80
Bigger dia. zinc metal nickel coated cable gland
M100*2.0 M100*2.0 70-80 100 102 20 50 90 1PCS
M125*3.0 M125*3.0 90-100 100 122 25 60 90
M150*3.0 M150*3.0 120-130 100 152 25 65 90





]]> http://www.wiring-ducts.com/brass-cable-gland-type-m/feed/ 0 RCCN M-L Brass Cable Gland http://www.wiring-ducts.com/m-l-brass-cable-gland/ http://www.wiring-ducts.com/m-l-brass-cable-gland/#comments Wed, 30 Sep 2009 06:56:29 +0000 admin http://www.wiring-ducts.com/?p=2453




Thread:Metric。
Material :A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the sui table use way
Operate temperature:-40°C to 100°C
Product characterst ics:Special design of part D and E,used wi th part F, can save your t ime,
large spread of cable seal ing,good re-tensi le,waterproof ,ashproof ,re-sal ty,
wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease
More choice:Length added gland,many other sizes of seal ,glands made of rubber EPDM for outdoor use
 Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3 SpannersizeA&F  Std.PkgPcs
M12*1.5L M12*1.5 3-6 12 12-12.3 10 19 16 100PCS
M16*1.5L M16*1.5 4-8 16 16-16.3 10 20 18
M18*1.5L M18*1.5 6-10 18 18-18.3 10 22 20
M20*1.5L M20*1.5 8-12 20 20-20.3 10 23 22
M22*1.5L M22*1.5 10-14 22 22-22.3 10 23 24
M24*1.5L M24*1.5 10-14 24 24-24.3 12 23 27
M25*1.5L M25*1.5 11-16 25 25-25.4 12 23 28 50PCS
M27*2.0L M27*2.0 13-18 27 27-27.4 12 28 30
M30*2.0L M30*2.0 14-20 30 30-30.4 12 28 32
M32*1.5L M32*1.5 15-22 32 32-32.4 12 32 36
M33*2.0L M33*2.0 15-22 33 33-33.4 12 32 36
M36*2.0L M36*2.0 18-25 36 36-36.4 12 32 42
M40*1.5L M40*1.5 22-28 40 40-40.4 15 32 45
M42*2.0L M42*2.0 24-30 42 42-42.4 15 36 48 10PCS
M48*2.0L M48*2.0 25-32 48 48-48.4 15 38 52
M50*1.5L M50*1.5 28-36 50 50-50.4 15 38 56
M54*2.0L M54*2.0 32-38 54 54-54.4 16 38 60 5PCS
M56*2.0L M56*2.0 32-38 56 56-56.4 16 38 60
M60*2.0L M60*2.0 37-44 60 60-60.4 16 38 64
M63*1.5L M63*1.5 37-44 63 63-63.4 18 38 70
M64*2.0L M64*2.0 37-44 64 64-64.4 18 38 68





]]> http://www.wiring-ducts.com/m-l-brass-cable-gland/feed/ 0 RCCN M-S&M-D Brass Cable Gland http://www.wiring-ducts.com/m-sm-d-brass-cable-gland/ http://www.wiring-ducts.com/m-sm-d-brass-cable-gland/#comments Wed, 30 Sep 2009 06:55:48 +0000 admin http://www.wiring-ducts.com/?p=2450




Thread:Metric。
Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the suitable use way
Operate temperature:-40°C to 100°C
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
 Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3  Spannersize

A&F

  Std.PkgPcs
Special range type:
M16*1.5S M16*1.5 3-6 16 16-16.3 8 20 18 100PCS
M16*1.5D M16*1.5 6-10 16 16-16.3 8 20 18
M20*1.5S M20*1.5 6-10 20 20-20.3 8 23 22
M20*1.5D M20*1.5 10-14 20 20-20.3 8 23 22
M24*1.5S M24*1.5 8-12 24 24-24.3 10 23 27
M25*1.5S M25*1.5 10-14 25 25-25.4 10 23 28 50PCS
M25*1.5D M25*1.5 13-18 25 25-25.4 10 23 28
M27*2.0S M27*2.0 10-16 27 27-27.4 11 28 30
M30*2.0S M30*2.0 10-16 30 30-30.4 11 28 32
M32*1.5S M32*1.5 13-18 32 32-32.4 11 32 36
M32*1.5D M32*1.5 18-25 32 32-32.4 11 32 36
M36*2.0S M36*2.0 15-22 36 36-36.4 11 32 42
M40*1.5S M40*1.5 18-25 40 40-40.4 12 32 45 10PCS
M40*1.5D M40*1.5 22-32 40 40-40.4 12 32 45
Sepcial length added type:
M16*1.5LS M16*1.5 3-6 16 16-16.3 10 20 18 100PCS
M16*1.5LD M16*1.5 5-10 16 16-16.3 10 20 18
M20*1.5LS M20*1.5 5-10 20 20-20.3 10 23 22
M20*1.5LD M20*1.5 8-14 20 20-20.3 10 23 22
M24*1.5LS M24*1.5 6-12 24 24-24.3 12 23 27
M25*1.5LS M25*1.5 10-14 25 25-25.4 12 23 28
M25*1.5LD M25*1.5 13-18 25 25-25.4 12 23 28
M27*2.0LS M27*2.0 10-16 27 27-27.4 12 28 30 50PCS
M30*2.0LS M30*2.0 10-16 30 30-30.4 12 28 32
M32*1.5LS M32*1.5 13-18 32 32-32.4 12 32 36
M32*1.5LD M32*1.5 18-25 32 32-32.4 12 32 36
M36*2.0LS M36*2.0 15-22 36 36-36.4 12 32 42
M40*1.5LS M40*1.5 18-25 40 40-40.4 15 32 45 10PCS
M40*1.5LD M40*1.5 22-32 40 40-40.4 15 32 45





]]> http://www.wiring-ducts.com/m-sm-d-brass-cable-gland/feed/ 0 RCCN brass cable gland pg/npt http://www.wiring-ducts.com/brass-cable-gland-pg-npt/ http://www.wiring-ducts.com/brass-cable-gland-pg-npt/#comments Wed, 30 Sep 2009 06:54:24 +0000 admin http://www.wiring-ducts.com/?p=270




Thread:DIN PG，G/PF，NPT
Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the suitable use way
Operate temperature:-40°C to 100°C
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use
Thread
length		  Item No Thread CableRangeΦ ThreadO.D.D1 ThreadLengthL1 JointLengthL2+L3 SpannersizeA&F  Std.PkgPcs
 PGermany
thread 		 PG-7 PG-7 3-6 12.5 7 19 16 100PCS
PG-9 PG-9 4-8 15.2 8 20 18
PG-11 PG-9 6-10 18.6 8 22 20
PG-13.5 PG-13.5 8-12 20.4 8 23 22
PG-16 PG-16 10-14 22.5 10 23 24
PG-21 PG-21 13-18 28.3 11 28 30 10PCS
PG-29 PG-29 18-25 37.0 11 32 42
PG-36 PG-36 25-32 47.0 13 38 52
PG-42 PG-42 32-38 54.0 14 38 60
PG-48 PG-48 37-44 59.3 14 38 64
PGGermany
thread
length
added
type		 PG-7L PG-7 3-6 12.5 10 19 16 100PCS
PG-9L PG-9 4-8 15.2 10 20 18
PG-11L PG-11 5-10 18.6 10 22 20
PG-13.5L PG-13.5 6-12 20.4 10 23 22
PG-16L PG-16 8-14 22.5 12 23 24
PG-21L PG-21 13-18 28.3 13 28 30 10PCS
PG-29L PG-29 18-25 37.0 13 32 42
PG-36L PG-36 25-32 47.0 15 38 52
PG-42L PG-42 32-38 54.0 18 38 60
PG-48L PG-48 37-44 59.3 18 38 64
PGGermany
special
thread
type		 PG-9S PG-9 3-6 15.2 8 20 18 100PCS
PG-9LS PG-9 3-6 15.2 10 20 18
PG-13.5S PG-13.5 6-10 20.4 8 23 22
PG-13.5LS PG-13.5 6-10 20.4 10 23 22
PG-16S PG-16 6-12 22.5 10 23 24
PG-21S PG-21 11-16 28.3 11 28 30 10PCS
PG-21LS PG-21 11-16 28.3 13 28 30
PG-29S PG-29 15-22 37.0 11 32 42
PG-29LS PG-29 15-22 37.0 13 32 42







]]> http://www.wiring-ducts.com/brass-cable-gland-pg-npt/feed/ 0 RCCN G&NPT Brass Cable Gland http://www.wiring-ducts.com/gnpt-brass-cable-gland/ http://www.wiring-ducts.com/gnpt-brass-cable-gland/#comments Wed, 30 Sep 2009 06:53:09 +0000 admin http://www.wiring-ducts.com/?p=2447




Thread:DIN PG，G/PF，NPT
Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the suitable use way
Operate temperature:-40°C to 100°C
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use
Thread
length		  Item No Thread  CableRange

Φ

 ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3  Spannersize

A&F

  Std.PkgPcs
 G
Tube
thread



 G1/4 G1/4” 3-6 13.2 13.2-13.4 7 19 16 100PCS
G3/8 G3/8” 4-8 16.5 16.5-17.1 8 20 18
G1/2 G1/2” 8-12 21.3 21.0-21.3 8 23 22
G3/4 G3/4” 10-14 26.6 26.5-26.6 11 28 30
G1 G1” 13-18 33.4 33.2-33.4 11 32 36 10PCS
G1-1/4 G1-1/4” 22-28 42.1 41.9-42.1 12 36 48
G1-1/2 G1-1/2” 26-32 47.8 47.8-48.0 13 38 52
G2 G2” 37-44 59.6 59.6-60.1 14 38 64
NPT
America
thread		 NPT1/4 NPT1/4” 3-6 16.5 16.5-17.1 7 20 18 100PCS
NPT3/8 NPT1/4” 4-8 13.1 13.1-13.4 8 20 18
NPT1/2 NPT1/4” 8-12 21.3 21.0-21.3 8 23 22
NPT3/4 NPT1/4” 13-18 26.6 26.5-26.6 11 28 30 10PCS
NPT1 NPT1/4” 15-22 33.4 33.2-33.4 11 32 36
NPT1-1/4 NPT1/4” 22-28 42.1 41.9-42.1 12 36 48
NPT1-1/2 NPT1/4” 26-32 47.8 47.8-48.0 13 38 52
NPT2 NPT1/4” 37-44 59.6 59.6-60.1 14 38 64
G Tube length
 added thread		 G1/4L G1/4” 3-6 13.2 13.2-13.4 9 19 16 100PCS
G3/8L G3/8” 4-8 16.5 16.5-17.1 9 20 18
G1/2L G1/2” 8-12 21.3 21.0-21.3 10 23 22
G3/4L G3/4” 13-18 26.6 26.5-26.6 13 28 30
G1L G1” 22-28 33.4 33.2-33.4 13 32 36 10PCS
G1-1/4L G1-1/4” 18-25 42.1 41.9-42.1 15 36 48
G1-1/2L G1-1/2” 26-32 47.8 47.8-48.0 15 38 52
G2L G2” 37-44 59.6 59.6-60.1 18 38 64
NPT America length
 added thread		 NPT1/4 L NPT1/4” 3-6 16.5 16.5-17.1 9 20 18 100PCS
NPT3/8L NPT3/8” 4-8 13.1 13.1-13.4 9 20 18
NPT1/2L NPT1/2” 8-12 21.3 21.0-21.3 10 23 22
NPT3/4L NPT3/4” 13-18 26.6 26.5-26.6 13 28 30
NPT1L NPT1” 15-22 33.4 33.2-33.4 13 32 36 10PCS
NPT1-1/4L NPT1-1/4” 22-28 42.1 41.9-42.1 15 36 48
NPT1-1/2L NPT1-1/2” 26-32 47.8 47.8-48.0 15 38 52
NPT2L NPT2 ” 37-44 59.6 59.6-60.1 18 38 64







]]> http://www.wiring-ducts.com/gnpt-brass-cable-gland/feed/ 0 RCCN A-G&A-NPT Brass Cable Gland http://www.wiring-ducts.com/a-ga-npt-brass-cable-gland/ http://www.wiring-ducts.com/a-ga-npt-brass-cable-gland/#comments Wed, 30 Sep 2009 06:50:04 +0000 admin http://www.wiring-ducts.com/?p=2438




Thread:G/PF，NPT
Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease

Thread


Item No

Thread

CableRange

Φ

O.D.

D1

Panel

Mounting

Hole

Thread

Length

L1

Joint

Length

L2+L3

Spanner

size

A&F

Std.Pkg

Pcs

G

Thread

 A-G1/4(2-6.5) G1/4” 2-6.5 13.2 13.2-13.4 7 19 16 100PCS
A-G3/8(3-8) G3/8” 3-8 16.5 16.5-17.1 7 20 18
A-G1/2(5-12) G1/2” 5-12 21.3 21.0-21.3 8 23 22
A-G3/4(8-14) G3/4” 8-14 26.6 26.5-26.6 9 28 30
A-G1(10-18) G1” 10-18 33.4 33.2-33.4 10 32 36 10PCS
A-G1-1/4(15-25) G1 1/4” 15-25 42.1 41.9-42.1 11 36 48
A-G1-1/2(20-32) G1 1/2” 20-32 47.8 47.8-48.0 11 38 52
A-G2(30-44) G2” 30-44 59.6 59.6-60.1 14 38 64

NPT

Thread

 A-NPT1/4(2-6.5) NPT1/4” 2-6.5 16.5 16.5-17.1 7 20 18 100PCS
A-NPT3/8(3-8) NPT3/8” 3-8 13.1 13.1-13.4 7 20 18
A-NPT1/2(5-12) NPT1/2” 5-12 21.3 21.0-21.3 8 23 22
A-NPT3/4(8-14) NPT3/4” 8-14 26.6 26.5-26.6 9 28 30 10PCS
A-NPT1(10-18) NPT1” 10-18 33.4 33.2-33.4 10 32 36
A-NPT1-1/4(15-25) NPT1 1/4” 15-25 42.1 41.9-42.1 11 36 48
A-NPT1-1/2(20-32) NPT1 1/2” 20-32 47.8 47.8-48.0 11 38 52
A-NPT2(30-44) NPT2” 30-44 59.6 59.6-60.1 14 38 64

G

Length
added
thread

 A-G1/4L(2-6.5) G1/4” 2-6.5 13.2 13.2-13.4 12 19 16 100PCS
A-G3/8L(3-8) G3/8” 3-8 16.5 16.5-17.1 12 20 18
A-G1/2L(5-12) G1/2” 5-12 21.3 21.0-21.3 12 23 22
A-G3/4L(8-14) G3/4” 8-14 26.6 26.5-26.6 12 28 30
A-G1L(10-18) G1” 10-18 33.4 33.2-33.4 15 32 36 10PCS
A-G1-1/4L(15-25) G1 1/4” 15-25 42.1 41.9-42.1 15 36 48
A-G1-1/2L(20-32) G1 1/2” 20-32 47.8 47.8-48.0 15 38 52
A-G2L(30-44) G2” 30-44 59.6 59.6-60.1 15 38 64

NPT

Length
added
thread

 A-NPT1/4L(2-6.5) NPT1/4” 2-6.5 16.5 16.5-17.1 12 20 18 100PCS
A-NPT3/8L(3-8) NPT3/8” 3-8 13.1 13.1-13.4 12 20 18
A-NPT1/2L(5-12) NPT1/2” 5-12 21.3 21.0-21.3 12 23 22
A-NPT3/4L(8-14) NPT3/4” 8-14 26.6 26.5-26.6 12 28 30
A-NPT1L(10-18) NPT1” 10-18 33.4 33.2-33.4 15 32 36 10PCS
A-NPT1-1/4L(15-25) NPT1 1/4” 15-25 42.1 41.9-42.1 15 36 48
A-NPT1-1/2L(20-32) NPT1 1/2” 20-32 47.8 47.8-48.0 15 38 52
A-NPT2L(30-44) NPT2” 30-44 59.6 59.6-60.1 15 38 64







]]> http://www.wiring-ducts.com/a-ga-npt-brass-cable-gland/feed/ 0 RCCN MGA Brass Cable Gland http://www.wiring-ducts.com/mga-brass-cable-gland/ http://www.wiring-ducts.com/mga-brass-cable-gland/#comments Wed, 30 Sep 2009 06:49:45 +0000 admin http://www.wiring-ducts.com/?p=2433




Thread:Metric
Material:A.C.F are made of copper with nickel ,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
 Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3 SpannersizeA&F  Std.PkgPcs
MGA12*1.5-6 M12*1.5 3-6 12 12-12.3 6 19 16 100PCS
MGA12*1.5-8 M12*1.5 4-8 12 12-12.3 6 19 18
MGA16*1.5-8 M16*1.5 4-8 16 16-16.3 7 20 18
MGA16*1.5-10 M16*1.5 6-10 16 16-16.3 7 20 20
MGA18*1.5-8 M18*1.5 4-8 18 18-18.3 8 22 18
MGA18*1.5-10 M18*1.5 6-10 18 18-18.3 8 22 20
MGA20*1.5-8 M20*1.5 4-8 20 20-20.3 8 22 18
MGA20*1.5-10 M20*1.5 6-10 20 20-20.3 8 22 20
MGA22*1.5-14 M22*1.5 10-14 22 22-22.3 9 23 24 50PCS
MGA24*1.5-14 M24*1.5 10-14 24 24-24.3 10 23 24
MGA25*1.5-14 M25*1.5 10-14 25 25-25.4 10 23 24
MGA25*1.5-18 M25*1.5 13-18 25 25-25.4 10 23 30
MGA27*2.0-18 M27*2.0 13-18 27 27-27.4 11 28 30
MGA30*2.0-18 M30*2.0 13-18 30 30-30.4 11 28 30 10PCS
MGA32*1.5-18 M32*1.5 13-18 32 32-32.4 11 32 30
MGA32*1.5-25 M32*1.5 18-25 32 32-32.4 11 32 42
MGA33*2.0-25 M33*2.0 18-25 33 33-33.4 11 32 42
MGA36*2.0-25 M36*2.0 18-25 36 36-36.4 11 32 42
MGA40*1.5-25 M40*1.5 18-25 40 40-40.4 12 32 42
MGA40*1.5-32 M40*1.5 25-32 40 40-40.4 12 32 42
MGA42*2.0-25 M42*2.0 18-25 42 42-42.4 12 36 42
MGA48*2.0-32 M48*2.0 25-32 48 48-48.4 13 38 52 5PCS
MGA50*1.5-32 M50*1.5 25-32 50 50-50.4 13 38 60
MGA50*1.5-40 M50*1.5 30-40 50 50-50.4 13 38 60
MGA54*2.0-40 M54*2.0 30-40 54 54-54.4 14 38 60
MGA56*2.0-40 M56*2.0 30-40 56 56-56.4 14 38 60
MGA60*2.0-54 M60*2.0 44-54 60 60-60.4 14 38 77
MGA63*1.5-54 M63*1.5 44-54 63 63-63.4 14 38 77



]]> http://www.wiring-ducts.com/mga-brass-cable-gland/feed/ 0
