Thread:Metric。
Material:A.C.D.F are made of 66 NYLON66.B.Eare made of rubber NBR。
Pretect grade is upto IP68。
Color:white, black,other color can be manufactured
Use:Make this gland through the panel hole,then fixed it with nut,make the cables
through the seal nut,
fix it with the locknut
More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for
outdoor use。
 Item No. Thread  CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1  ThreadLength

L2+L3

  Spannersize

A&F

  Std.PkgPcs
 Black  White
MG12A-05B MG12A-05G M12*1.5 3-5.3 12 12-12.3 8.5 38 18/19 50PCS
*MG12A-08B MG12A-08G M12*1.5 4-8 12 12-12.3 8.5 30 18/19
MG16A-07B MG16A-07G M16*1.5 4-7 16 16-16.3 15 35 22/22
*MG16A-10B MG16A-10G M16*1.5 6-10 16 16-16.3 15 35 22/22
MG20A-06B MG20A-06G M20*1.5 4-6 20 20-20.3 15 37 27/27
MG20A-11B MG20A-11G M20*1.5 6-11 20 20-20.3 15 37 27/27
*MG20A-14B MG20A-14G M20*1.5 9-14 20 20-20.3 15 42 27/27
MG25A-16B MG25A-16G M25*1.5 10-16 25 25-25.3 15 42 33/33
*MG25A-18B MG25A-18G M25*1.5 13-18 25 25-25.3 15 48 33/33
MG32A-22B MG32A-22G M32*1.5 15-22 32 32-32.3 15 48 41/42 20PCS
*MG32A-25B MG32A-25G M32*1.5 18-25 32 32-32.3 15 51 41/42
MG40A-25B MG40A-25G M40*1.5 20-25 40 40-40.3 20 51 50/52 10PCS
*MG40A-30B MG40A-30G M40*1.5 24-30 40 40-40.3 20 59 50/52
MG50A-32B MG50A-32G M50*1.5 26-32 50 50-50.3 22 59 62/62
*MG50A-40B MG50A-40G M50*1.5 30-40 50 50-50.3 22 65 62/62
MG63A-46B MG63A-46G M63*1.5 38-46 63 63-63.3 25 65 75/75
*MG63A-50B MG63A-50G M63*1.5 40-50 63 63-63.3 25 65 75/75
MG75A-66B MG75A-66G M75*1.5 55-66 75 75-75.3 25 65 92/92 5PCS
MG90A-77B MG90A-77G M90*1.5 65-77 90 90-90.3 25 65 110/110





]]> http://www.wiring-ducts.com/mga-nylon-cable-gland/feed/ 0 RCCN M-S&M-D Brass Cable Gland http://www.wiring-ducts.com/m-sm-d-brass-cable-gland/ http://www.wiring-ducts.com/m-sm-d-brass-cable-gland/#comments Wed, 30 Sep 2009 06:55:48 +0000 admin http://www.wiring-ducts.com/?p=2450




Thread:Metric。
Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the suitable use way
Operate temperature:-40°C to 100°C
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
 Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3  Spannersize

A&F

  Std.PkgPcs
Special range type:
M16*1.5S M16*1.5 3-6 16 16-16.3 8 20 18 100PCS
M16*1.5D M16*1.5 6-10 16 16-16.3 8 20 18
M20*1.5S M20*1.5 6-10 20 20-20.3 8 23 22
M20*1.5D M20*1.5 10-14 20 20-20.3 8 23 22
M24*1.5S M24*1.5 8-12 24 24-24.3 10 23 27
M25*1.5S M25*1.5 10-14 25 25-25.4 10 23 28 50PCS
M25*1.5D M25*1.5 13-18 25 25-25.4 10 23 28
M27*2.0S M27*2.0 10-16 27 27-27.4 11 28 30
M30*2.0S M30*2.0 10-16 30 30-30.4 11 28 32
M32*1.5S M32*1.5 13-18 32 32-32.4 11 32 36
M32*1.5D M32*1.5 18-25 32 32-32.4 11 32 36
M36*2.0S M36*2.0 15-22 36 36-36.4 11 32 42
M40*1.5S M40*1.5 18-25 40 40-40.4 12 32 45 10PCS
M40*1.5D M40*1.5 22-32 40 40-40.4 12 32 45
Sepcial length added type:
M16*1.5LS M16*1.5 3-6 16 16-16.3 10 20 18 100PCS
M16*1.5LD M16*1.5 5-10 16 16-16.3 10 20 18
M20*1.5LS M20*1.5 5-10 20 20-20.3 10 23 22
M20*1.5LD M20*1.5 8-14 20 20-20.3 10 23 22
M24*1.5LS M24*1.5 6-12 24 24-24.3 12 23 27
M25*1.5LS M25*1.5 10-14 25 25-25.4 12 23 28
M25*1.5LD M25*1.5 13-18 25 25-25.4 12 23 28
M27*2.0LS M27*2.0 10-16 27 27-27.4 12 28 30 50PCS
M30*2.0LS M30*2.0 10-16 30 30-30.4 12 28 32
M32*1.5LS M32*1.5 13-18 32 32-32.4 12 32 36
M32*1.5LD M32*1.5 18-25 32 32-32.4 12 32 36
M36*2.0LS M36*2.0 15-22 36 36-36.4 12 32 42
M40*1.5LS M40*1.5 18-25 40 40-40.4 15 32 45 10PCS
M40*1.5LD M40*1.5 22-32 40 40-40.4 15 32 45





]]> http://www.wiring-ducts.com/m-sm-d-brass-cable-gland/feed/ 0 RCCN G&NPT Brass Cable Gland http://www.wiring-ducts.com/gnpt-brass-cable-gland/ http://www.wiring-ducts.com/gnpt-brass-cable-gland/#comments Wed, 30 Sep 2009 06:53:09 +0000 admin http://www.wiring-ducts.com/?p=2447

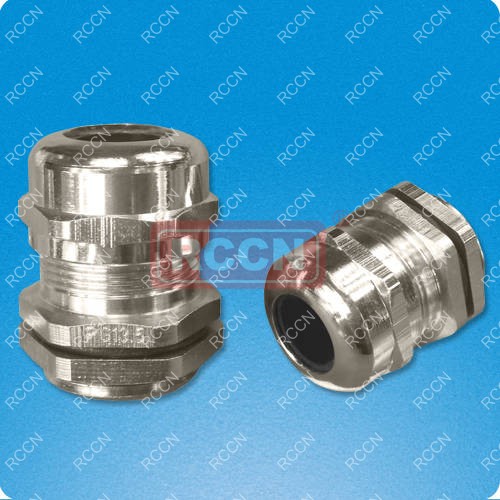

Thread:DIN PG，G/PF，NPT
Material:A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。
Protect grade is up to IP67 in the suitable use way
Operate temperature:-40°C to 100°C
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease
More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use
Thread
length		  Item No Thread  CableRange

Φ

 ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3  Spannersize

A&F

  Std.PkgPcs
 G
Tube
thread



 G1/4 G1/4” 3-6 13.2 13.2-13.4 7 19 16 100PCS
G3/8 G3/8” 4-8 16.5 16.5-17.1 8 20 18
G1/2 G1/2” 8-12 21.3 21.0-21.3 8 23 22
G3/4 G3/4” 10-14 26.6 26.5-26.6 11 28 30
G1 G1” 13-18 33.4 33.2-33.4 11 32 36 10PCS
G1-1/4 G1-1/4” 22-28 42.1 41.9-42.1 12 36 48
G1-1/2 G1-1/2” 26-32 47.8 47.8-48.0 13 38 52
G2 G2” 37-44 59.6 59.6-60.1 14 38 64
NPT
America
thread		 NPT1/4 NPT1/4” 3-6 16.5 16.5-17.1 7 20 18 100PCS
NPT3/8 NPT1/4” 4-8 13.1 13.1-13.4 8 20 18
NPT1/2 NPT1/4” 8-12 21.3 21.0-21.3 8 23 22
NPT3/4 NPT1/4” 13-18 26.6 26.5-26.6 11 28 30 10PCS
NPT1 NPT1/4” 15-22 33.4 33.2-33.4 11 32 36
NPT1-1/4 NPT1/4” 22-28 42.1 41.9-42.1 12 36 48
NPT1-1/2 NPT1/4” 26-32 47.8 47.8-48.0 13 38 52
NPT2 NPT1/4” 37-44 59.6 59.6-60.1 14 38 64
G Tube length
 added thread		 G1/4L G1/4” 3-6 13.2 13.2-13.4 9 19 16 100PCS
G3/8L G3/8” 4-8 16.5 16.5-17.1 9 20 18
G1/2L G1/2” 8-12 21.3 21.0-21.3 10 23 22
G3/4L G3/4” 13-18 26.6 26.5-26.6 13 28 30
G1L G1” 22-28 33.4 33.2-33.4 13 32 36 10PCS
G1-1/4L G1-1/4” 18-25 42.1 41.9-42.1 15 36 48
G1-1/2L G1-1/2” 26-32 47.8 47.8-48.0 15 38 52
G2L G2” 37-44 59.6 59.6-60.1 18 38 64
NPT America length
 added thread		 NPT1/4 L NPT1/4” 3-6 16.5 16.5-17.1 9 20 18 100PCS
NPT3/8L NPT3/8” 4-8 13.1 13.1-13.4 9 20 18
NPT1/2L NPT1/2” 8-12 21.3 21.0-21.3 10 23 22
NPT3/4L NPT3/4” 13-18 26.6 26.5-26.6 13 28 30
NPT1L NPT1” 15-22 33.4 33.2-33.4 13 32 36 10PCS
NPT1-1/4L NPT1-1/4” 22-28 42.1 41.9-42.1 15 36 48
NPT1-1/2L NPT1-1/2” 26-32 47.8 47.8-48.0 15 38 52
NPT2L NPT2 ” 37-44 59.6 59.6-60.1 18 38 64







]]> http://www.wiring-ducts.com/gnpt-brass-cable-gland/feed/ 0 RCCN EX2 Brass Cable Gland http://www.wiring-ducts.com/ex2-brass-cable-gland/ http://www.wiring-ducts.com/ex2-brass-cable-gland/#comments Wed, 30 Sep 2009 05:03:05 +0000 admin http://www.wiring-ducts.com/?p=2238

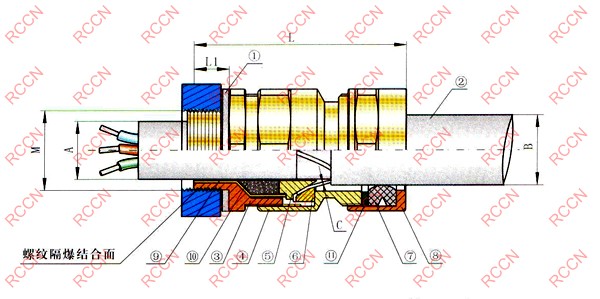

Item No  ThreadO.D.

D1

  PanelMounting

Hole

  ThreadLength

L1

  CableRangeΦ A  CableRangeΦ B   C  L
EX2-M20*1.5 20 20-20.3 15 3-8.5 8-13.5 32 0.85 73.5
EX2-M25*1.5 25 25-25.4 15 6-125 11.5-16 32 0.85 73.5
EX2-M25*1.5D 25 25-25.4 15 6-125 15-21 37 0.9 73.5
EX2-M32*1.5 32 32-32.4 15 11-18.5 20.5-27.5 44 1.25 83
EX2-M40*1.5 40 40-40.4 16 17-25 26-34 53 1.4 89
EX2-M50*1.5 50 50-50.4 16 22-31.5 31-40.5 62 1.4 91
EX2-M50*1.5D 50 50-50.4 16 29.5-36.5 36.5-46.5 67 1.4 95
EX2-M63*1.5 63 63-63.4 19 35.5-42.5 43-53 81 1.4 107
EX2-M63*1.5D 63 63-63.4 19 40-50 49-59.5 86 1.5 107
EX2-M75*2.0 75 75-75.4 20 47-56 58-66 92 1.5 115
EX2-M75*2.0D 75 75-75.4 20 53-62 60.5-72 99 1.5 115
EX2-M80*2.0 80 80-80.4 20 59-68 65-78.5 106 1.5 121





]]> http://www.wiring-ducts.com/ex2-brass-cable-gland/feed/ 0 RCCN BGFL Water Conduit Connector http://www.wiring-ducts.com/bgfl-water-conduit-connector/ http://www.wiring-ducts.com/bgfl-water-conduit-connector/#comments Wed, 30 Sep 2009 04:56:14 +0000 admin http://www.wiring-ducts.com/?p=2227



Thread:Metric,PG,G,NPT

Material:A.C.F are made of zinc metal plated with nickel.B.D are made of rubber

Certificates:CE,ROHS.

Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68

Product characterstics:Special design of part D and E,used with part F, can save your time,

large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,

withstand impregnant like acid,alkali,alcohol,oil,grease

Item No . Thread Cable

Range

Φ

 BG BG Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1

 Std.Pkg.

pcs
Metric threadBGF-M
BGF-M12L(BG07) M12*1.5 5 BG-07 10.0 12 12-12.3 9 10PCS
BGF-M12L(BG10) M12*1.5 5 BG-10 13.0 12 12-12.3 9
BGF-M16L(BG07) M16*1.5 8 BG-07 10.0 16 16-16.3 9
BGF-M16L(BG10) M16*1.5 8 BG-10 13.0 16 16-16.3 9
BGF-M18L(BG10) M18*1.5 8 BG-10 13.0 18 18-18.3 10
BGF-M18L(BG12) M18*1.5 10 BG-12 15.8 18 18-18.3 10
BGF-M18L(BG15) M18*1.5 13 BG-15 18.5 18 18-18.3 10
BGF-M20L(BG10) M20*1.5 8 BG-10 13.0 20 20-20.3 10 10PCS
BGF-M20L(BG12) M20*1.5 10 BG-12 15.8 20 20-20.3 10
BGF-M20L(BG15) M20*1.5 13 BG-15 18.5 20 20-20.3 10
BGF-M20L(BG17) M20*1.5 15 BG-17 21.2 20 20-20.3 10
BGF-M22L(BG17) M22*1.5 15 BG-17 21.2 22 22-22.3 10
BGF-M24L(BG17) M24*1.5 15 BG-17 21.2 24 24-24.3 12
BGF-M25L(BG17) M25*1.5 15 BG-17 21.2 25 25-25.4 12
BGF-M25L(BG23) M25*1.5 21 BG-23 28.5 25 25-25.4 12
BGF-M27L(BG23) M27*1.5 21 BG-23 28.5 27 27-27.4 13
BGF-M30L(BG23) M30*1.5 21 BG-23 28.5 30 30-30.4 13
BGF-M32L(BG23) M32*1.5 21 BG-23 28.5 32 32-32.4 13
BGF-M32L(BG29) M32*1.5 25 BG-29 34.5 32 32-32.4 13
BGF-M33L(BG29) M33*1.5 25 BG-29 34.5 33 33-33.4 13
BGF-M36L(BG29) M36*1.5 25 BG-29 34.5 36 36-36.4 13
BGF-M40L(BG29) M40*1.5 25 BG-29 34.5 40 40-40.4 15
BGF-M40L(BG36) M40*1.5 33 BG-36 42.5 40 40-40.4 15
BGF-M48L(BG36) M48*2.0 33 BG-36 42.5 48 48-48.4 15
BGF-M50L(BG36) M50*1.5 33 BG-36 42.5 50 50-50.4 15
BGF-M50L(BG48) M50*1.5 45 BG-48 54.5 50 50-50.4 15
BGF-M56L(BG48) M56*2.0 45 BG-48 42.5 56 56-56.4 15
BGF-M63L(BG48) M63*1.5 45 BG-48 54.5 63 63-63.4 15



Item No . Thread Cable

Range



 BG BG Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1

 Std.Pkg.

pcs
Germany threadBGF-P
BGF-PG7L(BG07) PG-7 3-6 BG-07 10.0 12.5 12.5-12.8 9 50PCS
BGF-PG9L(BG07) PG-9 4-8 BG-07 10.0 15.2 15.2-15.8 9
BGF-PG9L(BG10) PG-9 4-8 BG-10 13.0 15.2 15.2-15.8 9
BGF-PG11L(BG10) PG-11 6-10 BG-10 13.0 18.6 18.6-18.9 10
BGF-PG11L(BG12) PG-11 6-10 BG-12 15.8 18.6 18.6-18.9 10 25PCS
BGF-PG13.5L(BG12) PG-13.5 8-12 BG-12 15.8 20.4 20.4-20.7 10
BGF-PG13.5L(BG15) PG-13.5 8-12 BG-15 18.5 20.4 20.4-20.7 10
BGF-PG13.5L(BG17) PG-13.5 8-12 BG-17 21.2 20.4 20.4-20.7 10
BGF-PG16L(BG17) PG-16 10-14 BG-17 21.2 22.5 22.5-22.8 12 10PCS
BGF-PG21L(BG23) PG-21 13-18 BG-23 28.5 28.3 28.3-28.7 15
BGF-PG29L(BG29) PG-29 18-25 BG-29 34.5 37.0 37.0-37.4 15
BGF-PG36L(BG36) PG-36 26-32 BG-36 42.5 47.0 47.0-47.4 15
BGF-PG48L(BG48) PG-48 37-44 BG-48 54.5 59.3 59.3-59.7 15
Tube threadBGF-G
BGF-G1/4L(BG07) G1/4” 3-6 BG-07 10.0 13.2 13.2-13.4 9 25PCS
BGF-G3/8L(BG10) G3/8” 4-8 BG-10 13.0 16.5 16.5-17.1 9
BGF-G1/2(BG12) G1/2” 8-12 BG-12 15.8 21.3 21.0-21.3 10
BGF-G1/2L(BG15) G1/2” 8-12 BG-15 18.5 21.3 21.0-21.3 10
BGF-G1/2L(BG17) G1/2” 8-12 BG-17 21.2 21.3 21.0-21.3 10
BGF-G3/4L(BG17) G3/4” 13-18 BG-17 21.2 26.6 26.5-26.6 13 10PCS
BGF-G1L(BG23) G1” 15-22 BG-23 28.5 33.4 33.2-33.4 13
BGF-G1-1/4L(BG29) G1 1/4” 22-28 BG-29 34.5 42.1 41.9-42.1 15
BGF-G1-1/2L(BG36) G1 1/2” 26-32 BG-36 42.5 47.8 47.8-48.0 15
BGF-G2L(BG48) G2” 37-44 BG-48 54.5 59.6 59.6-60.1 15
America threadBGF-N
BGF-NPT3/8 L（BG10） NPT3/8” 4-8 BG-10 10.0 16.5 16.5-17.1 9 25PCS
BGF-NPT1/2L（BG12） NPT1/2” 8-12 BG-12 15.8 21.3 21.0-21.3 10
BGF-NPT1/2L（BG15） NPT1/2” 8-12 BG-15 18.5 21.3 21.0-21.3 10
BGF-NPT1/2L（BG17） NPT1/2” 8-12 BG-17 21.2 21.3 21.0-21.3 10
BGF-NPT3/4L（BG17） NPT3/4” 13-18 BG-17 21.2 26.6 26.5-26.6 13 10PCS
BGF-NPT3/4L（BG23） NPT3/4” 13-18 BG-23 28.5 26.6 26.5-26.6 13
BGF-NPT1L（BG29） NPT1” 15-22 BG-29 34.5 33.4 33.2-33.4 13



Item No . Thread Cable

Range

Φ

 BG BG Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1

 Std.Pkg.

pcs
Metric threadBGF-M
BGF1-M12L(BG07) M12*1.5 5 BG-07 10.0 12 12-12.3 9 10PCS
BGF1-M12L(BG10) M12*1.5 5 BG-10 13.0 12 12-12.3 9
BGF1-M16L(BG07) M16*1.5 8 BG-07 10.0 16 16-16.3 9
BGF1-M16L(BG10) M16*1.5 8 BG-10 13.0 16 16-16.3 9
BGF1-M18L(BG10) M18*1.5 8 BG-10 13.0 18 18-18.3 10
BGF1-M18L(BG12) M18*1.5 10 BG-12 15.8 18 18-18.3 10
BGF1-M18L(BG15) M18*1.5 13 BG-15 18.5 18 18-18.3 10
BGF1-M20L(BG10) M20*1.5 8 BG-10 13.0 20 20-20.3 10 10PCS
BGF1-M20L(BG12) M20*1.5 10 BG-12 15.8 20 20-20.3 10
BGF1-M20L(BG15) M20*1.5 13 BG-15 18.5 20 20-20.3 10
BGF1-M20L(BG17) M20*1.5 15 BG-17 21.2 20 20-20.3 10
BGF1-M22L(BG17) M22*1.5 15 BG-17 21.2 22 22-22.3 10
BGF1-M24L(BG17) M24*1.5 15 BG-17 21.2 24 24-24.3 12
BGF1-M25L(BG17) M25*1.5 15 BG-17 21.2 25 25-25.4 12
BGF1-M25L(BG23) M25*1.5 21 BG-23 28.5 25 25-25.4 12
BGF1-M27L(BG23) M27*1.5 21 BG-23 28.5 27 27-27.4 13
BGF1-M30L(BG23) M30*1.5 21 BG-23 28.5 30 30-30.4 13
BGF1-M32L(BG23) M32*1.5 21 BG-23 28.5 32 32-32.4 13
BGF1-M32L(BG29) M32*1.5 25 BG-29 34.5 32 32-32.4 13
BGF1-M33L(BG29) M33*1.5 25 BG-29 34.5 33 33-33.4 13
BGF1-M36L(BG29) M36*1.5 25 BG-29 34.5 36 36-36.4 13
BGF1-M40L(BG29) M40*1.5 25 BG-29 34.5 40 40-40.4 15
BGF1-M40L(BG36) M40*1.5 33 BG-36 42.5 40 40-40.4 15
BGF1-M48L(BG36) M48*2.0 33 BG-36 42.5 48 48-48.4 15
BGF1-M50L(BG36) M50*1.5 33 BG-36 42.5 50 50-50.4 15
BGF1-M50L(BG48) M50*1.5 45 BG-48 54.5 50 50-50.4 15
BGF1-M56L(BG48) M56*2.0 45 BG-48 42.5 56 56-56.4 15
BGF1-M63L(BG48) M63*1.5 45 BG-48 54.5 63 63-63.4 15







Item No .



Thread



Cable

Range



 BG BG Thread

O.D.

D1



Panle

Mounting

Hole



Thread

Length

L1



Std.Pkg.

pcs
Germany threadBGF-P
BGF1-PG7L(BG07) PG-7 3-6 BG-07 10.0 12.5 12.5-12.8 9 50PCS
BGF1-PG9L(BG07) PG-9 4-8 BG-07 10.0 15.2 15.2-15.8 9
BGF1-PG9L(BG10) PG-9 4-8 BG-10 13.0 15.2 15.2-15.8 9
BGF1-PG11L(BG10) PG-11 6-10 BG-10 13.0 18.6 18.6-18.9 10
BGF1-PG11L(BG12) PG-11 6-10 BG-12 15.8 18.6 18.6-18.9 10 25PCS
BGF1-PG13.5L(BG12) PG-13.5 8-12 BG-12 15.8 20.4 20.4-20.7 10
BGF1-PG13.5L(BG15) PG-13.5 8-12 BG-15 18.5 20.4 20.4-20.7 10
BGF1-PG13.5L(BG17) PG-13.5 8-12 BG-17 21.2 20.4 20.4-20.7 10
BGF1-PG16L(BG17) PG-16 10-14 BG-17 21.2 22.5 22.5-22.8 12 10PCS
BGF1-PG21L(BG23) PG-21 13-18 BG-23 28.5 28.3 28.3-28.7 15
BGF1-PG29L(BG29) PG-29 18-25 BG-29 34.5 37.0 37.0-37.4 15
BGF1-PG36L(BG36) PG-36 26-32 BG-36 42.5 47.0 47.0-47.4 15
BGF1-PG48L(BG48) PG-48 37-44 BG-48 54.5 59.3 59.3-59.7 15
Tube threadBGF-G
BGF1-G1/4L(BG07) G1/4” 3-6 BG-07 10.0 13.2 13.2-13.4 9 25PCS
BGF1-G3/8L(BG10) G3/8” 4-8 BG-10 13.0 16.5 16.5-17.1 9
BGF1-G1/2(BG12) G1/2” 8-12 BG-12 15.8 21.3 21.0-21.3 10
BGF1-G1/2L(BG15) G1/2” 8-12 BG-15 18.5 21.3 21.0-21.3 10
BGF1-G1/2L(BG17) G1/2” 8-12 BG-17 21.2 21.3 21.0-21.3 10
BGF1-G3/4L(BG17) G3/4” 13-18 BG-17 21.2 26.6 26.5-26.6 13 10PCS
BGF1-G1L(BG23) G1” 15-22 BG-23 28.5 33.4 33.2-33.4 13
BGF1-G1-1/4L(BG29) G1 1/4” 22-28 BG-29 34.5 42.1 41.9-42.1 15
BGF1-G1-1/2L(BG36) G1 1/2” 26-32 BG-36 42.5 47.8 47.8-48.0 15
BGF1-G2L(BG48) G2” 37-44 BG-48 54.5 59.6 59.6-60.1 15
America threadBGF-N
BGF1-NPT3/8 L（BG10） NPT3/8” 4-8 BG-10 10.0 16.5 16.5-17.1 9 25PCS
BGF1-NPT1/2L（BG12） NPT1/2” 8-12 BG-12 15.8 21.3 21.0-21.3 10
BGF1-NPT1/2L（BG15） NPT1/2” 8-12 BG-15 18.5 21.3 21.0-21.3 10
BGF1-NPT1/2L（BG17） NPT1/2” 8-12 BG-17 21.2 21.3 21.0-21.3 10
BGF1-NPT3/4L（BG17） NPT3/4” 13-18 BG-17 21.2 26.6 26.5-26.6 13 10PCS
BGF1-NPT3/4L（BG23） NPT3/4” 13-18 BG-23 28.5 26.6 26.5-26.6 13
BGF1-NPT1L（BG29） NPT1” 15-22 BG-29 34.5 33.4 33.2-33.4 13



]]> http://www.wiring-ducts.com/bgfl-water-conduit-connector/feed/ 0
