Time saving, cable can be easily inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can wihtstand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey
Thread
length		 Item No. Thread CableRange
￠		 Thread
O.D.
D1		 Panel
Mounting
Hole		 Thread
Length
L1		 Joint
Length
L2+L3		 Spanner
size
A&F		 Std.Pkg.
pcs
White Black
Short
thread		 PG-7W PG-7B PG7 3-6.5 12.5 12.5-12.8 8 22 18/16 100PCS
PG-9W PG-9B PG9 4-8 15.2 15.2-15.8 8 26 22/19
PG-11W PG-11B PG11 5-10 18.6 18.6-18.9 8 27 24/22
PG-13.5W PG-13.5B PG13.5 6-12 20.4 20.4-20.7 9 28 27/24
PG-16W PG-16B PG16 10-14 22.5 22.5-22.8 10 30 30/27
PG-19W PG-19B PG19 12-15 24.1 24.1-24.5 10 30 30/27
PG-21W PG-21B PG21 13-18 28.3 28.3-28.7 10 35 36/33
PG-25W PG-25B PG25 16-21 30.1 30.1-30.3 11 34 37/36
PG-29W PG-29B PG29 18-25 37.0 37.0-37.4 12 40 46/42
PG-36W PG-36B PG-36 22-32 47.0 47.0-47.4 14 48 59/54
PG-42W PG-42B PG42 32-38 54.0 54.0-54.4 14 49 64/61 20PCS
PG-48W PG-48B PG-48 37-44 59.3 59.3-59.7 14 50 69/65
PG-63W PG-63B PG63 42-50 59.3 72-27.4 27 60 75/72
Long
thread		 PG-7LW PG-7LB PG7 3-6.5 12.5 12.5-12.8 15 22 18/16 100PCS
PG-9LW PG-9LB PG9 4-8 15.2 15.2-15.8 15 26 22/19
PG-11LW PG-11LB PG11 5-10 18.6 18.6-18.9 15 27 24/22
PG-13.5LW PG-13.5LB PG13.5 6-12 20.4 20.4-20.7 15 28 27/24
PG-16LW PG-16LB PG16 10-14 22.5 22.5-22.8 15 30 30/27
PG-21LW PG-21LB PG21 13-18 28.3 28.3-28.7 15 35 36/33
PG-29LW PG-29LB PG29 18-25 37.0 37.0-37.4 18 40 46/42
PG-36LW PG-36LB PG-36 22-32 47.0 47.0-47.4 18 48 59/54 20PCS
PG-42LW PG-42LB PG42 32-38 54.0 54.0-54.4 18 49 64/61
PG-48LW PG-48LB PG-48 37-44 59.3 59.3-59.7 18 50 69/65

加厚型夹紧圈尺寸参照表

Item No.
PG7
PG9
PG11
PG13.5
PG16
PG19
PG21
PG25
PG29
PG36
PG42
PG48
CableRange
￠
2-5
2-6
3-7
5-9
7-12
10-12
9-16
13-18
13-20
20-26
25-31
29-35



]]> http://www.wiring-ducts.com/nylon-cable-gland-pg/feed/ 0 RCCN P-PG Nylon Cable Gland http://www.wiring-ducts.com/p-pg-nylon-cable-gland/ http://www.wiring-ducts.com/p-pg-nylon-cable-gland/#comments Wed, 30 Sep 2009 06:58:25 +0000 admin http://www.wiring-ducts.com/?p=2456

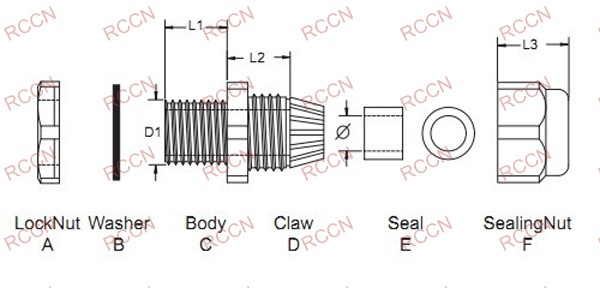

Thread:DIN40430,NPT,G
