RCCN EC-J Flat Wire Cable Marker

admin — Mon, 10 Sep 2012 05:13:17 +0000

Material:Rohs approved PVC.oil resistant
operate temperature to 85℃.
Structural:with elasticity,can be self
adjusted to the cables

Order code, such as EC-J(0) means marked with “0″

ITEM No.	Suitable Wire		Length (mm)	Std. Markings	Packing
	Cable named mm2	Marker ‘s inner dia. MM
EC-J	2~8	3.5~7.0	5	0,1,2,3…..9 A,B,C,D…..Z /,+,-, Blank	Pcs/Roll 500pcs

RCCN N Cable Marker

admin — Mon, 10 Sep 2012 05:05:32 +0000

Material:rigid P.V.C.(natural).
Features:coat this cable marker after wiring,uneasy to fall off
Use:marked cables after installing
Order part no.:N-1(0) ,means marking with“0”

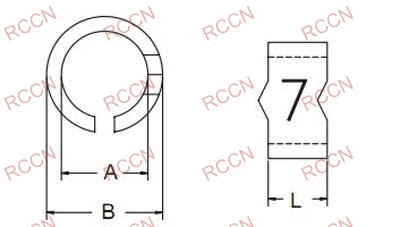

ITEM No.	Suitable cable in square mm2	Size			Std.Markings	Packing
		L	A	B
N-1	0.75	3.0	2.7	3.9	0,1,2,…9 A,B,C,D..Z +,-,Blank	30 pcs per stick
	1.0
	1.25
N-2	2.0	3.0	3.2	4.6
	3.5
N-3	3.5	3.0	4.4	5.8
	5.5
