• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0
• Without slot in the wall
• Without providing mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths





Item No. W*H Q P     Wire
capability
/2.0sp		 Pack/M
Gray White Blue Blcak
SDR2020HF SDR2020HFW SDR2020HFE SDR2020HFB 20*20 8 10 10~15pcs 260M
SDR2525HF SDR2525HFW SDR2525HFE SDR2525HFB 25*25 8 10 10~25pcs 200M
SDR2540HF SDR2540HFW SDR2540HFE SDR2540HFB 25*40 8 12 20~25pcs 112M
SDR4040HF SDR4040HFW SDR4040HFE SDR4040HFB 40*40 8 12 60~70pcs 100M
SDR6040HF SDR6040HFW SDR6040HFE SDR6040HFB 60*40 8 12 100~115pcs 68M
SDR8040HF SDR8040HFW SDR8040HFE SDR8040HFB 80*40 8 12 120~135pcs 48M
SDR2550HF SDR2550HFW SDR2550HFE SDR2550HFB 25*50 8 12 20~30pcs 100M
SDR3050HF SDR3050HFW SDR3050HFE SDR3050HFB 30*50 8 12 40~60pcs 84M
SDR3550HF SDR3550HFW SDR3550HFE SDR3550HFB 35*50 8 12 40~60pcs 80M
SDR4050HF SDR4050HFW SDR4050HFE SDR4050HFB 40*50 8 12 60~70pcs 68M
SDR5050HF SDR5050HFW SDR5050HFE SDR5050HFB 50*50 8 12 80~90pcs 60M
SDR8050HF SDR8050HFW SDR8050HFE SDR8050HFB 80*50 8 12 160~180pcs 40M
SDR10050HF SDR10050HFW SDR10050HFE SDR10050HFB 100*50 8 12 200~250pcs 26M
SDR3060HF SDR3060HFW SDR3060HFE SDR3060HFB 30*60 8 12 100~115pcs 80M
SDR4060HF SDR4060HFW SDR4060HFE SDR4060HFB 40*60 8 12 100~115pcs 60M
SDR5060HF SDR5060HFW SDR5060HFE SDR5060HFB 50*60 8 12 120~135pcs 60M
SDR6060HF SDR6060HFW SDR6060HFE SDR6060HFB 60*60 8 12 120~135pcs 48M
SDR8060HF SDR8060HFW SDR8060HFE SDR8060HFB 80*60 8 12 180~210pcs 36M
SDR2580HF SDR2580HFW SDR2580HFE SDR2580HFB 25*80 8 12 100~120pcs 72M
SDR3580HF SDR3580HFW SDR3580HFE SDR3580HFB 35*80 8 12 110~130pcs 56M
SDR4080HF SDR4080HFW SDR4080HFE SDR4080HFB 40*80 8 12 140~160pcs 48M
SDR5080HF SDR5080HFW SDR5080HFE SDR5080HFB 50*80 8 12 160~180pcs 40M
SDR6080HF SDR6080HFW SDR6080HFE SDR6080HFB 60*80 8 12 180~210pcs 32M
SDR8080HF SDR8080HFW SDR8080HFE SDR8080HFB 80*80 8 12 240~290pcs 24M
SDR10080HF SDR10080HFW SDR10080HFE SDR10080HFB 100*80 8 12 260~350pcs 24M
SDR33100HF SDR33100HFW SDR33100HFE SDR33100HFB 33*100 8 12 130~165pcs 44M
SDR40100HF SDR40100HFW SDR40100HFE SDR40100HFB 40*100 8 12 130~175pcs 40M
SDR50100HF SDR50100HFW SDR50100HFE SDR50100HFB 50*100 8 12 220~250pcs 40M
SDR60100HF SDR60100HFW SDR60100HFE SDR60100HFB 60*100 8 12 240~290pcs 32M
SDR80100HF SDR80100HFW SDR80100HFE SDR80100HFB 80*100 8 12 260~350pcs 24M
SDR100100HF SDR100100HFW SDR100100HFE SDR100100HFB 100*100 8 12 300~400pcs 24M






RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M











]]> http://www.wiring-ducts.com/rccn-halogen-free-wiring-duct-sdrhf/feed/ 0 RCCN FD Flexible Wiring Duct http://www.wiring-ducts.com/flexible-wiring-duct/ http://www.wiring-ducts.com/flexible-wiring-duct/#comments Mon, 10 Sep 2012 08:01:24 +0000 admin http://www.wiring-ducts.com/?p=695









Material:ABS (gray),with adhensive Characteristics:Can be enlonged







Item No. (UL94-V2)



W



H

W*H
(mm)

Wirestobe Contained




Length
Gray White Blue Black
FD-20G FD-20W FD-20E FD-20B 20 25 15*25 5~12pcs 50CM
FD-30G FD-30W FD-30E FD-30B 30 25 25*25 10-30pcs 50CM
FD-40G - - - 40 35 35*35 15-35pcs 50CM
阻燃型
FD-20GVO FD-20WVO FD-20EVO FD-20BVO 20 25 15*25 5-12pcs 50CM
FD-30GVO FD-30WVO FD-30EVO FD-30BVO 30 25 25*25 10-30pcs 50CM
3M承重型
FD-20G/3M FD-20W/3M FD-20E/3M FD-20B3M 20 25 15*25 5-12pcs 50CM
FC-30G/3M FC-30W/3M FC-30E/3M FC-30B/3M 30 25 25*25 10-30pcs 50CM
3M承重阻燃型
FD-20GVO/3M FD-20WVO/3M FD-20EVO/3M FD-20BVO/3M 20 25 15*25 5-12pcs 50CM
FD-30GVO/3M FD-30WVO/3M FD-30EVO/3M FD-30BVO/3M 30 25 25*25 10-30pcs 50CM

























































]]> http://www.wiring-ducts.com/flexible-wiring-duct/feed/ 0 RCCN RD Round Wiring Duct http://www.wiring-ducts.com/round-type-wiring-duct/ http://www.wiring-ducts.com/round-type-wiring-duct/#comments Mon, 10 Sep 2012 08:00:59 +0000 admin http://www.wiring-ducts.com/?p=693

*Backed with high quality double sided tape for permanent ixture.
*Good for loor wiring to facilitate trolley pass and to avoid tripping,
especially in public places, like shopping malls, hospitals, and
stations.
*Material: PVC
*Length: 2 M
*Color: All colors are available

*Means available in stock
RCCN Halogen Free Wiring Duct

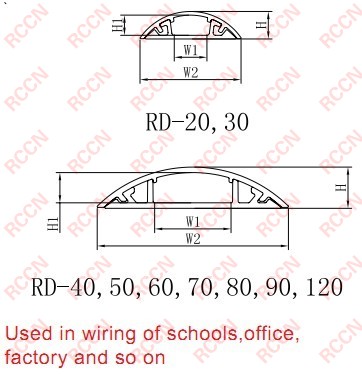

Item No.

Outside
width
W2

Inside
width
W1

Height
H

Inside
height
H2

Length
Gray Beige White Black
RD-20 RD-20Y RD-20W RD-20B 20 8 6 4

1M or 2M
Including truning and lids
RD-30 RD-30Y RD-30W RD-30B 30 11 8 6.5
RD-40 RD-40Y RD-40W RD-40B 40 12 11 8
RD-50 RD-50Y RD-50W RD-50B 50 20 12.5 8.8
RD-70 RD-70Y RD-70W RD-70B 70 20 16.5 12.7
RD-80 RD-80Y RD-80W RD-80B 80 20 16.5 12.7
RD-90 RD-90Y RD-90W RD-90B 90 25 19 15
RD-120 RD-120Y RD-120W RD-120B 120 30 25 21

 Reference effective  RD50:8pcs 5kinds of wire/RD80:16/RD80:16 pcs 5 kinds of wire。
Squarecutter 45 °degree connecting(like picture),T type wiring cutting, triangle connecting
