wiring duct-RCCN » cable trunking size http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN VDRC Wide Close Slot Wiring Duct http://www.wiring-ducts.com/close-wiring-duct-vdc/ http://www.wiring-ducts.com/close-wiring-duct-vdc/#comments Mon, 10 Sep 2012 08:29:05 +0000 admin http://www.wiring-ducts.com/?p=700



Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。Made of rigid PVC
Work temperature:-40 °c to 65 °c
UL94 Flammability Rating of V-0
Provided with mounting holes

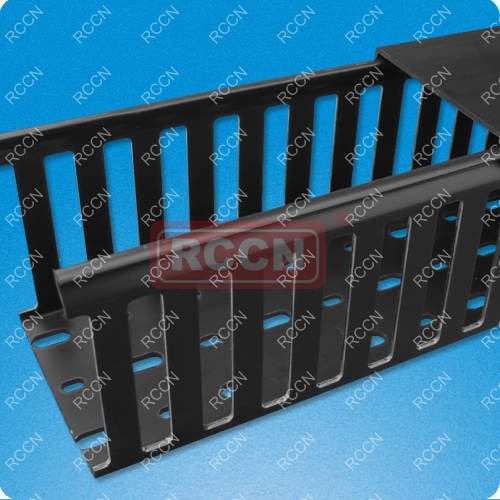

Available color:gray.white.blue.black and other special colors
Special length come with MOQ request

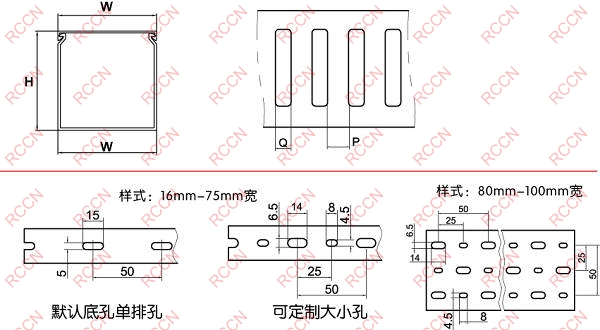

Item No.

W*H

Q

P

Wire
capability
/2.0sp

pack/M
Gray White Blue Black
VDR1520C VDR1520CW VDR1520CE VDR1520CB 15*20 8.5 11.5 8-12pcs 260M
VDR2020C VDR2020CW VDR2020CE VDR2020CB 20*20 8.5 11.5 10-20pcs 240M
VDR4020C VDR4020CW VDR4020CE VDR4020CB 40*20 8.5 11.5 15-30pcs
140M
VDR1525C VDR1525CW VDR1525CE VDR1525CB 15*25 8.5 11.5 5-15pcs 260M
VDR2025C VDR2025CW VDR2025CE VDR2025CB 20*25 8.5 11.5 5-15pcs 200M
VDR2525C VDR2525CW VDR2525CE VDR2525CB 25*25 8.5 11.5 10-25pcs 200M
VDR3025C VDR3025CW VDR3025CE VDR3025CB 30*25 8.5 11.5 12-28pcs 160M
VDR4025C VDR4025CW VDR4025CE VDR4025CB 40*25 8.5 11.5 20-35pcs 100M
VDR5025C VDR5025CW VDR5025CE VDR5025CB 50*25 8.5 11.5 12-25pcs 100M
VDR1530C VDR1530CW VDR1530CE VDR1530CB 15*30 8.5 11.5 8-15pcs 180M
VDR2030C VDR2030CW VDR2030CE VDR2030CB 20*30 8.5 11.5 25~35pcs 180M
VDR2530C VDR2530CW VDR2530CE VDR2530CB 25*30 8.5 11.5 25~35pcs 160M
VDR3030C VDR3030CW VDR3030CE VDR3030CB 30*30 8.5 11.5 25~35pcs 140M
VDR4030C VDR4030CW VDR4030CE VDR4030CB 40*30 8.5 11.5 30~40pcs 100M
VDR5030C VDR5030CW VDR5030CE VDR5030CB 50*30 8.5 11.5 40-50pcs 80M
VDR6030C VDR6030CW VDR6030CE VDR6030CB 60*30 8.5 11.5 50-60pcs 60M
VDR2233C VDR2233CW VDR2233CE VDR2233CB 22*33 8.5 11.5 25-35pcs 160M
VDR3333C VDR3333CW VDR3333CE VDR3333CB 33*33 8.5 11.5 35-45pcs 160M
VDR2035C VDR2035CW VDR2035CE VDR2035CB 20*35 8.5 11.5 30~40pcs 100M
VDR3535C VDR3535CW VDR3535CE VDR3535CB 35*35 8.5 11.5 35~45pcs 112M
VDR5035C VDR5035CW VDR5035CE VDR5035CB 50*35 8.5 11.5 40~60pcs 88M
VDR2040C VDR2040CW VDR2040CE VDR2040CB 20*40 8.5 11.5 16~22pcs 110M
VDR2540C VDR2540CW VDR2540CE VDR2540CB 25*40 8.5 11.5 20~25pcs 112M
VDR3540C VDR3540CW VDR3540CE VDR3540CB 35*40 8.5 11.5 35-45pcs 100M
VDR4040C VDR4040CW VDR4040CE VDR4040CB 40*40 8.5 11.5 60~70pcs 100M
VDR6040C VDR6040CW VDR6040CE VDR6040CB 60*40 8.5 11.5 100~115pcs 68M
VDR8040C VDR8040CW VDR8040CE VDR8040CB 80*40 8.5 11.5 120~135pcs 48M
VDR10040C VDR10040CW VDR10040CE VDR10040CB 100*40 8.5 11.5 120~135pcs 32M
VDR12040C VDR15040CW VDR12040CE VDR12040CB 120*40 8.5 11.5 140-155pcs
/
VDR2545C VDR2545CW VDR2545CE VDR2545CB 25*45 8.5 11.5 20~25pcs 104M
VDR3345C VDR3345CW VDR3345CE VDR3345CB 33*45 8.5 11.5 40~55pcs 108M
VDR4545C VDR4545CW VDR4545CE VDR4545CB 45*45 8.5 11.5 60~70pcs 72M
VDR6545C VDR6545CW VDR6545CE VDR6545CB 65*45 8.5 11.5 110~120pcs 56M
VDR2050C VDR2050CW VDR2050CE VDR2050CB 20*50 8.5 11.5 18~28pcs 120M
VDR2550C VDR2550CW VDR2550CE VDR2550CB 25*50 8.5 11.5 20~30pcs 100M
VDR3050C VDR3050CW VDR3050CE VDR3050CB 30*50 8.5 11.5 25~40pcs 84M
VDR3550C VDR3550CW VDR3550CE VDR3550CB 35*50 8.5 11.5 40~60pcs 80M
VDR4050C VDR4050CW VDR4050CE VDR4050CB 40*50 8.5 11.5 60~70pcs 68M
VDR4550C VDR4550CW VDR4550CE VDR4550CB 45*50 8.5 11.5 70~80pcs 60M
VDR5050C VDR5050CW VDR5050CE VDR5050CB 50*50 8.5 11.5 80~90pcs 60M
VDR5550C VDR5550CW VDR5550CE VDR5550CB 55*50 8.5 11.5 90~100pcs 60M
VDR6050C VDR6050CW VDR6050CE VDR6050CB 60*50 8.5 11.5 100~120pcs 48M
VDR7550C VDR7550CW VDR7550CE VDR7550CB 75*50 8.5 11.5 150-170pcs 40M
VDR8050C VDR8050CW VDR8050CE VDR8050CB 80*50 8.5 11.5 160~180pcs 40M
VDR10050C VDR10050CW VDR10050CE VDR10050CB 100*50 8.5 11.5 200~250pcs 26M
VDR12555C VDR12555CW VDR12555CE VDR12555CB 125*55 8.5 11.5 220-270pcs 20M
VDR2060C VDR2060CW VDR2060CE VDR2060CB 20*60 8.5 11.5 35-45pcs 100M
VDR2560C VDR2560CW VDR2560CE VDR2560CB 25*60 8.5 11.5 40~50pcs 100M
VDR3060C VDR3060CW VDR3060CE VDR3060CB 30*60 8.5 11.5 60~80pcs 80M
*VDR3560C VDR3560CW VDR3560CE VDR3560CB 35*60 8.5 11.5 90~105pcs 60M
VDR4060C VDR4060CW VDR4060CE VDR4060CB 40*60 8.5 11.5 100~115pcs 60M
VDR4560C VDR4560CW VDR4560CE VDR4560CB 45*60 8.5 11.5 110~125pcs 30M
VDR5060C VDR5060CW VDR5060CE VDR5060CB 50*60 8.5 11.5 120~135pcs 60M
VDR6060C VDR6060CW VDR6060CE VDR6060CB 60*60 8.5 11.5 120~135pcs 48M
VDR8060C VDR8060CW VDR8060CE VDR8060CB 80*60 8.5 11.5 180~210pcs 36M
VDR10060C VDR10060CW VDR10060CE VDR10060CB 100*60 8.5 11.5 240~290pcs 28M
VDR11060C VDR11060CW VDR11060CE VDR11060CB 110*60 8.5 11.5 250~300pcs 48M
*VDR12060C VDR12060CW VDR12060CE VDR12060CB 120*60 8.5 11.5 260~320pcs 48M
VDR15060C VDR15060CW VDR15060CE VDR15060CB 150*60 8.5 11.5 300~360pcs 16M
VDR2565C VDR2565CW VDR2565CE VDR2565CB 25*65 8.5 11.5 40~50pcs 88M
VDR3365C VDR3365CW VDR3365CE VDR3365CB 33*65 8.5 11.5 40~70pcs 80M
VDR4565C VDR4565CW VDR4565CE VDR4565CB 45*65 8.5 11.5 110~120pcs 52M
VDR6565C VDR6565CW VDR6565CE VDR6565CB 65*65 8.5 11.5 180~200pcs 44M
VDR7265C VDR7265CW VDR7265CE VDR7265CB 72*65 8.5 11.5 180-230pcs
/
VDR5075C VDR5075CW VDR5075CE VDR5075CB 50*75 8.5 11.5 180~210pcs 32M
VDR7575C VDR7575CW VDR7575CE VDR7575CB 75*75 8.5 11.5 200~240pcs 24M
VDR10075C VDR10075CW VDR10075CE VDR10075CB 100*75 10 10 250-290pcs 24M
VDR2580C VDR2580CW VDR2580CE VDR2580CB 25*80 10 10 100~120pcs 72M
VDR3080C VDR3080CW VDR3080CE VDR3080CB 30*80 10 10 110~125pcs 56M
VDR3580C VDR3580CW VDR3580CE VDR3580CB 35*80 10 10 110~130pcs 56M
VDR4080C VDR4080CW VDR4080CE VDR4080CB 40*80 10 10 140~160pcs 48M
VDR4580C VDR4580CW VDR4580CE VDR4580CB 45*80 10 10 140~160pcs 40M
VDR5080C VDR5080CW VDR5080CE VDR5080CB 50*80 10 10 160~180pcs 40M
VDR5580C VDR5580CW VDR5580CE VDR5580CB 55*80 10 10 160~180pcs 32M
VDR6080C VDR6080CW VDR6080CE VDR6080CB 60*80 10 10 180~210pcs 32M
VDR8080C VDR8080CW VDR8080CE VDR8080CB 80*80 10 10 240~290pcs 24M
VDR10080C VDR10080CW VDR10080CE VDR10080CB 100*80 10 10 260~350pcs 24M
VDR12080C VDR12080CW VDR12080CE VDR12080CB 120*80 10 10 280~380pcs 16M
VDR14080C VDR14080CW VDR14080CE VDR14080CB 140*80 10 10 350~450pcs 16M
VDR25100C VDR25100CW VDR25100CE VDR25100CB 25*100 10 10 110~160pcs 60M
VDR33100C VDR33100CW VDR33100CE VDR33100CB 33*100 10 10 130~165pcs 44M
VDR40100C VDR40100CW VDR40100CE VDR40100CB 40*100 10 10 130~175pcs 40M
VDR50100C VDR50100CW VDR50100CE VDR50100CB 50*100 10 10 220~250pcs 40M
VDR60100C VDR60100CW VDR60100CE VDR60100CB 60*100 10 10 240~290pcs 32M
VDR70100C VDR70100CW VDR70100CE VDR70100CB 70*100 10 10 250~280pcs 24M
VDR75100C VDR75100CW VDR75100CE VDR75100CB 75*100 10 10 260~350pcs 24M
VDR80100C VDR80100CW VDR80100CE VDR80100CB 80*100 10 10 260~350pcs 24M
VDR100100C VDR100100CW VDR100100CE VDR100100CB 100*100 10 10 300~400pcs 24M
VDR120100C VDR120100CW VDR120100CE VDR120100CB 120*100 10 10 350~450pcs 20M
VDR150100C VDR150100CW VDR150100CE VDR150100CB 150*100 10 10 400~650pcs 16M
VDR100130C VDR100130CW VDR100130CE VDR100130CB 100*130 10 10 350-450pcs 16M
VDR200100C VDR200100CW VDR200100CE VDR200100CB 200*100 10 10 600-800pcs
/
VDR200150C VDR200150CW VDR200150CE VDR200150CB 200*150 10 10 900-1200pcs
/




















RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS



Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M









]]> http://www.wiring-ducts.com/close-wiring-duct-vdc/feed/ 0 RCCN GDRFZ Wiring Duct http://www.wiring-ducts.com/gdrfz-wiring-duct-2/ http://www.wiring-ducts.com/gdrfz-wiring-duct-2/#comments Mon, 10 Sep 2012 08:08:41 +0000 admin http://www.wiring-ducts.com/?p=1502



线槽图纸

Europe standard Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of , it makes
the fingers easy to separate from the trunking no need to us cutter.
Standard  Length:2M/PCS





Item No.

W*H

Q

P

Wire
capability
/2.0sp

PACK/M
Gray White Blue Black
GDR2025FZ GDR2025FZW GDR2025FZE GDR2025FZB 20*25 6 6.5 5~15pcs 200M
GDR2525FZ GDR2525FZW GDR2525FZE GDR2525FZB 25*25 6 6.5 10~25pcs 200M
GDR3025FZ GDR3025FZW GDR3025FZE GDR3025FZB 30*25 6 6.5 12~28pcs 160M
GDR2530FZ GDR2530FZW GDR2530FZE GDR2530FZB 25*30 6 6.5 25~35pcs 160M
GDR3030FZ GDR3030FZW GDR3030FZE GDR3030FZB 30*30 6 6.5 25~35pcs 140M
GDR4030FZ GDR4030FZW GDR4030FZE GDR4030FZB 40*30 6 6.5 30~40pcs 100M
GDR2540FZ GDR2540FZW GDR2540FZE GDR2540FZB 25*40 6 6.5 20~25pcs 112M
GDR4040FZ GDR4040FZW GDR4040FZE GDR4040FZB 40*40 6 6.5 60~70pcs 100M
GDR6040FZ GDR6040FZW GDR6040FZE GDR6040FZB 60*40 6 6.5 100~115pcs 68M
GDR8040FZ GDR8040FZW GDR8040FZE GDR8040FZB 80*40 6 6.5 120~135pcs 48M
GDR10040FZ GDR10040FZW GDR10040FZE GDR10040FZB 100*40 6 6.5 120~135pcs 32M
GDR2550FZ GDR2550FZW GDR2550FZE GDR2550FZB 25*50 6 6.5 20~30pcs 100M
GDR3050FZ GDR3050FZW GDR3050FZE GDR3050FZB 30*50 6 6.5 25~40pcs 84M
GDR3550FZ GDR3550FZW GDR3550FZE GDR3550FZB 35*50 6 6.5 40~60pcs 80M
GDR4050FZ GDR4050FZW GDR4050FZE GDR4050FZB 40*50 6 6.5 60~70pcs 68M
GDR4550FZ GDR4550FZW GDR4550FZE GDR4550FZB 45*50 6 6.5 70~80pcs 60M
GDR5050FZ GDR5050FZW GDR5050FZE GDR5050FZB 50*50 6 6.5 80~90pcs 60M
GDR6050FZ GDR6050FZW GDR6050FZE GDR6050FZB 60*50 6 6.5 100~120pcs 48M
GDR8050FZ GDR8050FZW GDR8050FZE GDR8050FZB 80*50 6 6.5 160~180pcs 40M
GDR10050FZ GDR10050FZW GDR10050FZE GDR10050FZB 100*50 6 6.5 200~250pcs 26M
GDR2560FZ1 GDR2560FZ1W GDR2560FZ1E GDR2560FZ1B 25*60 6 6.5 40~50pcs

96M
GDR3060FZ1 GDR3060FZ1W GDR3060FZ1E GDR3060FZ1B 30*60 6 6.5 60~80pcs 80M
GDR4060FZ1 GDR4060FZ1W GDR4060FZ1E GDR4060FZ1B 40*60 6 6.5 100~115pcs 60M
GDR4560FZ1 GDR4560FZ1W GDR4560FZ1E GDR4560FZ1B 45*60 6 6.5 110~120pcs 30M
GDR5060FZ1 GDR5060FZ1W GDR5060FZ1E GDR5060FZ1B 50*60 6 6.5 120~135pcs 60M
GDR6060FZ1 GDR6060FZ1W GDR6060FZ1E GDR6060FZ1B 60*60 6 6.5 120~135pcs 48M
GDR8060FZ1 GDR8060FZ1W GDR8060FZ1E GDR8060FZ1B 80*60 6 6.5 180~210pcs 36M
GDR10060FZ1 GDR10060FZ1W GDR10060FZ1E GDR10060FZ1B 100*60 6 6.5 240~290pcs 28M
GDR11060FZ1 GDR11060FZ1W GDR11060FZ1E GDR11060FZ1B 110*60 6 6.5 250~300pcs 48M
*GDR12060FZ1 GDR12060FZ1W GDR12060FZ1E GDR12060FZ1B 120*120 6 6.5 260~320pcs 48M
GDR2580FZ1 GDR2580FZ1W GDR2580FZ1E GDR2580FZ1B 25*80 6 6.5 100~120pcs 72M
GDR3080FZ1 GDR3080FZ1W GDR3080FZ1E GDR3080FZ1B 30*80 6 6.5 110~125pcs 56M
GDR3580FZ1 GDR3580FZ1W GDR3580FZ1E GDR3580FZ1B 35*80 6 6.5 110~130pcs 56M
GDR4080FZ1 GDR4080FZ1W GDR4080FZ1E GDR4080FZ1B 40*80 6 6.5 140~160pcs 48M
GDR4580FZ1 GDR4580FZ1W GDR4580FZ1E GDR4580FZ1B 45*80 6 6.5 140~160pcs 40M
GDR5080FZ1 GDR5080FZ1W GDR5080FZ1E GDR5080FZ1B 50*80 6 6.5 160~180pcs 40M
GDR6080FZ1 GDR6080FZ1W GDR6080FZ1E GDR6080FZ1B 60*80 6 6.5 180~210pcs 32M
GDR8080FZ1 GDR8080FZ1W GDR8080FZ1E GDR8080FZ1B 80*80 6 6.5 240~290pcs 24M
GDR10080FZ1 GDR10080FZ1W GDR10080FZ1E GDR10080FZ1B 100*80 6 6.5 260~350pcs 24M
GDR12080FZ1 GDR12080FZ1W GDR12080FZ1E GDR12080FZ1B 120*80 6 6.5 280~380pcs 16M
GDR14080FZ1 GDR14080FZ1W GDR14080FZ1E GDR14080FZ1B 140*80 6 6.5 350~450pcs 16M
GDR2580FZ2 GDR2580FZ2W GDR2580FZ2E GDR2580FZ2B 25*80 6 6.5 100~120pcs 72M
GDR3080FZ2 GDR3080FZ2W GDR3080FZ2E GDR3080FZ2B 30*80 6 6.5 110~125pcs 56M
GDR3580FZ2 GDR3580FZ2W GDR3580FZ2E GDR3580FZ2B 35*80 6 6.5 110~130pcs 56M
GDR4080FZ2 GDR4080FZ2W GDR4080FZ2E GDR4080FZ2B 40*80 6 6.5 140~160pcs 48M
GDR4580FZ2 GDR4580FZ2W GDR4580FZ2E GDR4580FZ2B 45*80 6 6.5 140~160pcs 40M
GDR5080FZ2 GDR5080FZ2W GDR5080FZ2E GDR5080FZ2B 50*80 6 6.5 160~180pcs 40M
GDR5580FZ2 GDR5580FZ2W GDR5580FZ2E GDR5580FZ2B 55*80 6 6.5 160~180pcs 32M
GDR6080FZ2 GDR6080FZ2W GDR6080FZ2E GDR6080FZ2B 60*80 6 6.5 180~210pcs 32M
GDR8080FZ2 GDR8080FZ2W GDR8080FZ2E GDR8080FZ2B 80*80 6 6.5 240~290pcs 24M
GDR10080FZ2 GDR10080FZ2W GDR10080FZ2E GDR10080FZ2B 100*80 6 6.5 260~350pcs 24M
GDR12080FZ2 GDR12080FZ2W GDR12080FZ2E GDR12080FZ2B 120*80 6 6.5 280~380pcs 16M
GDR14080FZ2 GDR14080FZ2W GDR14080FZ2E GDR14080FZ2B 140*80 6 6.5 350~450pcs 16M
GDR25100FZ2 GDR25100FZ2W GDR25100FZ2E GDR25100FZ2B 25*100 6 6.5 110~160pcs 60M
GDR33100FZ2 GDR33100FZ2W GDR33100FZ2E GDR33100FZ2B 33*100 6 6.5 130~165pcs 44M
GDR40100FZ2 GDR40100FZ2W GDR40100FZ2E GDR40100FZ2B 40*100 6 6.5 130~175pcs 40M
GDR50100FZ2 GDR50100FZ2W GDR50100FZ2E GDR50100FZ2B 50*100 6 6.5 220~250pcs 40M
GDR60100FZ2 GDR60100FZ2W GDR60100FZ2E GDR60100FZ2B 60*100 6 6.5 240~290pcs 32M
GDR75100FZ2 GDR75100FZ2W GDR75100FZ2E GDR75100FZ2B 75*100 6 6.5 260~350pcs 24M
GDR80100FZ2 GDR80100FZ2W GDR80100FZ2E GDR80100FZ2B 80*100 6 6.5 260~350pcs 24M
GDR100100FZ2 GDR100100FZ2W GDR100100FZ2E GDR100100FZ2B 100*100 6 6.5 300~400pcs 24M
GDR120100FZ2 GDR120100FZ2W GDR120100FZ2E GDR120100FZ2B 120*100 6 6.5 350~450pcs 16M
GDR150100FZ2 GDR150100FZ2W GDR150100FZ2E GDR150100FZ2B 150*100 6 6.5 400~650pcs 16M












RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M









]]> http://www.wiring-ducts.com/gdrfz-wiring-duct-2/feed/ 0
