wiring duct-RCCN » cable trunking http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 cable trunking http://www.wiring-ducts.com/cable-trunking-4/ http://www.wiring-ducts.com/cable-trunking-4/#comments Mon, 15 Jul 2013 14:42:45 +0000 admin http://www.wiring-ducts.com/?p=3651

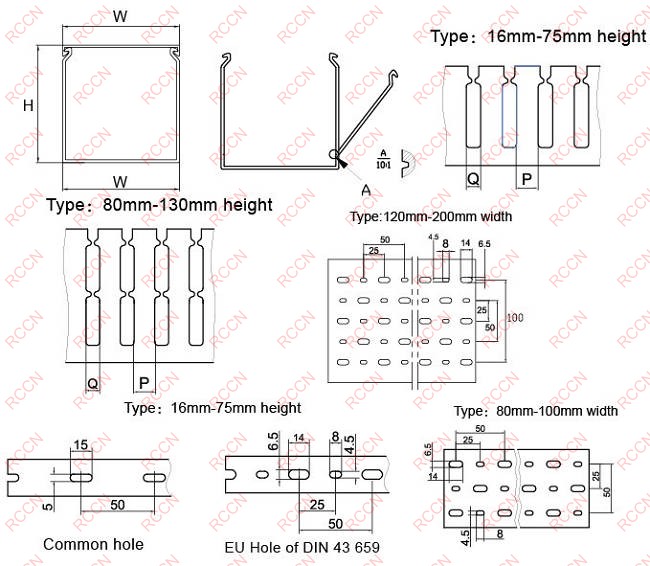

线槽图纸



Place of Origin: China Shanghai PACK: 2M
Certified: CE…ROHS,REACH Brand Name: RCCN
Model No: VDR HVDR

Specifications
• Usage : Fixed the bottom duct first and put wires in duct then close the cover cap.
• Feature : Composed easily, not peel, smooth match and won’t be hurt.
• Construction: Composed of bottom duct and cover cap, slot holes in both side.
• Material: Made of Hardness Lead-Free PVC UL-94V0
• Color: Gray
• Mounting Method: Standard Mounting Holes
• . Recognized continuous use temperature: +122 °F (+50 °C)



Part No.. W*H A B C D E F H T M/PACK 14AWG/PCS
VDR1616F 16*16 16 16 16 8.5 8.0 20 14.5 1.3 200 4-8
VDR2020F 20*20 20 20 20 12.5 8.0 20 18.5 1.3 200 5-12
VDR1525F 15*25 15 25 15 15.5 8.0 20 23.5 1.4 200 5-12
VDR2025F 20*25 20 25 20 15.5 8.0 20 23.5 1.4 200 5-12
VDR2525F 25*25 25 25 25 15.5 8.0 20 23.5 1.4 200 10-25
VDR1530F 15*30 15 30 15 21.5 8.0 20 31.5 1.4 180 15-25
VDR2030F 20*30 20 30 20 21.5 8.0 20 31.5 1.3 160 15-25
VDR2530F 25*30 25 30 25 20.0 8.0 20 28.5 1.4 160 15-25
VDR3030F 30*30 30 30 30 20.0 8.0 20 28.5 1.4 140 15-25
VDR4030F 40*30 40 30 40 20.0 8.0 20 28.5 1.4 120 25-35
VDR2233F 22*33 22 33 22 21.5 8.0 20 31.5 1.4 160 15-25
VDR3535F 35*35 35 35 35 22.5 8.0 20 32.5 1.4 100 40-45
VDR5035F 50*35 50 35 50 22.5 8.0 20 32.5 1.6 80 55-65
VDR2540F 25*40 25 40 25 28.5 8.0 20 38.5 1.4 112 20-25
VDR4040F 40*40 40 40 40 28.5 8.0 20 38.5 1.4 100 60-70
VDR6040F 60*40 60 40 60 27.5 8.0 20 37.8 1.6 68 100-115
VDR8040F 80*40 80 40 80 28.5 8.0 20 38.5 2.0 48 120-135
VDR10040F 100*40 100 40 100 28.5 8.0 20 38.5 2.0 40 140-165
VDR2545F 25*45 25 45 25 33.5 8.0 20 43.5 1.4 100 20-25
VDR3345F 33*45 33 45 33 33.5 8.0 20 43.5 1.5 104 40-55
VDR4545F 45*45 45 45 45 33.5 8.0 20 43.5 1.5 68 60-70
VDR6545F 65*45 65 45 65 33.5 8.0 20 43.5 1.6 60 80-90
VDR2550F 25*50 25 50 25 38.5 8.0 20 48.5 1.6 100 20-25
VDR3050F 30*50 30 50 30 38.5 8.0 20 48.5 1.6 84 30-35
VDR3550F 35*50 35 50 35 38.5 8.0 20 48.5 1.6 80 40-45
VDR4050F 40*50 40 50 40 38.5 8.0 20 48.5 1.6 68 50-60
VDR4550F 45*50 45 50 45 38.5 8.0 20 48.5 1.6 68 60-70
VDR5050F 50*50 50 50 50 38.5 8.0 20 48.5 1.6 60 80-90
VDR5550F 55*50 55 50 55 38.5 8.0 20 48.5 1.6 60 80-90
VDR6050F 60*50 60 50 60 38.5 8.0 20 48.5 1.6 52 85-95
VDR8050F 80*50 80 50 80 38.5 8.0 20 48.5 1.6 40 150-170
VDR10050F 100*50 100 50 100 38.5 8.0 20 48.5 1.6 20 200-240
VDR2060F 20*60 20 60 20 47.5 8.0 20 57.5 1.7 100 35-40
VDR2560F 25*60 25 60 25 47.5 8.0 20 57.5 1.6 120 40-45
VDR4060F 40*60 40 60 40 47.5 8.0 20 57.5 1.8 60 100-115
VDR4560F 45*60 45 60 45 47.5 8.0 20 57.5 1.8 60 113-118
VDR5060F 50*60 50 60 50 47.5 8.0 20 57.5 1.8 48 115-130
VDR6060F 60*60 60 60 60 47.5 8.0 20 57.5 2.0 48 120-135
VDR8060F 80*60 80 60 80 47.5 8.0 20 57.5 2.0 36 180-240
VDR11060F 110*60 110 60 110 47.5 8.0 20 57.5 2.0 20 220-280
VDR12060F 120*60 120 60 120 47.5 8.0 20 57.5 2.0 20 220-280
VDR2565F 25*65 25 65 25 53.5 8.0 20 63.5 1.6 88 40-45
VDR3365F 33*65 33 65 33 53.5 8.0 20 63.5 1.6 84 60-75
VDR4565F 45*65 45 65 45 53.5 8.0 20 63.5 1.6 60 110-120
VDR6565F 65*65 65 65 65 53.5 8.0 20 63.5 1.6 40 180-200
VDR5075F 50*75 50 75 50 68.5 8.0 20 73.5 2.0 56 140-180
VDR7575F 75*75 75 75 75 68.5 8.0 20 73.5 2.0 24 220-270
VDR2580F 25*80 25 80 25 68.5 8.0 20 78.5 1.8 72 100-120
VDR3080F 30*80 30 80 30 68.5 8.0 20 78.5 2.0 56 110-130
VDR3580F 35*80 35 80 35 68.5 8.0 20 78.5 2.0 56 120-140
VDR4080F 40*80 40 80 40 68.5 8.0 20 78.5 1.8 48 120-135
VDR4580F 45*80 45 80 45 68.5 8.0 20 78.5 2.0 40 130-140
VDR5080F 50*80 50 80 50 68.5 8.0 20 78.5 1.8 32 150-190
VDR5580F 55*80 55 80 55 68.5 8.0 20 78.5 2.0 32 150-190
VDR6080F 60*80 60 80 60 68.5 8.0 20 78.5 2.0 32 180-210
VDR8080F 80*80 80 80 80 68.5 8.0 20 78.5 2.0 24 240-290
VDR10080F 100*80 100 80 100 68.5 8.0 20 78.5 2.0 20 260-350
VDR12080F 120*80 120 80 120 68.5 8.0 20 78.5 2.0 16 260-350
VDR14080F 140*80 140 80 140 68.5 8.0 20 78.5 2.0 12 300-400
VDR33100F 33*100 33 100 33 88.5 8.0 20 98.5 2.0 44 110-160
VDR40100F 40*100 40 100 40 88.5 8.0 20 98.5 2.0 44 130-170
VDR50100F 50*100 50 100 50 88.5 8.0 20 98.5 2.0 32 220-250
VDR60100F 60*100 60 100 60 88.5 8.0 20 98.5 2.0 32 240-290
VDR75100F 75*100 75 100 75 88.5 8.0 20 98.5 2.0 24 260-350
VDR80100F 80*100 80 100 80 88.5 8.0 20 98.5 2.0 24 260-350
VDR100100F 100*100 100 100 100 88.5 8.0 20 98.5 2.2 16 300-400
VDR120100F 120*100 120 100 120 88.5 8.0 20 98.5 2.3 16 330-430
VDR150100F 150*100 150 100 150 88.5 8.0 20 98.5 2.3 16 350-450
VDR100130F 100*130 100 130 100 118.5 8.0 20 128.5 2.3 16 330-430
Part No. W*H A B C D E F H T M/PACK 14AWG/PCS
HVDR1616F 16*16 16 16 16 8.5 4.0 10 14.5 1.3 200 4-8
HVDR2020F 20*20 20 20 20 12.5 4.0 10 18.5 1.3 200 5-12
HVDR1525F 15*25 15 25 15 15.5 4.0 10 23.5 1.4 260 5-12
HVDR2025F 20*25 20 25 20 15.5 4.0 10 23.5 1.4 200 5-12
HVDR2525F 25*25 25 25 25 15.5 4.0 10 23.5 1.4 200 10-25
HVDR1530F 15*30 15 30 15 21.5 4.0 10 31.5 1.4 180 15-25
HVDR2030F 20*30 20 30 20 21.5 4.0 10 31.5 1.3 160 15-25
HVDR2530F 25*30 25 30 25 20.0 4.0 10 28.5 1.4 160 15-25
HVDR3030F 30*30 30 30 30 20.0 4.0 10 28.5 1.4 140 15-25
HVDR4030F 40*30 40 30 40 20.0 4.0 10 28.5 1.4 120 25-35
HVDR2233F 22*33 22 33 22 21.5 4.0 10 31.5 1.4 160 15-25
HVDR3535F 35*35 35 35 35 22.5 4.0 10 32.5 1.4 100 40-45
HVDR5035F 50*35 50 35 50 22.5 4.0 10 32.5 1.6 80 55-65
HVDR2540F 25*40 25 40 25 28.5 4.0 10 38.5 1.4 112 20-25
HVDR4040F 40*40 40 40 40 28.5 4.0 10 38.5 1.4 100 60-70
HVDR6040F 60*40 60 40 60 27.5 4.0 10 37.8 1.6 68 100-115
HVDR8040F 80*40 80 40 80 28.5 4.0 10 38.5 2.0 48 120-135
HVDR10040F 100*40 100 40 100 28.5 4.0 10 38.5 2.0 40 140-165
HVDR2545F 25*45 25 45 25 33.5 4.0 10 43.5 1.4 100 20-25
HVDR3345F 33*45 33 45 33 33.5 4.0 10 43.5 1.5 104 40-55
HVDR4545F 45*45 45 45 45 33.5 4.0 10 43.5 1.5 68 60-70
HVDR6545F 65*45 65 45 65 33.5 4.0 10 43.5 1.6 68 80-90
HVDR2550F 25*50 25 50 25 38.5 4.0 10 48.5 1.6 100 20-25
HVDR3050F 30*50 30 50 30 38.5 4.0 10 48.5 1.6 84 30-35
HVDR3550F 35*50 35 50 35 38.5 4.0 10 48.5 1.6 84 40-45
HVDR4050F 40*50 40 50 40 38.5 4.0 10 48.5 1.6 68 50-60
HVDR4550F 45*50 45 50 45 38.5 4.0 10 48.5 1.6 68 60-70
HVDR5050F 50*50 50 50 50 38.5 4.0 10 48.5 1.6 60 80-90
HVDR5550F 55*50 55 50 55 38.5 4.0 10 48.5 1.6 60 80-90
HVDR6050F 60*50 60 50 60 38.5 4.0 10 48.5 1.6 52 85-95
HVDR8050F 80*50 80 50 80 38.5 4.0 10 48.5 1.6 40 150-170
HVDR10050F 100*50 100 50 100 38.5 4.0 10 48.5 1.6 28 200-240
HVDR2060F 20*60 20 60 20 47.5 4.0 10 57.5 1.7 120 35-40
HVDR2560F 25*60 25 60 25 47.5 4.0 10 57.5 1.6 120 40-45
HVDR4060F 40*60 40 60 40 47.5 4.0 10 57.5 1.8 60 100-115
HVDR4560F 45*60 45 60 45 47.5 4.0 10 57.5 1.8 60 113-118
HVDR5060F 50*60 50 60 50 47.5 4.0 10 57.5 1.8 48 115-130
HVDR6060F 60*60 60 60 60 47.5 4.0 10 57.5 2.0 48 120-135
HVDR8060F 80*60 80 60 80 47.5 4.0 10 57.5 2.0 36 180-240
HVDR11060F 110*60 110 60 110 47.5 4.0 10 57.5 2.0 20 220-280
HVDR12060F 120*60 120 60 120 47.5 4.0 10 57.5 2.0 20 220-280
HVDR2565F 25*65 25 65 25 53.5 4.0 10 63.5 1.6 88 40-45
HVDR3365F 33*65 33 65 33 53.5 4.0 10 63.5 1.6 84 60-75
HVDR4565F 45*65 45 65 45 53.5 4.0 10 63.5 1.6 60 110-120
HVDR6565F 65*65 65 65 65 53.5 4.0 10 63.5 1.6 40 180-200
HVDR5075F 50*75 50 75 50 68.5 4.0 10 73.5 2.0 56 140-180
HVDR7575F 75*75 75 75 75 68.5 4.0 10 73.5 2.0 32 220-270
HVDR2580F 25*80 25 80 25 68.5 4.0 10 78.5 1.8 72 100-120
HVDR3080F 30*80 30 80 30 68.5 4.0 10 78.5 2.0 56 110-130
HVDR3580F 35*80 35 80 35 68.5 4.0 10 78.5 2.0 56 120-140
HVDR4080F 40*80 40 80 40 68.5 4.0 10 78.5 1.8 48 120-135
HVDR4580F 45*80 45 80 45 68.5 4.0 10 78.5 2.0 40 130-140
HVDR5080F 50*80 50 80 50 68.5 4.0 10 78.5 1.8 32 150-190
HVDR5580F 55*80 55 80 55 68.5 4.0 10 78.5 2.0 32 150-190
HVDR6080F 60*80 60 80 60 68.5 4.0 10 78.5 2.0 32 180-210
HVDR8080F 80*80 80 80 80 68.5 4.0 10 78.5 2.0 24 240-290
HVDR10080F 100*80 100 80 100 68.5 4.0 10 78.5 2.0 20 260-350
HVDR12080F 120*80 120 80 120 68.5 4.0 10 78.5 2.0 16 260-350
HVDR14080F 140*80 140 80 140 68.5 4.0 10 78.5 2.0 12 300-400
HVDR33100F 33*100 33 100 33 88.5 4.0 10 98.5 2.0 44 110-160
HVDR40100F 40*100 40 100 40 88.5 4.0 10 98.5 2.0 44 130-170
HVDR50100F 50*100 50 100 50 88.5 4.0 10 98.5 2.0 32 220-250
HVDR60100F 60*100 60 100 60 88.5 4.0 10 98.5 2.0 32 240-290
HVDR75100F 75*100 75 100 75 88.5 4.0 10 98.5 2.0 24 260-350
HVDR80100F 80*100 80 100 80 88.5 4.0 10 98.5 2.0 24 260-350
HVDR100100F 100*100 100 100 100 88.5 4.0 10 98.5 2.2 16 300-400
HVDR120100F 120*100 120 100 120 88.5 4.0 10 98.5 2.4 16 330-430
HVDR150100F 150*100 150 100 150 88.5 4.0 10 98.5 2.4 16 350-450
HVDR100130F 100*130 100 130 100 118.5 4.0 10 128.5 2.2 16 330-430


wiirng duct pack



]]>
