wiring duct-RCCN » Cable Gland http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN AG Nylon Cable Gland http://www.wiring-ducts.com/nylon-cable-gland-m/ http://www.wiring-ducts.com/nylon-cable-gland-m/#comments Wed, 30 Sep 2009 07:29:07 +0000 admin http://www.wiring-ducts.com/?p=283



*Time saving, cable can be easily once inserted into through the gland
without dismantling the parts.
*Suggested clearance hole for non-threaded mounting.
*Suitable for fixing wires of machines, electrical applications, mechanical
control boards/ boxes.
*The gland can stand the temp. up to140oC (284°F) in short time.
*Material: Polyamide 6.6, UL94 V2
Neoprene for seal insert, with nut
*Color: Black, light grey

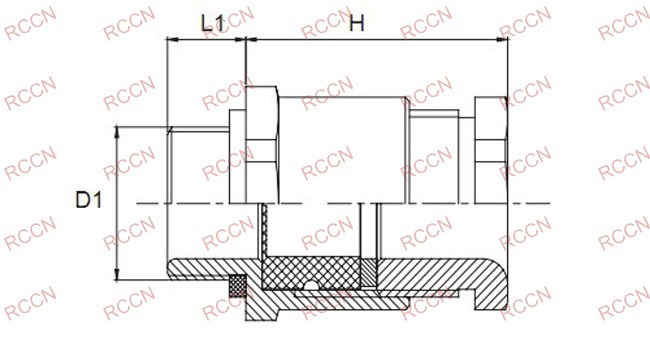

Thread
length		 Item No. Thread CableRange
￠		 Thread
O.D.
D1		 Panel
Mounting
Hole		 Thread
Length
L1		 Joint
Length
L2+L3		 Spanner
size
A&F		 Std.Pkg.
pcs
White Black
Short
 thread		 AG-12W AG-12B M12×1.5 3-6.5 12 12-12.3 8 22 18/16 100PCS
AG-14W AG-14B M14×1.5 4-8 14 14-14.3 8 26 22/19
AG-16W AG-16B M16×1.5 4-8 16 16-16.3 8 26 22/19
AG-18W AG-18B M18×1.5 5-10 18 18-18.3 8 27 24/22
AG-20W AG-20B M20×1.5 6-12 20 20-20.3 9 28 27/24
AG-22W AG-22B M22×1.5 10-14 22 22-22.3 10 30 30/27
AG-24W AG-24B M24×1.5 12-15 24 24-24.4 10 30 30/27
AG-25W AG-25B M25×1.5 13-18 25 25-25.4 10 35 33/33
AG-27W AG-27B M27×1.5 13-18 27 27-27.4 10 35 33/33
AG-30W AG-30B M30×1.5 16-21 30 30-30.4 11 35 39/36
AG-32W AG-32B M32×1.5 16-21 32 32-32.4 11 35 39/36
AG-36W AG-36B M36×1.5 18-25 36 36-36.4 12 40 46/42
AG-40W AG-40B M40×1.5 22-32 40 40-40.4 14 48 50/54 20PCS
AG-50W AG-50B M50×1.5 32-38 50 50-50.4 14 49 63/61
AG-63W AG-63B M63×1.5 37-44 63 63-63.4 14 50 75/65
Long
thread		 AG-12LW AG-12LB M12×1.5 3-6.5 12 12-12.3 15 22 18/16 100PCS
AG-14LW AG-14LB M14×1.5 4-8 14 14-14.3 15 26 22/19
AG-16LW AG-16LB M16×1.5 4-8 16 16-16.3 15 26 22/19
AG-18LW AG-18LB M18×1.5 18 18 18-18.3 15 27 24/22
AG-20LW AG-20LB M20×1.5 6-12 20 20-20.3 15 28 27/24
AG-22LW AG-22LB M22×1.5 10-14 22 22-22.3 15 30 30/27
AG-24LW AG-24LB M24×1.5 12-15 24 24-24.4 15 30 30/27
AG-25LW AG-25LB M25×1.5 13-18 25 25-25.4 15 35 33/33
AG-27LW AG-27LB M27×1.5 13-18 27 27-27.4 15 35 33/33
AG-30LW AG-30LB M30×1.5 16-21 30 30-30.4 15 35 39/36
AG-32LW AG-32LB M32×1.5 16-21 32 32-32.4 15 35 39/36
AG-36LW AG-36LB M36×1.5 18-25 36 36-36.4 18 40 46/42
AG-40LW AG-40LB M40×1.5 22-32 40 40-40.4 18 48 50/54 20PCS
AG-50LW AG-50LB M50×1.5 32-38 50 50-50.4 18 49 63/61
AG-63LW AG-63LB M63×1.5 37-44 63 63-63.4 18 50 75/65





]]> http://www.wiring-ducts.com/nylon-cable-gland-m/feed/ 0 RCCN PGA-H Nylon Cable Gland http://www.wiring-ducts.com/pga-h-nylon-cable-gland/ http://www.wiring-ducts.com/pga-h-nylon-cable-gland/#comments Wed, 30 Sep 2009 07:10:36 +0000 admin http://www.wiring-ducts.com/?p=2482

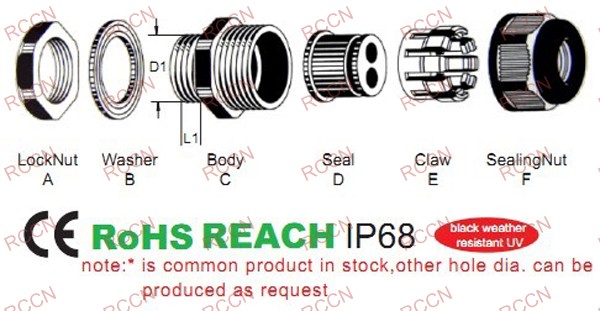

Thread:DIN STANDARD datas：refer to PGA
Features：Features：Ash and water resistant,save install time and cost



Hole
number
 type		  Item No Thread  CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1  SpannersizeA&F Std.PkgPcs
 Black  White
two hole *PG7A-H2-03B PG7A-H2-03G PG7 2-3.1 12.5 12.5-12.8 8 17/19 50PCS
*PG9A-H2-03B PG9A-H2-03G PG9 2-3.1 15.2 15.2-15.8 8.2 22/19
PG11A-H2-03B PG11A-H2-03G PG11 2-3 18.6 18.6-18.9 10 24/22
*PG13.5A-H2-05B PG13.5A-H2-05G PG13.5 3.5-5.2 20.4 20.4-20.7 10 27/24
*PG16A-H2-06B PG16A-H2-06G PG16 4.3-6.1 22.5 22.5-22.8 10.8 30/27
*PG21AH2-08B PG21AH2-08G PG21 6.4-8.7 28.3 28.3-28.7 12 36/33
PG29A-H2-10B G29A-H2-10G PG29 7.7-10 37.0 37.0-37.4 12 46/41
Three
hole		 *PG7A-H3-02B PG7A-H3-02G PG7 1.6-2.6 12.5 12.5-12.8 8 17/19 50PCS
*PG9A-H3-02B PG9A-H3-02G PG9 1.6-2.6 15.2 15.2-15.8 8.2 22/19
*PG11A-H3-03B PG11A-H3-03G PG11 2-3 18.6 18.6-18.9 10 24/22
*PG13.5A-H3-05B PG13.5A-H3-05G PG13.5 3.5-5 20.4 20.4-20.7 10 27/24
*PG16A-H3-05B PG16A-H3-05G PG16 3.5-5.2 22.5 22.5-22.8 10.8 30/27
*PG21A-H3-08B PG21A-H3-08G PG21 6.2-8 28.3 28.3-28.7 12 36/33
*PG29A-H3-10B PG29A-H3-10G PG29 7.7-10 37.0 37.0-37.4 12 46/41
Four
hole		 *PG7A-H4-02B PG7A-H4-02G PG7 1.3-2.3 12.5 12.5-12.8 8 17/19 50PCS
*PG9A-H4-02B PG9A-H4-02G PG9 1.3-2.3 15.2 15.2-15.8 8.2 22/19
PG11A-H4-03B PG11A-H4-03G PG11 2.4-3.4 18.6 18.6-18.9 10 24/22
PG13.5A-H4-04B PG13.5A-H4-04G PG13.5 3-4.2 20.4 20.4-20.7 10 27/24
*PG16A-H4-04B PG16A-H4-04G PG16 3.4-4.8 22.5 22.5-22.8 10.8 30/27
*PG21A-H4-07B PG21A-H4-07G PG21 5.6-7.3 28.3 28.3-28.7 12 36/33
*PG29A-H4-09B PG29A-H4-09G PG29 7-9 37.0 37.0-37.4 12 46/41
Five
hole		 PG11A-H5-02B PG11A-H5-02G PG11 2-2.8 18.6 18.6-18.9 10 24/22 50PCS
PG16AH5-03B PG16AH5-03G PG16 2-3.1 22.5 20.4-20.7 10.8 30/27
PG16A-H5-04B PG16A-H5-04G PG16 3-4.1 22.5 22.5-22.8 10.8 30/27
PG21A-H5-03B PG21A-H5-03G PG21 2.6-3.6 28.3 28.3-28.7 12 36/33
*PG29A-H5-06B PG29A-H5-06G PG29 4.1-6 37.0 37.0-37.4 12 46/41
PG36A-H5-08B PG36A-H5-08G PG36 6.5-8.3 47.0 47.0-47.4 14 51/52
Six hole PG11A-H6-02B PG11A-H6-02G PG11 1.4-2.1 18.6 18.6-18.9 10 24/22 50PCS
PG13.5A-H6-03B PG13.5A-H6-03G PG13.5 2-3 20.4 20.4-20.7 10 27/24
PG16A-H6-03B PG16A-H6-03G PG16 2-3 22.5 22.5-22.8 10.8 30/27
PG21A-H6-05B PG21A-H6-05G PG21 3.6-5.2 28.3 28.3-28.7 12 36/33
*PG29A-H6-07B PG29A-H6-07G PG29 5.6-7 37.0 37.0-37.4 12 46/41
Seven hole PG16A-H7-03B PG16A-H7-03G PG16 2-3 22.5 22.5-22.8 10.8 30/27 50PCS
*PG21A-H7-03B PG21A-H7-03G PG21 2.6-3.6 28.3 28.3-28.7 12 36/33
PG29A-H7-06B PG29A-H7-06G PG29 4.6-6 37.0 37.0-37.4 12 46/41
flat hole *PG9A-4511B PG9A-4511G PG9 4.5*11 15.2 15.2-15.8 8.2 22/19 50PCS
PG9A-0610B PG9A-0610G PG9 6*10 15.2 15.2-15.8 8.2 22/19
PG13.5A-0612B PG13.5A-0612G PG13.5 6.5*12 20.4 20.4-20.7 10 27/24
PG13.5A-0714B PG13.5A-0714G PG13.5 7*14 20.4 20.4-20.7 10 27/24
*PG16A-0714B PG16A-0714G PG16 7*14 22.5 22.5-22.8 10.8 30/27
*PG21A-0822B PG21A-0822G PG21 8*22 28.3 28.3-28.7 12 36/33
PG36A-0529B PG36A-0529G PG36 5.5*29 47.0 47.0-47.4 14 51/52





]]> http://www.wiring-ducts.com/pga-h-nylon-cable-gland/feed/ 0 RCCN PGA-EMC Brass Cable Gland http://www.wiring-ducts.com/pga-emc-brass-cable-gland/ http://www.wiring-ducts.com/pga-emc-brass-cable-gland/#comments Wed, 30 Sep 2009 06:42:28 +0000 admin http://www.wiring-ducts.com/?p=2390



  EMC防电磁
Thread:DIN PG，G/PF，NPT
Material:A.C.F are made of copper with nickel .D is made of copper,B.E are made of NBR
Certificates:CE,EX
Operate temperature:-50°C to 250°C
Protection:IP68。
Product characterstics:Special design of part D and E,used with part F, can save your time,
large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,
withstand impregnant like acid,alkali,alcohol,oil,grease,EMC looked like a normal gland,
but with its metal intermediate contact disc which can contact the screen of shielded cable,
helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagenetic interference.
thread
length		 Item No Thread  CableRangeΦ 螺纹外径ThreadO.D.D1 PanelMountingHole  ThreadLengthL1 JointLengthL2+L3 SpannersizeA&F Std.PkgPcs
PG
Germany
thread		 PG7A-6EMC PG-7 3-6 12.5 12.5-12.8 8 19 16 100PCS
PG7A-8EMC PG-7 4-8 12.5 12.5-12.8 8 19 16
PG9A-6EMC PG-9 3-6 15.2 15.2-15.8 9 19 16
PG9A-8EMC PG-9 4-8 15.2 15.2-15.8 9 19 16
PG11A-8EMC PG-11 4-8 18.6 18.6-18.9 10 22 20
PG11A-10EMC PG-11 6-10 18.6 18.6-18.9 10 22 20 20PCS
PG13.5A-8EMC PG-13.5 4-8 20.4 20.4-20.7 10 23 22
PG13.5A-10EMC PG-13.5 6-10 20.4 20.4-20.7 10 23 22 10PCS
PG16A-10EMC PG-16 6-10 22.5 22.5-22.8 11 23 24
PG16A-14EMC PG-16 10-14 22.5 22.5-22.8 11 23 24
G
Tube
thread		 PG21A-14EMC PG-21 10-14 28.3 28.3-28.7 13 28 30 100PCS
PG21A-18EMC PG-21 13-18 28.3 28.3-28.7 13 28 30
PG29A-18EMC PG-29 13-18 37.0 37.0-37.4 13 32 42
PG29A-25EMC PG-29 18-25 37.0 37.0-37.4 13 32 42 20PCS
PG36A-25EMC PG-36 18-25 47.0 47.0-47.4 15 38 52
PG36A-32EMC PG-36 25-32 47.0 47.0-47.4 15 38 52 10PCS
PG42A-40EMC PG-42 30-40 54.0 54.0-54.4 18 38 60
PG48A-54EMC PG-42 44-54 59.3 59.3-59.7 18 38 64
NPT
America
thread 		 G1/4A-6EMC G1/4” 3-6 13.2 13.2-13.4 8 19 16 100PCS
G3/8A-8EMC G3/8” 4-8 16.5 16.5-17.1 9 20 18
G1/2A-10EMC G1/2” 6-10 21.3 21.0-21.3 11 23 22
G3/4A-18EMC G3/4” 13-16 26.6 26.5-26.6 13 28 30 20PCS
G1A-25EMC G1” 18-25 33.4 33.2-33.4 13 32 36
G1-1/4A-32EMC G1 1/4” 25-32 42.1 41.9-42.1 15 36 48 10PCS
G1-1/2A-40EMC G1 1/2” 30-40 47.8 47.8-48.0 18 38 52
G2A-54EMC G2” 44-54 59.6 59.6-60.1 18 37 64
NPT3/8A-6EMC NPT3/8” 4-8 16.5 16.5-17.1 8 20 18
NPT1/2A-10EMC NPT1/2” 6-10 21.3 21.0-21.3 10 23 22
NPT3/4A-18EMC NPT3/4” 13-18 26.6 26.5-26.6 13 28 30
NPT1A-25EMC NPT1” 18-25 33.4 33.2-33.4 13 32 36
NPT1-1/4A-32EMC NPT1 1/4” 25-32 42.1 41.9-42.1 15 36 48
NPT1-1/2A-40EMC NPT1 1/2” 30-40 47.8 47.8-48.0 18 38 52
NPT2A-54EMC NPT2” 44-54 59.6 59.6-60.1 18 37 64







]]> http://www.wiring-ducts.com/pga-emc-brass-cable-gland/feed/ 0 RCCN GS&NPTS Cable Gland http://www.wiring-ducts.com/gsnpts-cable-gland/ http://www.wiring-ducts.com/gsnpts-cable-gland/#comments Wed, 30 Sep 2009 05:10:35 +0000 admin http://www.wiring-ducts.com/?p=2320





Thread:G/PF，NPT
Mater ial :A.C.F are made of stainess steel .D is made of insulated plast ic .B.E are made of NBR
Cer t i f icates:CE,EX
Protect ion: IP67。
Product characterst ics:Special design of par t D and E,used wi th par t F, can save your t ime,
large spread of cable seal ing,good re- tensi le,waterproof ,ashproof , re-sal ty,
Length added is avai lable, such as：PGS-13.5/L=15
Notes: lock nut is sold separatedly,O- r ing is included
Thread
length		  Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3 SpannersizeF Std.PkgPcs
G
tube
thread		 GS1/4 G1/4” 3-6 13.2 13.2-13.4 6 19 16 100PCS
GS3/8 G3/8” 4-8 16.5 16.5-17.1 7 20 18
GS1/2 G1/2” 8-12 21.3 21.0-21.3 8 23 22
GS3/4 G3/4” 13-18 26.6 26.5-26.6 11 28 30 20PCS
GS1 G1” 15-22 33.4 33.2-33.4 11 32 36
GS1 1/4 G1 1/4” 22-28 42.1 41.9-42.1 12 36 48 10PCS
GS1 1/2 G1 1/2” 26-32 47.8 47.8-48.0 13 38 52
GS2 G2” 37-44 59.6 59.6-60.1 14 37 64
NPT
America
thread		 NPTS3/8” NPT3/8” 4-8 16.5 16.5-17.1 7 20 18 100PCS
NPTS1/2” NPT1/2” 8-12 21.3 21.0-21/3 8 23 22
NPTS3/4” NPT3/4” 13-18 26.6 26.5-26.6 11 28 30
NPTS1” NPT1” 15-22 33.4 33.2-33.4 11 32 36 20PCS
NPTS1 1/4” NPT1 1/4” 22-28 42.1 41.9-42.1 12 36 48
NPTS1 1/2” NPT1 1/2” 26-32 47.8 47.8-48.0 13 38 52 10PCS
NPTS2” NPT2” 37-44 59.6 59.6-60.1 14 37 64





]]> http://www.wiring-ducts.com/gsnpts-cable-gland/feed/ 0 RCCN GAS&NPTS Cable Gland http://www.wiring-ducts.com/gasnpts-stainless-steel-cable-gland/ http://www.wiring-ducts.com/gasnpts-stainless-steel-cable-gland/#comments Wed, 30 Sep 2009 05:07:27 +0000 admin http://www.wiring-ducts.com/?p=2305




Thread:G/PF，NPT
Mater ial :A.C.F are made of copper wi th nickel .D is made of PA,B.E are made of NBR
Cer t i f icates:CE,EX
Operate temperature: -50°C to 250°C
Protect ion: IP68。
Product characterst ics:Special design of par t D and E,used wi th par t F, can save your t ime,
large spread of cable seal ing,good re- tensi le,waterproof ,ashproof , re-sal ty,
wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease
Length added is avai lable, such as:PG13.5AS-10/L=15  Note:not includ lock nut ,but wi th O- r ing
Thread
length		  Item No  Thread  CableRangeΦ  ThreadO.D.

D1

  PanelMounting

Hole

  ThreadLength

L1

  JointLength

L2+L3

  Spannersize

F

  Std.PkgPcs
G
tube thread		 GS1/4 G1/4” 3-6 13.2 13.2-13.4 6 19 16 100PCS
GS3/8 G3/8” 4-8 16.5 16.5-17.1 7 20 18
GS1/2 G1/2” 8-12 21.3 21.0-21.3 8 23 22
GS3/4 G3/4” 13-18 26.6 26.5-26.6 11 28 30 20PCS
GS1 G1” 15-22 33.4 33.2-33.4 11 32 36
GS1 1/4 G1 1/4” 22-28 42.1 41.9-42.1 12 36 48 10PCS
GS1 1/2 G1 1/2” 26-32 47.8 47.8-48.0 13 38 52
GS2 G2” 37-44 59.6 59.6-60.1 14 37 64
NPT America thread NPTS3/8” NPT3/8” 4-8 16.5 16.5-17.1 7 20 18 100PCS
NPTS1/2” NPT1/2” 8-12 21.3 21.0-21/3 8 23 22
NPTS3/4” NPT3/4” 13-18 26.6 26.5-26.6 11 28 30
NPTS1” NPT1” 15-22 33.4 33.2-33.4 11 32 36 20PCS
NPTS1 1/4” NPT1 1/4” 22-28 42.1 41.9-42.1 12 36 48
NPTS1 1/2” NPT1 1/2” 26-32 47.8 47.8-48.0 13 38 52 10PCS
NPTS2” NPT2” 37-44 59.6 59.6-60.1 14 37 64





]]> http://www.wiring-ducts.com/gasnpts-stainless-steel-cable-gland/feed/ 0 RCCN PJ Cable Gland http://www.wiring-ducts.com/pj-cable-gland/ http://www.wiring-ducts.com/pj-cable-gland/#comments Wed, 30 Sep 2009 05:05:50 +0000 admin http://www.wiring-ducts.com/?p=2244




Thread:GB/T 3667.1-1995 metric thread
Material:A.C.F are made of zinc metel coated nickel.D is ande of metal.B.E are made of NBR
Protect:IP54
PJ is shorter than JIS,outer dia. is less than 2mm,PJ main used in ships and electrics
Thread
length		 Item No  Thread  CableRangeΦ  ThreadO.D.

D1

  PanelMounting

Hole

  ThreadLength

L1

  JointLength

L2+L3

  Spannersize

A&F

  Std.PkgPcs
English
thread		 PJ-G3/8 G3/8” 5-7 16.5 16.5-17.1 10 32 22 50PCS
PJ-G1/2 G1.2” 6-12 21.3 21.0-21.3 11 35 27
PJ-G1/2 G1/2” 11-15 21.3 21.0-21.3 11 40 32
PJ-G3/4 G3/4” 14-18 26.6 26.5-26.6 14 42 36
PJ-G1 G1” 17-23 33.4 33.2-3.4 14 44 41
PJ-G1-1/4 G1 1/4” 22-27 42.1 41.9-42.1 14 46 46 20PCS
PJ-G1-1/4 G1 1/4” 26-33 42.1 41.9-42.1 14 49 50
PJ-G1-1/2 G1 1/2” 32-41 47.8 47.8-48.0 14 54 60 5PCS
PJ-G2 G2” 40-49 59.6 59.6-60.1 20 56 70
Thread
length		 PJ-M14*1.0 M14*1.0 5-7 14 14-14.3 10 32 22 50PCS
PJ-M18*1.0 M18*1.0 6-12 18 18-18.3 11 35 27
PJ-M22*1.0 M22*1.0 11-15 22 22-22.3 11 40 32
PJ-M27*1.5 M27*1.5 14-18 27 27-27..4 14 42 36 20PCS
PJ-M30*1.5 M30*1.5 17-23 30 30-30.4 14 44 41
PJ-M36*2.0 M36*2.0 22-27 36 36-36.4 14 46 46
PJ-M42*2.0 M42*2.0 26-33 42 42-42.4 14 49 50 5PCS
PJ-M52*2.0 M52*2.0 32-41 52 52-52.4 14 54 60
PJ-M58*3.0 M58*3.0 40-49 58 58-58.4 20 56 70
PJ-M68*3.0 M68*3.0 48-57 68 68-68.4 20 56 80
Germany
thread		 PJ-PG9 PG9 5-7 15.2 15.2-15.8 10 32 22 50PCS
PJ-PG11 PG11 6-12 18.6 18.6-18.9 11 35 27
PJ-PG16 PG16 11-15 22.5 22.5-22.8 11 40 32 20PCS
PJ-PG21 PG21 14-18 28.3 28.3-28.7 14 42 36
PJ-PG29 PG29 17-23 37.0 37.0-37.4 14 44 41 5PCS
PJ-PG29 PG29 22-27 37.0 37.0-37.4 14 46 46
PJ-PG36 PG36 26-33 37.0 37.0-37.4 14 49 50
PJ-PG42 PG42 32-41 54.0 54.0-54.4 14 54 60
PJ-PG48 PG48 40-49 59.3 59.3-59.7 20 56 70



]]> http://www.wiring-ducts.com/pj-cable-gland/feed/ 0 RCCN SPK Cable Gland http://www.wiring-ducts.com/spk-cable-gland/ http://www.wiring-ducts.com/spk-cable-gland/#comments Wed, 30 Sep 2009 05:04:41 +0000 admin http://www.wiring-ducts.com/?p=2241




Material:A.C.F are made of zinc metel coated nickel.D is ande of metal.B.E are made of
NBR Protect:IP54。
The items can be made in round outside, part no. like:SPK-M20/R
SPK, JIS and PJ are thin connectors
Thread
length		  Item No  Thread  CableRangeΦ  ThreadO.D.

D1

  PanelMounting

Hole

  ThreadLength

L1

  JointLength

H

  Spannersize

D2

  Std.PkgPcs
Germany
thread		 SPK-PG-7 PG-7 6-8 12.5 12.5-12.8 5 15 15 100PCS
SPK-PG-9 PG-9 6-8 15.2 15.2-15.8 6 17 17
SPK-PG-9 PG-9 8-10 15.2 15.2-15.8 6 17 17
SPK-PG-11 PG-11 6-8 18.6 18.6-18.9 6 17 20
SPK-PG-11 PG-11 8-10 18.6 18.6-18.9 6 17 20
SPK-PG-11 PG-11 10-12 18.6 18.6-18.9 6 18 20
SPK-PG-13.5 PG-13.5 12-14 20.4 20.4-20.7 7 19.5 24
Metric
thread		 SPK-M12*1.5 M12*1.5 6-8 12 M12*1.5 5 15 15 100PCS
SPK-M16S*1.5 M16*1.5 6-8 16 M16*1.5 6 17 17
SPK-M16*1.5 M16*1.5 8-10 16 M16*1.5 6 17 17
SPK-M18S*1.5 M18*1.5 6-8 18 M18*1.5 6 17 20
SPK-M18*1.5 M18*1.5 8-10 18 M18*1.5 6 17 20
SPK-M18D*1.5 M18*1.5 10-12 18 M18*1.5 6 18 20
SPK-M20*1.5 M20*1.5 12-14 20 M20*1.5 7 19.5 24
SPK-M25*1.5 M25*1.5 14-18 25 M25*1.5 7 32.5 30/34
SPK-M32*1.5 M32*1.5 17-23 32 M32*1.5 8 32.5 36/40 20PCS
SPK-M36*1.5 M36*1.5 22-27 36 M36*1.5 8 35 45/48
SPK-M40*1.5 M40*1.5 26-33 40 M40*1.5 9 35 50/55 5PCS
SPK-M50*1.5 M50*1.5 32-41 50 M50*1.5 9 37 58/65
SPK-M56*2.0 M56*1.5 40-49 56 M56*1.5 9 40 65/70
SPK-M63*1.5 M63*1.5 48-57 63 M63*1.5 10 40 75/80



]]> http://www.wiring-ducts.com/spk-cable-gland/feed/ 0 RCCN NBK Conduit Fittings http://www.wiring-ducts.com/nbk-conduit-fittings/ http://www.wiring-ducts.com/nbk-conduit-fittings/#comments Wed, 30 Sep 2009 04:16:56 +0000 admin http://www.wiring-ducts.com/?p=1890

Material:C.F are made from zinc coated metal.E are made of NBR.Dis made of iron sheet.
Certificates:CE RoHS
Special thread can be produced



Item No. suitable RCCN metal flexible
conduit MCR		 Thicker steel tube(water,coal,gas tube)D1
Corresponding
item no		 Metric ø British Public size British size 0uter dia. Thickness
NBK-04G MCR-04 13 3/8″ #12 3/8″ 17.00 2.25
NBK-05G MCR-05 16 1/2″ #15 1/2″ 21.25 2.75
NBK-06G MCR-06 20 3/4″ #20 3/4″ 26.75 2.75
NBK-08G MCR-08 25 1″ #25 1″ 33.50 3.25
NBK-10G MCR-10 32 1 1/4″ #32 1 1/4″ 42.25 3.25
NBK-12G MCR-12 38 1 1/2″ #40 1 1/2 48.00 3.50
NBK-16G MCR-16 51 2″ #50 2″ 60.00 3.50
NBK-20G MCR-20 64 2 1/2″ #70 2 1/2″ 75.50 3.75
NBK-24G MCR-24 80 3″ #80 3″ 88.50 4.00
NBK-32G MCR-32 100 4″ #100 4″ 114.0 4.00



]]> http://www.wiring-ducts.com/nbk-conduit-fittings/feed/ 0 RCCN ELZ Conduit Fittings http://www.wiring-ducts.com/elz-conduit-fittings/ http://www.wiring-ducts.com/elz-conduit-fittings/#comments Wed, 30 Sep 2009 04:15:16 +0000 admin http://www.wiring-ducts.com/?p=1887



Item No. D1 D2
ELZ-M
ELZ-M12/M16
M12*1.5
M16*1.5
ELZ-M16/M20
M16*1.5
M20*1.5
ELZ-M20/M25
M20*1.5
M25*1.5
ELZ-M25/M32
M25*1.5
M32*1.5
ELZ-M32/M40
M32*1.5
M40*1.5
ELZ-M40/M50
M40*1.5
M50*1.5
ELZ-M50/M63
M50*1.5
M63*1.5
ELZ-P
ELZ-PG7/PG9
PG7
PG9
ELZ-PG9/PG11
PG9
PG11
ELZ-PG11/PG13.5
PG11
PG13.5
ELZ-PG13.5/PG16
PG13.5
PG16
ELZ-PG16/PG21
PG16
PG21

Item No.

 D1

D2
ELZ-P
ELZ-PG21/PG29
 PG21 PG29
ELZ-PG29/PG36
PG29
PG36
ELZ-PG36/PG42
PG36
PG42
ELZ-PG42/PG48
PG42
PG48
ELZ-G
ELZ-G3/8-G1/2
G3/8″
G1/2″
ELZ-G1/2-G3/4
G1/2″
G3/4″
ELZ-G3/4-G1
G3/4″
G 1″
ELZ-G1-G1-1/4
G 1″
G1 1/4″
ELZ-M/G
ELZ-M20-G1/2
M20*1.5
G1/2″
ELZ-M25-G3/4
M25*1.5
G3/4″
ELZ-M32-G1
M32*1.5
G 1″
ELZ-M40-G1-1/4
M32*1.5
G1 1/4″



]]> http://www.wiring-ducts.com/elz-conduit-fittings/feed/ 0
