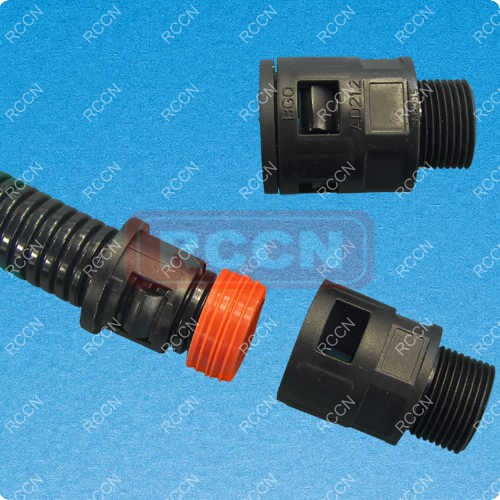

wiring duct-RCCN » conduit connector http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN BGQ1 conduit connector http://www.wiring-ducts.com/conduit-connector/ http://www.wiring-ducts.com/conduit-connector/#comments Wed, 30 Sep 2009 05:01:05 +0000 admin http://www.wiring-ducts.com/conduit-connector/




Thread:Metric:PG,NPT,G
Material:NYLON66
Certifcates:CE,ROHS
Fireproof rate:UL94V-2
Color:Black-B,Gray-G.
Work temperature:-40°C to 85°C

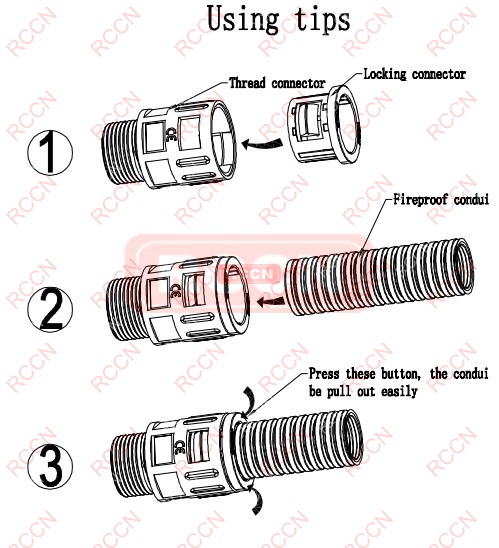

Features:Install or discharge without
tools,just insert or output the conduit
Remarks:Come with lock nut,but without
washer, need to buy separatedly



Item No . ThreadM Tubing
outerBG		 Thread
O.D.D1		 Panel
MountingHole		 Thread
LengthGL		 Smallest
innerΦ1		 Largest
innerΦB		 Total
Length H		 Std.Pkg.
pcs
Black Gray
BGQ-M
BGQ1-M12B（BG07） BGQ1-M12G（BG07） M12*1.5 BG-07 12 12-12.3 10 7 17.0 32.5 100PCS
BGQ1-M12B（BG10） BGQ1-M12G（BG10） M12*1.5 BG-10 12 12-12.3 10 7 20.0 32.5
BGQ1-M16B（BG07） BGQ1-M16G（BG07） M16*1.5 BG-07 16 16-16.3 10 10 17.0 32.5
BGQ1-M16B（BG10） BGQ1-M16G（BG10） M16*1.5 BG-10 16 16-16.3 10 12 20.0 32.5
BGQ1-M16B（BG12） BGQ1-M16G（BG12） M16*1.5 BG-12 16 16-16.3 10 12 23.0 37.0
BGQ1-M18B（BG10） BGQ1-M18G（BG10） M18*1.5 BG-10 18 18-18.3 10 10 20.0 32.5
BGQ1-M18B（BG12） BGQ1-M18G（BG12） M18*1.5 BG-12 18 18-18.3 10 10 23.0 37.0
BGQ1-M18B（BG15） BGQ1-M18G（BG15） M18*1.5 BG-15 18 18-18.3 11 13 25.5 40.0
BGQ1-M20B（BG10） BGQ1-M20G（BG10） M20*1.5 BG-10 20 20-20.3 10 12 23.0 37.0
BGQ1-M20B（BG12） BGQ1-M20G（BG12） M20*1.5 BG-12 20 20-20.3 10 12 23.0 37.0
BGQ1-M20B（BG15） BGQ1-M20G（BG15） M20*1.5 BG-15 20 20-20.3 11 13 25.5 40.0
BGQ1-M20B（BG17） BGQ1-M20G（BG17） M20*1.5 BG-17 20 20-20.3 12 15 29.5 43.5
BGQ1-M25B（BG17） BGQ1-M25G（BG17） M25*1.5 BG-17 25 25-25.4 12 17 29.5 43.5 50PCS
BGQ1-M25B（BG23） BGQ1-M25G（BG23） M25*1.5 BG-23 25 25-25.4 12 20 37.0 46.0
BGQ1-M25B（BG29） BGQ1-M25G（BG29） M25*1.5 BG-29 25 25-25.4 12 20 37.0 46.0
BGQ1-M27B（BG23） BGQ1-M27G（BG23） M27*1.5 BG-23 27 27-27.4 12 23 37.0 46.0
BGQ1-M30B（BG23） BGQ1-M30G（BG23） M30*2.0 BG-23 30 30-30.4 12 23 37.0 46.0 25PCS
BGQ1-M32B（BG23） BGQ1-M32G（BG23） M32*1.5 BG-23 32 32-32.4 12 30 37.0 46.0
BGQ1-M32B（BG29） BGQ1-M32G（BG29） M32*1.5 BG-29 32 32-32.4 12 30 44.0 48.0
BGQ1-M33B（BG29） BGQ1-M33G（BG29） M33*2.0 BG-29 33 33-33.4 12 30 44.0 48.0
BGQ1-M40B（BG29） BGQ1-M40G（BG29） M40*1.5 BG-29 40 40-40.4 12 35 51.5 50.0 10PCS
BGQ1-M40B（BG36） BGQ1-M40G（BG36） M40*1.5 BG-36 40 40-40.4 12 35 51.5 50.0
BGQ1-M50B（BG36） BGQ1-M50G（BG36） M50*1.5 BG-50 50 50-50.4 12 35 51.5 50.0
BGQ1-M50B（BG48） BGQ1-M50G（BG48） M50*1.5 BG-50 50 50-50.4 12 36 51.5 50.0
BGQ1-M63B（BG48） BGQ1-M63G（BG48） M63*1.5 BG-63 63 63-63.4 15 48 65.5 54.0



Item No . ThreadM Tubing
outerBG		 Thread
O.D.D1		 Panel
MountingHole		 Thread
LengthGL		 Smallest
innerΦ1		 Largest
innerΦB		 Total
Length H		 Std.Pkg.
pcs
Black Gray
BGQ-P
BGQ1-PG7B(BG07) BGQ1-PG7G(BG07) PG7 BG-07 12.5 12.5-12.8 10 7 20.0 32.5 100PCS
BGQ1-PG9B(BG10) BGQ1-PG9G(BG10) PG9 BG-10 12.5 15.2-15.5 10 7 20.0 32.5
BGQ1-PG11B(BG10) BGQ1-PG11G(BG10) PG11 BG-10 18.6 18.6-18.9 10 7 20.0 32.5
BGQ1-PG11B(BG12) BGQ1-PG11G(BG12) PG11 BG-12 15.2 18.6-18.9 10 13 23.0 37.0
BGQ1-PG13.5B(BG10) BGQ1-PG13.5G(BG10) PG13.5 BG-10 20.4 20.4-20.7 10 13 20.0 32.5
BGQ1-PG13.5B(BG12) BGQ1-PG13.5G(BG12) PG13.5 BG-12 20.4 20.4-20.7 10 13 23.0 37.0
BGQ1-PG13.5B(BG15) BGQ1-PG13.5G(BG15) PG13.5 BG-15 20.4 20.4-20.7 11 14 25.5 40.0
BGQ1-PG13.5B(BG17) BGQ1-PG13.5G(BG17) PG13.5 BG-17 20.4 20.4-20.7 12 16 29.5 43.5
BGQ1-PG16B(BG17) BGQ1-PG16G(BG17) PG16 BG-17 22.5 22.5-22.8 12 16 29.5 43.5 50PCS
BGQ1-PG21B(BG23) BGQ1-PG21G(BG23) PG21 BG-23 28.3 28.3-28.7 12 24 37.0 46.0
BGQ1-PG29B(BG29) BGQ1-PG29G(BG29) PG29 BG-29 37.0 37.0-37.4 12 30 44.0 48.5
BGQ1-PG36B(BG36) BGQ1-PG36G(BG36) PG36 BG-36 47.0 47.0-47.4 12 37 51.5 50.5
BGQ1-PG42B(BG48) BGQ1-PG42G(BG48) PG42 BG-48 54.0 54.0-54.4 12 44 65.5 54.0
BGQ1-PG48B(BG48) BGQ1-PG48G(BG48) PG48 BG-48 59.3 59.3-59.7 15 48 65.5 54.0

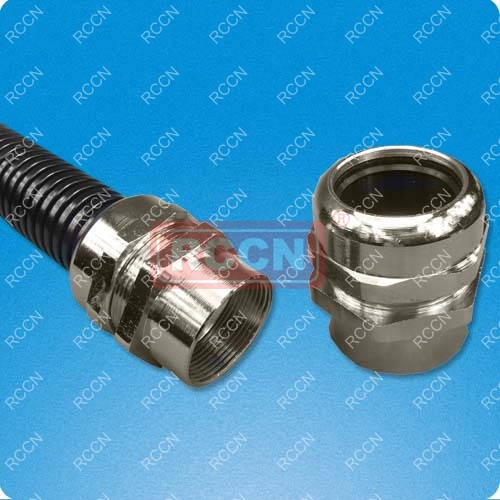

]]> http://www.wiring-ducts.com/conduit-connector/feed/ 0 RCCN BGF Conduit Connector http://www.wiring-ducts.com/bgf-metal-waterproof-conduit-connector/ http://www.wiring-ducts.com/bgf-metal-waterproof-conduit-connector/#comments Wed, 30 Sep 2009 04:57:07 +0000 admin http://www.wiring-ducts.com/?p=2229



Thread:Metric,PG,G,NPT

Material:A.C.F are made of zinc metal plated with nickel.B.D are made of rubber

Certificates:CE,ROHS.

Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68

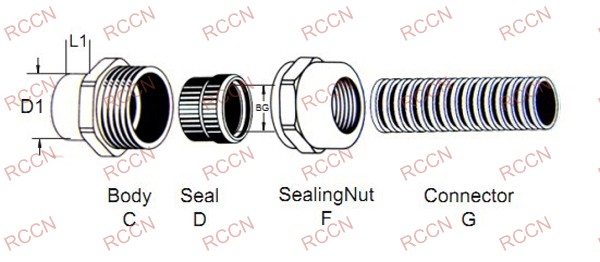

Product characterstics:Special design of part D and E,used with part F, can save your time,

large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,

withstand impregnant like acid,alkali,alcohol,oil,grease

Item No . Thread Cable

Range

Φ



 Suit to RCCN

conduit item no

BG

 Thread

O.D.

D1



 Panel

Mounting

Hole



 Thread

Length

L1


Thread length /Metric thread BGF-M
BGF-M12(BG07) M12*1.5 5 BG-07 12 12-12.3 6
BGF-M12(BG10) M12*1.5 5 BG-10 12 12-12.3 6
BGF-M16(BG07) M16*1.5 8 BG-07 16 16-16.3 7
BGF-M16(BG10) M16*1.5 8 BG-10 16 16-16.3 7
BGF-M18(BG10) M18*1.5 8 BG-10 18 18-18.3 8
BGF-M18(BG12) M18*1.5 10 BG-12 18 18-18.3 8
BGF-M18(BG15) M18*1.5 13 BG-15 18 18-18.3 8
BGF-M20(BG10) M20*1.5 8 BG-10 20 20-20.3 8
BGF-M20(BG12) M20*1.5 10 BG-12 20 20-20.3 8
BGF-M20(BG15) M20*1.5 13 BG-15 20 20-20.3 8
BGF-M20(BG17) M20*1.5 15 BG-17 20 20-20.3 8
BGF-M22(BG17) M22*1.5 15 BG-17 22 22-22.3 9
BGF-M24(BG17) M24*1.5 15 BG-17 24 24-24.3 10
BGF-M25(BG17) M25*1.5 15 BG-17 25 25-25.4 10
BGF-M25(BG23) M25*1.5 21 BG-23 25 25-25.4 10
BGF-M27(BG23) M27*1.5 21 BG-23 27 27-27.4 11
BGF-M30(BG23) M30*1.5 21 BG-23 30 30-30.4 11
BGF-M32(BG23) M32*1.5 21 BG-23 32 32-32.4 11
BGF-M32(BG29) M32*1.5 25 BG-29 32 32-32.4 11
BGF-M33(BG29) M33*1.5 25 BG-29 33 33-33.4 11
BGF-M36(BG29) M36*1.5 25 BG-29 36 36-36.4 11
BGF-M40(BG29) M40*1.5 25 BG-29 40 40-40.4 12
BGF-M40(BG36) M40*1.5 33 BG-36 40 40-40.4 12
BGF-M48(BG36) M48*2.0 33 BG-36 48 48-48.4 12
BGF-M50(BG36) M50*1.5 33 BG-36 50 50-50.4 13
BGF-M50(BG48) M50*1.5 45 BG-48 50 50-50.4 13
BGF-M56(BG48) M56*2.0 45 BG-48 56 56-56.4 13
BGF-M63(BG48) M63*1.5 45 BG-48 63 63-63.4 14



Item No . Thread Cable

Range



 BG



 Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1
Germany thread BGF-P
BGF-PG7(BG07) PG-7 3-6 BG-07 12.5 12.5-12.8 6
BGF-PG9(BG07) PG-9 4-8 BG-07 15.2 15.2-15.8 7
BGF-PG9(BG10) PG-9 4-8 BG-10 15.2 15.2-15.8 7
BGF-PG11(BG10) PG-11 6-10 BG-10 18.6 18.6-18.9 8
BGF-PG11(BG12) PG-11 6-10 BG-12 18.6 18.6-18.9 8
BGF-PG13.5(BG12) PG-13.5 8-12 BG-12 20.4 20.4-20.7 8
BGF-PG13.5(BG15) PG-13.5 8-12 BG-15 20.4 20.4-20.7 8
BGF-PG13.5(BG17) PG-13.5 8-12 BG-17 20.4 20.4-20.7 8
BGF-PG16(BG17) PG-16 10-14 BG-17 22.5 22.5-22.8 9
BGF-PG21(BG23) PG-21 13-18 BG-23 28.3 28.3-28.7 11
BGF-PG29(BG29) PG-29 18-25 BG-29 37.0 37.0-37.4 11
BGF-PG36(BG36) PG-36 26-32 BG-36 47.0 47.0-47.4 13
BGF-PG48(BG48) PG-48 37-44 BG-48 59.3 59.3-59.7 14
Tube thread BGF-G
BGF-G1/4(BG07) G1/4” 3-6 BG-07 13.2 13.2-13.4 6
BGF-G3/8(BG10) G3/8” 4-8 BG-10 16.5 16.5-17.1 7
BGF-G1/2(BG12) G1/2” 8-12 BG-12 21.3 21.0-21.3 8
BGF-G1/2(BG15) G1/2” 8-12 BG-15 21.3 21.0-21.3 8
BGF-G1/2(BG17) G1/2” 8-12 BG-17 21.3 21.0-21.3 8
BGF-G3/4(BG17) G3/4” 13-18 BG-17 26.6 26.5-26.6 11
BGF-G1(BG23) G1” 15-22 BG-23 33.4 33.2-33.4 11
BGF-G1-1/4(BG29) G1 1/4” 22-28 BG-29 42.1 41.9-42.1 12
BGF-G1-1/2(BG36) G1 1/2” 26-32 BG-36 47.8 47.8-48.0 13
BGF-G2(BG48) G2” 37-44 BG-48 59.6 59.6-60.1 14
America thread BGF-N
BGF-NPT3/8（BG10） NPT3/8” 4-8 BG-10 16.5 16.5-17.1 7
BGF-NPT1/2（BG12） NPT1/2” 8-12 BG-12 21.3 21.0-21.3 8
BGF-NPT1/2（BG15） NPT1/2” 8-12 BG-15 21.3 21.0-21.3 8
BGF-NPT1/2（BG17） NPT1/2” 8-12 BG-17 21.3 21.0-21.3 8
BGF-NPT3/4（BG17） NPT3/4” 13-18 BG-17 26.6 26.5-26.6 11
BGF-NPT3/4（BG23） NPT3/4” 13-18 BG-23 26.6 26.5-26.6 11
BGF-NPT1（BG29） NPT1” 15-22 BG-29 33.4 33.2-33.4 11



Item No . Thread Cable

Range

Φ

 BG



 BG



 Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1
Thread length BGF-M
BGF1-M12(BG07) M12*1.5 5 BG-07 10.0 12 12-12.3 6
BGF1-M12(BG10) M12*1.5 5 BG-10 13.0 12 12-12.3 6
BGF1-M16(BG07) M16*1.5 8 BG-07 10.0 16 16-16.3 7
BGF1-M16(BG10) M16*1.5 8 BG-10 13.0 16 16-16.3 7
BGF1-M18(BG10) M18*1.5 8 BG-10 13.0 18 18-18.3 8
BGF1-M18(BG12) M18*1.5 10 BG-12 15.8 18 18-18.3 8
BGF1-M18(BG15) M18*1.5 13 BG-15 18.5 18 18-18.3 8
BGF1-M20(BG10) M20*1.5 8 BG-10 13.0 20 20-20.3 8
BGF1-M20(BG12) M20*1.5 10 BG-12 15.8 20 20-20.3 8
BGF1-M20(BG15) M20*1.5 13 BG-15 18.5 20 20-20.3 8
BGF1-M20(BG17) M20*1.5 15 BG-17 21.2 20 20-20.3 8
BGF1-M22(BG17) M22*1.5 15 BG-17 21.2 22 22-22.3 9
BGF1-M24(BG17) M24*1.5 15 BG-17 21.2 24 24-24.3 10
BGF1-M25(BG17) M25*1.5 15 BG-17 21.2 25 25-25.4 10
BGF1-M25(BG23) M25*1.5 21 BG-23 28.5 25 25-25.4 10
BGF1-M27(BG23) M27*1.5 21 BG-23 28.5 27 27-27.4 11
BGF1-M30(BG23) M30*1.5 21 BG-23 28.5 30 30-30.4 11
BGF1-M32(BG23) M32*1.5 21 BG-23 28.5 32 32-32.4 11
BGF1-M32(BG29) M32*1.5 25 BG-29 34.5 32 32-32.4 11
BGF1-M33(BG29) M33*1.5 25 BG-29 34.5 33 33-33.4 11
BGF1-M36(BG29) M36*1.5 25 BG-29 34.5 36 36-36.4 11
BGF1-M40(BG29) M40*1.5 25 BG-29 34.5 40 40-40.4 12
BGF1-M40(BG36) M40*1.5 33 BG-36 42.5 40 40-40.4 12
BGF1-M48(BG36) M48*2.0 33 BG-36 42.5 48 48-48.4 12
BGF1-M50(BG36) M50*1.5 33 BG-36 42.5 50 50-50.4 13
BGF1-M50(BG38) M50*1.5 45 BG-38 54.5 50 50-50.4 13
BGF1-M56(BG38) M56*2.0 45 BG-38 42.5 56 56-56.4 13
BGF1-M63(BG38) M63*1.5 45 BG-38 54.5 63 63-63.4 14



Item No . Thread Cable

Range



 BG



 BG



 Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1
Germany thread BGF-P
BGF1-PG7(BG07) PG-7 3-6 BG-07 10.0 12.5 12.5-12.8 6
BGF1-PG9(BG07) PG-9 4-8 BG-07 10.0 15.2 15.2-15.8 7
BGF1-PG9(BG10) PG-9 4-8 BG-10 13.0 15.2 15.2-15.8 7
BGF1-PG11(BG10) PG-11 6-10 BG-10 13.0 18.6 18.6-18.9 8
BGF1-PG11(BG12) PG-11 6-10 BG-12 15.8 18.6 18.6-18.9 8
BGF1-PG13.5(BG12) PG-13.5 8-12 BG-12 15.8 20.4 20.4-20.7 8
BGF1-PG13.5(BG15) PG-13.5 8-12 BG-15 18.5 20.4 20.4-20.7 8
BGF1-PG13.5(BG17) PG-13.5 8-12 BG-17 21.2 20.4 20.4-20.7 8
BGF1-PG16(BG17) PG-16 10-14 BG-17 21.2 22.5 22.5-22.8 9
BGF1-PG21(BG23) PG-21 13-18 BG-23 28.5 28.3 28.3-28.7 11
BGF1-PG29(BG29) PG-29 18-25 BG-29 34.5 37.0 37.0-37.4 11
BGF1-PG36(BG36) PG-36 26-32 BG-36 42.5 47.0 47.0-47.4 13
BGF1-PG48(BG48) PG-48 37-44 BG-48 54.5 59.3 59.3-59.7 14
Tube thread BGF-G
BGF1-G1/4(BG07) G1/4” 3-6 BG-07 10.0 13.2 13.2-13.4 6
BGF1-G3/8(BG10) G3/8” 4-8 BG-10 13.0 16.5 16.5-17.1 7
BGF1-G1/2(BG12) G1/2” 8-12 BG-12 15.8 21.3 21.0-21.3 8
BGF1-G1/2(BG15) G1/2” 8-12 BG-15 18.5 21.3 21.0-21.3 8
BGF1-G1/2(BG17) G1/2” 8-12 BG-17 21.2 21.3 21.0-21.3 8
BGF1-G3/4(BG17) G3/4” 13-18 BG-17 21.2 26.6 26.5-26.6 11
BGF1-G1(BG23) G1” 15-22 BG-23 28.5 33.4 33.2-33.4 11
BGF1-G1-1/4(BG29) G1 1/4” 22-28 BG-29 34.5 42.1 41.9-42.1 12
BGF1-G1-1/2(BG36) G1 1/2” 26-32 BG-36 42.5 47.8 47.8-48.0 13
BGF1-G2(BG48) G2” 37-44 BG-48 54.5 59.6 59.6-60.1 14
America thread BGF-N
BGF1-NPT3/8（BG10） NPT3/8” 4-8 BG-10 10.0 16.5 16.5-17.1 7
BGF1-NPT1/2（BG12） NPT1/2” 8-12 BG-12 15.8 21.3 21.0-21.3 8
BGF1-NPT1/2（BG15） NPT1/2” 8-12 BG-15 18.5 21.3 21.0-21.3 8
BGF1-NPT1/2（BG17） NPT1/2” 8-12 BG-17 21.2 21.3 21.0-21.3 8
BGF1-NPT3/4（BG17） NPT3/4” 13-18 BG-17 21.2 26.6 26.5-26.6 11
BGF1-NPT3/4（BG23） NPT3/4” 13-18 BG-23 28.5 26.6 26.5-26.6 11
BGF1-NPT1（BG29） NPT1” 15-22 BG-29 34.5 33.4 33.2-33.4 11



]]> http://www.wiring-ducts.com/bgf-metal-waterproof-conduit-connector/feed/ 0 RCCN BGN Conduit Connector http://www.wiring-ducts.com/bgn-conduit-connector/ http://www.wiring-ducts.com/bgn-conduit-connector/#comments Wed, 30 Sep 2009 04:53:00 +0000 admin http://www.wiring-ducts.com/?p=2218



Thread:Metric,G,NPT

Material:C.E are made of zinc metal plated with nickel.D is made of rubber

Certificates:CE,ROHS.

Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68

Product characterstics:Special design of part D and E,used with part F, can save your time,

large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,

withstand impregnant like acid,alkali,alcohol,oil,grease









Item No . Thread



 Cable

Range

Φ

 BG



 BG



 Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1

 Std.Pkg.

pcs


Thread length BGN-M

BGN-M12(BG07) M12*1.5 3-6 BG-07 10.0 12 12-12.3 6 10PCS
BGN-M12(BG07) M12*1.5 3-6 BG-07 10.0 12 12-12.3 6
BGN-M16(BG10) M16*1.5 4-8 BG-10 13.0 16 16-16.3 7
BGN-M18(BG12) M18*1.5 6-10 BG-12 15.8 18 18-18.3 8
BGN-M20(BG12) M20*1.5 8-12 BG-12 15.8 20 20-20.3 8
BGN-M20(BG15) M20*1.5 8-12 BG-15 18.5 20 20-20.3 8
BGN-M20(BG17) M20*1.5 8-12 BG-17 21.2 20 20-20.3 8
BGN-M22(BG17) M22*1.5 10-14 BG-17 21.2 22 22-22.3 9 10PCS
BGN-M24(BG17) M24*1.5 10-14 BG-17 21.2 24 24-24.3 10
BGN-M25(BG17) M25*1.5 10-14 BG-17 21.2 25 25-25.4 10
BGN-M25(BG23) M25*1.5 10-14 BG-23 28.5 25 25-25.4 10
BGN-M27(BG23) M27*1.5 13-18 BG-23 28.5 27 27-27.4 11
BGN-M30(BG29) M30*1.5 13-18 BG-29 34.5 30 30-30.4 11
BGN-M32(BG29) M32*1.5 15-22 BG-29 34.5 32 32-32.4 11
BGN-M33(BG29) M33*1.5 15-22 BG-29 34.5 33 33-33.4 11
BGN-M36(BG29) M36*1.5 18-25 BG-29 34.5 36 36-36.4 11
BGN-M40(BG36) M40*1.5 18-25 BG-36 42.5 40 40-40.4 12
BGN-M50(BG48) M50*1.5 26-32 BG-48 54.5 50 50-50.4 13
BGN-M63(BG48) M63*1.5 37-44 BG-48 54.5 63 63-63.4 14









]]> http://www.wiring-ducts.com/bgn-conduit-connector/feed/ 0 RCCN Conduit Connector http://www.wiring-ducts.com/conduit-connector-2/ http://www.wiring-ducts.com/conduit-connector-2/#comments Wed, 30 Sep 2009 04:42:40 +0000 admin http://www.wiring-ducts.com/?p=2199

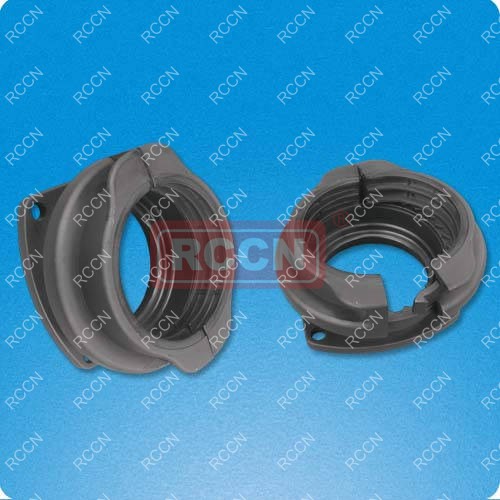

Material: PA
Work temperature:-30℃ to 85℃,short time to 100℃
Structure:waviness inside and outside
Color:black
Certificates: CE, ROHS

Item No.

 Sui t to
RCCN
condui t
i tem no

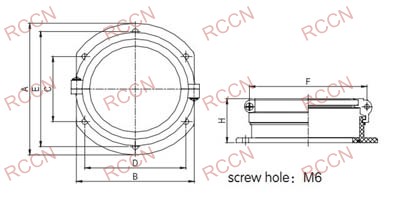

BG		 Size
Inner dia.
*
Outer dia.		 C D A D Height Packing
pcs
BGQ-(BG56) BG56 56*67.2 53 69 80 65 52 1
BGQ-(BG67) BG67 67.0*80 60 80 94 80 60 1

]]> http://www.wiring-ducts.com/conduit-connector-2/feed/ 0
