Thread:Metric/EN50262,DIN STANDARD

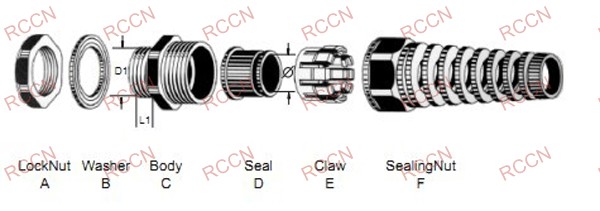

Materail:A.C.D.F made of Rohs approved NYLON66,
B.E made of NBR
Certificates:CE, SGS,REACH,REACH。
Fireproof class:UL94V-2。
Operate temperature:-50°C to 150°C。
Protect:IP68。

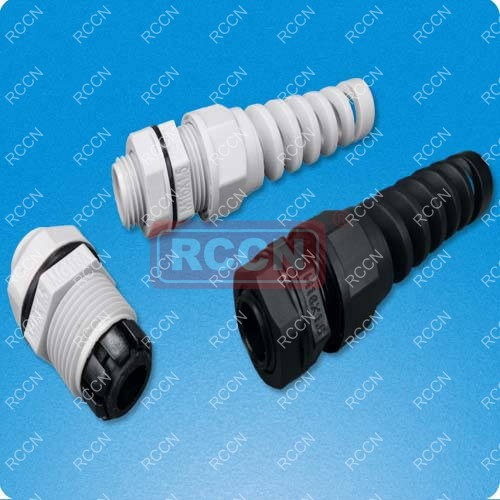

Color:light gray(RAL7035)、black(RAL9005)
Item No. Thread  CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1  Spannersize

A&F

  Std.PkgPcs
 Black White
MG12A-05-SRB MG12A-05-SRG M12*1.5 3-5.3 12 12-12.3 8.5 18/19 50PCS
MG12A-08-SRB MG12A-08-SRG M12*1.5 4-8 12 12-12.3 8.5 18/19
MG16A-07-SRB MG16A-07-SRG M16*1.5 4-7 16 16-16.3 15 22/22
MG16A-10-SRB MG16A-10-SRG M16*1.5 6-10 16 16-16.3 15 22/22
MG20A-11-SRB MG20A-11-SRG M20*1.5 6-11 20 20-20.3 15 27/27
MG20A-14-SRB MG20A-14-SRG M20*1.5 9-14 20 20-20.3 15 27/27
MG25A-16-SRB MG25A-16-SRG M25*1.5 10-6 25 25-25.3 15 33/33
MG25A-18-SRB MG25A-18-SRG M25*1.5 13-18 25 25-25.3 15 33/33
PG
PG7A-05-SRB PG7A-05-SRG PG7 3-5.5 12.5 12.5-12.8 8 17/19 50PCS
PG7A-08-SRB PG7A-08-SRG PG7 4-8 12.5 12.5-12.8 8 17/19
PG9A-05-SRB PG9A-05-SRG PG9 3-5.5 15.2 15.2-15.5 8.2 22/19
PG9A-08-SRB PG9A-08-SRG PG9 4-8 15.2 15.2-15.5 8.2 22/19
PG11A-07-SRB PG11A-07-SRG PG11 4-7 18.6 18.6-18.9 10 24/22
PG11A-10-SRB PG11A-10-SRG PG11 5-10 18.6 18.6-18.9 10 24/22
PG13.5A-08-SRB PG13.5A-08-SRG PG13.5 4-8 20.4 20.4-20.7 10 27/24
PG13.5A-12-SRB PG13.5A-12-SRG PG13.5 6-12.5 20.4 20.4-20.7 10 27/24
PG16A-11-SRB PG16A-11-SRG PG16 6-11 22.5 22.5-22.8 10.8 30/27
PG16A-14-SRB PG16A-14-SRG PG16 8.5-14 22.5 22.5-22.8 10.8 30/27
PG21A-16-SRB PG21A-16-SRG PG21 10-16 28.3 28.3-28.7 12 36/33
PG21A-18-SRB PG21A-18-SRG PG21 12.5-18 28.3 28.3-28.7 12 36/33





]]> http://www.wiring-ducts.com/strain-relief-cable-gland-3/feed/ 0 RCCN BGN Conduit Connector http://www.wiring-ducts.com/bgn-conduit-connector/ http://www.wiring-ducts.com/bgn-conduit-connector/#comments Wed, 30 Sep 2009 04:53:00 +0000 admin http://www.wiring-ducts.com/?p=2218



Thread:Metric,G,NPT

Material:C.E are made of zinc metal plated with nickel.D is made of rubber

Certificates:CE,ROHS.

Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68

Product characterstics:Special design of part D and E,used with part F, can save your time,

large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty,

withstand impregnant like acid,alkali,alcohol,oil,grease









Item No . Thread



 Cable

Range

Φ

 BG



 BG



 Thread

O.D.

D1

 Panle

Mounting

Hole

 Thread

Length

L1

 Std.Pkg.

pcs


Thread length BGN-M

BGN-M12(BG07) M12*1.5 3-6 BG-07 10.0 12 12-12.3 6 10PCS
BGN-M12(BG07) M12*1.5 3-6 BG-07 10.0 12 12-12.3 6
BGN-M16(BG10) M16*1.5 4-8 BG-10 13.0 16 16-16.3 7
BGN-M18(BG12) M18*1.5 6-10 BG-12 15.8 18 18-18.3 8
BGN-M20(BG12) M20*1.5 8-12 BG-12 15.8 20 20-20.3 8
BGN-M20(BG15) M20*1.5 8-12 BG-15 18.5 20 20-20.3 8
BGN-M20(BG17) M20*1.5 8-12 BG-17 21.2 20 20-20.3 8
BGN-M22(BG17) M22*1.5 10-14 BG-17 21.2 22 22-22.3 9 10PCS
BGN-M24(BG17) M24*1.5 10-14 BG-17 21.2 24 24-24.3 10
BGN-M25(BG17) M25*1.5 10-14 BG-17 21.2 25 25-25.4 10
BGN-M25(BG23) M25*1.5 10-14 BG-23 28.5 25 25-25.4 10
BGN-M27(BG23) M27*1.5 13-18 BG-23 28.5 27 27-27.4 11
BGN-M30(BG29) M30*1.5 13-18 BG-29 34.5 30 30-30.4 11
BGN-M32(BG29) M32*1.5 15-22 BG-29 34.5 32 32-32.4 11
BGN-M33(BG29) M33*1.5 15-22 BG-29 34.5 33 33-33.4 11
BGN-M36(BG29) M36*1.5 18-25 BG-29 34.5 36 36-36.4 11
BGN-M40(BG36) M40*1.5 18-25 BG-36 42.5 40 40-40.4 12
BGN-M50(BG48) M50*1.5 26-32 BG-48 54.5 50 50-50.4 13
BGN-M63(BG48) M63*1.5 37-44 BG-48 54.5 63 63-63.4 14
