wiring duct-RCCN » Locking Circuit Board Support

RCCN LSP Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:58:43 +0000

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.	Instance	Packing
Item No.	“A”±0.4mm	Packing
LSP1-4.8	4.8	1000pcs
LSP1-6.4	6.4
LSP1-7.9	7.9
LSP1-9.5	9.5
LSP1-11.1	11.1
LSP1-12.7	12.7
LSP1-15.9	15.9
LSP1-19.1	19.1
LSP1-25.4	25.4
LSP1-28.6	28.6
LSP1-31.7	31.7

]]>

RCCN LSP3 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:57:09 +0000

Hole dia. 4.0mm
Board thickness 1.6mm

Hole dia. 4.8mm
Board thickness 0.8-2mm

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.	Instance	Packing
Item No.	A±0.4mm	Packing
LSP3-4.8	4.8	1000pcs

]]>

RCCN LSP4 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:53:18 +0000

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.		Instance	Packing
Fig1	Fig2	“A”±0.4mm	1000pcs
–	LSP8-4.8	4.8
LSP4-6.4	–	6.4
LSP4-9.5	–	9.5
–	LSP8-11.1	11.1
LSP4-12.7	LSP8-12.7	12.7

]]>

RCCN LSP9 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:50:52 +0000

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.	Instance	Packing
Item No.	“A”±0.4mm	Packing
LSP9-3.2	3.2	1000pcs
LSP9-4.8	4.8
LSP9-6.4	6.4
LSP9-9.5	9.5
LSP9-11.1	11.1
LSP9-15.9	15.9

]]>

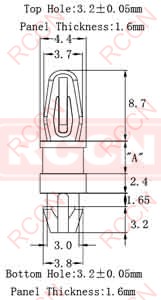

RCCN LSP11 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:49:22 +0000

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.	Instance	Packing
Item No.	“A”±0.4mm	Packing
LSP11-3.2	3.2	1000pcs
LSP11-4.8	4.8
LSP11-6.4	6.4
LSP11-7.9	7.9
LSP11-11.1	11.1
LSP11-14.3	14.3
LSP11-15.9	15.9
LSP11-19.1	19.1

]]>

RCCN LSP10 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:47:40 +0000

Hole dia. 4.0mm
Board thickness 1.6mm

Hole dia. 4.8mm
Board thickness 0.8-2mm

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.	Instance	Packing
Item No.	“A” mm	Packing
LSP10-4.8	4.8	1000pcs
LSP10-9.5	9.5
LSP10-12.7	12.7
LSP10-19.1	19.1
LSP10-22.2	22.2

]]>

RCCN LCBSC Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:38:05 +0000

Material：UL approved NYLON66(natural)，fireproof 94V-2，
good insulation, good aging resistant.

Item No.	Instance	Packing
Item No.	“A”±0.4mm	Packing
LCBSC-6.0	6.0	1000pcs
LCBSC-8.0	8.0
LCBSC-10.0	10.0
LCBSC-12.0	12.0

]]>

RCCN LCBSC4 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:34:27 +0000

Hole dia.4.0mm
Board thickness 1.6mm

Hole dia. 6.0mm
Board thickness0.8-1.2mm

Material：UL approved NYLON66(natural)，fireproof 94V-2，
good insulation, good aging resistant.

Item No.	Instance	Packing
Item No.	“A”mm	Packing
LCBSC4-4.8	4.8	1000pcs
LCBSC4-6.4	6.4
LCBSC4-7.9	7.9
LCBSC4-9.5	9.5
LCBSC4-19.1	19.1

]]>

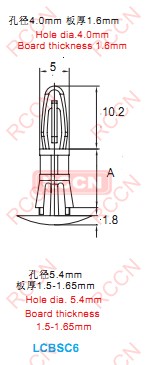

RCCN LCBSC6 Locking Circuit Board Support

admin — Thu, 13 Sep 2012 06:29:54 +0000

Hole dia. 4.0mm
Board thickness 1.6mm

Hole dia. 5.4mm
Board thickness 1.5-1.65mm

Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation,good aging resistant

Item No.	Instance	Packing
Item No.	“A”±0.4mm	Packing
LCBSC6-6.4	6.4	1000pcs
LCBSC6-9.5	9.5
LCBSC6-15.9	15.9

]]>
