Material：NYLON66,UL approved,fireproof 94V-2
Good quality,easy to install

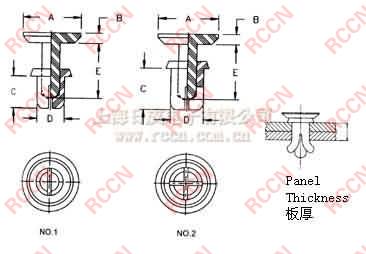

Item No. Hole DiaG Panel ThickF A B C D E Fig.No.
SRHR3035 3.1 1.0-2.0 6.4 1.6 3.5 3.0 5.1 No.1
SRHR3045 3.1 2.0-3.0 6.4 1.6 4.5 3.0 5.2
SRHR3055 3.1 3.0-4.0 6.4 1.6 5.5 3.0 6.1 No.2
SRHR3065 3.1 4.0-5.0 6.0 1.6 6.5 3.0 6.1
SRHR3080 3.1 5.5-6.5 6.0 1.6 8.0 3.0 7.1
SRHR3535 3.6 1.2-2.1 6.4 1.6 3.5 3.5 5.1
SRHR3545 3.6 2.2-3.1 6.4 1.6 4.5 3.5 6.1
SRHR3555 3.6 3.2-4.1 6.4 1.6 5.5 4.0 7.1
SRHR4050 3.6 2.5-3.5 8.0 1.6 5.0 4.0 7.1
SRHR4060 3.6 3.5-4.5 8.0 1.6 6.0 4.0 7.1
SRHR4070 4.1 4.5-5.5 8.0 1.6 7.0 4.0 9.0
SRHR4080 4.1 5.5-6.5 8.0 1.6 8.0 4.0 9.0
SRHR40100
 4.1
7.5-8.5
8.0
1.6
10.0
4.0
11.0
