Material:PE
Certificate: CE, ROHS
Features:easy to stall，suitabel to wire fixed in
both terminals
How to use:input the cables or wires
Datas,please refer to BG series
Black V0-B Gray White Orange Packing
M
BGR-07B BGR-07V0 BGR-07G BGR-07W BGR-07O 100M
BGR-10B BGR-10V0 BGR-10G BGR-10W BGR-10O 100M
BGR-12B BGR-12V0 BGR-12G BGR-12W BGR-12O 100M
BGR-15B BGR-15V0 BGR-15G BGR-15W BGR-15O 100M
BGR-17B BGR-17V0 BGR-17G BGR-17W BGR-17O 100M
BGR-23B BGR-23V0 BGR-23G BGR-23W BGR-23O 50M
BGR-29B BGR-29V0 BGR-29G BGR-29W BGR-29O 50M
BGR-36B BGR-36V0 BGR-36G BGR-36W BGR-36O 50M
BGR-48B BGR-48V0 BGR-48G BGR-48W BGR-48O 25M



 Black  V0-B Gray White Orange Packing
M
BGR-07B BGR-07V0 BGR-07GV0 BGR-07WV0 BGR-07OV0 100M
BGR-10B BGR-10V0 BGR-10GV0 BGR-10WV0 BGR-10OV0 100M
BGR-12B BGR-12V0 BGR-12GV0 BGR-12WV0 BGR-12OV0 100M
BGR-15B BGR-15V0 BGR-15GV0 BGR-15WV0 BGR-15OV0 100M
BGR-17B BGR-17V0 BGR-17GV0 BGR-17WV0 BGR-17OV0 100M
BGR-23B BGR-23V0 BGR-23GV0 BGR-23WV0 BGR-23OV0 50M
BGR-29B BGR-29V0 BGR-29GV0 BGR-29WV0 BGR-29OV0 50M
BGR-36B BGR-36V0 BGR-36GV0 BGR-36WV0 BGR-36OV0 50M
BGR-48B BGR-48V0 BGR-48GV0 BGR-48WV0 BGR-48OV0 25M







]]> http://www.wiring-ducts.com/pe-polyethylene-corrugated-tubing/feed/ 0 RCCN PA Polyethylene Corrugated Tubing http://www.wiring-ducts.com/pa-polyethylene-corrugated-tubing/ http://www.wiring-ducts.com/pa-polyethylene-corrugated-tubing/#comments Wed, 30 Sep 2009 04:28:46 +0000 admin http://www.wiring-ducts.com/?p=2113

Material:PA  (Polyamide)
Work Temperature:-40℃ to125℃,150℃ in short time
Color:gray,white and other colors,come with MOQ
Certificates: CE,ROHS,REACH.
Characheristics:good luster of exterior,stronger
machinism loading, perfect flexible
Functions:insulated,protect cables and wires
Loading ability:uneasy to change shape,reshape
speedly without hurt body
Where to use:Equipment,machines,electricity sets, and so on
How to use:insert cables or wires to RCCN flexible conduit
Remarks: special packing length come with MOQ  work
temperature tested according to RCCN
factory test machines

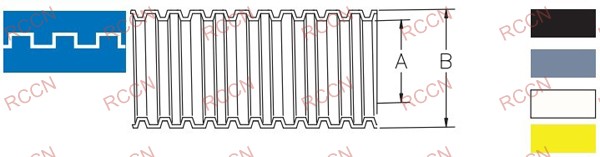

 Item No . Sizes

I.D.

A



O.D.

B



Packing

M
Gray Gray White
BG-07NG BG-07NGV0 BG-07NW 1/4” 6.5 10.0 100M
BG-10NG BG-10NGV0 BG-10NW 5/16” 10.0 13.0 100M
BG-12NG BG-12NGV0 BG-12NW - 12.0 15.8 100M
BG-15NG BG-15NGV0 BG-15NW 3/8” 14.3 18.5 100M
BG-17NG BG-17NGV0 BG-17NW 1/2” 17.0 21.2 100M
BG-23NG BG-23NGV0 BG-23NW 3/4” 23.0 28.5 50M
BG-29NG BG-29NGV0 BG-29NW 1” 29.0 34.5 50M
BG-36NG BG-36NGV0 BG-36NW 1 1/4” 36.0 42.5 50M
BG-48NG BG-48NGV0 BG-48NW 2” 48.0 54.5 25M
