Material：NYLON66(natural)，fireproof UL94 V-2

Note： black come with MOQ and need to check delivery time

Page number:B11



ItemNo.
 Hole dia. Board

thickness

 L Length W

Width
 Max.BundleDia MinTensileStrength Packing
white Black mm mm
mm
mm
mm
lbs
kgs

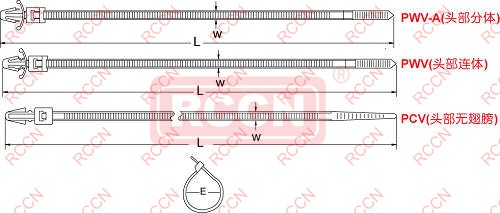

PWV-A(Head separated)
100pcs
PWV-110MA PWV-110MBA 4.8 2.4 110 2.5 28 18 8.1
PWV-130IA PWV-130IAB 4.0 2.4 130 3.2 28 18 8.1
PWV(Head connecting)
PWV-110M PWV-110MB 4.8 2.4 110 2.5 28 18 8.1
PWV-130I PWV-130IB 4.8 2.4 130 3.2 28 18 8.1
PWV-130M PWV-130MB 4.8 2.4 130 2.5 28 18 8.1
PWV-130ST PWV-130STB 6.4 3.2 135 4.8 25 50 22.2
PWV-170ST PWV-170STB 6.4 3.2 175 4.8 38 50 22.2
PWV-190ST PWV-190STB 6.4 3.2 202 4.8 45 50 22.2
PCV(Head without baffle)
PCV-130I PCV-130IB 5.2 2.8 130 3.2 28 30 14.0
PCV-150I PCV-150IB 5.2 2.8 150 3.6 32 30 14.0
PCV-200ST PCV-200STB 6.3 3.6 200 4.8 46 50 22.2
RLWP(Head separated)
RLWP1S RLWP1SB 4.7 4.0 130 4.8 25 50 22.2
RLWP1.5S RLWP1.5S B 4.7 4.0 170 4.8 38 50 22.2
RLWP2S RLWP2S B 4.7 4.0 200 4.8 45 50 22.2
RLWP1S-D RLWP1SB-D 4.7 2.4 130 4.8 25 50 22.2
RLWP1.5S-D RLWP1.5SB-D 4.7 2.4 170 4.8 38 50 22.2
RLWP2S-D RLWP2SB-D 4.7 2.4 200 4.8 45 50 22.2
RLWP1S-C RLWP1SB-C 6.4 2.7 130 4.8 25 50 22.2
RLWP1.5S-C RLWP1.5SB-C 6.4 2.7 170 4.8 38 50 22.2
RLWP2S-C RLWP2SB-C 6.4 2.7 200 4.8 45 50 22.2





]]> http://www.wiring-ducts.com/push-mount-cable-tie/feed/ 0 RCCN PMT Push Mount Tie http://www.wiring-ducts.com/rccn-pmt-push-mount-tie/ http://www.wiring-ducts.com/rccn-pmt-push-mount-tie/#comments Fri, 07 Sep 2012 07:08:19 +0000 admin http://www.wiring-ducts.com/?p=1512

hole dia.8.0,  board thickness4.0

Material：NYLON66，fireproof 94V-2







Item No . Length Wide Max.band
cable range		 Min Tensile Strength Packing
Natural mm mm mm lbs kgs
PMT-115 115 7.0 30 90 40 100





]]> http://www.wiring-ducts.com/rccn-pmt-push-mount-tie/feed/ 0 RCCN PTCV Push Mount Tie http://www.wiring-ducts.com/rccn-ptcv-push-mount-tie/ http://www.wiring-ducts.com/rccn-ptcv-push-mount-tie/#comments Fri, 07 Sep 2012 06:46:36 +0000 admin http://www.wiring-ducts.com/?p=1576













\





Material：NYLON66，fireproof 94V-2
Page number :B19



Item No .

Length

Wide

Max. band
cable range

hole dia.

 board
thickness
 		 MinTensile
Strength

Packing
Natural mm mm mm mm mm kgs
PTCV-156B 156 7.0 35 7.0 2.5-5 40 100
PTCV-181B 181 8.8 45 10 3-4 40 100
PTCV-170B 170 5.0 40 5 - 18 100
PTCV-182B 182 6.0 45 6 - 40 100
