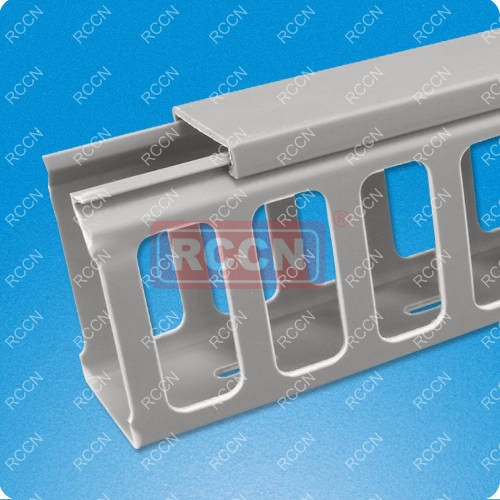

RCCN VDRCL Wide Close Slot Wiring Duct

admin — Mon, 10 Sep 2012 08:07:51 +0000

Wide slot design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Comment：gray is the common color, other color
need more MOQ

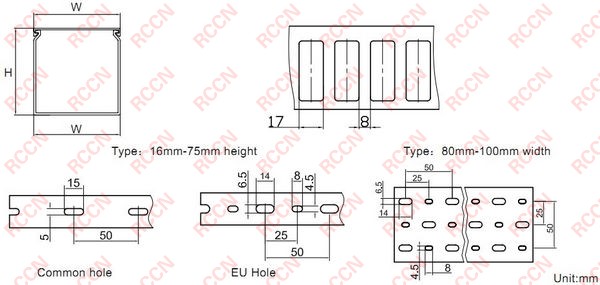

Item No.				W*H	Slot widthQ	Finger widthP	Wire capability /2.0sp	Standard Length
Gray	White	Blue	Black	W*H	Slot widthQ	Finger widthP	Wire capability /2.0sp	Standard Length
VDR2560CL	VDR2560CLW	VDR2560CLE	VDR2560CLB	25*60	17	8	40~50pcs	100
VDR3060CL	VDR3060CLW	VDR3060CLE	VDR3060CLB	30*60	17	8	60~80pcs	80
VDR4060CL	VDR4060CLW	VDR4060CLE	VDR4060CLB	40*60	17	8	100~115pcs	60
VDR4560CL	VDR4560CLW	VDR4560CLE	VDR4560CLB	45*60	17	8	110~125pcs	30
VDR5060CL	VDR5060CLW	VDR5060CLE	VDR5060CLB	50*60	17	8	120~135pcs	60
VDR6060CL	VDR6060CLW	VDR6060CLE	VDR6060CLB	60*60	17	8	120~135pcs	48
VDR8060CL	VDR8060CLW	VDR8060CLE	VDR8060CLB	80*60	17	8	180~210pcs	36
VDR10060CL	VDR10060CLW	VDR10060CLE	VDR10060CLB	100*60	17	8	240~290pcs	48
VDR11060CL	VDR11060CLW	VDR11060CLE	VDR11060CLB	110*60	17	8	250~300pcs	48
*VDR12060CL	VDR12060CLW	VDR12060CLE	VDR12060CLB	120*60	17	8	260~320pcs	48
*VDR2580CL	VDR2580CLW	VDR2580CLE	VDR2580CLB	25*80	17	8	100~120pcs	72
*VDR3080CL	VDR3080CLW	VDR3080CLE	VDR3080CLB	30*80	17	8	110~125pcs	56
*VDR3580CL	VDR3580CLW	VDR3580CLE	VDR3580CLB	35*80	17	8	110~130pcs	56
*VDR4080CL	VDR4080CLW	VDR4080CLE	VDR4080CLB	40*80	17	8	140~160pcs	48
*VDR4580CL	VDR4580CLW	VDR4580CLE	VDR4580CLB	45*80	17	8	140~160pcs	40
*VDR5080CL	VDR5080CLW	VDR5080CLE	VDR5080CLB	50*80	17	8	160~180pcs	40
*VDR5580CL	VDR5580CLW	VDR5580CLE	VDR5580CLB	55*80	17	8	160~180pcs	32
*VDR6080CL	VDR6080CLW	VDR6080CLE	VDR6080CLB	60*80	17	8	180~210pcs	32
*VDR8080CL	VDR8080CLW	VDR8080CLE	VDR8080CLB	80*80	17	8	240~290pcs	24
*VDR10080CL	VDR10080CLW	VDR10080CLE	VDR10080CLB	100*80	17	8	260~350pcs	24
*VDR12080CL	VDR12080CLW	VDR12080CLE	VDR12080CLB	120*80	17	8	280~380pcs	16
*VDR14080CL	VDR14080CLW	VDR14080CLE	VDR14080CLB	140*80	17	8	350~450pcs	16

]]>

An Easy Fix for Broken Ethernet Plugs

numbo — Thu, 10 Jun 2010 01:01:31 +0000

Have you ever broken the connector on an Ethernet cable, but didn’t want to go out and buy a replacement? If you only have one cable trunking or two broken cable heads, it’s probably not worth it to find a crimper and new RJ45 connectors. This quick, clever, and inexpensive cable tie hack from Instructables makes quick work cable gland of repairing a snapped Ethernet connector with a razor, cutting pliers, and two cable ties.

Measuring the cable ties is very important: a head width of 4.33 mm is the right size to properly snap into the RJ45 socket and cable terminal be removable with only a bit of resistance. After sizing, cut down the head of the cable tie to make it flat, then attach the tie to the cable with the second tie. With a little bit of adjusting and bending, you should get cable clamp the repaired plug to produce that satisfying “click” as it’s inserted into the RJ45 jack on your cable duct laptop or desktop!

]]>

Statements contained herein

numbo — Wed, 09 Jun 2010 06:17:45 +0000

Statements contained herein that are not historical fact may be forward-looking statements within the meaning of Section 27A of the cable terminal Securities Act of 1933 and Section 21E of the Securities Exchange Act of 1934. Such forward-looking statements may relate, among other things, to our position in the session border control market, our expected financial and operating results, our ability to establish and maintain intellectual cable tie property rights, our ability to build and grow Acme Packet, the benefits and advantages of our products, including any enhancements or new features, services and programs, and our ability to achieve our goals, plans and objectives. Such forward-looking statements do not constitute guarantees of future performance and are subject to a variety of risks and uncertainties that could cause our actual results to differ materially from those anticipated. These include, but are wiring duct not limited to: difficulties in growing our customer base, difficulties leveraging market opportunities, difficulties providing solutions that cable gland meet the needs of customers, poor product sales, long sales cycles, difficulty developing new wiring duct products, difficulty in relationships with vendors and partners, higher risk in international operations, difficulty managing rapid growth, and increased competition. Additional factors that could cause actual results to differ materially form those projected or suggested in any forward-looking statements are contained in our recent filings with the Securities and Exchange Commission, including those factors discussed under the caption “Risk Factors” in such filings.

]]>

Fire Damage Prevention

numbo — Tue, 11 May 2010 02:07:50 +0000

In applications such as data centers cable duct and phone switching stations, and other areas where large concentrations
of electronics exist, there is concern that the smoke from even a small fire could travel to other areas and
damage or affect the performance of nearby equipment. The
mechanics of how wire duct this damage may occur and the extent of
the damage possible from corrosive smoke cable trunking are not entirely
clear, as industry research on cabling and digital equipment
showed13
. However, companies can reduce the potential risk
by specifying halogen-free products as part of a fire damage
prevention strategy. A halogen-free wiring duct will not produce
any significant corrosive gases during combustion. Test
method IEC 60754-2 will verify a product is wall duct halogen free by
determining the amount of corrosive gases present during
combustion.

]]>
