PVC Trunking

admin — Sun, 14 Jul 2013 09:18:36 +0000

Wide slot/finger design provides greater sidewall rigidity and canbe used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
VDR1616F	VDR1616W	VDR1616E	VDR1616B	16*16	8	10	3~10pcs	300M
VDR1520F	VDR1520W	VDR1520E	VDR1520B	15*20	8.5	12	8~12pcs	260M
VDR2020F	VDR2020W	VDR2020E	VDR2020B	20*20	8.5	12	10~20pcs	240M
VDR4020F	VDR4020W	VDR4020E	VDR4020B	40*20	8	12	12~28pcs	140M
VDR1525F	VDR1525W	VDR1525E	VDR1525B	15*25	8	10	5~15pcs	260M
VDR2025F	VDR2025W	VDR2025E	VDR2025B	20*25	8	10	5~15pcs	200M
VDR2525F	VDR2525W	VDR2525E	VDR2525B	25*25	8	10	10~25pcs	200M
VDR3025F	VDR3025W	VDR3025E	VDR3025B	30*25	8	10	12~28pcs	160M
VDR5025F	VDR5025W	VDR5025E	VDR5025B	50*25	8	10	20~30pcs	100M
VDR1530F	VDR1530W	VDR1530E	VDR1530B	15*30	8	10	8~15pcs	180M
VDR2030F	VDR2030W	VDR2030E	VDR2030B	20*30	8	12	25~35pcs	160M
VDR2530F	VDR2530W	VDR2530E	VDR2530B	25*30	8	12	25~35pcs	160M
VDR3030F	VDR3030W	VDR3030E	VDR3030B	30*30	8	12	25~35pcs	140M
VDR4030F	VDR4030W	VDR4030E	VDR4030B	40*30	8	12	30~40pcs	100M
VDR3333F	VDR3333W	VDR3333E	VDR3333B	33*33	8	12	35~45pcs	160M
VDR2035F	VDR2035W	VDR2035E	VDR2035B	20*35	8	12	30~40pcs	100M
VDR3535F	VDR3535W	VDR3535E	VDR3535B	35*35	8	12	35~45pcs	112M
VDR5035F	VDR5035W	VDR5035E	VDR5035B	50*35	8	12	40~60pcs	88M
VDR2040F	VDR2040W	VDR2040E	VDR2040B	20*40	8	12	16~22pcs	110M
VDR2540F	VDR2540W	VDR2540E	VDR2540B	25*40	8	12	20~25pcs	112M
VDR4040F	VDR4040W	VDR4040E	VDR4040B	40*40	8	12	60~70pcs	100M
VDR6040F	VDR6040W	VDR6040E	VDR6040B	60*40	8	12	100~115pcs	68M
VDR8040F	VDR8040W	VDR8040E	VDR8040B	80*40	8	12	120~135pcs	48M
VDR10040F	VDR10040W	VDR10040E	VDR10040B	100*40	8	12	120~135pcs	32M
VDR2545F	VDR2545W	VDR2545E	VDR2545B	25*45	8	12	20~25pcs	104M
VDR3345F	VDR3345W	VDR3345E	VDR3345B	33*45	8	12	40~55pcs	108M
VDR4545F	VDR4545W	VDR4545E	VDR4545B	45*45	8	12	60~70pcs	72M
VDR6545F	VDR6545W	VDR6545E	VDR6545B	65*45	8	12	110~120pcs	56M
VDR2050F	VDR2050W	VDR2050E	VDR2050B	20*50	8	12	18~28pcs	120M
VDR2550F	VDR2550W	VDR2550E	VDR2550B	25*50	8	12	20~30pcs	100M
VDR3050F	VDR3050W	VDR3050E	VDR3050B	30*50	8	12	25~40pcs	84M
VDR3550F	VDR3550W	VDR3550E	VDR3550B	35*50	8	12	40~60pcs	80M
VDR4050F	VDR4050W	VDR4050E	VDR4050B	40*50	8	12	60~70pcs	68M
VDR4550F	VDR4550W	VDR4550E	VDR4550B	45*50	8	12	70~80pcs	60M
VDR5050F	VDR5050W	VDR5050E	VDR5050B	50*50	8	12	80~90pcs	60M
VDR5550F	VDR5550W	VDR5550E	VDR5550B	55*50	8	12	85~95pcs	48M
VDR6050F	VDR6050W	VDR6050E	VDR6050B	60*50	8	12	100~120pcs	48M
VDR8050F	VDR8050W	VDR8050E	VDR8050B	80*50	8	12	160~180pcs	40M
VDR10050F	VDR10050W	VDR10050E	VDR10050B	100*50	8	12	200~250pcs	26M
VDR12555F	VDR12555W	VDR12555E	VDR12555B	125*55	8	12	220~270pcs	20M
VDR2060F	VDR2060W	VDR2060E	VDR2060B	20*60	8	12	35~45pcs	100M
VDR2560F	VDR2560W	VDR2560E	VDR2560B	25*60	8	12	40~50pcs	100M
VDR3060F	VDR3060W	VDR3060E	VDR3060B	30*60	8	12	60~80pcs	80M
VDR3560F	VDR3560W	VDR3560E	VDR3560B	35*60	8	12	90~105pcs	78M
VDR4060F	VDR4060W	VDR4060E	VDR4060B	40*60	8	12	100~115pcs	60M
VDR4560F	VDR4560W	VDR4560E	VDR4560B	45*60	8	12	110~125pcs	30M
VDR5060F	VDR5060W	VDR5060E	VDR5060B	50*60	8	12	120~135pcs	60M
VDR6060F	VDR6060W	VDR6060E	VDR6060B	60*60	8	12	120~135pcs	48M
VDR8060F	VDR8060W	VDR8060E	VDR8060B	80*60	8	12	180~210pcs	36M
VDR10060F	VDR10060W	VDR10060E	VDR10060B	100*60	8	12	240~290pcs	28M
VDR11060F	VDR11060W	VDR11060E	VDR11060B	110*60	8	12	250~300pcs	48M
VDR12060F	VDR12060W	VDR12060E	VDR12060B	120*60	8	12	260~320pcs	48M
VDR15060F	VDR15060W	VDR15060E	VDR15060B	150*60	8	12	300~360pcs	16M
VDR2565F	VDR2565W	VDR2565E	VDR2565B	25*65	8	12	40~50pcs	88M
VDR3365F	VDR3365W	VDR3365E	VDR3365B	33*65	8	12	40~70pcs	80M
VDR4565F	VDR4565W	VDR4565E	VDR4565B	45*65	8	12	110~120pcs	52M
VDR6565F	VDR6565W	VDR6565E	VDR6565B	65*65	8	12	180~200pcs	44M
VDR7265F	VDR7265W	VDR7265E	VDR7265B	72*65	8	12	180~230pcs	42M
VDR5075F	VDR5075W	VDR5075E	VDR5075B	50*75	8	12	180~210pcs	32M
VDR7575F	VDR7575W	VDR7575E	VDR7575B	75*75	8	12	200~240pcs	24M
VDR2580F	VDR2580W	VDR2580E	VDR2580B	25*80	8	12	100~120pcs	72M
VDR3080F	VDR3080W	VDR3080E	VDR3080B	30*80	8	12	110~125pcs	56M
VDR3580F	VDR3580W	VDR3580E	VDR3580B	35*80	8	12	110~130pcs	56M
VDR4080F	VDR4080W	VDR4080E	VDR4080B	40*80	8	12	140~160pcs	48M
VDR4580F	VDR4580W	VDR4580E	VDR4580B	45*80	8	12	140~160pcs	40M
VDR5080F	VDR5080W	VDR5080E	VDR5080B	5080	8	12	160~180pcs	40M
VDR5580F	VDR5580W	VDR5580E	VDR5580B	55*80	8	12	160~180pcs	32M
VDR6080F	VDR6080W	VDR6080E	VDR6080B	60*80	8	12	180~210pcs	32M
VDR8080F	VDR8080W	VDR8080E	VDR8080B	80*80	8	12	240~290pcs	24M
VDR10080F	VDR10080W	VDR10080E	VDR10080B	100*80	8	12	260~350pcs	24M
VDR12080F	VDR12080W	VDR12080E	VDR12080B	120*80	8	12	280~380pcs	16M
VDR14080F	VDR14080W	VDR14080E	VDR14080B	140*80	8	12	350~450pcs	16M
VDR25100F	VDR25100W	VDR25100E	VDR25100B	25*100	8	12	110~160pcs	60M
VDR33100F	VDR33100W	VDR33100E	VDR33100B	33*100	8	12	130~165pcs	44M
VDR40100F	VDR40100W	VDR40100E	VDR40100B	40*100	8	12	130~175pcs	40M
VDR50100F	VDR50100W	VDR50100E	VDR50100B	50*100	8	12	220~250pcs	40M
VDR60100F	VDR60100W	VDR60100E	VDR60100B	60*100	8	12	240~290pcs	32M
VDR70100F	VDR70100W	VDR70100E	VDR70100B	70*100	8	12	250~310pcs	24M
VDR75100F	VDR75100W	VDR75100E	VDR75100B	75*100	8	12	260~350pcs	24M
VDR80100F	VDR80100W	VDR80100E	VDR80100B	80*100	8	12	260~350pcs	24M
VDR100100F	VDR100100W	VDR100100E	VDR100100B	100*100	8	12	300~400pcs	24M
VDR120100F	VDR120100W	VDR120100E	VDR120100B	120*100	8	12	350~450pcs	16M
VDR150100F	VDR150100W	VDR150100E	VDR150100B	150*100	8	12	400~650pcs	16M
VDR200100F	VDR200100W	VDR200100E	VDR200100B	200*100	8	12	600~800pcs	16M
VDR100130F	VDR100130W	VDR100130E	VDR100130B	100*130	8	12	350~450pcs	24M
VDR200150F	VDR200150W	VDR200150E	VDR200150B	200*150	8	12	900~1200pcs	10M

Features	Advantages	Benefits
Wide finger and slot design Can be used with a wide range of wire and	Finger 12mm Slot 8 mm,Rigid fingers	bundle sizes
Rohs approved Enviroment-friendly Material	Approved by EU Rohs, Compliant with US UL 94V-0,good inflaming	Eliminates health concerns associated with PVC that contains lead
Smooth rounded edges	Smooth edges in duct slots and at top of duct fingers	Protects hands and wiring/cabling from abrasion
Non-slip cover (co-extruded non-slip liner inside duct covers)	Will not slide easily when installed on duct base	Cover stays in place during shipment, vibration and when in a vertical orientation, eliminating rework
Flush cover designGreater capacity than traditional duct designs	Cover sits flush with sidewall	Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance
Slot smooth	Smooth adge after punching	No need to get offer abrasion, save time
V-shaped slot lead-in V-shape funnels wires into slot for	easier insertion	Speeds wire installation
Restricted slot designOnce inserted wires are retained in the slot	with or without the cover being installed	Eliminates hassle and saves time during installation and maintenance
Four different colors	Suitable to different environments using	Can meet different customers’request in different project
Approved by many certificates	America UL,Canada CULUS, EuropeCE , ROHS,REACH Flamility and low smoking certificate	Can provide related certificates of the projects or parts need

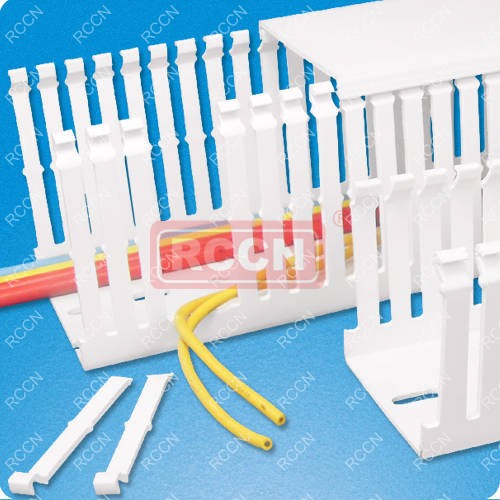

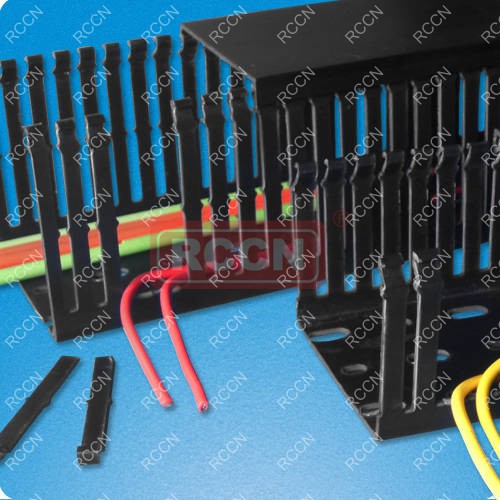

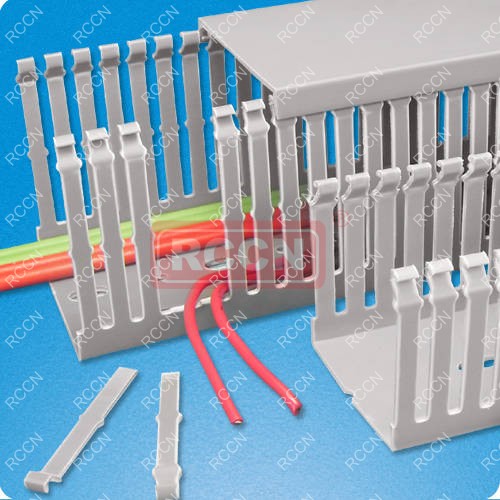

RCCN VDRFZ Wide Slot Wiring Duct

Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of trunking, it makes the fingers easy to separate from the trunking no need to us cutter.
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
Standard Length:2M/PCS

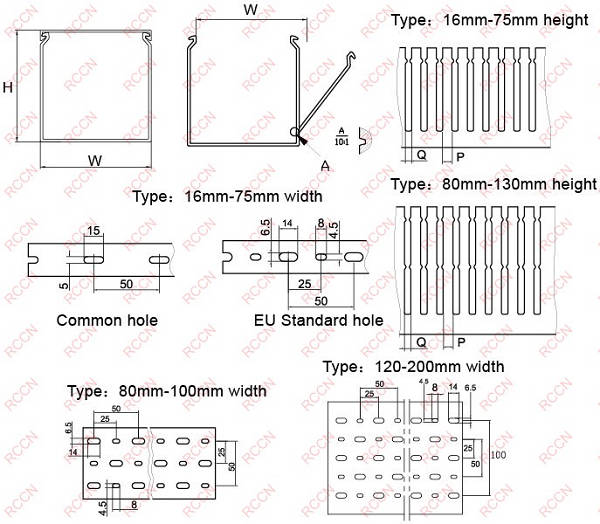

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK/M
VDR2525FZ	VDR2525FZW	VDR2525FZE	VDR2525FZB	25*25	8	10	10~25pcs	200M
VDR2530FZ	VDR2530FZW	VDR2530FZE	VDR2530FZB	25*30	8	12	25~35pcs	160M
VDR3030FZ	VDR3030FZW	VDR3030FZE	VDR3030FZB	30*30	8	12	25~35pcs	140M
VDR2540FZ	VDR2540FZW	VDR2540FZE	VDR2540FZB	25*40	8	12	20~25pcs	112M
VDR4040FZ	VDR4040FZW	VDR4040FZE	VDR4040FZB	40*40	8	12	60~70pcs	100M
VDR6040FZ	VDR6040FZW	VDR6040FZE	VDR6040FZB	60*40	8	12	100~115pcs	68M
VDR8040FZ	VDR8040FZW	VDR8040FZE	VDR8040FZB	80*40	8	12	120~135pcs	48M
VDR10040FZ	VDR10040FZW	VDR10040FZE	VDR10040FZB	100*40	8	12	120~135pcs	32M
VDR2550FZ	VDR2550FZW	VDR2550FZE	VDR2550FZB	25*50	8	12	20~30pcs	100M
VDR3050FZ	VDR3050FZW	VDR3050FZE	VDR3050FZB	30*50	8	12	25~40pcs	84M
VDR3550FZ	VDR3550FZW	VDR3550FZE	VDR3550FZB	35*50	8	12	40~60pcs	80M
VDR4050FZ	VDR4050FZW	VDR4050FZE	VDR4050FZB	40*50	8	12	60~70pcs	68M
VDR4550FZ	VDR4550FZW	VDR4550FZE	VDR4550FZB	45*50	8	12	70~80pcs	60M
VDR5050FZ	VDR5050FZW	VDR5050FZE	VDR5050FZB	50*50	8	12	80~90pcs	60M
VDR6050FZ	VDR6050FZW	VDR6050FZE	VDR6050FZB	60*50	8	12	100~120pcs	48M
VDR8050FZ	VDR8050FZW	VDR8050FZE	VDR8050FZB	80*50	8	12	160~180pcs	40M
VDR10050FZ	VDR10050FZW	VDR10050FZE	VDR10050FZB	100*50	8	12	200~250pcs	26M
VDR2560FZ	VDR2560FZW	VDR2560FZE	VDR2560FZB	25*60	8	12	40~50pcs	100M
VDR3060FZ	VDR3060FZW	VDR3060FZE	VDR3060FZB	30*60	8	12	60~80pcs	80M
VDR4060FZ	VDR4060FZW	VDR4060FZE	VDR4060FZB	40*60	8	12	100~115pcs	60M
VDR4560FZ	VDR4560FZW	VDR4560FZE	VDR4560FZB	45*60	8	12	110~125pcs	30M
VDR5060FZ	VDR5060FZW	VDR5060FZE	VDR5060FZB	50*60	8	12	120~135pcs	60M
VDR6060FZ	VDR6060FZW	VDR6060FZE	VDR6060FZB	60*60	8	12	120~135pcs	48M
VDR8060FZ	VDR8060FZW	VDR8060FZE	VDR8060FZB	80*60	8	12	180~210pcs	36M
VDR10060FZ	VDR10060FZW	VDR10060FZE	VDR10060FZB	100*60	8	12	240~290pcs	28M
VDR11060FZ	VDR11060FZW	VDR11060FZE	VDR11060FZB	110*60	8	12	250~300pcs	48M
VDR12060FZ	VDR12060FZW	VDR12060FZE	VDR12060FZB	120*60	8	12	260~320pcs	48M
VDR2580FZ	VDR2580FZW	VDR2580FZE	VDR2580FZB	25*80	8	12	100~120pcs	72M
VDR3080FZ	VDR3080FZW	VDR3080FZE	VDR3080FZB	30*80	8	12	110~125pcs	56M
VDR3580FZ	VDR3580FZW	VDR3580FZE	VDR3580FZB	35*80	8	12	110~130pcs	56M
VDR4080FZ	VDR4080FZW	VDR4080FZE	VDR4080FZB	40*80	8	12	140~160pcs	48M
VDR4580FZ	VDR4580FZW	VDR4580FZE	VDR4580FZB	45*80	8	12	140~160pcs	40M
VDR5080FZ	VDR5080FZW	VDR5080FZE	VDR5080FZB	5080	8	12	160~180pcs	40M
VDR5580FZ	VDR5580FZW	VDR5580FZE	VDR5580FZB	55*80	8	12	160~180pcs	32M
VDR6080FZ	VDR6080FZW	VDR6080FZE	VDR6080FZB	60*80	8	12	180~210pcs	32M
VDR8080FZ	VDR8080FZW	VDR8080FZE	VDR8080FZB	80*80	8	12	240~290pcs	24M
VDR10080FZ	VDR10080FZW	VDR10080FZE	VDR10080FZB	100*80	8	12	260~350pcs	24M
VDR12080FZ	VDR12080FZW	VDR12080FZE	VDR12080FZB	120*80	8	12	280~380pcs	16M
VDR14080FZ	VDR14080FZW	VDR14080FZE	VDR14080FZB	140*80	8	12	350~450pcs	16M
VDR25100FZ	VDR25100FZW	VDR25100FZE	VDR25100FZB	25*100	8	12	110~160pcs	60M
VDR33100FZ	VDR33100FZW	VDR33100FZE	VDR33100FZB	33*100	8	12	130~165pcs	44M
VDR40100FZ	VDR40100FZW	VDR40100FZE	VDR40100FZB	40*100	8	12	130~175pcs	40M
VDR50100FZ	VDR50100FZW	VDR50100FZE	VDR50100FZB	50*100	8	12	220~250pcs	40M
VDR60100FZ	VDR60100FZW	VDR60100FZE	VDR60100FZB	60*100	8	12	240~290pcs	32M
VDR75100FZ	VDR75100FZW	VDR75100FZE	VDR75100FZB	75*100	8	12	260~350pcs	24M
VDR80100FZ	VDR80100FZW	VDR80100FZE	VDR80100FZB	80*100	8	12	260~350pcs	24M
VDR100100FZ	VDR100100FZW	VDR100100FZE	VDR100100FZB	100*100	8	12	300~400pcs	24M
VDR120100FZ	VDR120100FZW	VDR120100FZE	VDR120100FZB	120*100	8	12	350~450pcs	16M
VDR150100FZ	VDR150100FZW	VDR150100FZE	VDR150100FZB	150*100	8	12	400~650pcs	16M
*VDR200100FZ	VDR200100FZW	VDR200100FZE	VDR200100FZB	200*100	8	12	600~900pcs	12M
*VDR200150FZ	VDR200150FZW	VDR200150FZE	VDR200150FZB	200*150	8	12	900~1200pcs	10M

Features	Advantages	Benefits
Wide slot & wide finger	Finger width 12mm，Slot width 8mm,High rigid fingers	Suitable to big wire or bundles wire
Enviroment-friendly and flammability resisit material	Products approved by EU ROHS， compliant with UL,good flammability resisit	Eliminates health concerns associated with PVC that contains lead Eliminates the need to deburr saving installation time
Smooth rounded edges	Exclusive RCCN ® process rounds the edges in duct slots and at top of duct fingers	Protects hands and wiring/cabling from abrasion
Non-slip cover (co-extruded non-slip liner inside duct covers)	Non-slip cover (co-extruded non-slip liner inside duct covers)	Cover stays in place during shipment, vibration and when in a vertical orientation, eliminating rework
Double scoreline	Upper scoreline at base of finger allows fingers to be broken out without tools Lower scoreline at base of duct allows sidewall sections to be removed	Allows quick modification for larger cabling bundles saving installation time leading to a lower installed cost Easier to create tee and corner junctions with full wire carrying capacity
Flush cover design	Greater capacity than traditional duct designs Cover sits flush with sidewall	Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance
Smooth edge after punching	Provides a smooth burr-free edge when sidewalls or fingers are broken out	Eliminates the need to deburr saving installation time
V-shaped slot lead-in	V-shape funnels wires into slot for easier insertion	Speeds wire installation
Double restricted slot design	Once inserted wires are retained in the slot with or without the cover being installed	Eliminates hassle and saves time during installation and maintenance
Four different colors are available	Suitable to different projects request	Can meet customers request in different project conditions in time
Approved by many nternational tests	America UL,Canada CULUS, EuropeCE , ROHS,REACH Flamility and low smoking certificate	Can provide related certificates of the projects or parts need

Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware
Certificates:UL:E306674 CE:EN50085 RoHS,REACH
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	PACK
HVDR1616F	HVDR1616W	HVDR1616E	HVDR1616B	16*16	5	5	3~10pcs	300M
HVDR1520F	HVDR1520W	HVDR1520E	HVDR1520B	15*20	4	6	8~12pcs	260M
HVDR2020F	HVDR2020W	HVDR2020E	HVDR2020B	20*20	4	6	10~20pcs	240M
HVDR4020F	HVDR4020W	HVDR4020E	HVDR4020B	40*20	4	6	12~28pcs	140M
HVDR1525F	HVDR1525W	HVDR1525E	HVDR1525B	15*25	5	6	5~15pcs	260M
HVDR2025F	HVDR2025W	HVDR2025E	HVDR2025B	20*20	4	6	5~15pcs	200M
HVDR2525F	HVDR2525W	HVDR2525E	HVDR2525B	25*25	4	6	10~25pcs	200M
HVDR3025F	HVDR3025W	HVDR3025E	HVDR3025B	30*25	4	6	12~28pcs	160M
HVDR5025F	HVDR5025W	HVDR5025E	HVDR5025B	50*25	4	6	20~30pcs	100M
HVDR2530F	HVDR2530W	HVDR2530E	HVDR2530B	25*30	4	6	25~35pcs	160M
HVDR3030F	HVDR3030W	HVDR3030E	HVDR3030B	30*30	4	6	25~35pcs	140M
HVDR4030F	HVDR4030W	HVDR4030E	HVDR4030B	40*30	4	6	30~40pcs	100M
HVDR2233F	HVDR2233W	HVDR2233E	HVDR2233B	22*33	5	6	30~45pcs	160M
*HVDR3333F	HVDR3333W	HVDR3333E	HVDR3333B	33*33	4	6	35~45pcs	160M
HVDR2035F	HVDR2035W	HVDR2035E	HVDR2035B	20*35	4	6	30~40pcs	100M
HVDR3535F	HVDR3535W	HVDR3535E	HVDR3535B	35*35	4	6	35~45pcs	112M
HVDR5035F	HVDR5035W	HVDR5035E	HVDR5035B	50*35	4	6	40~60pcs	88M
*HVDR2040F	HVDR2040W	HVDR2040E	HVDR2040B	20*40	4	6	16~22pcs	110M
HVDR2540F	HVDR2540W	HVDR2540E	HVDR2540B	25*40	4	6	20~25pcs	112M
HVDR4040F	HVDR4040W	HVDR4040E	HVDR4040B	40*40	4	6	60~70pcs	100M
HVDR6040F	HVDR6040W	HVDR6040E	HVDR6040B	60*40	4	6	100~115pcs	68M
HVDR8040F	HVDR8040W	HVDR8040E	HVDR8040B	80*40	4	6	120~135pcs	48M
HVDR10040F	HVDR10040W	HVDR10040E	HVDR10040B	100*40	4	6	120~135pcs	32M
HVDR2545F	HVDR2545W	HVDR2545E	HVDR2545B	25*45	4	6	20~25pcs	104M
HVDR3345F	HVDR3345W	HVDR3345E	HVDR3345B	33*45	4	6	40~55pcs	108M
HVDR4545F	HVDR4545W	HVDR4545E	HVDR4545B	45*45	4	6	60~70pcs	72M
HVDR6545F	HVDR6545W	HVDR6545E	HVDR6545B	65*45	4	6	110~120pcs	56M
*HVDR2050F	HVDR2050W	HVDR2050E	HVDR2050B	20*50	4	6	18~28pcs	100M
HVDR2550F	HVDR2550W	HVDR2550E	HVDR2550B	25*50	4	6	20~30pcs	100M
HVDR3050F	HVDR3050W	HVDR3050E	HVDR3050B	30*50	4	6	25~40pcs	84M
HVDR3550F	HVDR3550W	HVDR3550E	HVDR3550B	35*50	4	6	40~60pcs	80M
HVDR4050F	HVDR4050W	HVDR4050E	HVDR4050B	40*50	4	6	60~70pcs	68M
HVDR4550F	HVDR4550W	HVDR4550E	HVDR4550B	45*50	4	6	70~80pcs	60M
HVDR5050F	HVDR5050W	HVDR5050E	HVDR5050B	50*50	4	6	80~90pcs	50M
HVDR5550F	HVDR5550W	HVDR5550E	HVDR5550B	55*50	4	6	80~90pcs	48M
HVDR6050F	HVDR6050W	HVDR6050E	HVDR6050B	60*50	4	6	100~120pcs	48M
HVDR8050F	HVDR8050W	HVDR8050E	HVDR8050B	80*50	4	6	160~180pcs	40M
HVDR10050F	HVDR10050W	HVDR1005E	HVDR10050B	100*50	4	6	200~250pcs	26M
HVDR12555F	HVDR12555W	HVDR12555E	HVDR12555B	125*55	4	6	220~270pcs	20M
HVDR2060F	HVDR2060W	HVDR2060E	HVDR2060B	20*60	4	6	35~45pcs	100M
HVDR2560F	HVDR2560W	HVDR2560E	HVDR2560B	25*60	4	6	40~50pcs	100M
HVDR3060F	HVDR3060W	HVDR3060E	HVDR3060B	30*60	4	6	60~80pcs	80M
*HVDR3560F	HVDR3560W	HVDR3560E	HVDR3560B	35*60	4	6	90~105pcs	78M
HVDR4060F	HVDR4060W	HVDR4060E	HVDR4060B	40*60	4	6	100~115pcs	60M
HVDR4560F	HVDR4560W	HVDR4560E	HVDR4560B	45*60	4	6	110~125pcs	30M
HVDR5060F	HVDR5060W	HVDR5060E	HVDR5060B	50*60	4	6	120~135pcs	60M
HVDR6060F	HVDR6060W	HVDR6060E	HVDR6060B	60*60	4	6	120~135pcs	48M
HVDR8060F	HVDR8060W	HVDR8060E	HVDR8060B	80*60	4	6	180~210pcs	36M
HVDR10060F	HVDR10060W	HVDR10060E	HVDR10060B	100*60	4	6	240~290pcs	28M
HVDR11060F	HVDR11060W	HVDR11060E	HVDR11060B	110*60	4	6	250~300pcs	48M
*HVDR12060F	HVDR12060W	HVDR12060E	HVDR12060B	120*60	4	6	260~320pcs	48M
HVDR15060F	HVDR15060W	HVDR15060E	HVDR15060B	150*60	4	6	300~360pcs	16M
HVDR2565F	HVDR2565W	HVDR2565E	HVDR2565B	25*65	4	6	40~50pcs	88M
HVDR3365F	HVDR3365W	HVDR3365E	HVDR3365B	33*65	4	6	40~70pcs	80M
HVDR4565F	HVDR4565W	HVDR4565E	HVDR4565B	45*65	4	6	110~120pcs	52M
HVDR6565F	HVDR6565W	HVDR6565E	HVDR6565B	65*65	4	6	180~200pcs	44M
HVDR7265F	HVDR7265W	HVDR7265E	HVDR7265B	72*65	4	6	180~230pcs	42M
HVDR5075F	HVDR5075W	HVDR5075E	HVDR5075B	50*75	4	6	180~210pcs	42M
HVDR7575F	HVDR7575W	HVDR7575E	HVDR7575B	75*75	4	6	200~240pcs	40M
HVDR2580F	HVDR2580W	HVDR2580E	HVDR2580B	25*80	4	6	100~120pcs	72M
HVDR3080F	HVDR3080W	HVDR3080E	HVDR3080B	30*80	4	6	110~125pcs	56M
HVDR3580F	HVDR3580W	HVDR3580E	HVDR3580B	35*80	4	6	110~130pcs	56M
HVDR4080F	HVDR4080W	HVDR4080E	HVDR4080B	40*80	4	6	140~160pcs	48M
HVDR4580F	HVDR4580W	HVDR4580E	HVDR4580B	45*80	4	6	140~160pcs	40M
HVDR5080F	HVDR5080W	HVDR5080E	HVDR5080B	50*80	4	6	160~180pcs	40M
HVDR5580F	HVDR5580W	HVDR5580E	HVDR5580B	55*80	4	6	160~180pcs	32M
HVDR6080F	HVDR6080W	HVDR6080E	HVDR6080B	60*80	4	6	180~210pcs	32M
HVDR8080F	HVDR8080W	HVDR8080E	HVDR8080B	80*80	4	6	240~290pcs	24M
HVDR10080F	HVDR10080W	HVDR10080E	HVDR10080B	100*80	4	6	260~350pcs	24M
HVDR12080F	HVDR12080W	HVDR12080E	HVDR12080B	120*80	4	6	280~380pcs	16M
HVDR14080F	HVDR14080W	HVDR14080E	HVDR14080B	140*80	4	6	350~450pcs	16M
HVDR25100F	HVDR25100W	HVDR25100E	HVDR25100B	25*100	4	6	110~160pcs	60M
HVDR33100F	HVDR33100W	HVDR33100E	HVDR33100B	33*100	4	6	130~175pcs	44M
HVDR40100F	HVDR40100W	HVDR40100E	HVDR40100B	40*100	4	6	130~175pcs	40M
HVDR50100F	HVDR50100W	HVDR50100E	HVDR50100B	50*100	4	6	220~250pcs	40M
HVDR60100F	HVDR60100W	HVDR60100E	HVDR60100B	60*100	4	6	240~290pcs	32M
HVDR70100F	HVDR70100W	HVDR70100E	HVDR70100B	70*100	4	6	250~310pcs	24M
HVDR75100F	HVDR75100W	HVDR75100E	HVDR75100B	75*100	4	6	260~350pcs	24M
HVDR80100F	HVDR80100W	HVDR80100E	HVDR80100B	80*100	4	6	260~350pcs	24M
HVDR100100F	HVDR100100W	HVDR100100E	HVDR100100B	100*100	4	6	300~400pcs	24M
HVDR120100F	HVDR120100W	HVDR120100E	HVDR120100B	120*100	4	6	350~450pcs	16M
HVDR150100F	HVDR150100W	HVDR150100E	HVDR150100B	150*100	4	6	400~650pcs	16M
*HVDR200100F	HVDR200100W	HVDR200100E	HVDR200100B	200*100	4	6	600~800pcs	16M
HVDR100130F	HVDR100130W	HVDR100130E	HVDR100130B	100*130	4	6	350~450pcs	16M
*HVDR200150F	HVDR200150W	HVDR200150E	HVDR200150B	200*150	4	6	900~1200pcs	16M

Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of trunking, it makes
the fingers easy to separate from the trunking no need to us cutter.
Comment：gray is common,other color come with MOQ.
Standard Length 2M/PCS

Item No.				W*H	Slot width Q	Finger width P	Wire capability /2.0sp	pack
Gray	White	Blue	Black	W*H	Slot width Q	Finger width P	Wire capability /2.0sp	pack
HVDR2525FZ	HVDR2525FZW	HVDR2525FZE	HVDR2525FZB	25*25	4	6	10~25pcs	200M
HVDR2530FZ	HVDR2530FZW	HVDR2530FZE	HVDR2530FZB	25*30	4	6	25~35pcs	160M
HVDR3030FZ	HVDR3030FZW	HVDR3030FZE	HVDR3030FZB	30*30	4	6	25~35pcs	140M
HVDR2540FZ	HVDR2540FZW	HVDR2540FZE	HVDR2540FZB	25*40	4	6	20~25pcs	112M
HVDR4040FZ	HVDR4040FZW	HVDR4040FZE	HVDR4040FZB	40*40	4	6	60~70pcs	100M
HVDR6040FZ	HVDR6040FZW	HVDR6040FZE	HVDR6040FZB	60*40	4	6	100~115pcs	68M
HVDR8040FZ	HVDR8040FZW	HVDR8040FZE	HVDR8040FZB	80*40	4	6	120~135pcs	48M
HVDR10040FZ	HVDR10040FZW	HVDR10040FZE	HVDR10040FZB	100*40	4	6	120~135pcs	32M
HVDR2550FZ	HVDR2550FZW	HVDR2550FZE	HVDR2550FZB	25*50	4	6	20~30pcs	100M
HVDR3050FZ	HVDR3050FZW	HVDR3050FZE	HVDR3050FZB	30*50	4	6	25~40pcs	84M
HVDR3550FZ	HVDR3550FZW	HVDR3550FZE	HVDR3550FZB	35*50	4	6	40~60pcs	80M
HVDR4050FZ	HVDR4050FZW	HVDR4050FZE	HVDR4050FZB	40*50	4	6	60~70pcs	68M
HVDR4550FZ	HVDR4550FZW	HVDR4550FZE	HVDR4550FZB	45*50	4	6	70~80pcs	60M
HVDR5050FZ	HVDR5050FZW	HVDR5050FZE	HVDR5050FZB	50*50	4	6	80~90pcs	60M
HVDR6050FZ	HVDR6050FZW	HVDR6050FZE	HVDR6050FZB	60*50	4	6	100~120pcs	48M
HVDR8050FZ	HVDR8050FZW	HVDR8050FZE	HVDR8050FZB	80*50	4	6	160~180pcs	40M
HVDR10050FZ	HVDR10050FZW	HVDR10050FZE	HVDR10050FZB	100*50	4	6	200~250pcs	26M
HVDR2060FZ	HVDR2060FZW	HVDR2060FZE	HVDR2060FZB	20*60	4	6	35~45pcs	100M
HVDR2560FZ	HVDR2560FZW	HVDR2560FZE	HVDR2560FZB	25*60	4	6	40~50pcs	100M
HVDR3060FZ	HVDR3060FZW	HVDR3060FZE	HVDR3060FZB	30*60	4	6	60~80pcs	80M
HVDR4060FZ	HVDR4060FZW	HVDR4060FZE	HVDR4060FZB	40*60	4	6	100~115pcs	60M
HVDR4560FZ	HVDR4560FZW	HVDR4560FZE	HVDR4560FZB	45*60	4	6	110~125pcs	30M
HVDR5060FZ	HVDR5060FZW	HVDR5060FZE	HVDR5060FZB	50*60	4	6	120~135pcs	60M
HVDR6060FZ	HVDR6060FZW	HVDR6060FZE	HVDR6060FZB	60*60	4	6	120~135pcs	48M
HVDR8060FZ	HVDR8060FZW	HVDR8060FZE	HVDR8060FZB	80*60	4	6	180~210pcs	36M
HVDR10060FZ	HVDR10060FZW	HVDR10060FZE	HVDR10060FZB	100*60	4	6	240~290pcs	28M
HVDR11060FZ	HVDR11060FZW	HVDR11060FZE	HVDR11060FZB	110*60	4	6	250~300pcs	48M
HVDR12060FZ	HVDR12060FZW	HVDR12060FZE	HVDR12060FZB	120*60	4	6	260~320pcs	48M
HVDR2580FZ	HVDR2580FZW	HVDR2580FZE	HVDR2580FZB	25*80	4	6	100~120pcs	72M
HVDR3080FZ	HVDR3080FZW	HVDR3080FZE	HVDR3080FZB	30*80	4	6	110~125pcs	56M
HVDR3580FZ	HVDR3580FZW	HVDR3580FZE	HVDR3580FZB	35*80	4	6	110~130pcs	56M
HVDR4080FZ	HVDR4080FZW	HVDR4080FZE	HVDR4080FZB	40*80	4	6	140~160pcs	48M
HVDR4580FZ	HVDR4580FZW	HVDR4580FZE	HVDR4580FZB	45*80	4	6	140~160pcs	40M
HVDR5080FZ	HVDR5080FZW	HVDR5080FZE	HVDR5080FZB	50*80	4	6	160~180pcs	40M
HVDR5580FZ	HVDR5580FZW	HVDR5580FZE	HVDR5580FZB	55*80	4	6	160~180pcs	32M
HVDR6080FZ	HVDR6080FZW	HVDR6080FZE	HVDR6080FZB	60*80	4	6	180~210pcs	32M
HVDR8080FZ	HVDR8080FZW	HVDR8080FZE	HVDR8080FZB	80*80	4	6	240~290pcs	24M
HVDR10080FZ	HVDR10080FZW	HVDR10080FZE	HVDR10080FZB	100*80	4	6	260~350pcs	24M
HVDR12080FZ	HHVDR12080FZW	HVDR12080FZE	HVDR12080FZB	120*80	4	6	280~380pcs	16M
HVDR14080FZ	HVDR14080FZW	HVDR14080FZE	HVDR14080FZB	140*80	4	6	350~450pcs	16M
HVDR25100FZ	HVDR25100FZW	HVDR25100FZE	HVDR25100FZB	25*100	4	6	110~160pcs	60M
HVDR33100FZ	HVDR33100FZW	HVDR33100FZE	HVDR33100FZB	33*100	4	6	130~165pcs	44M
HVDR40100FZ	HVDR40100FZW	HVDR40100FZE	HVDR40100FZB	40*100	4	6	130~175pcs	40M
HVDR50100FZ	HVDR50100FZW	HVDR50100FZE	HVDR50100FZB	50*100	4	6	220~250pcs	40M
HVDR60100FZ	HVDR60100FZW	HVDR60100FZE	HVDR60100FZB	60*100	4	6	240~290pcs	32M
HVDR75100FZ	HVDR75100FZW	HVDR75100FZE	HVDR75100FZB	75*100	4	6	260~350pcs	24M
HVDR80100FZ	HVDR80100FZW	HVDR80100FZE	HVDR80100FZB	80*100	4	6	260~350pcs	24M
HVDR100100FZ	HVDR100100FZW	HVDR100100FZE	HVDR100100FZB	100*100	4	6	300~400pcs	24M
HVDR120100FZ	HVDR120100FZW	HVDR120100FZE	HVDR120100FZB	120*100	4	6	350~450pcs	16M
HVDR150100FZ	HVDR150100FZW	HVDR150100FZE	HVDR150100FZB	150*100	4	6	400~650pcs	16M
HVDR100130FZ	HVDR100130FZW	HVDR100130FZE	HVDR100130FZB	100*130	4	6	350~450pcs	24M
HVDR200100FZ	HVDR200100FZW	HVDR200100FZE	HVDR200100FZB	200*100	4	6	600~900pcs	12M
HVDR200150FZ	HVDR200150FZW	HVDR200150FZE	HVDR200150FZB	200*150	4	6	900~1200pcs	10M

RCCN Din Rails

Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No. Outer width/Outer height/ Thickness/Length	Material	Length per pcs	Packing/ carton
TS-35/7.5 Series
TS-35/7.5/1.0/1M	Color zinc steel	1M	50M
TS-35/7.5/1.0/1M-ROHS	ROHS silver zinc plated steel	1M	50M
TS-35/7.5/1.0/2M	Color zinc steel	2M	100M
TS-35/7.5/1.0/2M-ROHS	ROHS silver zinc plated steel	2M	100M
TS-35/15 Series
TS-35/15/1.5/1M	Color zinc steel	1M	30M
TS-35/15/1.5/1M-ROHS	ROHS silver zinc plated steel	1M	30M
TS-35/15/1.5/2M	Color zinc steel	2M	60M
TS-35/15/1.5/2M-ROHS	ROHS silver zinc plated steel	2M	60M
LSC-35/7.5/1.1 Series
LSC-35/7.5/1.1/1M	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M	ROHS Aluminum metal	2M	100M
LSC-35/7.5/1.1/1M-No bottom	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M-No bottom	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5/1M-No bottom	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M-No bottom	ROHS Aluminum metal	2M	100M

RCCN VDRC Wide Close Slot Wiring Duct

admin — Mon, 10 Sep 2012 08:29:05 +0000

Item No.				W*H	Q	P	Wire capability /2.0sp	pack/M
Gray	White	Blue	Black	W*H	Q	P	Wire capability /2.0sp	pack/M
VDR1520C	VDR1520CW	VDR1520CE	VDR1520CB	15*20	8.5	11.5	8-12pcs	260M
VDR2020C	VDR2020CW	VDR2020CE	VDR2020CB	20*20	8.5	11.5	10-20pcs	240M
VDR4020C	VDR4020CW	VDR4020CE	VDR4020CB	40*20	8.5	11.5	15-30pcs	140M
VDR1525C	VDR1525CW	VDR1525CE	VDR1525CB	15*25	8.5	11.5	5-15pcs	260M
VDR2025C	VDR2025CW	VDR2025CE	VDR2025CB	20*25	8.5	11.5	5-15pcs	200M
VDR2525C	VDR2525CW	VDR2525CE	VDR2525CB	25*25	8.5	11.5	10-25pcs	200M
VDR3025C	VDR3025CW	VDR3025CE	VDR3025CB	30*25	8.5	11.5	12-28pcs	160M
VDR4025C	VDR4025CW	VDR4025CE	VDR4025CB	40*25	8.5	11.5	20-35pcs	100M
VDR5025C	VDR5025CW	VDR5025CE	VDR5025CB	50*25	8.5	11.5	12-25pcs	100M
VDR1530C	VDR1530CW	VDR1530CE	VDR1530CB	15*30	8.5	11.5	8-15pcs	180M
VDR2030C	VDR2030CW	VDR2030CE	VDR2030CB	20*30	8.5	11.5	25~35pcs	180M
VDR2530C	VDR2530CW	VDR2530CE	VDR2530CB	25*30	8.5	11.5	25~35pcs	160M
VDR3030C	VDR3030CW	VDR3030CE	VDR3030CB	30*30	8.5	11.5	25~35pcs	140M
VDR4030C	VDR4030CW	VDR4030CE	VDR4030CB	40*30	8.5	11.5	30~40pcs	100M
VDR5030C	VDR5030CW	VDR5030CE	VDR5030CB	50*30	8.5	11.5	40-50pcs	80M
VDR6030C	VDR6030CW	VDR6030CE	VDR6030CB	60*30	8.5	11.5	50-60pcs	60M
VDR2233C	VDR2233CW	VDR2233CE	VDR2233CB	22*33	8.5	11.5	25-35pcs	160M
VDR3333C	VDR3333CW	VDR3333CE	VDR3333CB	33*33	8.5	11.5	35-45pcs	160M
VDR2035C	VDR2035CW	VDR2035CE	VDR2035CB	20*35	8.5	11.5	30~40pcs	100M
VDR3535C	VDR3535CW	VDR3535CE	VDR3535CB	35*35	8.5	11.5	35~45pcs	112M
VDR5035C	VDR5035CW	VDR5035CE	VDR5035CB	50*35	8.5	11.5	40~60pcs	88M
VDR2040C	VDR2040CW	VDR2040CE	VDR2040CB	20*40	8.5	11.5	16~22pcs	110M
VDR2540C	VDR2540CW	VDR2540CE	VDR2540CB	25*40	8.5	11.5	20~25pcs	112M
VDR3540C	VDR3540CW	VDR3540CE	VDR3540CB	35*40	8.5	11.5	35-45pcs	100M
VDR4040C	VDR4040CW	VDR4040CE	VDR4040CB	40*40	8.5	11.5	60~70pcs	100M
VDR6040C	VDR6040CW	VDR6040CE	VDR6040CB	60*40	8.5	11.5	100~115pcs	68M
VDR8040C	VDR8040CW	VDR8040CE	VDR8040CB	80*40	8.5	11.5	120~135pcs	48M
VDR10040C	VDR10040CW	VDR10040CE	VDR10040CB	100*40	8.5	11.5	120~135pcs	32M
VDR12040C	VDR15040CW	VDR12040CE	VDR12040CB	120*40	8.5	11.5	140-155pcs	/
VDR2545C	VDR2545CW	VDR2545CE	VDR2545CB	25*45	8.5	11.5	20~25pcs	104M
VDR3345C	VDR3345CW	VDR3345CE	VDR3345CB	33*45	8.5	11.5	40~55pcs	108M
VDR4545C	VDR4545CW	VDR4545CE	VDR4545CB	45*45	8.5	11.5	60~70pcs	72M
VDR6545C	VDR6545CW	VDR6545CE	VDR6545CB	65*45	8.5	11.5	110~120pcs	56M
VDR2050C	VDR2050CW	VDR2050CE	VDR2050CB	20*50	8.5	11.5	18~28pcs	120M
VDR2550C	VDR2550CW	VDR2550CE	VDR2550CB	25*50	8.5	11.5	20~30pcs	100M
VDR3050C	VDR3050CW	VDR3050CE	VDR3050CB	30*50	8.5	11.5	25~40pcs	84M
VDR3550C	VDR3550CW	VDR3550CE	VDR3550CB	35*50	8.5	11.5	40~60pcs	80M
VDR4050C	VDR4050CW	VDR4050CE	VDR4050CB	40*50	8.5	11.5	60~70pcs	68M
VDR4550C	VDR4550CW	VDR4550CE	VDR4550CB	45*50	8.5	11.5	70~80pcs	60M
VDR5050C	VDR5050CW	VDR5050CE	VDR5050CB	50*50	8.5	11.5	80~90pcs	60M
VDR5550C	VDR5550CW	VDR5550CE	VDR5550CB	55*50	8.5	11.5	90~100pcs	60M
VDR6050C	VDR6050CW	VDR6050CE	VDR6050CB	60*50	8.5	11.5	100~120pcs	48M
VDR7550C	VDR7550CW	VDR7550CE	VDR7550CB	75*50	8.5	11.5	150-170pcs	40M
VDR8050C	VDR8050CW	VDR8050CE	VDR8050CB	80*50	8.5	11.5	160~180pcs	40M
VDR10050C	VDR10050CW	VDR10050CE	VDR10050CB	100*50	8.5	11.5	200~250pcs	26M
VDR12555C	VDR12555CW	VDR12555CE	VDR12555CB	125*55	8.5	11.5	220-270pcs	20M
VDR2060C	VDR2060CW	VDR2060CE	VDR2060CB	20*60	8.5	11.5	35-45pcs	100M
VDR2560C	VDR2560CW	VDR2560CE	VDR2560CB	25*60	8.5	11.5	40~50pcs	100M
VDR3060C	VDR3060CW	VDR3060CE	VDR3060CB	30*60	8.5	11.5	60~80pcs	80M
*VDR3560C	VDR3560CW	VDR3560CE	VDR3560CB	35*60	8.5	11.5	90~105pcs	60M
VDR4060C	VDR4060CW	VDR4060CE	VDR4060CB	40*60	8.5	11.5	100~115pcs	60M
VDR4560C	VDR4560CW	VDR4560CE	VDR4560CB	45*60	8.5	11.5	110~125pcs	30M
VDR5060C	VDR5060CW	VDR5060CE	VDR5060CB	50*60	8.5	11.5	120~135pcs	60M
VDR6060C	VDR6060CW	VDR6060CE	VDR6060CB	60*60	8.5	11.5	120~135pcs	48M
VDR8060C	VDR8060CW	VDR8060CE	VDR8060CB	80*60	8.5	11.5	180~210pcs	36M
VDR10060C	VDR10060CW	VDR10060CE	VDR10060CB	100*60	8.5	11.5	240~290pcs	28M
VDR11060C	VDR11060CW	VDR11060CE	VDR11060CB	110*60	8.5	11.5	250~300pcs	48M
*VDR12060C	VDR12060CW	VDR12060CE	VDR12060CB	120*60	8.5	11.5	260~320pcs	48M
VDR15060C	VDR15060CW	VDR15060CE	VDR15060CB	150*60	8.5	11.5	300~360pcs	16M
VDR2565C	VDR2565CW	VDR2565CE	VDR2565CB	25*65	8.5	11.5	40~50pcs	88M
VDR3365C	VDR3365CW	VDR3365CE	VDR3365CB	33*65	8.5	11.5	40~70pcs	80M
VDR4565C	VDR4565CW	VDR4565CE	VDR4565CB	45*65	8.5	11.5	110~120pcs	52M
VDR6565C	VDR6565CW	VDR6565CE	VDR6565CB	65*65	8.5	11.5	180~200pcs	44M
VDR7265C	VDR7265CW	VDR7265CE	VDR7265CB	72*65	8.5	11.5	180-230pcs	/
VDR5075C	VDR5075CW	VDR5075CE	VDR5075CB	50*75	8.5	11.5	180~210pcs	32M
VDR7575C	VDR7575CW	VDR7575CE	VDR7575CB	75*75	8.5	11.5	200~240pcs	24M
VDR10075C	VDR10075CW	VDR10075CE	VDR10075CB	100*75	10	10	250-290pcs	24M
VDR2580C	VDR2580CW	VDR2580CE	VDR2580CB	25*80	10	10	100~120pcs	72M
VDR3080C	VDR3080CW	VDR3080CE	VDR3080CB	30*80	10	10	110~125pcs	56M
VDR3580C	VDR3580CW	VDR3580CE	VDR3580CB	35*80	10	10	110~130pcs	56M
VDR4080C	VDR4080CW	VDR4080CE	VDR4080CB	40*80	10	10	140~160pcs	48M
VDR4580C	VDR4580CW	VDR4580CE	VDR4580CB	45*80	10	10	140~160pcs	40M
VDR5080C	VDR5080CW	VDR5080CE	VDR5080CB	50*80	10	10	160~180pcs	40M
VDR5580C	VDR5580CW	VDR5580CE	VDR5580CB	55*80	10	10	160~180pcs	32M
VDR6080C	VDR6080CW	VDR6080CE	VDR6080CB	60*80	10	10	180~210pcs	32M
VDR8080C	VDR8080CW	VDR8080CE	VDR8080CB	80*80	10	10	240~290pcs	24M
VDR10080C	VDR10080CW	VDR10080CE	VDR10080CB	100*80	10	10	260~350pcs	24M
VDR12080C	VDR12080CW	VDR12080CE	VDR12080CB	120*80	10	10	280~380pcs	16M
VDR14080C	VDR14080CW	VDR14080CE	VDR14080CB	140*80	10	10	350~450pcs	16M
VDR25100C	VDR25100CW	VDR25100CE	VDR25100CB	25*100	10	10	110~160pcs	60M
VDR33100C	VDR33100CW	VDR33100CE	VDR33100CB	33*100	10	10	130~165pcs	44M
VDR40100C	VDR40100CW	VDR40100CE	VDR40100CB	40*100	10	10	130~175pcs	40M
VDR50100C	VDR50100CW	VDR50100CE	VDR50100CB	50*100	10	10	220~250pcs	40M
VDR60100C	VDR60100CW	VDR60100CE	VDR60100CB	60*100	10	10	240~290pcs	32M
VDR70100C	VDR70100CW	VDR70100CE	VDR70100CB	70*100	10	10	250~280pcs	24M
VDR75100C	VDR75100CW	VDR75100CE	VDR75100CB	75*100	10	10	260~350pcs	24M
VDR80100C	VDR80100CW	VDR80100CE	VDR80100CB	80*100	10	10	260~350pcs	24M
VDR100100C	VDR100100CW	VDR100100CE	VDR100100CB	100*100	10	10	300~400pcs	24M
VDR120100C	VDR120100CW	VDR120100CE	VDR120100CB	120*100	10	10	350~450pcs	20M
VDR150100C	VDR150100CW	VDR150100CE	VDR150100CB	150*100	10	10	400~650pcs	16M
VDR100130C	VDR100130CW	VDR100130CE	VDR100130CB	100*130	10	10	350-450pcs	16M
VDR200100C	VDR200100CW	VDR200100CE	VDR200100CB	200*100	10	10	600-800pcs	/
VDR200150C	VDR200150CW	VDR200150CE	VDR200150CB	200*150	10	10	900-1200pcs	/

RCCN Din Rails

Item No. Outer width/Outer height/ Thickness/Length	Material	Length per pcs	Packing/ carton
TS-35/7.5 Series
TS-35/7.5/1.0/1M	Color zinc steel	1M	50M
TS-35/7.5/1.0/1M-ROHS	ROHS silver zinc plated steel	1M	50M
TS-35/7.5/1.0/2M	Color zinc steel	2M	100M
TS-35/7.5/1.0/2M-ROHS	ROHS silver zinc plated steel	2M	100M
TS-35/15 Series
TS-35/15/1.5/1M	Color zinc steel	1M	30M
TS-35/15/1.5/1M-ROHS	ROHS silver zinc plated steel	1M	30M
TS-35/15/1.5/2M	Color zinc steel	2M	60M
TS-35/15/1.5/2M-ROHS	ROHS silver zinc plated steel	2M	60M
LSC-35/7.5/1.1 Series
LSC-35/7.5/1.1/1M	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M	ROHS Aluminum metal	2M	100M
LSC-35/7.5/1.1/1M-No bottom	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M-No bottom	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5/1M-No bottom	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M-No bottom	ROHS Aluminum metal	2M	100M

RCCN SDRW Type Solid Wiring Duct

admin — Mon, 10 Sep 2012 08:18:31 +0000

Solid wall design fully encloses cables providing maximum protection and aesthetics
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Supplied without mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C

Item No.				W*H	Wire capability /2.0sp	Pack/M
Gray	White	Blue	Black	W*H	Wire capability /2.0sp	Pack/M
SDR1616	SDR1616W	SDR1616E	SDR1616B	16*16	3~10pcs	300M
SDR2516	SDR2516W	SDR2516E	SDR2516B	25*16	5~15pcs	240M
SDR4016	SDR4016W	SDR4016E	SDR4016B	40*16	15~30pcs	200M
SDR1520	SDR1520W	SDR1520E	SDR1520B	15*20	8~12pcs	260M
SDR2020	SDR2020W	SDR2020E	SDR2020B	20*20	10~20pcs	240M
SDR4020	SDR4020W	SDR4020E	SDR4020B	40*20	15~25pcs	140M
SDR1525	SDR1525W	SDR1525E	SDR1525B	15*25	5~15pcs	260M
SDR2025	SDR2025W	SDR2025E	SDR2025B	20*25	5~15pcs	200M
SDR2525	SDR2525W	SDR2525E	SDR2525B	25*25	10~25pcs	200M
SDR3025	SDR3025W	SDR3025E	SDR3025B	30*25	12~28pcs	160M
SDR4025	SDR4025W	SDR4025E	SDR4025B	40*25	20~25pcs	120M
SDR5025	SDR5025W	SDR5025E	SDR5025B	50*25	20~25pcs	100M
SDR1530	SDR1530W	SDR1530E	SDR1530B	15*30	8~15pcs	200M
SDR2030	SDR2030W	SDR2030E	SDR2030B	20*30	25~35pcs	180M
SDR2530	SDR2530W	SDR2530E	SDR2530B	25*30	25~35pcs	160M
SDR3030	SDR3030W	SDR3030E	SDR3030B	30*30	25~35pcs	140M
SDR4030	SDR4030W	SDR4030E	SDR4030B	40*30	30~40pcs	100M
SDR2233	SDR2233W	SDR2233E	SDR2233B	22*33	15~25pcs	180M
SDR3333	SDR3333W	SDR3333E	SDR3333B	33*33	30~40pcs	160M
SDR2035	SDR2035W	SDR2035E	SDR2035B	20*35	30~40pcs	100M
SDR3535	SDR3535W	SDR3535E	SDR3535B	35*35	35~45pcs	112M
SDR5035	SDR5035W	SDR5035E	SDR5035B	50*35	40~60pcs	88M
SDR2040	SDR2040W	SDR2040E	SDR2040B	20*40	20~25pcs	110M
SDR2540	SDR2540W	SDR2540E	SDR2540B	25*40	20~25pcs	112M
SDR4040	SDR4040W	SDR4040E	SDR4040B	40*40	60~70pcs	100M
SDR6040	SDR6040W	SDR6040E	SDR6040B	60*40	100~115pcs	68M
SDR8040	SDR8040W	SDR8040E	SDR8040B	80*40	120~135pcs	48M
SDR10040	SDR10040W	SDR10040E	SDR10040B	100*40	120~135pcs	32M
SDR2545	SDR2545W	SDR2545E	SDR2545B	25*45	20~25pcs	104M
SDR3345	SDR3345W	SDR3345E	SDR3345B	33*45	40~55pcs	108M
SDR4545	SDR4545W	SDR4545E	SDR4545B	45*45	60~70pcs	72M
SDR6545	SDR6545W	SDR6545E	SDR6545B	65*45	110~120pcs	56M
SDR2050	SDR2050W	SDR2050E	SDR2050B	20*50	20~30pcs	100M
SDR2550	SDR2550W	SDR2550E	SDR2550B	25*50	20~30pcs	100M
SDR3050	SDR3050W	SDR3050E	SDR3050B	30*50	25~40pcs	84M
SDR3550	SDR3550W	SDR3550E	SDR3550B	35*50	40~60pcs	80M
SDR4050	SDR4050W	SDR4050E	SDR4050B	40*50	60~70pcs	68M
SDR4550	SDR4550W	SDR4550E	SDR4550B	45*50	70~80pcs	60M
SDR5050	SDR5050W	SDR5050E	SDR5050B	50*50	80~90pcs	60M
SDR5550	SDR5550W	SDR5550E	SDR5550B	55*50	85~95pcs	50M
SDR6050	SDR6050W	SDR6050E	SDR6050B	60*50	100~120pcs	48M
SDR8050	SDR8050W	SDR8050E	SDR8050B	80*50	160~180pcs	40M
SDR10050	SDR10050W	SDR10050E	SDR10050B	100*50	200~250pcs	26M
SDR12555	SDR12555W	SDR12555E	SDR12555B	125*55	220~270pcs	20M
SDR2060	SDR2060W	SDR2060E	SDR2060B	20*60	5~45pcs	100M
SDR2560	SDR2560W	SDR2560E	SDR2560B	25*60	40~50pcs	100M
SDR3060	SDR3060W	SDR3060E	SDR3060B	30*60	60~80pcs	80M
SDR3560	SDR3560W	SDR3560E	SDR3560B	35*60	65~85pcs	70M
SDR4060	SDR4060W	SDR4060E	SDR4060B	40*60	100~115pcs	60M
SDR4560	SDR4560W	SDR4560E	SDR4560B	45*60	110~125pcs	30M
SDR5060	SDR5060W	SDR5060E	SDR5060B	50*60	120~135pcs	60M
SDR6060	SDR6060W	SDR6060E	SDR6060B	60*60	120~135pcs	48M
SDR8060	SDR8060W	SDR8060E	SDR8060B	80*60	180~210pcs	36M
SDR10060	SDR10060W	SDR10060E	SDR10060B	100*60	240~290pcs	28M
SDR11060	SDR11060W	SDR11060E	SDR11060B	110*60	250~300pcs	48M
SDR12060	SDR12060W	SDR12060E	SDR12060B	120*60	260~320pcs	48M
SDR15060	SDR15060W	SDR15060E	SDR15060B	150*60	300~360pcs	16M
SDR2565	SDR2565W	SDR2565E	SDR2565B	25*65	40~50pcs	88M
SDR3365	SDR3365W	SDR3365E	SDR3365B	33*65	40~70pcs	80M
SDR4565	SDR4565W	SDR4565E	SDR4565B	45*65	110~120pcs	52M
SDR6565	SDR6565W	SDR6565E	SDR6565B	65*65	180~200pcs	44M
SDR7265	SDR7265W	SDR7265E	SDR7265B	72*65	190~210pcs	40M
SDR5075	SDR5075W	SDR5075E	SDR5075B	50*75	180~210pcs	32M
SDR7575	SDR7575W	SDR7575E	SDR7575B	75*75	200~240pcs	24M
SDR2580	SDR2580W	SDR2580E	SDR2580B	25*80	100~120pcs	72M
SDR3080	SDR3080W	SDR3080E	SDR3080B	30*80	110~125pcs	56M
SDR3580	SDR3580W	SDR3580E	SDR3580B	35*80	110~130pcs	56M
SDR4080	SDR4080W	SDR4080E	SDR4080B	40*80	140~160pcs	48M
SDR4580	SDR4580W	SDR4580E	SDR4580B	45*80	140~160pcs	40M
SDR5080	SDR5080W	SDR5080E	SDR5080B	50*80	160~180pcs	40M
SDR5580	SDR5580W	SDR5580E	SDR5580B	55*80	160~180pcs	32M
SDR6080	SDR6080W	SDR6080E	SDR6080B	60*80	180~210pcs	32M
SDR8080	SDR8080W	SDR8080E	SDR8080B	80*80	240~290pcs	24M
SDR10080	SDR10080W	SDR10080E	SDR10080B	100*80	260~350pcs	24M
SDR12080	SDR12080W	SDR12080E	SDR12080B	120*80	280~380pcs	16M
SDR14080	SDR14080W	SDR14080E	SDR14080B	140*80	350~450pcs	16M
SDR25100	SDR25100W	SDR25100E	SDR25100B	25*100	110~160pcs	60M
SDR33100	SDR33100W	SDR33100E	SDR33100B	33*100	130~165pcs	44M
SDR40100	SDR40100W	SDR40100E	SDR40100B	40*100	130~175pcs	40M
SDR50100	SDR50100W	SDR50100E	SDR50100B	50*100	220~250pcs	40M
SDR60100	SDR60100W	SDR60100E	SDR60100B	60*100	240~290pcs	32M
SDR70100	SDR70100W	SDR70100E	SDR70100B	70*100	240~290pcs	32M
SDR75100	SDR75100W	SDR75100E	SDR75100B	75*100	260~350pcs	24M
SDR80100	SDR80100W	SDR80100E	SDR80100B	80*100	260~350pcs	24M
SDR100100	SDR100100W	SDR100100E	SDR100100B	100*100	300~400pcs	24M
SDR120100	SDR120100W	SDR120100E	SDR120100B	120*100	350~450pcs	16M
SDR150100	SDR150100W	SDR150100E	SDR150100B	150*100	400~650pcs	16M
SDR100130	SDR100130W	SDR100130E	SDR100130B	100*130	350~450pcs	16M
*SDR200100	SDR200100W	SDR200100E	SDR200100B	200*100	600~800pcs	12M
*SDR200150	SDR200150W	SDR200150E	SDR200150B	200*150	900~1200pcs	10M

RCCN Din Rails

Item No. Outer width/Outer height/ Thickness/Length	Material	Length per pcs	Packing/ carton
TS-35/7.5 Series
TS-35/7.5/1.0/1M	Color zinc steel	1M	50M
TS-35/7.5/1.0/1M-ROHS	ROHS silver zinc plated steel	1M	50M
TS-35/7.5/1.0/2M	Color zinc steel	2M	100M
TS-35/7.5/1.0/2M-ROHS	ROHS silver zinc plated steel	2M	100M
TS-35/15 Series
TS-35/15/1.5/1M	Color zinc steel	1M	30M
TS-35/15/1.5/1M-ROHS	ROHS silver zinc plated steel	1M	30M
TS-35/15/1.5/2M	Color zinc steel	2M	60M
TS-35/15/1.5/2M-ROHS	ROHS silver zinc plated steel	2M	60M
LSC-35/7.5/1.1 Series
LSC-35/7.5/1.1/1M	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M	ROHS Aluminum metal	2M	100M
LSC-35/7.5/1.1/1M-No bottom	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M-No bottom	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5/1M-No bottom	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M-No bottom	ROHS Aluminum metal	2M	100M

RCCN GDRFZ Wiring Duct

admin — Mon, 10 Sep 2012 08:08:41 +0000

Europe standard Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special design: with score line at the base of trunking, it makes
the fingers easy to separate from the trunking no need to us cutter.
Standard Length:2M/PCS

Item No.				W*H	Q	P	Wire capability /2.0sp	PACK/M
Gray	White	Blue	Black	W*H	Q	P	Wire capability /2.0sp	PACK/M
GDR2025FZ	GDR2025FZW	GDR2025FZE	GDR2025FZB	20*25	6	6.5	5~15pcs	200M
GDR2525FZ	GDR2525FZW	GDR2525FZE	GDR2525FZB	25*25	6	6.5	10~25pcs	200M
GDR3025FZ	GDR3025FZW	GDR3025FZE	GDR3025FZB	30*25	6	6.5	12~28pcs	160M
GDR2530FZ	GDR2530FZW	GDR2530FZE	GDR2530FZB	25*30	6	6.5	25~35pcs	160M
GDR3030FZ	GDR3030FZW	GDR3030FZE	GDR3030FZB	30*30	6	6.5	25~35pcs	140M
GDR4030FZ	GDR4030FZW	GDR4030FZE	GDR4030FZB	40*30	6	6.5	30~40pcs	100M
GDR2540FZ	GDR2540FZW	GDR2540FZE	GDR2540FZB	25*40	6	6.5	20~25pcs	112M
GDR4040FZ	GDR4040FZW	GDR4040FZE	GDR4040FZB	40*40	6	6.5	60~70pcs	100M
GDR6040FZ	GDR6040FZW	GDR6040FZE	GDR6040FZB	60*40	6	6.5	100~115pcs	68M
GDR8040FZ	GDR8040FZW	GDR8040FZE	GDR8040FZB	80*40	6	6.5	120~135pcs	48M
GDR10040FZ	GDR10040FZW	GDR10040FZE	GDR10040FZB	100*40	6	6.5	120~135pcs	32M
GDR2550FZ	GDR2550FZW	GDR2550FZE	GDR2550FZB	25*50	6	6.5	20~30pcs	100M
GDR3050FZ	GDR3050FZW	GDR3050FZE	GDR3050FZB	30*50	6	6.5	25~40pcs	84M
GDR3550FZ	GDR3550FZW	GDR3550FZE	GDR3550FZB	35*50	6	6.5	40~60pcs	80M
GDR4050FZ	GDR4050FZW	GDR4050FZE	GDR4050FZB	40*50	6	6.5	60~70pcs	68M
GDR4550FZ	GDR4550FZW	GDR4550FZE	GDR4550FZB	45*50	6	6.5	70~80pcs	60M
GDR5050FZ	GDR5050FZW	GDR5050FZE	GDR5050FZB	50*50	6	6.5	80~90pcs	60M
GDR6050FZ	GDR6050FZW	GDR6050FZE	GDR6050FZB	60*50	6	6.5	100~120pcs	48M
GDR8050FZ	GDR8050FZW	GDR8050FZE	GDR8050FZB	80*50	6	6.5	160~180pcs	40M
GDR10050FZ	GDR10050FZW	GDR10050FZE	GDR10050FZB	100*50	6	6.5	200~250pcs	26M
GDR2560FZ1	GDR2560FZ1W	GDR2560FZ1E	GDR2560FZ1B	25*60	6	6.5	40~50pcs	96M
GDR3060FZ1	GDR3060FZ1W	GDR3060FZ1E	GDR3060FZ1B	30*60	6	6.5	60~80pcs	80M
GDR4060FZ1	GDR4060FZ1W	GDR4060FZ1E	GDR4060FZ1B	40*60	6	6.5	100~115pcs	60M
GDR4560FZ1	GDR4560FZ1W	GDR4560FZ1E	GDR4560FZ1B	45*60	6	6.5	110~120pcs	30M
GDR5060FZ1	GDR5060FZ1W	GDR5060FZ1E	GDR5060FZ1B	50*60	6	6.5	120~135pcs	60M
GDR6060FZ1	GDR6060FZ1W	GDR6060FZ1E	GDR6060FZ1B	60*60	6	6.5	120~135pcs	48M
GDR8060FZ1	GDR8060FZ1W	GDR8060FZ1E	GDR8060FZ1B	80*60	6	6.5	180~210pcs	36M
GDR10060FZ1	GDR10060FZ1W	GDR10060FZ1E	GDR10060FZ1B	100*60	6	6.5	240~290pcs	28M
GDR11060FZ1	GDR11060FZ1W	GDR11060FZ1E	GDR11060FZ1B	110*60	6	6.5	250~300pcs	48M
*GDR12060FZ1	GDR12060FZ1W	GDR12060FZ1E	GDR12060FZ1B	120*120	6	6.5	260~320pcs	48M
GDR2580FZ1	GDR2580FZ1W	GDR2580FZ1E	GDR2580FZ1B	25*80	6	6.5	100~120pcs	72M
GDR3080FZ1	GDR3080FZ1W	GDR3080FZ1E	GDR3080FZ1B	30*80	6	6.5	110~125pcs	56M
GDR3580FZ1	GDR3580FZ1W	GDR3580FZ1E	GDR3580FZ1B	35*80	6	6.5	110~130pcs	56M
GDR4080FZ1	GDR4080FZ1W	GDR4080FZ1E	GDR4080FZ1B	40*80	6	6.5	140~160pcs	48M
GDR4580FZ1	GDR4580FZ1W	GDR4580FZ1E	GDR4580FZ1B	45*80	6	6.5	140~160pcs	40M
GDR5080FZ1	GDR5080FZ1W	GDR5080FZ1E	GDR5080FZ1B	50*80	6	6.5	160~180pcs	40M
GDR6080FZ1	GDR6080FZ1W	GDR6080FZ1E	GDR6080FZ1B	60*80	6	6.5	180~210pcs	32M
GDR8080FZ1	GDR8080FZ1W	GDR8080FZ1E	GDR8080FZ1B	80*80	6	6.5	240~290pcs	24M
GDR10080FZ1	GDR10080FZ1W	GDR10080FZ1E	GDR10080FZ1B	100*80	6	6.5	260~350pcs	24M
GDR12080FZ1	GDR12080FZ1W	GDR12080FZ1E	GDR12080FZ1B	120*80	6	6.5	280~380pcs	16M
GDR14080FZ1	GDR14080FZ1W	GDR14080FZ1E	GDR14080FZ1B	140*80	6	6.5	350~450pcs	16M
GDR2580FZ2	GDR2580FZ2W	GDR2580FZ2E	GDR2580FZ2B	25*80	6	6.5	100~120pcs	72M
GDR3080FZ2	GDR3080FZ2W	GDR3080FZ2E	GDR3080FZ2B	30*80	6	6.5	110~125pcs	56M
GDR3580FZ2	GDR3580FZ2W	GDR3580FZ2E	GDR3580FZ2B	35*80	6	6.5	110~130pcs	56M
GDR4080FZ2	GDR4080FZ2W	GDR4080FZ2E	GDR4080FZ2B	40*80	6	6.5	140~160pcs	48M
GDR4580FZ2	GDR4580FZ2W	GDR4580FZ2E	GDR4580FZ2B	45*80	6	6.5	140~160pcs	40M
GDR5080FZ2	GDR5080FZ2W	GDR5080FZ2E	GDR5080FZ2B	50*80	6	6.5	160~180pcs	40M
GDR5580FZ2	GDR5580FZ2W	GDR5580FZ2E	GDR5580FZ2B	55*80	6	6.5	160~180pcs	32M
GDR6080FZ2	GDR6080FZ2W	GDR6080FZ2E	GDR6080FZ2B	60*80	6	6.5	180~210pcs	32M
GDR8080FZ2	GDR8080FZ2W	GDR8080FZ2E	GDR8080FZ2B	80*80	6	6.5	240~290pcs	24M
GDR10080FZ2	GDR10080FZ2W	GDR10080FZ2E	GDR10080FZ2B	100*80	6	6.5	260~350pcs	24M
GDR12080FZ2	GDR12080FZ2W	GDR12080FZ2E	GDR12080FZ2B	120*80	6	6.5	280~380pcs	16M
GDR14080FZ2	GDR14080FZ2W	GDR14080FZ2E	GDR14080FZ2B	140*80	6	6.5	350~450pcs	16M
GDR25100FZ2	GDR25100FZ2W	GDR25100FZ2E	GDR25100FZ2B	25*100	6	6.5	110~160pcs	60M
GDR33100FZ2	GDR33100FZ2W	GDR33100FZ2E	GDR33100FZ2B	33*100	6	6.5	130~165pcs	44M
GDR40100FZ2	GDR40100FZ2W	GDR40100FZ2E	GDR40100FZ2B	40*100	6	6.5	130~175pcs	40M
GDR50100FZ2	GDR50100FZ2W	GDR50100FZ2E	GDR50100FZ2B	50*100	6	6.5	220~250pcs	40M
GDR60100FZ2	GDR60100FZ2W	GDR60100FZ2E	GDR60100FZ2B	60*100	6	6.5	240~290pcs	32M
GDR75100FZ2	GDR75100FZ2W	GDR75100FZ2E	GDR75100FZ2B	75*100	6	6.5	260~350pcs	24M
GDR80100FZ2	GDR80100FZ2W	GDR80100FZ2E	GDR80100FZ2B	80*100	6	6.5	260~350pcs	24M
GDR100100FZ2	GDR100100FZ2W	GDR100100FZ2E	GDR100100FZ2B	100*100	6	6.5	300~400pcs	24M
GDR120100FZ2	GDR120100FZ2W	GDR120100FZ2E	GDR120100FZ2B	120*100	6	6.5	350~450pcs	16M
GDR150100FZ2	GDR150100FZ2W	GDR150100FZ2E	GDR150100FZ2B	150*100	6	6.5	400~650pcs	16M

RCCN Din Rails

Item No. Outer width/Outer height/ Thickness/Length	Material	Length per pcs	Packing/ carton
TS-35/7.5 Series
TS-35/7.5/1.0/1M	Color zinc steel	1M	50M
TS-35/7.5/1.0/1M-ROHS	ROHS silver zinc plated steel	1M	50M
TS-35/7.5/1.0/2M	Color zinc steel	2M	100M
TS-35/7.5/1.0/2M-ROHS	ROHS silver zinc plated steel	2M	100M
TS-35/15 Series
TS-35/15/1.5/1M	Color zinc steel	1M	30M
TS-35/15/1.5/1M-ROHS	ROHS silver zinc plated steel	1M	30M
TS-35/15/1.5/2M	Color zinc steel	2M	60M
TS-35/15/1.5/2M-ROHS	ROHS silver zinc plated steel	2M	60M
LSC-35/7.5/1.1 Series
LSC-35/7.5/1.1/1M	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M	ROHS Aluminum metal	2M	100M
LSC-35/7.5/1.1/1M-No bottom	ROHS Aluminum metal	1M	100M
LSC-35/7.5/1.1/2M-No bottom	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M	ROHS Aluminum metal	2M	100M
LS-35/7.5/1.5/1M-No bottom	ROHS Aluminum metal	1M	100M
LS-35/7.5/1.5/2M-No bottom	ROHS Aluminum metal	2M	100M

pvc trunking

admin — Wed, 07 Oct 2009 13:52:07 +0000

Place of Origin: China Shanghai	PACK: 2M
Certified: CE…ROHS,REACH	Brand Name: RCCN
Model No: SDR

pvc trunking Specifications
• Usage : Fixed the bottom duct first and put wires in duct then close the cover cap.
• Material: Made of Hardness Lead-Free PVC UL-94V0
• Color: Gray
• use temperature: (+80 °C)

Part No..	W*H	A	B	C	T	pack	14AWG/PCS
SDR1616	16*16	16	16	16	1.3	400	4-8
SDR2020	20*20	20	20	20	1.3	200	5-12
SDR1525	15*25	15	25	15	1.4	260	5-12
SDR2025	20*25	20	25	20	1.4	200	5-12
SDR2525	25*25	25	25	25	1.4	200	10-25
SDR2233	20*30	22	33	22	1.3	160	15-25
SDR2530	25*30	25	30	25	1.4	160	15-25
SDR3030	30*30	30	30	30	1.4	140	15-25
SDR3535	35*35	35	35	35	1.4	100	40-45
SDR2540	25*40	25	40	25	1.4	112	20-25
SDR4040	40*40	40	40	40	1.4	100	60-70
SDR6040	60*40	60	40	60	1.6	68	100-115
SDR8040	80*40	80	40	80	2.0	48	120-135
SDR10040	100*40	100	40	100	2.0	40	140-165
SDR2545	25*45	25	45	25	1.4	100	20-25
SDR3345	33*45	33	45	33	1.2	104	40-55
SDR4545	45*45	45	45	45	1.5	68	60-70
SDR2550	25*50	25	50	25	1.6	100	20-25
SDR3050	30*50	30	50	30	1.6	84	30-35
SDR3550	35*50	35	50	35	1.6	84	40-45
SDR4050	40*50	40	50	40	1.6	68	50-60
SDR4550	45*50	45	50	45	1.6	68	60-70
SDR5050	50*50	50	50	50	1.6	60	80-90
SDR5550	55*50	55	50	55	1.6	60	80-90
SDR6050	60*50	60	50	60	1.6	52	85-95
SDR8050	80*50	80	50	80	1.6	40	150-170
SDR10050	100*50	100	50	100	1.6	28	200-240
SDR2060	20*60	20	60	20	1.7	120	35-40
SDR2560	25*60	25	60	25	1.6	120	40-45
SDR4060	40*60	40	60	40	1.8	60	100-115
SDR4560	45*60	45	60	45	1.8	60	113-118
SDR5060	50*60	50	60	50	1.8	48	115-130
SDR6060	60*60	60	60	60	2.0	48	120-135
SDR8060	80*60	80	60	80	2.0	36	180-240
SDR11060	110*60	110	60	110	2.0	20	220-280
SDR12060	120*60	120	60	120	2.0	20	220-280
SDR2565	25*65	25	65	25	1.6	88	40-45
SDR3365	33*65	33	65	33	1.6	84	60-75
SDR4565	45*65	45	65	45	1.6	60	110-120
SDR6565	65*65	65	65	65	1.6	40	180-200
SDR5075	50*75	50	75	50	2.0	56	140-180
SDR7575	75*75	75	75	75	2.0	32	220-270
SDR2580	25*80	25	80	25	1.8	72	100-120
SDR3080	30*80	30	80	30	2.0	56	110-130
SDR3580	35*80	35	80	35	2.0	56	120-140
SDR4080	40*80	40	80	40	1.8	48	120-135
SDR4580	45*80	45	80	45	2.0	40	130-140
SDR5080	50*80	50	80	50	1.8	32	150-190
SDR6080	60*80	60	80	60	2.0	32	180-210
SDR8080	80*80	80	80	80	2.0	24	240-290
SDR10080	100*80	100	80	100	2.0	20	260-350
SDR12080	120*80	120	80	120	2.0	16	260-350
SDR14080	140*80	140	80	140	2.0	12	300-400
SDR33100	33*100	33	100	33	2.0	44	120-160
SDR40100	40*100	40	100	40	2.0	44	130-170
SDR50100	50*100	50	100	50	2.0	32	220-250
SDR60100	60*100	60	100	60	2.0	32	240-290
SDR80100	80*100	80	100	80	2.0	24	260-350
SDR100100	100*100	100	100	100	2.2	16	300-400

NEW:

SDR5075	50*75	50	75	50	2.0		140-180
SDR7575	75*75	75	75	75	2.0		220-270

News

admin — Wed, 23 Sep 2009 04:58:47 +0000

Product

admin — Tue, 22 Sep 2009 14:55:23 +0000

RCCN metal cable gland

RCCN metal flexible conduit fittings

RCCN flexible conduit fittings

RCCN Spiral wraping bands

RCCN cable connectors

RCCN shinkable tubings

RCCN hole plug

RCCN locking fastener

RCCN circuit board support

Contact Rccn

admin — Tue, 22 Sep 2009 11:20:57 +0000

[contact-form-7]

Cert

admin — Tue, 22 Sep 2009 10:45:14 +0000

About Rccn

admin — Tue, 22 Sep 2009 10:05:30 +0000

For more than 10 years development, Shanghai Richeng Electronics Co. Ltd（our logo RCCN®）, has been the world leader in the design and manufacture of wiring duct in a wide selection of sizes,styles, colors and materials. The RCCN ®name has become synonymous with high quality, innovative wiring duct products used to route, protect and conceal wiring in a wide variety of industrial control and telecommunications applications. The following products are also within our line: insulated wiring duct,nylon cable gland,metal connectors,cable ties,nylon flexible conduit,cable terminals ,nylon rivets, nylon screws and so on, more than 13 different kind of wiring accessories about 2500 different products. Our markets are wind power electricity,nuclear power electricity,solar energy,telecom communication,equipments manufacturing,constructions,public establishment,automations sets in offices or factories, smart constructions and so on.. RCCN® prodcuts are approved by UL,CE,ROHS、REACH, we believe you can find some suitable items for your installation request.RCCN ®continues to develop new wiring duct solutions to satisfy the wire management challenges facing our customers worldwide.
RCCN® Advantage:
*Fast delievery will reduce your stock cost
*Many different items in warehouse, one station supply, save your cost of transport
*Professional and experienced wokers, make sure you can purchase the correct products.
*RCCN® are compliant with ISO9001、UL、CE、ROHS、REACH, they are the symbol of high quality and the volition of RCCN® to pay more attention to products quality
*ISO9001 means RCCN design, purchase, manufacturing, testing, documents processing, transport and service are compliant with international standard.

RCCN Video
