Material:PE complex substance
Features:protect in high voltage
Temperature:shrinking from 70℃，≤125℃full shrinking；operate
temperature:-40℃-125℃
Color:black、yellow、green、red。
Delivery time:10 days-14 days



Item No.
Width of the
first range
mm
Pro-shrinking
 After shrinking Suitable
scope
mm
Std.Pkg.
M

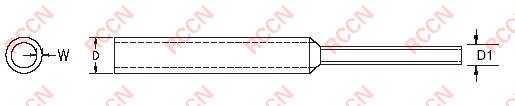

Inner D W Inner Thickness
1KV
1KVSBI-30 30 31.5±1.0 0.50±0.15 ≤15 0.95±0.15 16-30 50
1KVSBI-35 35 36.5±1.5 0.55±0.15 ≤18 1.00±0.15 18-35 50
1KVSBI-40 40 40.5±1.5 0.55±0.15 ≤20 1.00±0.15 20-40 50
1KVSBI-45 45 45.5±1.5 0.55±0.15 ≤23 1.00±0.15 23-45 25
1KVSBI-50 50 50.5±2.0 0.55±0.15 ≤25 1.00±0.20 25-50 25
1KVSBI-60 60 60±3.0 0.60±0.15 ≤30 1.30±0.20 30-60 25
1KVSBI-70 70 70±3.0 0.65±0.20 ≤35 1.30±0.20 35-70 25
1KVSBI-80 80/100 80±3.0 0.65±0.20 ≤40 1.46±0.20 40-80 25
1KVSBI-90 100 90±4.0 0.65±0.20 ≤43 1.46±0.20 43-90 25
1KVSBI-100 100/120 100±4.0 0.65±0.20 ≤50 1.46±0.20 50-100 25
1KVSBI-120 150 120±4.0 0.65±0.20 ≤60 1.46±0.20 60-120 15
1KVSBI-150 180 150±4.0 0.65±0.20 ≤75 1.46±0.20 75-150 15
1KVSBI-180 200 180±4.0 0.65±0.20 ≤90 1.46±0.20 90-180 15
10KV
10KVSBI-15/6 15/12 15±0.8 1.0±0.2 ≤6 2.5±0.2 25 6-15
10KVSBI-20/8 20/15 20±0.8 1.0±0.2 ≤8 2.5±0.2 25 8-20
10KVSBI-25/10 25/18 25±0.8 1.0±0.2 ≤10 2.5±0.2 25 10-25
10KVSBI-30/12 30/20 30±0.8 1.0±0.2 ≤12 2.5±0.2 25 12-30
10KVSBI-40/16 40/30 40±0.8 1.2±0.2 ≤16 2.8±0.3 25 16-40
10KVSBI-50/20 50/35 50±2.0 1.2±0.2 ≤20 2.8±0.3 25 20-50
10KVSBI-60/24 60/45 60±3.0 1.2±0.2 ≤24 2.8±0.3 25 24-60
10KVSBI-70/28 70/50 70±3.0 1.2±0.3 ≤28 2.8±0.3 25 28-70
10KVSBI-80/32 80/55 80±3.0 1.2±0.3 ≤32 2.8±0.3 25 32-80
10KVSBI-100/40 100/75 100±4.0 1.2±0.3 ≤40 2.8±0.3 25 40-100
10KVSBI-120/48 120/85 120±4.0 1.2±0.3 ≤48 2.8±0.3 25 48-120
10KVSBI-150/60 150/105 150±4.0 1.2±0.3 ≤60 2.8±0.3 25 60-150
10KVSBI-180/72 180/120 180±5.0 1.2±0.3 ≤72 2.8±0.3 25 72-180
30KV
30KVSBI-30/15 30 30±1.0 1.9±0.5 ≤15 4.0±0.3 15 15-30
30KVSBI-35/18 30/40 35±1.0 1.9±0.5 ≤18 4.0±0.3 15 18-35
30KVSBI-40/20 40 40±1.0 1.9±0.5 ≤20 4.0±0.3 15 20-40
30KVSBI-50/25 50 50±2.0 1.9±0.5 ≤25 4.0±0.3 15 25-50
30KVSBI-60/30 60 60±2.0 1.9±0.5 ≤30 4.0±0.3 15 30-60
30KVSBI-70/35 70 70±2.0 1.9±0.5 ≤35 4.0±0.3 15 35-70
30KVSBI-80/40 80/100 80±3.0 1.9±0.5 ≤40 4.0±0.3 25 40-80
30KVSBI-100/50 100/120 100±4.0 1.9±0.5 ≤50 4.0±0.3 25 50-100
30KVSBI-120/60 150 120±4.0 1.9±0.5 ≤60 4.0±0.3 25 60-120
30KVSBI-150/75 180 150±4.0 1.9±0.5 ≤75 4.0±0.3 25 75-150
