*Available in either “screw mount“ or “self adhesive mounting”. This range
 offers a safe and secure mount.
*Simple to install with a screw or bolt, the tie mounts give excellent security,
particularly in areas of high vibration.
*Designed to offer the maximum surface area, and in conjunction with the
specially developed adhesive ensures that a very high pull-off force is
achieved.
*The tie mounts offer a ‘4-way’ entry for the cable tie enabling quicker
and more lexible installation.
*Material: Polyamide 6.6, UL94 V2



ITEM No.

H
Length
L

Wide
W
 High
H

Hole of cable
t ie sui t to
tooth width
T
Packing
HC-101 3.9 19.5 19.5 3.2 4.5
100PCS
or
500PCS
HC-102 6.0 29 29 7.0 6.0
HC-101/3M 3.9 19.5 19.5 3.2 4.5
HC-102/3M 6.0 29 29 7.0 6.0







]]> http://www.wiring-ducts.com/hc-self-adhesive-backed-mounts/feed/ 0 RCCN HC Self Adhesive Backed Mounts http://www.wiring-ducts.com/self-adhesive-tie-mount/ http://www.wiring-ducts.com/self-adhesive-tie-mount/#comments Sun, 04 Oct 2009 05:36:26 +0000 admin http://www.wiring-ducts.com/?p=429





*Available in either “screw mount“ or “self adhesive mounting”. This range offers
a safe and secure mount.
*Simple to install with a screw or bolt, the tie mounts give excellent security,
particularly in areas of high vibration.
*Designed to offer the maximum surface area, and in conjunction with the
specially developed adhesive ensures that a very high pull-off force is achieved.
*The tie mounts offer a ‘4-way’ entry for the cable tie enabling quicker and more
lexible installation.
*Designed speciically for holding heavier cable bundles. These mounting bases
can be used in many industries from agriculture to truck manufacture. They offer
a very secure ixing and can be used with a wide variety of heavy duty cable ties
up to 5.5mm wide.
*Material: Polyamide 6.6, UL94 V2

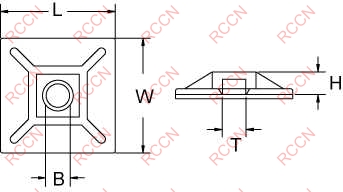

Item No.

L W

H
 B Cable tie
with hole
 T		 Packing
Natural Black
HC-100  - 12.5 12.5 3.2 3.2 3.2 100PCS
or
500PCS
HC-101 HC-101B 19.5 19.5 3.9 3.2 4.5
HC-102 HC-102B 29 29 6.0 7.0 6.0
HC-101/3M HC-101B/3M 19.5 19.5 3.9 3.2 4.5
HC-102/3M HC-102B/3M 29 29 6.0 7.0 6.0
