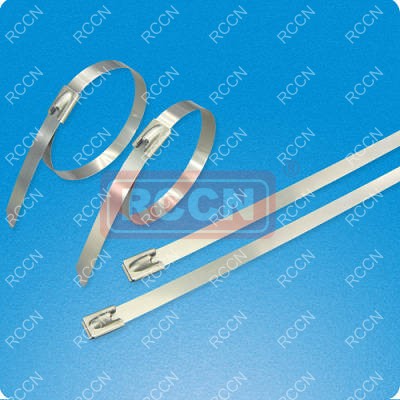

wiring duct-RCCN » Stainless Steel Cable Ties http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN ML Stainless Steel Cable Ties http://www.wiring-ducts.com/stainless-steel-cable-ties/ http://www.wiring-ducts.com/stainless-steel-cable-ties/#comments Fri, 07 Sep 2012 07:01:56 +0000 admin http://www.wiring-ducts.com/?p=307


Material:304 stainess steel
Color:silver
Features:with lock, easy to install
Page number :B15

Item No.

Length
MM
Width
MM

Max.Bundle
Dia (mm)


Min Tensile Strength

Packing

lbs kbs
ML100ST 100 5 23 250 46
100PCS
ML150ST 150 5 39 250 46
ML200ST 200 5 49 250 46
ML240ST 240 5 66 250 46
ML300ST 300 5 85 250 46
ML350ST 350 5 110 250 46
ML400ST 400 5 118 250 46
ML150HD 150 8 39 250 114
ML200HD 200 8 46 250 114
ML240HD 240 8 66 250 114
ML300HD 300 8 85 250 114
ML350HD 350 8 110 250 114
ML400HD 400 8 118 250 114
ML500HD 500 8 150 250 114
ML760HD 760 8 225 250 114
ML700HD 700 12 200 500 228
ML740HD 740 12 215 500 228





]]>
http://www.wiring-ducts.com/stainless-steel-cable-ties/feed/ 0

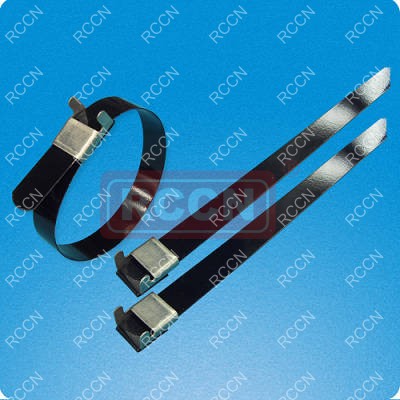

RCCN ML Stainless Steel Cable Ties http://www.wiring-ducts.com/rccn-ml-stainless-steel-cable-ties/ http://www.wiring-ducts.com/rccn-ml-stainless-steel-cable-ties/#comments Fri, 07 Sep 2012 07:00:55 +0000 admin http://www.wiring-ducts.com/?p=1527



Material:304 stainess steel coated
plastic,black lacquer
Color:black
Features:with lock, easy to install
Item No . Lengthmm Widemm Max.BundleDia(mm) Min Tensile Strength Packing
lbs kgs
ML100STB 100 5 23 250 46 100PCS
ML150STB 150 5 38 250 46
ML200STB 200 5 49 250 46
ML240STB 240 5 68 250 46
ML300STB 300 5 82 250 46
ML350STB 350 5 100 250 46
ML400STB 400 5 116 250 46
ML150HDB 150 8 38 250 114
ML175HDB 175 8 48 250 114
ML200HDB 200 8 46 250 114
ML240HDB 240 8 66 250 114
ML300HDB 300 8 82 250 114
ML350HDB 350 8 110 250 114
ML400HDB 400 8 118 250 114
ML500HDB 500 8 150 250 114









]]>
http://www.wiring-ducts.com/rccn-ml-stainless-steel-cable-ties/feed/ 0

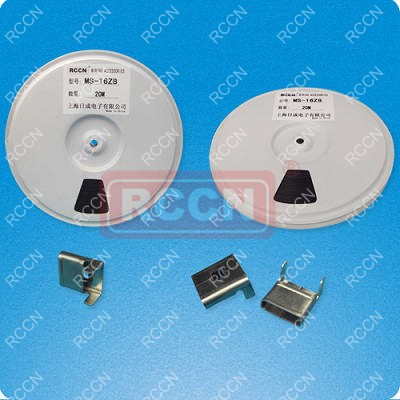

RCCN MS Stainless Steel Cable Ties http://www.wiring-ducts.com/stainless-steel-cable-tie/ http://www.wiring-ducts.com/stainless-steel-cable-tie/#comments Fri, 07 Sep 2012 06:59:11 +0000 admin http://www.wiring-ducts.com/?p=305

Material:304 stainess steel

Colors:silver,black

Features:fittings of L,O with buckle

and easy to install

Page number :B15

Item No . Type

description

Thick

mm

Wide

mm

Min Tensile Strength Packing
lbs kgs
MS12W light 0.4 12 500 228 25M
MS16W light 0.4 16 650 300
MS12ZB   plastic coated 1.2 12 500 228
MS16ZB plastic coated 1.2 16 650 300
MS12PB extruded

plastic coated

0.4 12 500 228
MS16PB extruded

plastic coated

0.4 16 650 300





]]>
http://www.wiring-ducts.com/stainless-steel-cable-tie/feed/ 0
RCCN ML Stainless Steel Cable Ties http://www.wiring-ducts.com/rccn-ml-stainless-steel-cable-ties-2/ http://www.wiring-ducts.com/rccn-ml-stainless-steel-cable-ties-2/#comments Fri, 07 Sep 2012 06:58:05 +0000 admin http://www.wiring-ducts.com/?p=1533




Material:304 stainess steel coated
plastic,black lacquer
Color:black
Features:with lock, easy to install.



Item No . Lengthmm Widemm Max.BundleDia(mm) Thicknessmm Packing
ML15012B 150 12 31 0.4 100PCS
ML20012B 200 12 47 0.4
ML25012B 250 12 64 0.4
ML30012B 300 12 79 0.4
ML35012B 350 12 95 0.4
ML40012B 400 12 110 0.4
ML45012B 450 12 125 0.4
ML50012B 500 12 140 0.4
ML30016B 300 16 78 0.4 50PCS
ML40016B 400 16 110 0.4
ML50016B 500 16 140 0.4
ML60016B 600 16 175 0.4
ML80016B 800 16 235 0.4
ML100016B 1000 16 300 0.4







]]>
