wiring duct-RCCN » tie mounts http://www.wiring-ducts.com wiring duct-RCCN Wed, 01 Jun 2016 04:22:20 +0000 en-US hourly 1 http://wordpress.org/?v=3.5.1 RCCN HC Saddle Tie Mounts http://www.wiring-ducts.com/saddle-type-tie-mount/ http://www.wiring-ducts.com/saddle-type-tie-mount/#comments Sun, 04 Oct 2009 05:35:35 +0000 admin http://www.wiring-ducts.com/?p=427





Material：UL approved NYLON 66(natural)，fireproof 94V-2
Part no. of black:HC-0B,HC-1B,HC-1LB,HC-2B




ITEM No.

H

L

W

B

T

Packing
HC-0 5.0 19.6 9.5 3.7 5.2
100pcs
or
500pcs





HC-1 7.0 15.0 10.0 3.3 5.1
HC-1L 7.0 15.0 9.5 4.5 5.1
HC-2S 9.4 21.2 15.3 4.5 9.0
HC-2A 9.8 23 16 6.0 9.0
HC-2 10.4 20.5 17.1 5.0 10.4
HC-2L 9.8 23 16 6.5 9.0
HC-3 17.5 23 13.8 9.5 5.3
HC-4 11.6 30 14.7 9.5 5.0
HC-5 10 21.5 16.0 7.8 5.8*9.7
HM-0 2.5 10.2 8.1 3.5 2.8
HM-1 3.0 18.9 12.7 4.4 5.0







]]> http://www.wiring-ducts.com/saddle-type-tie-mount/feed/ 0 RCCN AC Adjustable Cable Clamp http://www.wiring-ducts.com/rccn-ac-adjustable-cable-clamp/ http://www.wiring-ducts.com/rccn-ac-adjustable-cable-clamp/#comments Sun, 04 Oct 2009 05:33:33 +0000 admin http://www.wiring-ducts.com/?p=2097






UL approved NYLON 66(natural)，fireproof 94V-2 Material：
,with 3M tape
Color：natural



Item No.
Wire
harness
range
G
A
B
C
D
E

Packing
AC-0810 7.5-9.5 24.6 10.2 8.0 18.5 10.0
100pcs
AC-1113 11-13.5 24.9 12.2 7.25 14.9 10.0
AC-1518 15-18 34.3 15.0 8.8 18.5 12.7
AC-1621 16-21 35.8 17.1 10.1 18.7 12.7
AC-1925 19-25 39.4 19.8 10.2 19.4 13.0







]]> http://www.wiring-ducts.com/rccn-ac-adjustable-cable-clamp/feed/ 0 RCCN ATC Adjustable Cable Clamp http://www.wiring-ducts.com/adjustable-cable-clamp/ http://www.wiring-ducts.com/adjustable-cable-clamp/#comments Sun, 04 Oct 2009 05:27:44 +0000 admin http://www.wiring-ducts.com/?p=421





Material：UL approved NYLON 66(natural)，fireproof 94V-2



ITEM No. A
mm		 B
mm		 C
mm		 Max.Bundle Dia.(mm) Packing
ATC-17 25.0 18.0 7.9 17.0
100pcs
ATC-22 30.5 21.0 12.0 22.0
ATC-26 30.5 21.0 12.0 26.0





]]> http://www.wiring-ducts.com/adjustable-cable-clamp/feed/ 0 RCCN FC Self-Adhesive Wire Clip http://www.wiring-ducts.com/self-adhesive-wire-clip/ http://www.wiring-ducts.com/self-adhesive-wire-clip/#comments Sun, 04 Oct 2009 05:23:40 +0000 admin http://www.wiring-ducts.com/?p=411









Material：UL approved NYLON 66(natural)，
fireproof 94V-2





Item No.
L
L1
W
W1
H
H1

Packing
FC-1 13 8 9.5 6.5 5.2 2.8
100pcs
FC-2 16 4 15.5 9 6.8 4.0
FC-3 16 12.5 16 7.2 6.8 3.7
FC-4 27 14.8 17 7.3 8.7 5.5
FC-0605 19 5.9 19 10 7.2 4.9
FC-1001 11.9 9.3 6.0 - 3.5 1.0
FC-1206 16 11.9 15.8 8.9 9 5.8
FC-1208 26.8 11.9 26.5 12.3 11.7 8.3
FC-1813 25.6 17.8 25.5 15.8 17.2 13.3
FC-2211 32.5 22.2 28.3 18.7 15.2 11.1
FC-0903 12.8 8.9 9.8 6.6 5 2.8

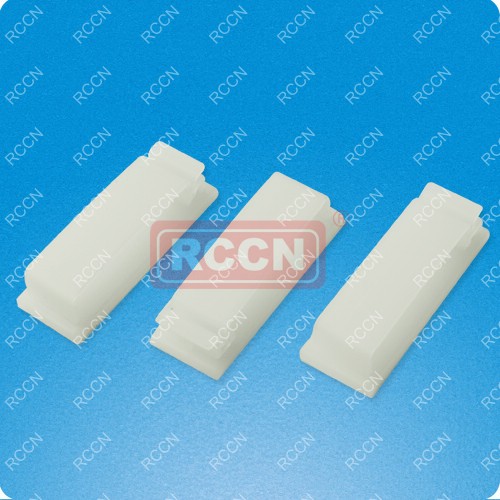

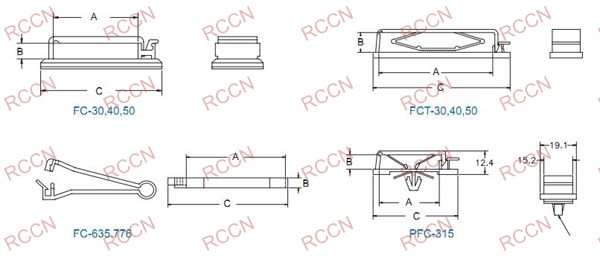

]]> http://www.wiring-ducts.com/self-adhesive-wire-clip/feed/ 0 RCCN PC Flat Cable Clamp http://www.wiring-ducts.com/flat-cable-clamp/ http://www.wiring-ducts.com/flat-cable-clamp/#comments Sun, 04 Oct 2009 05:21:41 +0000 admin http://www.wiring-ducts.com/?p=407



Material：UL approved NYLON 66(natural)，
fireproof 94V-2

Item No.
A
mm

B
mm
C
mm
PIN
Packing
FC-30 32.0 6.2 45.8 -
100pcs
FC-40 39.5 6.2 53.3 -
FC-50 63.5 6.0 77.5 50PIN
FCT-30 31.8 11.3 45.1 30PIN
FCT-40 54 11.3 67 40PIN
FCT-50 65 11.3 78.4 50PIN
FC-635 63.5 6.4 76.2 50PIN
FC-776 77.6 6.4 92.7 60PIN
FCP-315 31.4 7.6 44.7 30PIN

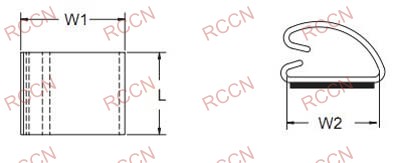

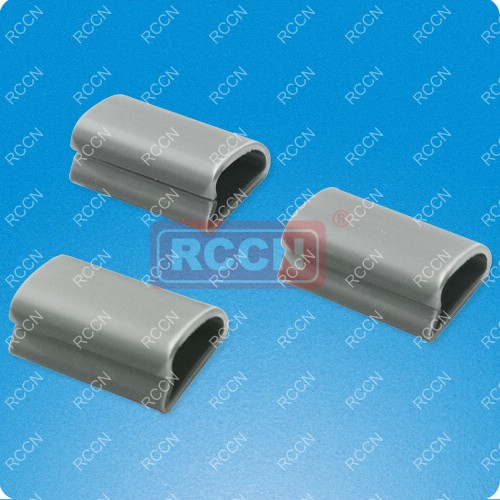

]]> http://www.wiring-ducts.com/flat-cable-clamp/feed/ 0 RCCN CL Cable Clamp http://www.wiring-ducts.com/cable-clamp-cl/ http://www.wiring-ducts.com/cable-clamp-cl/#comments Sun, 04 Oct 2009 05:20:51 +0000 admin http://www.wiring-ducts.com/?p=405





Material:PVC(gray),with adhesive tape.
Item No.
L
W1
W2
Packing
CL-15 15 18.5 16
100PCS
CL-20 20 18.5 16
CL-25 25 18.5 16
CL-28 28 18.5 16





]]> http://www.wiring-ducts.com/cable-clamp-cl/feed/ 0
