    Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware
    Certificates:UL:E306674 CE:EN50085 RoHS,REACH
    Made of rigid PVC
    UL Recognized continuous use temperature: 50°C (122°F)
    UL94 Flammability Rating of V-0
    Provided with mounting holes
    Available color:gray.white.blue.black and other special colors
    Work Temperature:-40°C to 65°C
    Special length come with MOQ request
    Comment：gray is the common color, other color need more MOQ

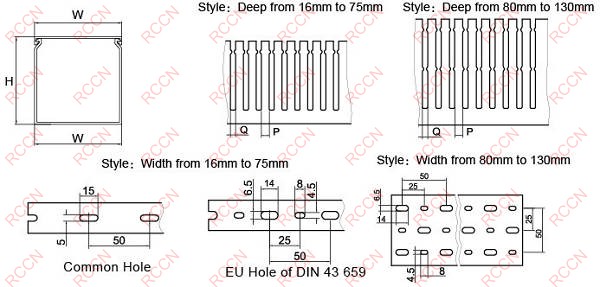

    Item No. W*H  Slot
    width
    Q    		 Finger
    width
    P    		 Wire
    capability
    /2.0sp    		 PACK
    Gray White Blue Black
    HVDR1616F HVDR1616W HVDR1616E HVDR1616B 16*16 5 5 3~10pcs 300M
    HVDR1520F HVDR1520W HVDR1520E HVDR1520B 15*20 4 6 8~12pcs 260M
    HVDR2020F HVDR2020W HVDR2020E HVDR2020B 20*20 4 6 10~20pcs 240M
    HVDR4020F HVDR4020W HVDR4020E HVDR4020B 40*20 4 6 12~28pcs 140M
    HVDR1525F HVDR1525W HVDR1525E HVDR1525B 15*25 5 6 5~15pcs 260M
    HVDR2025F HVDR2025W HVDR2025E HVDR2025B 20*20 4 6 5~15pcs 200M
    HVDR2525F HVDR2525W HVDR2525E HVDR2525B 25*25 4 6 10~25pcs 200M
    HVDR3025F HVDR3025W HVDR3025E HVDR3025B 30*25 4 6 12~28pcs 160M
    HVDR5025F HVDR5025W HVDR5025E HVDR5025B 50*25 4 6 20~30pcs 100M
    HVDR2530F HVDR2530W HVDR2530E HVDR2530B 25*30 4 6 25~35pcs 160M
    HVDR3030F HVDR3030W HVDR3030E HVDR3030B 30*30 4 6 25~35pcs 140M
    HVDR4030F HVDR4030W HVDR4030E HVDR4030B 40*30 4 6 30~40pcs 100M
    HVDR2233F HVDR2233W HVDR2233E HVDR2233B 22*33 5 6 30~45pcs 160M
    *HVDR3333F HVDR3333W HVDR3333E HVDR3333B 33*33 4 6 35~45pcs 160M
    HVDR2035F HVDR2035W HVDR2035E HVDR2035B 20*35 4 6 30~40pcs 100M
    HVDR3535F HVDR3535W HVDR3535E HVDR3535B 35*35 4 6 35~45pcs 112M
    HVDR5035F HVDR5035W HVDR5035E HVDR5035B 50*35 4 6 40~60pcs 88M
    *HVDR2040F HVDR2040W HVDR2040E HVDR2040B 20*40 4 6 16~22pcs 110M
    HVDR2540F HVDR2540W HVDR2540E HVDR2540B 25*40 4 6 20~25pcs 112M
    HVDR4040F HVDR4040W HVDR4040E HVDR4040B 40*40 4 6 60~70pcs 100M
    HVDR6040F HVDR6040W HVDR6040E HVDR6040B 60*40 4 6 100~115pcs 68M
    HVDR8040F HVDR8040W HVDR8040E HVDR8040B 80*40 4 6 120~135pcs 48M
    HVDR10040F HVDR10040W HVDR10040E HVDR10040B 100*40 4 6 120~135pcs 32M
    HVDR2545F HVDR2545W HVDR2545E HVDR2545B 25*45 4 6 20~25pcs 104M
    HVDR3345F HVDR3345W HVDR3345E HVDR3345B 33*45 4 6 40~55pcs 108M
    HVDR4545F HVDR4545W HVDR4545E HVDR4545B 45*45 4 6 60~70pcs 72M
    HVDR6545F HVDR6545W HVDR6545E HVDR6545B 65*45 4 6 110~120pcs 56M
    *HVDR2050F HVDR2050W HVDR2050E HVDR2050B 20*50 4 6 18~28pcs 100M
    HVDR2550F HVDR2550W HVDR2550E HVDR2550B 25*50 4 6 20~30pcs 100M
    HVDR3050F HVDR3050W HVDR3050E HVDR3050B 30*50 4 6 25~40pcs 84M
    HVDR3550F HVDR3550W HVDR3550E HVDR3550B 35*50 4 6 40~60pcs 80M
    HVDR4050F HVDR4050W HVDR4050E HVDR4050B 40*50 4 6 60~70pcs 68M
    HVDR4550F HVDR4550W HVDR4550E HVDR4550B 45*50 4 6 70~80pcs 60M
    HVDR5050F HVDR5050W HVDR5050E HVDR5050B 50*50 4 6 80~90pcs 50M
    HVDR5550F HVDR5550W HVDR5550E HVDR5550B 55*50 4 6 80~90pcs 48M
    HVDR6050F HVDR6050W HVDR6050E HVDR6050B 60*50 4 6 100~120pcs 48M
    HVDR8050F HVDR8050W HVDR8050E HVDR8050B 80*50 4 6 160~180pcs 40M
    HVDR10050F HVDR10050W HVDR1005E HVDR10050B 100*50 4 6 200~250pcs 26M
    HVDR12555F HVDR12555W HVDR12555E HVDR12555B 125*55 4 6 220~270pcs 20M
    HVDR2060F HVDR2060W HVDR2060E HVDR2060B 20*60 4 6 35~45pcs 100M
    HVDR2560F HVDR2560W HVDR2560E HVDR2560B 25*60 4 6 40~50pcs 100M
    HVDR3060F HVDR3060W HVDR3060E HVDR3060B 30*60 4 6 60~80pcs 80M
    *HVDR3560F HVDR3560W HVDR3560E HVDR3560B 35*60 4 6 90~105pcs 78M
    HVDR4060F HVDR4060W HVDR4060E HVDR4060B 40*60 4 6 100~115pcs 60M
    HVDR4560F HVDR4560W HVDR4560E HVDR4560B 45*60 4 6 110~125pcs 30M
    HVDR5060F HVDR5060W HVDR5060E HVDR5060B 50*60 4 6 120~135pcs 60M
    HVDR6060F HVDR6060W HVDR6060E HVDR6060B 60*60 4 6 120~135pcs 48M
    HVDR8060F HVDR8060W HVDR8060E HVDR8060B 80*60 4 6 180~210pcs 36M
    HVDR10060F HVDR10060W HVDR10060E HVDR10060B 100*60 4 6 240~290pcs 28M
    HVDR11060F HVDR11060W HVDR11060E HVDR11060B 110*60 4 6 250~300pcs 48M
    *HVDR12060F HVDR12060W HVDR12060E HVDR12060B 120*60 4 6 260~320pcs 48M
    HVDR15060F HVDR15060W HVDR15060E HVDR15060B 150*60 4 6 300~360pcs 16M
    HVDR2565F HVDR2565W HVDR2565E HVDR2565B 25*65 4 6 40~50pcs 88M
    HVDR3365F HVDR3365W HVDR3365E HVDR3365B 33*65 4 6 40~70pcs 80M
    HVDR4565F HVDR4565W HVDR4565E HVDR4565B 45*65 4 6 110~120pcs 52M
    HVDR6565F HVDR6565W HVDR6565E HVDR6565B 65*65 4 6 180~200pcs 44M
    HVDR7265F HVDR7265W HVDR7265E HVDR7265B 72*65 4 6 180~230pcs 42M
    HVDR5075F HVDR5075W HVDR5075E HVDR5075B 50*75 4 6 180~210pcs 42M
    HVDR7575F HVDR7575W HVDR7575E HVDR7575B 75*75 4 6 200~240pcs 40M
    HVDR2580F HVDR2580W HVDR2580E HVDR2580B 25*80 4 6 100~120pcs 72M
    HVDR3080F HVDR3080W HVDR3080E HVDR3080B 30*80 4 6 110~125pcs 56M
    HVDR3580F HVDR3580W HVDR3580E HVDR3580B 35*80 4 6 110~130pcs 56M
    HVDR4080F HVDR4080W HVDR4080E HVDR4080B 40*80 4 6 140~160pcs 48M
    HVDR4580F HVDR4580W HVDR4580E HVDR4580B 45*80 4 6 140~160pcs 40M
    HVDR5080F HVDR5080W HVDR5080E HVDR5080B 50*80 4 6 160~180pcs 40M
    HVDR5580F HVDR5580W HVDR5580E HVDR5580B 55*80 4 6 160~180pcs 32M
    HVDR6080F HVDR6080W HVDR6080E HVDR6080B 60*80 4 6 180~210pcs 32M
    HVDR8080F HVDR8080W HVDR8080E HVDR8080B 80*80 4 6 240~290pcs 24M
    HVDR10080F HVDR10080W HVDR10080E HVDR10080B 100*80 4 6 260~350pcs 24M
    HVDR12080F HVDR12080W HVDR12080E HVDR12080B 120*80 4 6 280~380pcs 16M
    HVDR14080F HVDR14080W HVDR14080E HVDR14080B 140*80 4 6 350~450pcs 16M
    HVDR25100F HVDR25100W HVDR25100E HVDR25100B 25*100 4 6 110~160pcs 60M
    HVDR33100F HVDR33100W HVDR33100E HVDR33100B 33*100 4 6 130~175pcs 44M
    HVDR40100F HVDR40100W HVDR40100E HVDR40100B 40*100 4 6 130~175pcs 40M
    HVDR50100F HVDR50100W HVDR50100E HVDR50100B 50*100 4 6 220~250pcs 40M
    HVDR60100F HVDR60100W HVDR60100E HVDR60100B 60*100 4 6 240~290pcs 32M
    HVDR70100F HVDR70100W HVDR70100E HVDR70100B 70*100 4 6 250~310pcs 24M
    HVDR75100F HVDR75100W HVDR75100E HVDR75100B 75*100 4 6 260~350pcs 24M
    HVDR80100F HVDR80100W HVDR80100E HVDR80100B 80*100 4 6 260~350pcs 24M
    HVDR100100F HVDR100100W HVDR100100E HVDR100100B 100*100 4 6 300~400pcs 24M
    HVDR120100F HVDR120100W HVDR120100E HVDR120100B 120*100 4 6 350~450pcs 16M
    HVDR150100F HVDR150100W HVDR150100E HVDR150100B 150*100 4 6 400~650pcs 16M
    *HVDR200100F HVDR200100W HVDR200100E HVDR200100B 200*100 4 6 600~800pcs 16M
    HVDR100130F HVDR100130W HVDR100130E HVDR100130B 100*130 4 6 350~450pcs 16M
    *HVDR200150F HVDR200150W HVDR200150E HVDR200150B 200*150 4 6 900~1200pcs 16M






    RCCN  Din Rails



    Material:high quality and strength cold rolled steel with electroplate
    EN50022 Product standard: EN50022
    Color: yellow plated nickle,silver plated zinc
    Operated temperature:-40°C standing heat to 100°C
    Use way: fixed on the panel then installed with electric parts
    Features: perfect design,with huge pressure,exactly dia., rust resistant
    Special length or special hole come with MOQ., Rohs approved products are available.
    TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS
    Item No.
    Outer width/Outer height/
    Thickness/Length    		 Material Length
    per pcs    		 Packing/
    carton
    TS-35/7.5   Series
    TS-35/7.5/1.0/1M Color zinc steel 1M 50M
    TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
    TS-35/7.5/1.0/2M Color zinc steel 2M 100M
    TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
    TS-35/15  Series
    TS-35/15/1.5/1M Color zinc steel 1M 30M
    TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
    TS-35/15/1.5/2M Color zinc steel 2M 60M
    TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
    LSC-35/7.5/1.1  Series
    LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
    LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5 Series
    LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M



    ]]>     http://www.wiring-ducts.com/wiring-duct/feed/ 0     RCCN HVDRF Wiring Duct http://www.wiring-ducts.com/wiring-duct-hvdrf/ http://www.wiring-ducts.com/wiring-duct-hvdrf/#comments Mon, 10 Sep 2012 08:31:00 +0000 admin http://www.wiring-ducts.com/?p=722



    Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware

    Certificates:UL:E306674 CE:EN50085 RoHS,REACH

    Made of rigid PVC

    UL Recognized continuous use temperature: 50°C (122°F)

    UL94 Flammability Rating of V-0

    Provided with mounting holes

    Available color:gray.white.blue.black and other special colors

    Work Temperature:-40°C to 65°C

    Special length come with MOQ request

    Comment：gray is the common color, other color need more MOQ



    Item No. W*H  Slot

    width

    Q

    		 Finger

    width

    P

    		 Wire

    capability

    /2.0sp

    		 PACK
    Gray White Blue Black
    HVDR1616F HVDR1616W HVDR1616E HVDR1616B 16*16 5 5 3~10pcs 300M
    HVDR1520F HVDR1520W HVDR1520E HVDR1520B 15*20 4 6 8~12pcs 260M
    HVDR2020F HVDR2020W HVDR2020E HVDR2020B 20*20 4 6 10~20pcs 240M
    HVDR4020F HVDR4020W HVDR4020E HVDR4020B 40*20 4 6 12~28pcs 140M
    HVDR1525F HVDR1525W HVDR1525E HVDR1525B 15*25 5 6 5~15pcs 260M
    HVDR2025F HVDR2025W HVDR2025E HVDR2025B 20*20 4 6 5~15pcs 200M
    HVDR2525F HVDR2525W HVDR2525E HVDR2525B 25*25 4 6 10~25pcs 200M
    HVDR3025F HVDR3025W HVDR3025E HVDR3025B 30*25 4 6 12~28pcs 160M
    HVDR5025F HVDR5025W HVDR5025E HVDR5025B 50*25 4 6 20~30pcs 100M
    HVDR2530F HVDR2530W HVDR2530E HVDR2530B 25*30 4 6 25~35pcs 160M
    HVDR3030F HVDR3030W HVDR3030E HVDR3030B 30*30 4 6 25~35pcs 140M
    HVDR4030F HVDR4030W HVDR4030E HVDR4030B 40*30 4 6 30~40pcs 100M
    HVDR2233F HVDR2233W HVDR2233E HVDR2233B 22*33 5 6 30~45pcs 160M
    *HVDR3333F HVDR3333W HVDR3333E HVDR3333B 33*33 4 6 35~45pcs 160M
    HVDR2035F HVDR2035W HVDR2035E HVDR2035B 20*35 4 6 30~40pcs 100M
    HVDR3535F HVDR3535W HVDR3535E HVDR3535B 35*35 4 6 35~45pcs 112M
    HVDR5035F HVDR5035W HVDR5035E HVDR5035B 50*35 4 6 40~60pcs 88M
    *HVDR2040F HVDR2040W HVDR2040E HVDR2040B 20*40 4 6 16~22pcs 110M
    HVDR2540F HVDR2540W HVDR2540E HVDR2540B 25*40 4 6 20~25pcs 112M
    HVDR4040F HVDR4040W HVDR4040E HVDR4040B 40*40 4 6 60~70pcs 100M
    HVDR6040F HVDR6040W HVDR6040E HVDR6040B 60*40 4 6 100~115pcs 68M
    HVDR8040F HVDR8040W HVDR8040E HVDR8040B 80*40 4 6 120~135pcs 48M
    HVDR10040F HVDR10040W HVDR10040E HVDR10040B 100*40 4 6 120~135pcs 32M
    HVDR2545F HVDR2545W HVDR2545E HVDR2545B 25*45 4 6 20~25pcs 104M
    HVDR3345F HVDR3345W HVDR3345E HVDR3345B 33*45 4 6 40~55pcs 108M
    HVDR4545F HVDR4545W HVDR4545E HVDR4545B 45*45 4 6 60~70pcs 72M
    HVDR6545F HVDR6545W HVDR6545E HVDR6545B 65*45 4 6 110~120pcs 56M
    *HVDR2050F HVDR2050W HVDR2050E HVDR2050B 20*50 4 6 18~28pcs 100M
    HVDR2550F HVDR2550W HVDR2550E HVDR2550B 25*50 4 6 20~30pcs 100M
    HVDR3050F HVDR3050W HVDR3050E HVDR3050B 30*50 4 6 25~40pcs 84M
    HVDR3550F HVDR3550W HVDR3550E HVDR3550B 35*50 4 6 40~60pcs 80M
    HVDR4050F HVDR4050W HVDR4050E HVDR4050B 40*50 4 6 60~70pcs 68M
    HVDR4550F HVDR4550W HVDR4550E HVDR4550B 45*50 4 6 70~80pcs 60M
    HVDR5050F HVDR5050W HVDR5050E HVDR5050B 50*50 4 6 80~90pcs 50M
    HVDR5550F HVDR5550W HVDR5550E HVDR5550B 55*50 4 6 80~90pcs 48M
    HVDR6050F HVDR6050W HVDR6050E HVDR6050B 60*50 4 6 100~120pcs 48M
    HVDR8050F HVDR8050W HVDR8050E HVDR8050B 80*50 4 6 160~180pcs 40M
    HVDR10050F HVDR10050W HVDR1005E HVDR10050B 100*50 4 6 200~250pcs 26M
    HVDR12555F HVDR12555W HVDR12555E HVDR12555B 125*55 4 6 220~270pcs 20M
    HVDR2060F HVDR2060W HVDR2060E HVDR2060B 20*60 4 6 35~45pcs 100M
    HVDR2560F HVDR2560W HVDR2560E HVDR2560B 25*60 4 6 40~50pcs 100M
    HVDR3060F HVDR3060W HVDR3060E HVDR3060B 30*60 4 6 60~80pcs 80M
    *HVDR3560F HVDR3560W HVDR3560E HVDR3560B 35*60 4 6 90~105pcs 78M
    HVDR4060F HVDR4060W HVDR4060E HVDR4060B 40*60 4 6 100~115pcs 60M
    HVDR4560F HVDR4560W HVDR4560E HVDR4560B 45*60 4 6 110~125pcs 30M
    HVDR5060F HVDR5060W HVDR5060E HVDR5060B 50*60 4 6 120~135pcs 60M
    HVDR6060F HVDR6060W HVDR6060E HVDR6060B 60*60 4 6 120~135pcs 48M
    HVDR8060F HVDR8060W HVDR8060E HVDR8060B 80*60 4 6 180~210pcs 36M
    HVDR10060F HVDR10060W HVDR10060E HVDR10060B 100*60 4 6 240~290pcs 28M
    HVDR11060F HVDR11060W HVDR11060E HVDR11060B 110*60 4 6 250~300pcs 48M
    *HVDR12060F HVDR12060W HVDR12060E HVDR12060B 120*60 4 6 260~320pcs 48M
    HVDR15060F HVDR15060W HVDR15060E HVDR15060B 150*60 4 6 300~360pcs 16M
    HVDR2565F HVDR2565W HVDR2565E HVDR2565B 25*65 4 6 40~50pcs 88M
    HVDR3365F HVDR3365W HVDR3365E HVDR3365B 33*65 4 6 40~70pcs 80M
    HVDR4565F HVDR4565W HVDR4565E HVDR4565B 45*65 4 6 110~120pcs 52M
    HVDR6565F HVDR6565W HVDR6565E HVDR6565B 65*65 4 6 180~200pcs 44M
    HVDR7265F HVDR7265W HVDR7265E HVDR7265B 72*65 4 6 180~230pcs 42M
    HVDR5075F HVDR5075W HVDR5075E HVDR5075B 50*75 4 6 180~210pcs 42M
    HVDR7575F HVDR7575W HVDR7575E HVDR7575B 75*75 4 6 200~240pcs 40M
    HVDR2580F HVDR2580W HVDR2580E HVDR2580B 25*80 4 6 100~120pcs 72M
    HVDR3080F HVDR3080W HVDR3080E HVDR3080B 30*80 4 6 110~125pcs 56M
    HVDR3580F HVDR3580W HVDR3580E HVDR3580B 35*80 4 6 110~130pcs 56M
    HVDR4080F HVDR4080W HVDR4080E HVDR4080B 40*80 4 6 140~160pcs 48M
    HVDR4580F HVDR4580W HVDR4580E HVDR4580B 45*80 4 6 140~160pcs 40M
    HVDR5080F HVDR5080W HVDR5080E HVDR5080B 50*80 4 6 160~180pcs 40M
    HVDR5580F HVDR5580W HVDR5580E HVDR5580B 55*80 4 6 160~180pcs 32M
    HVDR6080F HVDR6080W HVDR6080E HVDR6080B 60*80 4 6 180~210pcs 32M
    HVDR8080F HVDR8080W HVDR8080E HVDR8080B 80*80 4 6 240~290pcs 24M
    HVDR10080F HVDR10080W HVDR10080E HVDR10080B 100*80 4 6 260~350pcs 24M
    HVDR12080F HVDR12080W HVDR12080E HVDR12080B 120*80 4 6 280~380pcs 16M
    HVDR14080F HVDR14080W HVDR14080E HVDR14080B 140*80 4 6 350~450pcs 16M
    HVDR25100F HVDR25100W HVDR25100E HVDR25100B 25*100 4 6 110~160pcs 60M
    HVDR33100F HVDR33100W HVDR33100E HVDR33100B 33*100 4 6 130~175pcs 44M
    HVDR40100F HVDR40100W HVDR40100E HVDR40100B 40*100 4 6 130~175pcs 40M
    HVDR50100F HVDR50100W HVDR50100E HVDR50100B 50*100 4 6 220~250pcs 40M
    HVDR60100F HVDR60100W HVDR60100E HVDR60100B 60*100 4 6 240~290pcs 32M
    HVDR70100F HVDR70100W HVDR70100E HVDR70100B 70*100 4 6 250~310pcs 24M
    HVDR75100F HVDR75100W HVDR75100E HVDR75100B 75*100 4 6 260~350pcs 24M
    HVDR80100F HVDR80100W HVDR80100E HVDR80100B 80*100 4 6 260~350pcs 24M
    HVDR100100F HVDR100100W HVDR100100E HVDR100100B 100*100 4 6 300~400pcs 24M
    HVDR120100F HVDR120100W HVDR120100E HVDR120100B 120*100 4 6 350~450pcs 16M
    HVDR150100F HVDR150100W HVDR150100E HVDR150100B 150*100 4 6 400~650pcs 16M
    *HVDR200100F HVDR200100W HVDR200100E HVDR200100B 200*100 4 6 600~800pcs 16M
    HVDR100130F HVDR100130W HVDR100130E HVDR100130B 100*130 4 6 350~450pcs 16M
    *HVDR200150F HVDR200150W HVDR200150E HVDR200150B 200*150 4 6 900~1200pcs 16M















    RCCN  Din Rails



    Material:high quality and strength cold rolled steel with electroplate

    EN50022 Product standard: EN50022

    Color: yellow plated nickle,silver plated zinc

    Operated temperature:-40°C standing heat to 100°C

    Use way: fixed on the panel then installed with electric parts

    Features: perfect design,with huge pressure,exactly dia., rust resistant

    Special length or special hole come with MOQ., Rohs approved products are available.

    TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

    Item No.

    Outer width/Outer height/

    Thickness/Length

    		 Material Length

    per pcs

    		 Packing/

    carton
    TS-35/7.5   Series
    TS-35/7.5/1.0/1M Color zinc steel 1M 50M
    TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
    TS-35/7.5/1.0/2M Color zinc steel 2M 100M
    TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
    TS-35/15  Series
    TS-35/15/1.5/1M Color zinc steel 1M 30M
    TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
    TS-35/15/1.5/2M Color zinc steel 2M 60M
    TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
    LSC-35/7.5/1.1  Series
    LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
    LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5 Series
    LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M







    ]]>     http://www.wiring-ducts.com/wiring-duct-hvdrf/feed/ 0     RCCN Solid Wiring Duct http://www.wiring-ducts.com/solid-wiring-duct/ http://www.wiring-ducts.com/solid-wiring-duct/#comments Mon, 10 Sep 2012 08:28:25 +0000 admin http://www.wiring-ducts.com/?p=2138

    Wide slot/finger design provides greater sidewall rigidity and can
    be used with a wide range of wire bundle sizes。
    Certificates:UL:E306674 CE:EN50085 RoHS,REACH。Made of rigid PVC
    Work temperature:-40 °c to 65 °c
    UL94 Flammability Rating of V-0
    Provided with mounting holes
    Available color:gray.white.blue.black and other special colors
    Special length come with MOQ request






    Item No.

    W*H

        Wire
    capability/2.0sp

    Pack/M
    Gray White Blue Black
    SDR1616 SDR1616W SDR1616E SDR1616B 16*16 3~10pcs 300M
    *SDR2516 SDR2516W SDR2516E SDR2516B 25*16 5~15pcs 240M
    *SDR4016 SDR4016W SDR4016E SDR4016B 40*16 15~30pcs 200M
    SDR1520 SDR1520W SDR1520E SDR1520B 15*20 8~12pcs 260M
    SDR2020 SDR2020W SDR2020E SDR2020B 20*20 10~20pcs 240M
    SDR4020 SDR4020W SDR4020E SDR4020B 40*20 20-30pcs 140M
    SDR1525 SDR1525W SDR1525E SDR1525B 15*25 5~15pcs 260M
    SDR2025 SDR2025W SDR2025E SDR2025B 20*25 5~15pcs 200M
    SDR2525 SDR2525W SDR2525E SDR2525B 25*25 10~25pcs 200M
    SDR3025 SDR3025W SDR3025E SDR3025B 30*25 12~28pcs 160M
    *SDR4025 SDR4025W SDR4025E SDR4025B 40*25 20~25pcs 120M
    *SDR5025 SDR5025W SDR5025E SDR5025B 50*25 20~25pcs 100M
    SDR1530 SDR1530W SDR1530E SDR1530B 15*30 8~15pcs 200M
    SDR2030 SDR2030W SDR2030E SDR2030B 20*30 25~35pcs 180M
    SDR2530 SDR2530W SDR2530E SDR2530B 25*30 25~35pcs 160M
    SDR3030 SDR3030W SDR3030E SDR3030B 30*30 25~35pcs 140M
    SDR4030 SDR4030W SDR4030E SDR4030B 40*30 30~40pcs 100M
    GDR5030 GDR5030W GDR5030E GDR5030B 50*30 40-50pcs 80M
    GDR6030 GDR6030W GDR6030E GDR6030B 60*30 50-60pcs 60M
    SDR2233 SDR2233W SDR2233E SDR2233B 22*33 15~25pcs 180M
    SDR3333 SDR3333W SDR3333E SDR3333B 33*33 30~40pcs 160M
    SDR2035 SDR2035W SDR2035E SDR2035B 20*35 30~40pcs 100M
    SDR3535 SDR3535W SDR3535E SDR3535B 35*35 35~45pcs 112M
    SDR5035 SDR5035W SDR5035E SDR5035B 50*35 40~60pcs 88M
    *SDR2040 SDR2040W SDR2040E SDR2040B 20*40 20~25pcs 110M
    SDR2540 SDR2540W SDR2540E SDR2540B 25*40 20~25pcs 112M
    SDR3540 SDR3540W SDR3540E SDR3540B 35*40 50-60pcs 100M
    SDR4040 SDR4040W SDR4040E SDR4040B 40*40 60~70pcs 100M
    SDR6040 SDR6040W SDR6040E SDR6040B 60*40 100~115pcs 68M
    SDR8040 SDR8040W SDR8040E SDR8040B 80*40 120~135pcs 48M
    SDR10040 SDR10040W SDR10040E SDR10040B 100*40 120~135pcs 32M
    SDR12040 SDR12040W SDR12040E SDR12040B 120*40 140-165pcs
    /
    SDR2545 SDR2545W SDR2545E SDR2545B 25*45 20~25pcs

    104M
    SDR3345 SDR3345W SDR3345E SDR3345B 33*45 40~55pcs 108M
    SDR4545 SDR4545W SDR4545E SDR4545B 45*45 60~70pcs 72M
    SDR6545 SDR6545W SDR6545E SDR6545B 65*45 110~120pcs 56M
    SDR2050 SDR2050W SDR2050E SDR2050B 20*50 20~30pcs 100M
    SDR2550 SDR2550W SDR2550E SDR2550B 25*50 20~30pcs 100M
    SDR3050 SDR3050W SDR3050E SDR3050B 30*50 25~40pcs 84M
    SDR3550 SDR3550W SDR3550E SDR3550B 35*50 40~60pcs 80M
    SDR4050 SDR4050W SDR4050E SDR4050B 40*50 60~70pcs 68M
    SDR4550 SDR4550W SDR4550E SDR4550B 45*50 70~80pcs 60M
    SDR5050 SDR5050W SDR5050E SDR5050B 50*50 80~90pcs 60M
    SDR5550 SDR5550W SDR5550E SDR5550B 55*50 85~95pcs 50M
    SDR6050 SDR6050W SDR6050E SDR6050B 60*50 100~120pcs 48M
    SDR7550 SDR7550W SDR7550E SDR7550B 75*50 140~160pcs 40M
    SDR8050 SDR8050W SDR8050E SDR8050B 80*50 160~180pcs 40M
    SDR10050 SDR10050W SDR10050E SDR10050B 100*50 200~250pcs 26M
    SDR12555 SDR12555W SDR12555E SDR12555B 125*55 220~270pcs 20M
    SDR2060 SDR2060W SDR2060E SDR2060B 20*60 5~45pcs 100M
    SDR2560 SDR2560W SDR2560E SDR2560B 25*60 40~50pcs 100M
    SDR3060 SDR3060W SDR3060E SDR3060B 30*60 60~80pcs 80M
    *SDR3560 SDR3560W SDR3560E SDR3560B 35*60 65~85pcs 70M
    SDR4060 SDR4060W SDR4060E SDR4060B 40*60 100~115pcs 60M
    SDR4560 SDR4560W SDR4560E SDR4560B 45*60 110~125pcs 30M
    SDR5060 SDR5060W SDR5060E SDR5060B 50*60 120~135pcs 60M
    SDR6060 SDR6060W SDR6060E SDR6060B 60*60 120~135pcs 48M
    SDR8060 SDR8060W SDR8060E SDR8060B 80*60 180~210pcs 36M
    SDR10060 SDR10060W SDR10060E SDR10060B 100*60 240~290pcs 28M
    SDR11060 SDR11060W SDR11060E SDR11060B 110*60 250~300pcs 48M
    *SDR12060 SDR12060W SDR12060E SDR12060B 120*60 260~320pcs 48M
    SDE15060 SDE15060W SDE15060E SDE15060B 150*60 300-360pcs 16M
    SDR2565 SDR2565W SDR2565E SDR2565B 25*65 40~50pcs 88M
    SDR3365 SDR3365W SDR3365E SDR3365B 33*65 40~70pcs 80M
    SDR4565 SDR4565W SDR4565E SDR4565B 45*65 110~120pcs 52M
    SDR6565 SDR6565W SDR6565E SDR6565B 65*65 180~200pcs 44M
    SDR7265 SDR7265W SDR7265E SDR7265B 72*65 190~210pcs 40M
    SDR2575 SDR2575W SDR2575E SDR2575B 25*75 140-170pcs
    /
    SDR3575 SDR3575W SDR3575E SDR3575B 35*75 160-190pcs
    /
    SDR5075 SDR5075W SDR5075E SDR5075B 50*75 180~210pcs 32M
    SDR7575 SDR7575W SDR7575E SDR7575B 75*75 200~240pcs 24M
    SDR10075 SDR10075W SDR10075E SDR10075B 100*75 220~260pcs 24M
    SDR2580 SDR2580W SDR2580E SDR2580B 25*80 100~120pcs 72M
    SDR3080 SDR3080W SDR3080E SDR3080B 30*80 110~125pcs 56M
    SDR3580 SDR3580W SDR3580E SDR3580B 35*80 110~130pcs 56M
    SDR4080 SDR4080W SDR4080E SDR4080B 40*80 140~160pcs 48M
    SDR4580 SDR4580W SDR4580E SDR4580B 45*80 140~160pcs 40M
    SDR5080 SDR5080W SDR5080E SDR5080B 50*80 160~180pcs 40M
    SDR5580 SDR5580W SDR5580E SDR5580B 55*80 160~180pcs 32M
    SDR6080 SDR6080W SDR6080E SDR6080B 60*80 180~210pcs 32M
    SDR8080 SDR8080W SDR8080E SDR8080B 80*80 240~290pcs 24M
    SDR10080 SDR10080W SDR10080E SDR10080B 100*80 260~350pcs 24M
    SDR12080 SDR12080W SDR12080E SDR12080B 120*80 280~380pcs 16M
    SDR14080 SDR14080W SDR14080E SDR14080B 140*80 350~450pcs 16M
    SDR25100 SDR25100W SDR25100E SDR25100B 25*100 110~160pcs 60M
    SDR33100 SDR33100W SDR33100E SDR33100B 33*100 130~165pcs 44M
    SDR40100 SDR40100W SDR40100E SDR40100B 40*100 130~175pcs 40M
    SDR50100 SDR50100W SDR50100E SDR50100B 50*100 220~250pcs 40M
    SDR60100 SDR60100W SDR60100E SDR60100B 60*100 240~290pcs 32M
    SDR70100 SDR70100W SDR70100E SDR70100B 70*100 240~290pcs 32M
    SDR75100 SDR75100W SDR75100E SDR75100B 75*100 260~350pcs 24M
    SDR80100 SDR80100W SDR80100E SDR80100B 80*100 260~350pcs 24M
    SDR100100 SDR100100W SDR100100E SDR100100B 100*100 300~400pcs 24M
    SDR120100 SDR120100W SDR120100E SDR120100B 120*100 350~450pcs 16M
    SDR150100 SDR150100W SDR150100E SDR150100B 150*100 400~650pcs 16M
    SDR100130 SDR100130W SDR100130E SDR100130B 100*130 350~450pcs 16M
    *SDR200100 SDR200100W SDR200100E SDR200100B 200*100 600~800pcs 12M
    *SDR200150 *SDR200150W *SDR200150E *SDR200150B 200*150 900~1200pcs 10M
    *SDR200200 SDR200200W SDR200200E SDR200200B 200*200 1200-1600pcs
    /


















    RCCN  Din Rails








    Material:high quality and strength cold rolled steel with electroplate
    EN50022 Product standard: EN50022
    Color: yellow plated nickle,silver plated zinc
    Operated temperature:-40°C standing heat to 100°C
    Use way: fixed on the panel then installed with electric parts
    Features: perfect design,with huge pressure,exactly dia., rust resistant
    Special length or special hole come with MOQ., Rohs approved products are available.
    TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





    Item No.
    Outer width/Outer height/
    Thickness/Length     		 Material Length
    per pcs    		 Packing/
    carton
    TS-35/7.5   Series
    TS-35/7.5/1.0/1M Color zinc steel 1M 50M
    TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
    TS-35/7.5/1.0/2M Color zinc steel 2M 100M
    TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
    TS-35/15  Series
    TS-35/15/1.5/1M Color zinc steel 1M 30M
    TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
    TS-35/15/1.5/2M Color zinc steel 2M 60M
    TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
    LSC-35/7.5/1.1  Series
    LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
    LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5 Series
    LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M













    ]]>     http://www.wiring-ducts.com/solid-wiring-duct/feed/ 0     RCCN Duct HVDRW(white) http://www.wiring-ducts.com/wiring-duct-hvdrwwhite/ http://www.wiring-ducts.com/wiring-duct-hvdrwwhite/#comments Mon, 10 Sep 2012 08:19:59 +0000 admin http://www.wiring-ducts.com/?p=716


    Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware
    Certificates:UL:E306674 CE:EN50085 RoHS,REACH
    Made of rigid PVC
    UL Recognized continuous use temperature: 50°C (122°F)
    UL94 Flammability Rating of V-0
    Provided with mounting holes
    Available color:gray.white.blue.black and other special colors
    Work Temperature:-40°C to 65°C
    Special length come with MOQ request
    Comment：gray is the common color, other color need more MOQ



    Item No. W*H  Slot
    width
    Q    		 Finger
    width
    P    		 Wire
    capability
    /2.0sp    		 PACK
    Gray White Blue Black
    HVDR1616F HVDR1616W HVDR1616E HVDR1616B 16*16 5 5 3~10pcs 300M
    HVDR1520F HVDR1520W HVDR1520E HVDR1520B 15*20 4 6 8~12pcs 260M
    HVDR2020F HVDR2020W HVDR2020E HVDR2020B 20*20 4 6 10~20pcs 240M
    HVDR4020F HVDR4020W HVDR4020E HVDR4020B 40*20 4 6 12~28pcs 140M
    HVDR1525F HVDR1525W HVDR1525E HVDR1525B 15*25 5 6 5~15pcs 260M
    HVDR2025F HVDR2025W HVDR2025E HVDR2025B 20*20 4 6 5~15pcs 200M
    HVDR2525F HVDR2525W HVDR2525E HVDR2525B 25*25 4 6 10~25pcs 200M
    HVDR3025F HVDR3025W HVDR3025E HVDR3025B 30*25 4 6 12~28pcs 160M
    HVDR5025F HVDR5025W HVDR5025E HVDR5025B 50*25 4 6 20~30pcs 100M
    HVDR2530F HVDR2530W HVDR2530E HVDR2530B 25*30 4 6 25~35pcs 160M
    HVDR3030F HVDR3030W HVDR3030E HVDR3030B 30*30 4 6 25~35pcs 140M
    HVDR4030F HVDR4030W HVDR4030E HVDR4030B 40*30 4 6 30~40pcs 100M
    HVDR2233F HVDR2233W HVDR2233E HVDR2233B 22*33 5 6 30~45pcs 160M
    *HVDR3333F HVDR3333W HVDR3333E HVDR3333B 33*33 4 6 35~45pcs 160M
    HVDR2035F HVDR2035W HVDR2035E HVDR2035B 20*35 4 6 30~40pcs 100M
    HVDR3535F HVDR3535W HVDR3535E HVDR3535B 35*35 4 6 35~45pcs 112M
    HVDR5035F HVDR5035W HVDR5035E HVDR5035B 50*35 4 6 40~60pcs 88M
    *HVDR2040F HVDR2040W HVDR2040E HVDR2040B 20*40 4 6 16~22pcs 110M
    HVDR2540F HVDR2540W HVDR2540E HVDR2540B 25*40 4 6 20~25pcs 112M
    HVDR4040F HVDR4040W HVDR4040E HVDR4040B 40*40 4 6 60~70pcs 100M
    HVDR6040F HVDR6040W HVDR6040E HVDR6040B 60*40 4 6 100~115pcs 68M
    HVDR8040F HVDR8040W HVDR8040E HVDR8040B 80*40 4 6 120~135pcs 48M
    HVDR10040F HVDR10040W HVDR10040E HVDR10040B 100*40 4 6 120~135pcs 32M
    HVDR2545F HVDR2545W HVDR2545E HVDR2545B 25*45 4 6 20~25pcs 104M
    HVDR3345F HVDR3345W HVDR3345E HVDR3345B 33*45 4 6 40~55pcs 108M
    HVDR4545F HVDR4545W HVDR4545E HVDR4545B 45*45 4 6 60~70pcs 72M
    HVDR6545F HVDR6545W HVDR6545E HVDR6545B 65*45 4 6 110~120pcs 56M
    *HVDR2050F HVDR2050W HVDR2050E HVDR2050B 20*50 4 6 18~28pcs 100M
    HVDR2550F HVDR2550W HVDR2550E HVDR2550B 25*50 4 6 20~30pcs 100M
    HVDR3050F HVDR3050W HVDR3050E HVDR3050B 30*50 4 6 25~40pcs 84M
    HVDR3550F HVDR3550W HVDR3550E HVDR3550B 35*50 4 6 40~60pcs 80M
    HVDR4050F HVDR4050W HVDR4050E HVDR4050B 40*50 4 6 60~70pcs 68M
    HVDR4550F HVDR4550W HVDR4550E HVDR4550B 45*50 4 6 70~80pcs 60M
    HVDR5050F HVDR5050W HVDR5050E HVDR5050B 50*50 4 6 80~90pcs 50M
    HVDR5550F HVDR5550W HVDR5550E HVDR5550B 55*50 4 6 80~90pcs 48M
    HVDR6050F HVDR6050W HVDR6050E HVDR6050B 60*50 4 6 100~120pcs 48M
    HVDR8050F HVDR8050W HVDR8050E HVDR8050B 80*50 4 6 160~180pcs 40M
    HVDR10050F HVDR10050W HVDR1005E HVDR10050B 100*50 4 6 200~250pcs 26M
    HVDR12555F HVDR12555W HVDR12555E HVDR12555B 125*55 4 6 220~270pcs 20M
    HVDR2060F HVDR2060W HVDR2060E HVDR2060B 20*60 4 6 35~45pcs 100M
    HVDR2560F HVDR2560W HVDR2560E HVDR2560B 25*60 4 6 40~50pcs 100M
    HVDR3060F HVDR3060W HVDR3060E HVDR3060B 30*60 4 6 60~80pcs 80M
    *HVDR3560F HVDR3560W HVDR3560E HVDR3560B 35*60 4 6 90~105pcs 78M
    HVDR4060F HVDR4060W HVDR4060E HVDR4060B 40*60 4 6 100~115pcs 60M
    HVDR4560F HVDR4560W HVDR4560E HVDR4560B 45*60 4 6 110~125pcs 30M
    HVDR5060F HVDR5060W HVDR5060E HVDR5060B 50*60 4 6 120~135pcs 60M
    HVDR6060F HVDR6060W HVDR6060E HVDR6060B 60*60 4 6 120~135pcs 48M
    HVDR8060F HVDR8060W HVDR8060E HVDR8060B 80*60 4 6 180~210pcs 36M
    HVDR10060F HVDR10060W HVDR10060E HVDR10060B 100*60 4 6 240~290pcs 28M
    HVDR11060F HVDR11060W HVDR11060E HVDR11060B 110*60 4 6 250~300pcs 48M
    *HVDR12060F HVDR12060W HVDR12060E HVDR12060B 120*60 4 6 260~320pcs 48M
    HVDR15060F HVDR15060W HVDR15060E HVDR15060B 150*60 4 6 300~360pcs 16M
    HVDR2565F HVDR2565W HVDR2565E HVDR2565B 25*65 4 6 40~50pcs 88M
    HVDR3365F HVDR3365W HVDR3365E HVDR3365B 33*65 4 6 40~70pcs 80M
    HVDR4565F HVDR4565W HVDR4565E HVDR4565B 45*65 4 6 110~120pcs 52M
    HVDR6565F HVDR6565W HVDR6565E HVDR6565B 65*65 4 6 180~200pcs 44M
    HVDR7265F HVDR7265W HVDR7265E HVDR7265B 72*65 4 6 180~230pcs 42M
    HVDR5075F HVDR5075W HVDR5075E HVDR5075B 50*75 4 6 180~210pcs 42M
    HVDR7575F HVDR7575W HVDR7575E HVDR7575B 75*75 4 6 200~240pcs 40M
    HVDR2580F HVDR2580W HVDR2580E HVDR2580B 25*80 4 6 100~120pcs 72M
    HVDR3080F HVDR3080W HVDR3080E HVDR3080B 30*80 4 6 110~125pcs 56M
    HVDR3580F HVDR3580W HVDR3580E HVDR3580B 35*80 4 6 110~130pcs 56M
    HVDR4080F HVDR4080W HVDR4080E HVDR4080B 40*80 4 6 140~160pcs 48M
    HVDR4580F HVDR4580W HVDR4580E HVDR4580B 45*80 4 6 140~160pcs 40M
    HVDR5080F HVDR5080W HVDR5080E HVDR5080B 50*80 4 6 160~180pcs 40M
    HVDR5580F HVDR5580W HVDR5580E HVDR5580B 55*80 4 6 160~180pcs 32M
    HVDR6080F HVDR6080W HVDR6080E HVDR6080B 60*80 4 6 180~210pcs 32M
    HVDR8080F HVDR8080W HVDR8080E HVDR8080B 80*80 4 6 240~290pcs 24M
    HVDR10080F HVDR10080W HVDR10080E HVDR10080B 100*80 4 6 260~350pcs 24M
    HVDR12080F HVDR12080W HVDR12080E HVDR12080B 120*80 4 6 280~380pcs 16M
    HVDR14080F HVDR14080W HVDR14080E HVDR14080B 140*80 4 6 350~450pcs 16M
    HVDR25100F HVDR25100W HVDR25100E HVDR25100B 25*100 4 6 110~160pcs 60M
    HVDR33100F HVDR33100W HVDR33100E HVDR33100B 33*100 4 6 130~175pcs 44M
    HVDR40100F HVDR40100W HVDR40100E HVDR40100B 40*100 4 6 130~175pcs 40M
    HVDR50100F HVDR50100W HVDR50100E HVDR50100B 50*100 4 6 220~250pcs 40M
    HVDR60100F HVDR60100W HVDR60100E HVDR60100B 60*100 4 6 240~290pcs 32M
    HVDR70100F HVDR70100W HVDR70100E HVDR70100B 70*100 4 6 250~310pcs 24M
    HVDR75100F HVDR75100W HVDR75100E HVDR75100B 75*100 4 6 260~350pcs 24M
    HVDR80100F HVDR80100W HVDR80100E HVDR80100B 80*100 4 6 260~350pcs 24M
    HVDR100100F HVDR100100W HVDR100100E HVDR100100B 100*100 4 6 300~400pcs 24M
    HVDR120100F HVDR120100W HVDR120100E HVDR120100B 120*100 4 6 350~450pcs 16M
    HVDR150100F HVDR150100W HVDR150100E HVDR150100B 150*100 4 6 400~650pcs 16M
    *HVDR200100F HVDR200100W HVDR200100E HVDR200100B 200*100 4 6 600~800pcs 16M
    HVDR100130F HVDR100130W HVDR100130E HVDR100130B 100*130 4 6 350~450pcs 16M
    *HVDR200150F HVDR200150W HVDR200150E HVDR200150B 200*150 4 6 900~1200pcs 16M
















    RCCN  Din Rails






    Material:high quality and strength cold rolled steel with electroplate
    EN50022 Product standard: EN50022
    Color: yellow plated nickle,silver plated zinc
    Operated temperature:-40°C standing heat to 100°C
    Use way: fixed on the panel then installed with electric parts
    Features: perfect design,with huge pressure,exactly dia., rust resistant
    Special length or special hole come with MOQ., Rohs approved products are available.
    TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS
    Item No.
    Outer width/Outer height/
    Thickness/Length     		 Material Length
    per pcs    		 Packing/
    carton
    TS-35/7.5   Series
    TS-35/7.5/1.0/1M Color zinc steel 1M 50M
    TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
    TS-35/7.5/1.0/2M Color zinc steel 2M 100M
    TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
    TS-35/15  Series
    TS-35/15/1.5/1M Color zinc steel 1M 30M
    TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
    TS-35/15/1.5/2M Color zinc steel 2M 60M
    TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
    LSC-35/7.5/1.1  Series
    LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
    LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5 Series
    LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M







    ]]>     http://www.wiring-ducts.com/wiring-duct-hvdrwwhite/feed/ 0     RCCN SDRW Type Solid Wiring Duct http://www.wiring-ducts.com/wiring-duct-sdrwwhite/ http://www.wiring-ducts.com/wiring-duct-sdrwwhite/#comments Mon, 10 Sep 2012 08:18:31 +0000 admin http://www.wiring-ducts.com/?p=714

    Solid wall design fully encloses cables providing maximum protection and aesthetics
    Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
    Made of rigid PVC
    UL Recognized continuous use temperature: 50°C (122°F)
    UL94 Flammability Rating of V-0
    Supplied without mounting holes
    Available color:gray.white.blue.black and other special colors
    Work Temperature:-40°C to 65°C






    Item No. W*H     Wire
    capability
    /2.0sp    		 Pack/M
    Gray White Blue Black
    SDR1616 SDR1616W SDR1616E SDR1616B 16*16 3~10pcs 300M
    SDR2516 SDR2516W SDR2516E SDR2516B 25*16 5~15pcs 240M
    SDR4016 SDR4016W SDR4016E SDR4016B 40*16 15~30pcs 200M
    SDR1520 SDR1520W SDR1520E SDR1520B 15*20 8~12pcs 260M
    SDR2020 SDR2020W SDR2020E SDR2020B 20*20 10~20pcs 240M
    SDR4020 SDR4020W SDR4020E SDR4020B 40*20 15~25pcs 140M
    SDR1525 SDR1525W SDR1525E SDR1525B 15*25 5~15pcs 260M
    SDR2025 SDR2025W SDR2025E SDR2025B 20*25 5~15pcs 200M
    SDR2525 SDR2525W SDR2525E SDR2525B 25*25 10~25pcs 200M
    SDR3025 SDR3025W SDR3025E SDR3025B 30*25 12~28pcs 160M
    SDR4025 SDR4025W SDR4025E SDR4025B 40*25 20~25pcs 120M
    SDR5025 SDR5025W SDR5025E SDR5025B 50*25 20~25pcs 100M
    SDR1530 SDR1530W SDR1530E SDR1530B 15*30 8~15pcs 200M
    SDR2030 SDR2030W SDR2030E SDR2030B 20*30 25~35pcs 180M
    SDR2530 SDR2530W SDR2530E SDR2530B 25*30 25~35pcs 160M
    SDR3030 SDR3030W SDR3030E SDR3030B 30*30 25~35pcs 140M
    SDR4030 SDR4030W SDR4030E SDR4030B 40*30 30~40pcs 100M
    SDR2233 SDR2233W SDR2233E SDR2233B 22*33 15~25pcs 180M
    SDR3333 SDR3333W SDR3333E SDR3333B 33*33 30~40pcs 160M
    SDR2035 SDR2035W SDR2035E SDR2035B 20*35 30~40pcs 100M
    SDR3535 SDR3535W SDR3535E SDR3535B 35*35 35~45pcs 112M
    SDR5035 SDR5035W SDR5035E SDR5035B 50*35 40~60pcs 88M
    SDR2040 SDR2040W SDR2040E SDR2040B 20*40 20~25pcs 110M
    SDR2540 SDR2540W SDR2540E SDR2540B 25*40 20~25pcs 112M
    SDR4040 SDR4040W SDR4040E SDR4040B 40*40 60~70pcs 100M
    SDR6040 SDR6040W SDR6040E SDR6040B 60*40 100~115pcs 68M
    SDR8040 SDR8040W SDR8040E SDR8040B 80*40 120~135pcs 48M
    SDR10040 SDR10040W SDR10040E SDR10040B 100*40 120~135pcs 32M
    SDR2545 SDR2545W SDR2545E SDR2545B 25*45 20~25pcs 104M
    SDR3345 SDR3345W SDR3345E SDR3345B 33*45 40~55pcs 108M
    SDR4545 SDR4545W SDR4545E SDR4545B 45*45 60~70pcs 72M
    SDR6545 SDR6545W SDR6545E SDR6545B 65*45 110~120pcs 56M
    SDR2050 SDR2050W SDR2050E SDR2050B 20*50 20~30pcs 100M
    SDR2550 SDR2550W SDR2550E SDR2550B 25*50 20~30pcs 100M
    SDR3050 SDR3050W SDR3050E SDR3050B 30*50 25~40pcs 84M
    SDR3550 SDR3550W SDR3550E SDR3550B 35*50 40~60pcs 80M
    SDR4050 SDR4050W SDR4050E SDR4050B 40*50 60~70pcs 68M
    SDR4550 SDR4550W SDR4550E SDR4550B 45*50 70~80pcs 60M
    SDR5050 SDR5050W SDR5050E SDR5050B 50*50 80~90pcs 60M
    SDR5550 SDR5550W SDR5550E SDR5550B 55*50 85~95pcs 50M
    SDR6050 SDR6050W SDR6050E SDR6050B 60*50 100~120pcs 48M
    SDR8050 SDR8050W SDR8050E SDR8050B 80*50 160~180pcs 40M
    SDR10050 SDR10050W SDR10050E SDR10050B 100*50 200~250pcs 26M
    SDR12555 SDR12555W SDR12555E SDR12555B 125*55 220~270pcs 20M
    SDR2060 SDR2060W SDR2060E SDR2060B 20*60 5~45pcs 100M
    SDR2560 SDR2560W SDR2560E SDR2560B 25*60 40~50pcs 100M
    SDR3060 SDR3060W SDR3060E SDR3060B 30*60 60~80pcs 80M
    SDR3560 SDR3560W SDR3560E SDR3560B 35*60 65~85pcs 70M
    SDR4060 SDR4060W SDR4060E SDR4060B 40*60 100~115pcs 60M
    SDR4560 SDR4560W SDR4560E SDR4560B 45*60 110~125pcs 30M
    SDR5060 SDR5060W SDR5060E SDR5060B 50*60 120~135pcs 60M
    SDR6060 SDR6060W SDR6060E SDR6060B 60*60 120~135pcs 48M
    SDR8060 SDR8060W SDR8060E SDR8060B 80*60 180~210pcs 36M
    SDR10060 SDR10060W SDR10060E SDR10060B 100*60 240~290pcs 28M
    SDR11060 SDR11060W SDR11060E SDR11060B 110*60 250~300pcs 48M
    SDR12060 SDR12060W SDR12060E SDR12060B 120*60 260~320pcs 48M
    SDR15060 SDR15060W SDR15060E SDR15060B 150*60 300~360pcs 16M
    SDR2565 SDR2565W SDR2565E SDR2565B 25*65 40~50pcs 88M
    SDR3365 SDR3365W SDR3365E SDR3365B 33*65 40~70pcs 80M
    SDR4565 SDR4565W SDR4565E SDR4565B 45*65 110~120pcs 52M
    SDR6565 SDR6565W SDR6565E SDR6565B 65*65 180~200pcs 44M
    SDR7265 SDR7265W SDR7265E SDR7265B 72*65 190~210pcs 40M
    SDR5075 SDR5075W SDR5075E SDR5075B 50*75 180~210pcs 32M
    SDR7575 SDR7575W SDR7575E SDR7575B 75*75 200~240pcs 24M
    SDR2580 SDR2580W SDR2580E SDR2580B 25*80 100~120pcs 72M
    SDR3080 SDR3080W SDR3080E SDR3080B 30*80 110~125pcs 56M
    SDR3580 SDR3580W SDR3580E SDR3580B 35*80 110~130pcs 56M
    SDR4080 SDR4080W SDR4080E SDR4080B 40*80 140~160pcs 48M
    SDR4580 SDR4580W SDR4580E SDR4580B 45*80 140~160pcs 40M
    SDR5080 SDR5080W SDR5080E SDR5080B 50*80 160~180pcs 40M
    SDR5580 SDR5580W SDR5580E SDR5580B 55*80 160~180pcs 32M
    SDR6080 SDR6080W SDR6080E SDR6080B 60*80 180~210pcs 32M
    SDR8080 SDR8080W SDR8080E SDR8080B 80*80 240~290pcs 24M
    SDR10080 SDR10080W SDR10080E SDR10080B 100*80 260~350pcs 24M
    SDR12080 SDR12080W SDR12080E SDR12080B 120*80 280~380pcs 16M
    SDR14080 SDR14080W SDR14080E SDR14080B 140*80 350~450pcs 16M
    SDR25100 SDR25100W SDR25100E SDR25100B 25*100 110~160pcs 60M
    SDR33100 SDR33100W SDR33100E SDR33100B 33*100 130~165pcs 44M
    SDR40100 SDR40100W SDR40100E SDR40100B 40*100 130~175pcs 40M
    SDR50100 SDR50100W SDR50100E SDR50100B 50*100 220~250pcs 40M
    SDR60100 SDR60100W SDR60100E SDR60100B 60*100 240~290pcs 32M
    SDR70100 SDR70100W SDR70100E SDR70100B 70*100 240~290pcs 32M
    SDR75100 SDR75100W SDR75100E SDR75100B 75*100 260~350pcs 24M
    SDR80100 SDR80100W SDR80100E SDR80100B 80*100 260~350pcs 24M
    SDR100100 SDR100100W SDR100100E SDR100100B 100*100 300~400pcs 24M
    SDR120100 SDR120100W SDR120100E SDR120100B 120*100 350~450pcs 16M
    SDR150100 SDR150100W SDR150100E SDR150100B 150*100 400~650pcs 16M
    SDR100130 SDR100130W SDR100130E SDR100130B 100*130 350~450pcs 16M
    *SDR200100 SDR200100W SDR200100E SDR200100B 200*100 600~800pcs 12M
    *SDR200150 SDR200150W SDR200150E SDR200150B 200*150 900~1200pcs 10M
















    RCCN  Din Rails








    Material:high quality and strength cold rolled steel with electroplate
    EN50022 Product standard: EN50022
    Color: yellow plated nickle,silver plated zinc
    Operated temperature:-40°C standing heat to 100°C
    Use way: fixed on the panel then installed with electric parts
    Features: perfect design,with huge pressure,exactly dia., rust resistant
    Special length or special hole come with MOQ., Rohs approved products are available.
    TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





    Item No.
    Outer width/Outer height/
    Thickness/Length     		 Material Length
    per pcs    		 Packing/
    carton
    TS-35/7.5   Series
    TS-35/7.5/1.0/1M Color zinc steel 1M 50M
    TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
    TS-35/7.5/1.0/2M Color zinc steel 2M 100M
    TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
    TS-35/15  Series
    TS-35/15/1.5/1M Color zinc steel 1M 30M
    TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
    TS-35/15/1.5/2M Color zinc steel 2M 60M
    TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
    LSC-35/7.5/1.1  Series
    LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
    LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
    LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5 Series
    LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
    LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
    LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M













    ]]>     http://www.wiring-ducts.com/wiring-duct-sdrwwhite/feed/ 0     RCCN Wire duct 2060/3080 http://www.wiring-ducts.com/wire-duct-20603080/ http://www.wiring-ducts.com/wire-duct-20603080/#comments Mon, 10 Sep 2012 08:06:14 +0000 admin http://www.wiring-ducts.com/?p=1606





    线槽图纸

    Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
    Made of rigid PVC
    UL Recognized continuous use temperature: 50°C (122°F)
    UL94 Flammability Rating of V-0
    Provided with mounting holes
    Available color:gray.white.blue.black and other special colors
    Work Temperature:-40°C to 65°C




    Item No.

    W*H

    Slot
    width

    Q

    Finger
    width

    P

    Wire
    capability
    /2.0sp

    Standard
     Length
    Gray White Blue Black
    VDR2233 VDR2233W VDR2233E VDR2233B 22*33 6 10.5 25~35pcs Pcs/Branch2M
    HVDR2233 HVDR2233W HVDR2233E HVDR2233B 22*33 4 6 25~35pcs
    HVDR2060 HVDR2060W HVDR2060E HVDR2060B 20*60 4 6 40~50pcs
    HVDR2060N HVDR2060NW HVDR2060NE HVDR2060NB 20*60 4 6 40~50pcs
    HVDR3080 HVDR3080W HVDR3080E HVDR3080B 30*80 4 6 100~125pcs
    HVDR3080L HVDR3080LW HVDR3080LE HVDR3080LB 30*80 4 6 100~125pcs 2.2M/Branch








    ]]>     http://www.wiring-ducts.com/wire-duct-20603080/feed/ 0     new wiring duct product http://www.wiring-ducts.com/wiring-duct-new/ http://www.wiring-ducts.com/wiring-duct-new/#comments Mon, 14 Dec 2009 10:40:42 +0000 admin http://www.wiring-ducts.com/?p=874 2009-12
    new product

    W*H
    75*100
    100*130
    150*100
    120*100

    VDRF/HVDRF/VDRC/SDR/ COLOUR:GRAY/WHITE/BLUE/BLACK

    ]]>     http://www.wiring-ducts.com/wiring-duct-new/feed/ 0     pvc wire duct http://www.wiring-ducts.com/pvc-wire-duct/ http://www.wiring-ducts.com/pvc-wire-duct/#comments Thu, 08 Oct 2009 04:46:43 +0000 admin http://www.wiring-ducts.com/?p=749

    线槽图纸
    Place of Origin: China Shanghai PACK: 2M
    Certified: CE…ROHS,REACH Brand Name: RCCN
    Model No: HVDRF

    Specifications
    • Usage : Fixed the bottom duct first and put wires in duct then close the cover cap.
    • Feature : Composed easily, not peel, smooth match and won’t be hurt.
    • Construction: Composed of bottom duct and cover cap, slot holes in both side.
    • Material: Made of Hardness Lead-Free PVC UL-94V0
    • Color: Gray
    • Mounting Method: Standard Mounting Holes
    • . Recognized continuous use temperature: +122 °F (+50 °C)
    Part No.. W*H A B C D E F H T pack 14AWG/PCS
    HVDR1616F 16*16 16 16 16 8.5 8.0 20 14.5 1.3 400 4-8
    HVDR2020F 20*20 20 20 20 12.5 8.0 20 18.5 1.3 200 5-12
    HVDR1525F 15*25 15 25 15 15.5 8.0 20 23.5 1.4 260 5-12
    HVDR2025F 20*25 20 25 20 15.5 8.0 20 23.5 1.4 200 5-12
    HVDR2525F 25*25 25 25 25 15.5 8.0 20 23.5 1.4 200 10-25
    HVDR2030F 20*30 20 30 20 21.5 8.0 20 31.5 1.3 160 15-25
    HVDR2530F 25*30 25 30 25 20.0 8.0 20 28.5 1.4 160 15-25
    HVDR3030F 30*30 30 30 30 20.0 8.0 20 28.5 1.4 140 15-25
    HVDR3535F 35*35 35 35 35 22.5 8.0 20 32.5 1.4 100 40-45
    HVDR2540F 25*40 25 40 25 28.5 8.0 20 38.5 1.4 112 20-25
    HVDR4040F 40*40 40 40 40 28.5 8.0 20 38.5 1.4 100 60-70
    HVDR6040F 60*40 60 40 60 27.5 8.0 20 37.8 1.6 68 100-115
    HVDR8040F 80*40 80 40 80 28.5 8.0 20 38.5 2.0 48 120-135
    HVDR10040F 100*40 100 40 100 28.5 8.0 20 38.5 2.0 40 140-165
    HVDR2545F 25*45 25 45 25 33.5 8.0 20 43.5 1.4 100 20-25
    HVDR3345F 33*45 33 45 33 33.5 8.0 20 43.5 1.2 104 40-55
    HVDR4545F 45*45 45 45 45 33.5 8.0 20 43.5 1.5 68 60-70
    HVDR2550F 25*50 25 50 25 38.5 8.0 20 48.5 1.6 100 20-25
    HVDR3050F 30*50 30 50 30 38.5 8.0 20 48.5 1.6 84 30-35
    HVDR3550F 35*50 35 50 35 38.5 8.0 20 48.5 1.6 84 40-45
    HVDR4050F 40*50 40 50 40 38.5 8.0 20 48.5 1.6 68 50-60
    HVDR4550F 45*50 45 50 45 38.5 8.0 20 48.5 1.6 68 60-70
    HVDR5050F 50*50 50 50 50 38.5 8.0 20 48.5 1.6 60 80-90
    HVDR5550F 55*50 55 50 55 38.5 8.0 20 48.5 1.6 60 80-90
    HVDR6050F 60*50 60 50 60 38.5 8.0 20 48.5 1.6 52 85-95
    HVDR8050F 80*50 80 50 80 38.5 8.0 20 48.5 1.6 40 150-170
    HVDR10050F 100*50 100 50 100 38.5 8.0 20 48.5 1.6 28 200-240
    HVDR2060F 20*60 20 60 20 47.5 8.0 20 57.5 1.7 120 35-40
    HVDR2560F 25*60 25 60 25 47.5 8.0 20 57.5 1.6 120 40-45
    HVDR4060F 40*60 40 60 40 47.5 8.0 20 57.5 1.8 60 100-115
    HVDR4560F 45*60 45 60 45 47.5 8.0 20 57.5 1.8 60 113-118
    HVDR5060F 50*60 50 60 50 47.5 8.0 20 57.5 1.8 48 115-130
    HVDR6060F 60*60 60 60 60 47.5 8.0 20 57.5 2.0 48 120-135
    HVDR8060F 80*60 80 60 80 47.5 8.0 20 57.5 2.0 36 180-240
    HVDR11060F 110*60 110 60 110 47.5 8.0 20 57.5 2.0 20 220-280
    HVDR12060F 120*60 120 60 120 47.5 8.0 20 57.5 2.0 20 220-280
    HVDR2565F 25*65 25 65 25 53.5 8.0 20 63.5 1.6 88 40-45
    HVDR3365F 33*65 33 65 33 53.5 8.0 20 63.5 1.6 84 60-75
    HVDR4565F 45*65 45 65 45 53.5 8.0 20 63.5 1.6 60 110-120
    HVDR6565F 65*65 65 65 65 53.5 8.0 20 63.5 1.6 40 180-200
    HVDR5075F 50*75 50 75 50 68.5 8.0 20 73.5 2.0 56 140-180
    HVDR7575F 75*75 75 75 75 68.5 8.0 20 73.5 2.0 32 220-270
    HVDR2580F 25*80 25 80 25 68.5 8.0 20 78.5 1.8 72 100-120
    HVDR3080F 30*80 30 80 30 68.5 8.0 20 78.5 2.0 56 110-130
    HVDR3580F 35*80 35 80 35 68.5 8.0 20 78.5 2.0 56 120-140
    HVDR4080F 40*80 40 80 40 68.5 8.0 20 78.5 1.8 48 120-135
    HVDR4580F 45*80 45 80 45 68.5 8.0 20 78.5 2.0 40 130-140
    HVDR5080F 50*80 50 80 50 68.5 8.0 20 78.5 1.8 32 150-190
    HVDR6080F 60*80 60 80 60 68.5 8.0 20 78.5 2.0 32 180-210
    HVDR8080F 80*80 80 80 80 68.5 8.0 20 78.5 2.0 24 240-290
    HVDR10080F 100*80 100 80 100 68.5 8.0 20 78.5 2.0 20 260-350
    HVDR12080F 120*80 120 80 120 68.5 8.0 20 78.5 2.0 16 260-350
    HVDR14080F 140*80 140 80 140 68.5 8.0 20 78.5 2.0 12 300-400
    HVDR33100F 33*100 33 100 33 88.5 8.0 20 98.5 2.0 44 110-160
    HVDR40100F 40*100 40 100 40 88.5 8.0 20 98.5 2.0 44 130-170
    HVDR50100F 50*100 50 100 50 88.5 8.0 20 98.5 2.0 32 220-250
    HVDR60100F 60*100 60 100 60 88.5 8.0 20 98.5 2.0 32 240-290
    HVDR80100F 80*100 80 100 80 88.5 8.0 20 98.5 2.0 24 260-350
    HVDR100100F 100*100 100 100 100 88.5 8.0 20 98.5 2.2 16 300-400

     新增

    HVDR5075F 50*75 50 75 50 68.5 4.0 10 73.5 2.0   140-180
    HVDR7575F 75*75 75 75 75 68.5 4.0 10 73.5 2.0   220-270




    PACK PIC

    ]]>     http://www.wiring-ducts.com/pvc-wire-duct/feed/ 0     pvc trunking http://www.wiring-ducts.com/pvc-trunking/ http://www.wiring-ducts.com/pvc-trunking/#comments Wed, 07 Oct 2009 13:52:07 +0000 admin http://www.wiring-ducts.com/?p=746

    Place of Origin: China Shanghai PACK: 2M
    Certified: CE…ROHS,REACH Brand Name: RCCN
    Model No: SDR

    Specifications
    • Usage : Fixed the bottom duct first and put wires in duct then close the cover cap.
    • Material: Made of Hardness Lead-Free PVC UL-94V0
    • Color: Gray
    •  use temperature: (+80 °C)
    Part No.. W*H A B C T pack 14AWG/PCS
    SDR1616 16*16 16 16 16 1.3 400 4-8
    SDR2020 20*20 20 20 20 1.3 200 5-12
    SDR1525 15*25 15 25 15 1.4 260 5-12
    SDR2025 20*25 20 25 20 1.4 200 5-12
    SDR2525 25*25 25 25 25 1.4 200 10-25
    SDR2233 20*30 22 33 22 1.3 160 15-25
    SDR2530 25*30 25 30 25 1.4 160 15-25
    SDR3030 30*30 30 30 30 1.4 140 15-25
    SDR3535 35*35 35 35 35 1.4 100 40-45
    SDR2540 25*40 25 40 25 1.4 112 20-25
    SDR4040 40*40 40 40 40 1.4 100 60-70
    SDR6040 60*40 60 40 60 1.6 68 100-115
    SDR8040 80*40 80 40 80 2.0 48 120-135
    SDR10040 100*40 100 40 100 2.0 40 140-165
    SDR2545 25*45 25 45 25 1.4 100 20-25
    SDR3345 33*45 33 45 33 1.2 104 40-55
    SDR4545 45*45 45 45 45 1.5 68 60-70
    SDR2550 25*50 25 50 25 1.6 100 20-25
    SDR3050 30*50 30 50 30 1.6 84 30-35
    SDR3550 35*50 35 50 35 1.6 84 40-45
    SDR4050 40*50 40 50 40 1.6 68 50-60
    SDR4550 45*50 45 50 45 1.6 68 60-70
    SDR5050 50*50 50 50 50 1.6 60 80-90
    SDR5550 55*50 55 50 55 1.6 60 80-90
    SDR6050 60*50 60 50 60 1.6 52 85-95
    SDR8050 80*50 80 50 80 1.6 40 150-170
    SDR10050 100*50 100 50 100 1.6 28 200-240
    SDR2060 20*60 20 60 20 1.7 120 35-40
    SDR2560 25*60 25 60 25 1.6 120 40-45
    SDR4060 40*60 40 60 40 1.8 60 100-115
    SDR4560 45*60 45 60 45 1.8 60 113-118
    SDR5060 50*60 50 60 50 1.8 48 115-130
    SDR6060 60*60 60 60 60 2.0 48 120-135
    SDR8060 80*60 80 60 80 2.0 36 180-240
    SDR11060 110*60 110 60 110 2.0 20 220-280
    SDR12060 120*60 120 60 120 2.0 20 220-280
    SDR2565 25*65 25 65 25 1.6 88 40-45
    SDR3365 33*65 33 65 33 1.6 84 60-75
    SDR4565 45*65 45 65 45 1.6 60 110-120
    SDR6565 65*65 65 65 65 1.6 40 180-200
    SDR5075 50*75 50 75 50 2.0 56 140-180
    SDR7575 75*75 75 75 75 2.0 32 220-270
    SDR2580 25*80 25 80 25 1.8 72 100-120
    SDR3080 30*80 30 80 30 2.0 56 110-130
    SDR3580 35*80 35 80 35 2.0 56 120-140
    SDR4080 40*80 40 80 40 1.8 48 120-135
    SDR4580 45*80 45 80 45 2.0 40 130-140
    SDR5080 50*80 50 80 50 1.8 32 150-190
    SDR6080 60*80 60 80 60 2.0 32 180-210
    SDR8080 80*80 80 80 80 2.0 24 240-290
    SDR10080 100*80 100 80 100 2.0 20 260-350
    SDR12080 120*80 120 80 120 2.0 16 260-350
    SDR14080 140*80 140 80 140 2.0 12 300-400
    SDR33100 33*100 33 100 33 2.0 44 120-160
    SDR40100 40*100 40 100 40 2.0 44 130-170
    SDR50100 50*100 50 100 50 2.0 32 220-250
    SDR60100 60*100 60 100 60 2.0 32 240-290
    SDR80100 80*100 80 100 80 2.0 24 260-350
    SDR100100 100*100 100 100 100 2.2 16 300-400



    NEW:

    SDR5075 50*75 50 75 50 2.0   140-180
    SDR7575 75*75 75 75 75 2.0   220-270




    ]]>     http://www.wiring-ducts.com/pvc-trunking/feed/ 0
