RCCN HVDRT Wiring Duct

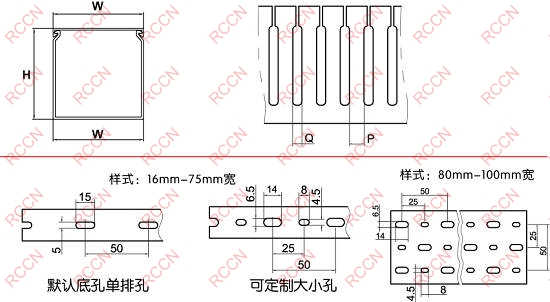

线槽图纸

Taiwan standard Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other
hardware
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment：gray is the common color, other color need more MOQ
 Length Standard:2M/PCS






Item No.

W*H

Q

 P

   Wire
capability
  /2.0sp

Pakc/M
Gray White Blue Black
HVDR2025T HVDR2025TW HVDR2025TE HVDR2025TB 20*25 5 8 5~15pcs 200M
HVDR2525T HVDR2525TW HVDR2525TE HVDR2525TB 25*25 5 8 10~pcs 200M
HVDR3025T HVDR3025TW HVDR3025TE HVDR3025TB 30*25 5 8 12~28pcs 160M
HVDR2530T HVDR2530TW HVDR2530TE HVDR2530TB 25*30 5 8 25~35pcs 160M
HVDR3030T HVDR3030TW HVDR3030TE HVDR3030TB 3030 5 8 25~35pcs 140M
HVDR4030T HVDR4030TW HVDR4030TE HVDR4030TB 40*30 5 8 30~40pcs 100M
HVDR2540T HVDR2540TW HVDR2540TE HVDR2540TB 25*40 5 8 20~25pcs 112M
HVDR4040T HVDR4040TW HVDR4040TE HVDR4040TB 40*40 5 8 60~70pcs 100M
HVDR6040T HVDR6040TW HVDR6040TE HVDR6040TB 60*40 5 8 100~115pcs 68M
HVDR8040T HVDR8040TW HVDR8040TE HVDR8040TB 80*40 5 8 120~135pcs 48M
HVDR10040T HVDR10040TW HVDR10040TE HVDR10040TB 100*40 5 8 120~135pcs 32M
HVDR2545T HVDR2545TW HVDR2545TE HVDR2545TB 25*45 5 8 20~25pcs 104M
HVDR3345T HVDR3345TW HVDR3345TE HVDR3345TB 33*45 5 8 40~55pcs 108M
HVDR4545T HVDR4545TW HVDR4545TE HVDR4545TB 45*45 5 8 60~70pcs 72M
HVDR6545T HVDR6545TW HVDR6545TE HVDR6545TB 65*45 5 8 110~120pcs 56M
HVDR2550T HVDR2550TW HVDR2550TE HVDR2550TB 25*50 5 8 20~30pcs

100M
HVDR3050T HVDR3050TW HVDR3050TE HVDR3050TB 30*50 5 8 25~40pcs 84M
HVDR3550T HVDR3550TW HVDR3550TE HVDR3550TB 35*50 5 8 40~60pcs 80M
HVDR4050T HVDR4050TW HVDR4050TE HVDR4050TB 40*50 5 8 60~70pcs 68M
HVDR4550T HVDR4550TW HVDR4550TE HVDR4550TB 45*50 5 8 70~80pcs 60M
HVDR5050T HVDR5050W HVDR5050TE HVDR5050TB 50*50 5 8 80~90pcs 60M
HVDR5550T HVDR5550W HVDR5550TE HVDR5550TB 50*50 5 8 80~90pcs 48M
HVDR6050T HVDR6050TW HVDR6050TE HVDR6050TB 60*50 5 8 100~120pcs 48M
HVDR8050T HVDR8050TW HVDR8050TE HVDR8050TB 80*50 5 8 160~180pcs 40M
HVDR10050T HVDR10050TW HVDR10050TE HVDR10050TB 100*50 5 8 200~250pcs 26M
HVDR2060T HVDR2060TW HVDR2060TE HVDR2060TB 20*60 5 8 35~45pcs 100M
HVDR2560T HVDR2560TW HVDR2560TE HVDR2560TB 25*60 5 8 40~50pcs 100M
HVDR3060T HVDR3060TW HVDR3060TE HVDR3060TB 30*60 5 8 60~80pcs 80M
HVDR4060T HVDR4060TW HVDR4060TE HVDR4060TB 40*60 5 8 100~115pcs 60M
HVDR4560T HVDR4560TW HVDR4560TE HVDR4560TB 45*60 5 8 110~125pcs 30M
HVDR5060T HVDR5060TW HVDR5060TE HVDR5060TB 50*60 5 8 120~135pcs 60M
HVDR6060T HVDR6060TW HVDR6060TE HVDR6060TB 60*60 5 8 120~135pcs 48M
HVDR8060T HVDR8060TW HVDR8060TE HVDR8060TB 80*60 5 8 180~210pcs 36M
HVDR10060T HVDR10060TW HVDR10060TE HVDR10060TB 100*60 5 8 240~290pcs 28M
HVDR11060T HVDR11060TW HVDR11060TE HVDR11060TB 110*60 5 8 250~300pcs 48M
HVDR12060T HVDR12060TW HVDR12060TE HVDR12060TB 120*60 5 8 260~320pcs 48M
HVDR2565T HVDR2565TW HVDR2565TE HVDR2565TB 25*65 5 8 40~50pcs 96M
HVDR3365T HVDR3365TW HVDR3365TE HVDR3365TB 33*65 5 8 40~70pcs 80M
HVDR4565T HVDR4565TW HVDR4565TE HVDR4565TB 45*65 5 8 110~120pcs 52M
HVDR6565T HVDR6565TW HVDR6565TE HVDR6565TB 65*65 5 8 180~200pcs 44M
HVDR2580T HVDR2580TW HVDR2580TE HVDR2580TB 25*80 5 8 100~120pcs 72M
HVDR3080T HVDR3080TW HVDR3080TE HVDR3080TB 30*80 5 8 110~125pcs 56M
HVDR3580T HVDR3580TW HVDR3580TE HVDR3580TB 35*80 5 8 110~130pcs 56M
HVDR4080T HVDR4080TW HVDR4080TE HVDR4080TB 40*80 5 8 140~160pcs 48M
HVDR4580T HVDR4580TW HVDR4580TE HVDR4580TB 45*80 5 8 140~160pcs 40M
HVDR5080T HVDR5080TW HVDR5080TE HVDR5080TB 50*80 5 8 160~180pcs 40M
HVDR5580T HVDR5580TW HVDR5580TE HVDR5580TB 55*80 5 8 160~180pcs 32M
HVDR6080T HVDR6080TW HVDR6080TE HVDR6080TB 60*80 5 8 180~210pcs 32M
HVDR8080T HVDR8080TW HVDR8080TE HVDR8080TB 80*80 5 8 240~290pcs 24M
HVDR10080T HVDR10080TW HVDR10080TE HVDR10080TB 100*80 5 8 260~350pcs 24M
HVDR12080T HVDR12080TW HVDR12080TE HVDR12080TB 120*80 5 8 280~380pcs 16M
HVDR14080T HVDR14080TW HVDR14080TE HVDR14080TB 140*80 5 8 350~450pcs 16M
HVDR25100T HVDR25100TW HVDR25100TE HVDR25100TB 25*100 5 8 110~160 pcs 60M
HVDR33100T HVDR33100TW HVDR33100TE HVDR33100TB 33*100 5 8 130~165 pcs 44M
HVDR40100T HVDR40100TW HVDR40100TE HVDR40100TB 40*100 5 8 130~175 pcs 40M
HVDR50100T HVDR50100TW HVDR50100TE HVDR50100TB 50*100 5 8 220~250 pcs 40M
HVDR60100T HVDR60100TW HVDR60100TE HVDR60100TB 60*100 5 8 240~290 pcs 32M
HVDR70100T HVDR70100TW HVDR70100TE HVDR70100TB 70*100 5 8 250~340 pcs 24M
HVDR75100T HVDR75100TW HVDR75100TE HVDR75100TB 75*100 5 8 260~350 pcs 24M
HVDR80100T HVDR80100TW HVDR80100TE HVDR80100TB 80*100 5 8 260~350 pcs 24M
HVDR100100T HVDR100100TW HVDR100100TE HVDR100100TB 100*100 5 8 300~400pcs 24M
















RCCN  Din Rails








Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS





Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton
TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M
LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M
