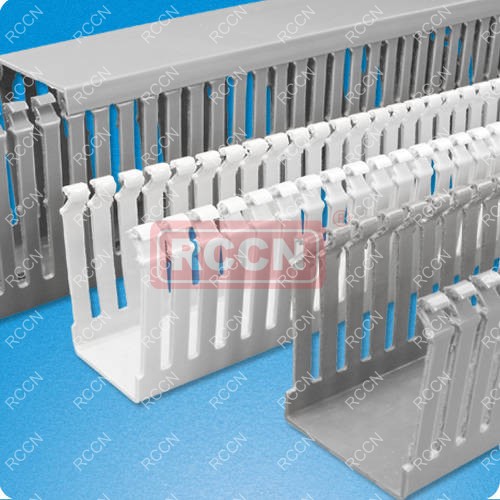

RCCN VDRHF/HVDRHF Halogen Free Wiring Duct

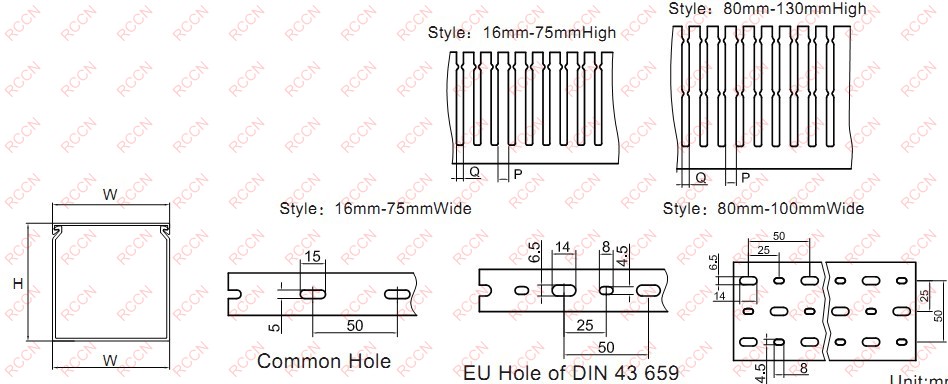

线槽图纸

• Made of halogen free material and verified with IEC 60754-2
test method (test on gases evolved during combustion of
electric cables)
• UL Recognized continuous use temperature: 95°C (203°F)
• UL94 Flammability Rating of V-0
• Narrow slot/finger design
• Provided with DIN 43 659 mounting holes
• Metric sizing and finger progression
• Duct and cover packaged together in 2 meter lengths





Item No.

W*H

Q

P

pack/M
Gray White Blue Black
VDR1616F/HF VDR1616FW/HF VDR1616FE/HF VDR1616FB/HF 16*16 8 10 300M
VDR2516F/HF VDR2516FW/HF VDR2516FE/HF VDR2516FB/HF 25*16 8 10 260M
VDR1520F/HF VDR1520FW/HF VDR1520FE/HF VDR1520FB/HF 15*20 8.5 12 260M
VDR2020F/HF VDR2020FW/HF VDR2020FE/HF VDR2020FB/HF 20*20 8.5 12 240M
VDR4020F/HF VDR4020FW/HF VDR4020FE/HF VDR4020FB/HF 40*20 8 12 140M
VDR1525F/HF VDR1525FW/HF VDR1525FE/HF VDR1525FB/HF 15*25 8 12 260M
VDR2025F/HF VDR2025FW/HF VDR2025FE/HF VDR2025FB/HF 20*25 8 12 200M
VDR2525F/HF VDR2525FW/HF VDR2525FE/HF VDR2525FB/HF 25*25 8 12 200M
VDR3025F/HF VDR3025FW/HF VDR3025FE/HF VDR3025FB/HF 30*25 8 12 160M
VDR4025F/HF VDR4025FW/HF VDR4025FE/HF VDR4025FB/HF 40*25 8 12 100M
VDR5025F/HF VDR5025FW/HF VDR5025EF/HF VDR5025FB/HF 50*25 8 12 100M
VDR1530F/HF VDR1530FW/HF VDR1530FE/HF VDR1530FB/HF 15*30 8 12 180M
VDR2030F/HF VDR2030FW/HF VDR2030FE/HF VDR2030FB/HF 20*30 8 12 130M
VDR2530F/HF VDR2530FW/HF VDR2530FE/HF VDR2530FB/HF 25*30 8 12 130M
VDR3030F/HF VDR3030FW/HF VDR3030FE/HF VDR3030FB/HF 30*30 8 12 140M
VDR4030F/HF VDR4030FW/HF VDR4030FE/HF VDR4030FB/HF 40*30 8 12 100M
VDR5030F/HF VDR5030FW/HF VDR5030FE/HF VDR5030FB/HF 50*30 8 12 80M
VDR6030F/HF VDR6030FW/HF VDR6030FE/HF VDR6030FB/HF 60*30 8 12 60M
VDR2233F/HF VDR2233FW/HF VDR2233FE/HF VDR2233FB/HF 22*33 8 12 160M
VDR3333F/HF VDR3333FW/HF VDR3333FE/HF VDR3333FB/HF 33*33 8 12 160M
VDR2035F/HF VDR2035FW/HF VDR2035FE/HF VDR2035FB/HF 20*35 8 12 100M
VDR3535F/HF VDR3535FW/HF VDR3535FE/HF VDR3535FB/HF 35*35 8 12 112M
VDR5035F/HF VDR5035FW/HF VDR5035FE/HF VDR5035FB/HF 50*35 8 12 88M
VDR2040F/HF VDR2040FW/HF VDR2040FE/HF VDR2040FB/HF 20*40 8 12 110M
VDR2540F/HF VDR2540FW/HF VDR2540FE/HF VDR2540FB/HF 25*40 8 12 112M
VDR3540F/HF VDR3540FW/HF VDR3540FE/HF VDR3540FB/HF 35*40 8 12 100M
VDR4040F/HF VDR4040FW/HF VDR4040FE/HF VDR4040FB/HF 40*40 8 12 100M
VDR6040F/HF VDR6040FW/HF VDR6040FE/HF VDR6040FB/HF 60*40 8 12 68M
VDR8040F/HF VDR8040FW/HF VDR8040FE/HF VDR8040FB/HF 80*40 8 12 48M
VDR10040F/HF VDR10040FW/HF VDR10040FE/HF VDR10040FB/HF 100*40 8 12 32M
VDR12040F/HF VDR12040FW/HF VDR12040FE/HF VDR12040FB/HF 100*40 8 12
/
VDR2545F/HF VDR2545FW/HF VDR2545FE/HF VDR2545FB/HF 25*45 8 12 104M
VDR3345F/HF VDR3345FW/HF VDR3345FE/HF VDR3345FB/HF 33*45 8 12 108M
VDR4545F/HF VDR4545FW/HF VDR4545FE/HF VDR4545FB/HF 45*45 8 12 72M
VDR6545F/HF VDR6545FW/HF VDR6545FE/HF VDR6545FB/HF 65*45 8 12 56M
VDR2050F/HF VDR2050FW/HF VDR2050FE/HF VDR2050FB/HF 20*50 8 12 100M
VDR2550F/HF VDR2550FW/HF VDR2550FE/HF VDR2550FB/HF 25*50 8 12 100M
VDR3050F/HF VDR3050FW/HF VDR3050FE/HF VDR3050FB/HF 30*50 8 12 84M
VDR3550F/HF VDR3550FW/HF VDR3550FE/HF VDR3550FB/HF 35*50 8 12 80M
VDR4050F/HF VDR4050FW/HF VDR4050FE/HF VDR4050FB/HF 40*50 8 12 68M
VDR4550F/HF VDR4550FW/HF VDR4550FE/HF VDR4550FB/HF 45*50 8 12 60M
VDR5050F/HF VDR5050FW/HF VDR5050FE/HF VDR5050FB/HF 50*50 8 12 50M
VDR5550F/HF VDR5550FW/HF VDR5550FE/HF VDR5550FB/HF 55*50 8 12 48M
VDR6050F/HF VDR6050FW/HF VDR6050FE/HF VDR6050FB/HF 60*50 8 12 48M
VDR7550F/HF VDR7550FW/HF VDR7550FE/HF VDR7550FB/HF 75*50 8 12 40M
VDR8050F/HF VDR8050FW/HF VDR8050FE/HF VDR8050FB/HF 80*50 8 12 40M
VDR10050F/HF VDR10050FW/HF VDR10050FE/HF VDR10050FB/HF 100*50 8 12 26M
VDR12555F/HF VDR12555FW/HF VDR12555FE/HF VDR12555FB/HF 125*55 8 12 26M
VDR2060F/HF VDR2060FW/HF VDR2060FE/HF VDR2060FB/HF 20*60 8 12 100M
VDR2560F/HF VDR2560FW/HF VDR2560FE/HF VDR2560FB/HF 25*60 8 12 100M
VDR3060F/HF VDR3060FW/HF VDR3060FE/HF VDR3060FB/HF 30*60 8 12 80M
VDR3560F/HF VDR3560FW/HF VDR3560FE/HF VDR3560FB/HF 35*60 8 12 78M
VDR4060F/HF VDR4060FW/HF VDR4060FE/HF VDR4060FB/HF 40*60 8 12 60M
VDR4560F/HF VDR4560FW/HF VDR4560FE/HF VDR4560FB/HF 45*60 8 12 30M
VDR5060F/HF VDR5060FW/HF VDR5060FE/HF VDR5060FB/HF 50*60 8 12 60M
VDR6060F/HF VDR6060FW/HF VDR6060FE/HF VDR6060FB/HF 60*60 8 12 48M
VDR8060F/HF VDR8060FW/HF VDR8060FE/HF VDR8060FB/HF 80*60 8 12 36M
VDR10060F/HF VDR10060FW/HF VDR10060FE/HF VDR10060FB/HF 100*60 8 12 28M
VDR11060F/HF VDR11060FW/HF VDR11060FE/HF VDR11060FB/HF 110*60 8 12 48M
VDR12060F/HF VDR12060FW/HF VDR12060FE/HF VDR12060FB/HF 120*60 8 12 48M
VDR15060F/HF VDR15060FW/HF VDR15060FE/HF VDR15060FB/HF 150*60 8 12 16M
VDR2565F/HF VDR2565FW/HF VDR2565FE/HF VDR2565FB/HF 25*65 8 12 88M
VDR3365F/HF VDR3365FW/HF VDR3365FE/HF VDR3365FB/HF 33*65 8 12 80M
VDR4565F/HF VDR4565FW/HF VDR4565FE/HF VDR4565FB/HF 45*65 8 12 52M
VDR6565F/HF VDR6565FW/HF VDR6565FE/HF VDR6565FB/HF 65*65 8 12 44M
VDR7265F/HF VDR7265FW/HF VDR7265FE/HF VDR7265FB/HF 72*65 8 12 42M
VDR2575F/HF VDR2575FW/HF VDR2575FE/HF VDR2575FB/HF 25*75 8 12
/
VDR5075F/HF VDR5075FW/HF VDR5075FE/HF VDR5075FB/HF 50*75 8 12 42M
VDR7575F/HF VDR7575FW/HF VDR7575FE/HF VDR7575FB/HF 75*75 8 12 40M
VDR10075F/HF VDR10075FW/HF VDR10075FE/HF VDR10075FB/HF 100*75 8 12 24M
VDR2580F/HF VDR2580FW/HF VDR2580FE/HF VDR2580FB/HF 25*80 8 12 72M
VDR3080F/HF VDR3080FW/HF VDR3080FE/HF VDR3080FB/HF 30*80 8 12 56M
VDR3580F/HF VDR3580FW/HF VDR3580FE/HF VDR3580FB/HF 35*80 8 12 56M
VDR4080F/HF VDR4080FW/HF VDR4080FE/HF VDR4080FB/HF 40*80 8 12 48M
VDR4580F/HF VDR4580FW/HF VDR4580FE/HF VDR4580FB/HF 45*80 8 12 40M
VDR5080F/HF VDR5080FW/HF VDR5080FE/HF VDR5080FB/HF 50*80 8 12 40M
VDR5580F/HF VDR5580FW/HF VDR5580FE/HF VDR5580FB/HF 55*80 8 12 32M
VDR6080F/HF VDR6080FW/HF VDR6080FE/HF VDR6080FB/HF 60*80 8 12 32M
VDR8080F/HF VDR8080FW/HF VDR8080FE/HF VDR8080FB/HF 80*80 8 12 24M
VDR10080F/HF VDR10080FW/HF VDR10080FE/HF VDR10080FB/HF 100*80 8 12 24M
VDR12080F/HF VDR12080FW/HF VDR12080FE/HF VDR12080FB/HF 120*80 8 12 16M
VDR14080F/HF VDR14080FW/HF VDR14080FE/HF VDR14080FB/HF 140*80 8 12 16M
VDR16080F/HF VDR16080FW/HF VDR16080FE/HF VDR16080FB/HF 160*80 8 12
/
VDR25100F/HF VDR25100FW/HF VDR25100FE/HF VDR25100FB/HF 25*100 8 12 60M
VDR33100F/HF VDR33100FW/HF VDR33100FE/HF VDR33100FB/HF 33*100 8 12 44M
VDR40100F/HF VDR40100FW/HF VDR40100FE/HF VDR40100FB/HF 40*100 8 12 40M
VDR50100F/HF VDR50100FW/HF VDR50100FE/HF VDR50100FB/HF 50*100 8 12 40M
VDR60100F/HF VDR60100FW/HF VDR60100FE/HF VDR60100FB/HF 60*100 8 12 32M
VDR70100F/HF VDR70100FW/HF VDR70100FE/HF VDR70100FB/HF 70*100 8 12 24M
VDR75100F/HF VDR75100FW/HF VDR75100FE/HF VDR75100FB/HF 75*100 8 12 24M
VDR80100F/HF VDR80100FW/HF VDR80100FE/HF VDR80100FB/HF 80*100 8 12 24M
VDR100100F/HF VDR100100FW/HF VDR100100FE/HF VDR100100FB/HF 100*100 8 12 24M
VDR120100F/HF VDR120100FW/HF VDR120100FE/HF VDR120100FB/HF 120*100 8 12 16M
VDR150100F/HF VDR150100FW/HF VDR150100FE/HF VDR150100FB/HF 150*100 8 12 16M
VDR160100F/HF VDR160100FW/HF VDR160100FE/HF VDR160100FB/HF 160*100 8 12
/
VDR100130F/HF VDR100130FW/HF VDR100130FE/HF VDR100130FB/HF 100*130 8 12
/
VDR200100F/HF VDR200100FW/HF VDR200100FE/HF VDR200100FB/HF 200*100 8 12 16M
VDR200150F/HF VDR200150FW/HF VDR200150FE/HF VDR200150FB/HF 200*150 8 12 16M







Item No.



W*H



Q



P

Wire capability/2.0sp
Gray White Blue Black
HVDR1616F/HF HVDR1616FW/HF HVDR1616FE/HF HVDR1616FB/HF 16*16 5 5 3-10pcs
HVDR2516F/HF HVDR2516FW/HF HVDR2516FE/HF HVDR2516FB/HF 25*16 5 5 8-12pcs
HVDR1520F/HF HVDR1520FW/HF HVDR1520FE/HF HVDR1520FB/HF 15*20 4 6 8-12pcs
HVDR2020F/HF HVDR2020FW/HF HVDR2020FE/HF HVDR2020FB/HF 20*20 4 6 10-20pcs
HVDR4020F/HF HVDR4020FW/HF HVDR4020FE/HF HVDR4020FB/HF 40*20 4 6 15-30pcs
HVDR1525F/HF HVDR1525FW/HF HVDR1525FE/HF HVDR1525FB/HF 15*25 5 5 5-15pcs
HVDR2025F/HF HVDR2025FW/HF HVDR2025FE/HF HVDR2025FB/HF 20*25 4 6 5-15pcs
HVDR2525F/HF HVDR2525FW/HF HVDR2525FE/HF HVDR2525FB/HF 25*25 4 6 10-25pcs
HVDR3025F/HF HVDR3025FW/HF HVDR3025FE/HF HVDR3025FB/HF 30*25 4 6 12-28pcs
HVDR4025F/HF HVDR4025FW/HF HVDR4025FE/HF HVDR4025FB/HF 40*25 4 6 20-35pcs
HVDR5025F/HF HVDR5025FW/HF HVDR5025EF/HF HVDR5025FB/HF 50*25 4 6 12-28pcs
HVDR1530F/HF HVDR1530FW/HF HVDR1530FE/HF HVDR1530FB/HF 15*30 4 6 8-15pcs
HVDR2030F/HF HVDR2030FW/HF HVDR2030FE/HF HVDR2030FB/HF 20*30 4 6 25-35pcs
HVDR2530F/HF HVDR2530FW/HF HVDR2530FE/HF HVDR2530FB/HF 25*30 4 6 25-35pcs
HVDR3030F/HF HVDR3030FW/HF HVDR3030FE/HF HVDR3030FB/HF 30*30 4 6 35-35pcs
HVDR4030F/HF HVDR4030FW/HF HVDR4030FE/HF HVDR4030FB/HF 40*30 4 6 30-40pcs
HVDR5030F/HF HVDR5030FW/HF HVDR5030FE/HF HVDR5030FB/HF 50*30 4 5 40-50pcs
HVDR6030F/HF HVDR6030FW/HF HVDR6030FE/HF HVDR6030FB/HF 60*30 4 6 50-60pcs
HVDR2233F/HF HVDR2233FW/HF HVDR2233FE/HF HVDR2233FB/HF 22*33 4 6 25-35pcs
HVDR3333F/HF HVDR3333FW/HF HVDR3333FE/HF HVDR3333FB/HF 33*33 4 6 35-45pcs
HVDR2035F/HF HVDR2035FW/HF HVDR2035FE/HF HVDR2035FB/HF 20*35 4 6 30-40pcs
HVDR3535F/HF HVDR3535FW/HF HVDR3535FE/HF HVDR3535FB/HF 35*35 4 6 40-50pcs
HVDR5035F/HF HVDR5035FW/HF HVDR5035FE/HF HVDR5035FB/HF 50*35 4 6 40-60pcs
HVDR2040F/HF HVDR2040FW/HF HVDR2040FE/HF HVDR2040FB/HF 20*40 4 6 16-22pcs
HVDR2540F/HF HVDR2540FW/HF HVDR2540FE/HF HVDR2540FB/HF 25*40 4 6 20-35pcs
HVDR3540F/HF HVDR3540FW/HF HVDR3540FE/HF HVDR3540FB/HF 35*40 4 6 30-45pcs
HVDR4040F/HF HVDR4040FW/HF HVDR4040FE/HF HVDR4040FB/HF 40*40 4 6 60-70pcs
HVDR6040F/HF HVDR6040FW/HF HVDR6040FE/HF HVDR6040FB/HF 60*40 4 6 100-115pcs
HVDR8040F/HF HVDR8040FW/HF HVDR8040FE/HF HVDR8040FB/HF 80*40 4 6 120-135pcs
HVDR10040F/HF HVDR10040FW/HF HVDR10040FE/HF HVDR10040FB/HF 100*40 4 6 120-135pcs
HVDR12040F/HF HVDR12040FW/HF HVDR12040FE/HF HVDR12040FB/HF 100*40 4 6 140-155pcs
HVDR2545F/HF HVDR2545FW/HF HVDR2545FE/HF HVDR2545FB/HF 25*45 4 6 20-25pcs
HVDR3345F/HF HVDR3345FW/HF HVDR3345FE/HF HVDR3345FB/HF 33*45 4 6 40-55pcs
HVDR4545F/HF HVDR4545FW/HF HVDR4545FE/HF HVDR4545FB/HF 45*45 4 6 60-70pcs
HVDR6545F/HF HVDR6545FW/HF HVDR6545FE/HF HVDR6545FB/HF 65*45 4 6 110-120pcs
HVDR2050F/HF HVDR2050FW/HF HVDR2050FE/HF HVDR2050FB/HF 20*50 4 6 18-28pcs
HVDR2550F/HF HVDR2550FW/HF HVDR2550FE/HF HVDR2550FB/HF 25*50 4 6 20-30pcs
HVDR3050F/HF HVDR3050FW/HF HVDR3050FE/HF HVDR3050FB/HF 30*50 4 6 25-40pcs
HVDR3550F/HF HVDR3550FW/HF HVDR3550FE/HF HVDR3550FB/HF 35*50 4 6 40-60pcs
HVDR4050F/HF HVDR4050FW/HF HVDR4050FE/HF HVDR4050FB/HF 40*50 4 6 60-70pcs
HVDR4550F/HF HVDR4550FW/HF HVDR4550FE/HF HVDR4550FB/HF 45*50 4 6 70-80pcs
HVDR5050F/HF HVDR5050FW/HF HVDR5050FE/HF HVDR5050FB/HF 50*50 4 6 80-90pcs
HVDR5550F/HF HVDR5550FW/HF HVDR5550FE/HF HVDR5550FB/HF 55*50 4 6 85-95pcs
HVDR6050F/HF HVDR6050FW/HF HVDR6050FE/HF HVDR6050FB/HF 60*50 4 6 100-120pcs
HVDR7550F/HF HVDR7550FW/HF HVDR7550FE/HF HVDR7550FB/HF 75*50 4 6 150-170pcs
HVDR8050F/HF HVDR8050FW/HF HVDR8050FE/HF HVDR8050FB/HF 80*50 4 6 160-180pcs
HVDR10050F/HF HVDR10050FW/HF HVDR10050FE/HF HVDR10050FB/HF 100*50 4 6 200-250pcs
HVDR12555F/HF HVDR12555FW/HF HVDR12555FE/HF HVDR12555FB/HF 125*55 4 6 220-270pcs
HVDR2060F/HF HVDR2060FW/HF HVDR2060FE/HF HVDR2060FB/HF 20*60 4 6 35-40pcs
HVDR2560F/HF HVDR2560FW/HF HVDR2560FE/HF HVDR2560FB/HF 25*60 4 6 40-50pcs
HVDR3060F/HF HVDR3060FW/HF HVDR3060FE/HF HVDR3060FB/HF 30*60 4 6 50-80pcs
HVDR3560F/HF HVDR3560FW/HF HVDR3560FE/HF HVDR3560FB/HF 35*60 4 6 90-105pcs
HVDR4060F/HF HVDR4060FW/HF HVDR4060FE/HF HVDR4060FB/HF 40*60 4 6 100-115pcs
HVDR4560F/HF HVDR4560FW/HF HVDR4560FE/HF HVDR4560FB/HF 45*60 4 6 110-125pcs
HVDR5060F/HF HVDR5060FW/HF HVDR5060FE/HF HVDR5060FB/HF 50*60 4 6 120-135pcs
HVDR6060F/HF HVDR6060FW/HF HVDR6060FE/HF HVDR6060FB/HF 60*60 4 6 120-135pcs
HVDR8060F/HF HVDR8060FW/HF HVDR8060FE/HF HVDR8060FB/HF 80*60 4 6 180-210pcs
HVDR10060F/HF HVDR10060FW/HF HVDR10060FE/HF HVDR10060FB/HF 100*60 4 6 240-290pcs
HVDR11060F/HF HVDR11060FW/HF HVDR11060FE/HF HVDR11060FB/HF 110*60 4 6 250-300pcs
HVDR12060F/HF HVDR12060FW/HF HVDR12060FE/HF HVDR12060FB/HF 120*60 4 6 260-320pcs
HVDR15060F/HF HVDR15060FW/HF HVDR15060FE/HF HVDR15060FB/HF 150*60 4 6 300-360pcs
HVDR2565F/HF HVDR2565FW/HF HVDR2565FE/HF HVDR2565FB/HF 25*65 4 6 40-50pcs
HVDR3365F/HF HVDR3365FW/HF HVDR3365FE/HF HVDR3365FB/HF 33*65 4 6 40-70pcs
HVDR4565F/HF HVDR4565FW/HF HVDR4565FE/HF HVDR4565FB/HF 45*65 4 6 110-120pcs
HVDR6565F/HF HVDR6565FW/HF HVDR6565FE/HF HVDR6565FB/HF 65*65 4 6 180-200pcs
HVDR7265F/HF HVDR7265FW/HF HVDR7265FE/HF HVDR7265FB/HF 72*65 4 6 180-230pcs
HVDR2575F/HF HVDR2575FW/HF HVDR2575FE/HF HVDR2575FB/HF 25*75 4 6 180-210pcs
HVDR5075F/HF HVDR5075FW/HF HVDR5075FE/HF HVDR5075FB/HF 50*75 4 6 180-210pcs
HVDR7575F/HF HVDR7575FW/HF HVDR7575FE/HF HVDR7575FB/HF 75*75 4 6 200-240pcs
HVDR10075F/HF HVDR10075FW/HF HVDR10075FE/HF HVDR10075FB/HF 100*75 4 6 250-290pcs
HVDR2580F/HF HVDR2580FW/HF HVDR2580FE/HF HVDR2580FB/HF 25*80 4 6 100-120pcs
HVDR3080F/HF HVDR3080FW/HF HVDR3080FE/HF HVDR3080FB/HF 30*80 4 6 110-125pcs
HVDR3580F/HF HVDR3580FW/HF HVDR3580FE/HF HVDR3580FB/HF 35*80 4 6 110-130pcs
HVDR4080F/HF HVDR4080FW/HF HVDR4080FE/HF HVDR4080FB/HF 40*80 4 6 140-160pcs
HVDR4580F/HF HVDR4580FW/HF HVDR4580FE/HF HVDR4580FB/HF 45*80 4 6 140-160pcs
HVDR5080F/HF HVDR5080FW/HF HVDR5080FE/HF HVDR5080FB/HF 50*80 4 6 160-180pcs
HVDR5580F/HF HVDR5580FW/HF HVDR5580FE/HF HVDR5580FB/HF 55*80 4 6 160-180pcs
HVDR6080F/HF HVDR6080FW/HF HVDR6080FE/HF HVDR6080FB/HF 60*80 4 6 180-210pcs
HVDR8080F/HF HVDR8080FW/HF HVDR8080FE/HF HVDR8080FB/HF 80*80 4 6 240-290pcs
HVDR10080F/HF HVDR10080FW/HF HVDR10080FE/HF HVDR10080FB/HF 100*80 4 6 260-350pcs
HVDR12080F/HF HVDR12080FW/HF HVDR12080FE/HF HVDR12080FB/HF 120*80 4 6 280-380pcs
HVDR14080F/HF HVDR14080FW/HF HVDR14080FE/HF HVDR14080FB/HF 140*80 4 6 350-450pcs
HVDR16080F/HF HVDR16080FW/HF HVDR16080FE/HF HVDR16080FB/HF 160*80 4 6 450-550pcs
HVDR25100F/HF HVDR25100FW/HF HVDR25100FE/HF HVDR25100FB/HF 25*100 4 6 110-160pcs
HVDR33100F/HF HVDR33100FW/HF HVDR33100FE/HF HVDR33100FB/HF 33*100 4 6 130-165pcs
HVDR40100F/HF HVDR40100FW/HF HVDR40100FE/HF HDR40100FB/HF 40*100 4 6 130-175pcs
HVDR50100F/HF HVDR50100FW/HF HVDR50100FE/HF HVDR50100FB/HF 50*100 4 6 220-250pcs
HVDR60100F/HF HVDR60100FW/HF HVDR60100FE/HF HVDR60100FB/HF 60*100 4 6 240-290pcs
HVDR70100F/HF HVDR70100FW/HF HVDR70100FE/HF HVDR70100FB/HF 70*100 4 6 250-340pcs
HVDR75100F/HF HVDR75100FW/HF HVDR75100FE/HF HVDR75100FB/HF 75*100 4 6 260-350pcs
HVDR80100F/HF HVDR80100FW/HF HVDR80100FE/HF HVDR80100FB/HF 80*100 4 6 260-350pcs
HVDR100100F/HF HVDR100100FW/HF HVDR100100FE/HF HVDR100100FB/HF 100*100 4 6 300-400pcs
HVDR120100F/HF HVDR120100FW/HF HVDR120100FE/HF HVDR120100FB/HF 120*100 4 6 350-450pcs
HVDR150100F/HF HVDR150100FW/HF HVDR150100FE/HF HVDR150100FB/HF 150*100 4 6 400-650pcs
HVDR160100F/HF HVDR160100FW/HF HVDR160100FE/HF HVDR160100FB/HF 160*100 4 6 500-750pcs
HVDR100130F/HF HVDR100130FW/HF HVDR100130FE/HF HVDR100130FB/HF 100*130 4 6 350-450pcs
HVDR200100F/HF HVDR200100FW/HF HVDR200100FE/HF HVDR200100FB/HF 200*100 4 6 600-800pcs
HVDR200150F/HF HVDR200150FW/HF HVDR200150FE/HF HVDR200150FB/HF 200*150 4 6 900-1200pcs












RCCN  Din Rails












Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS

Item No.
Outer width/Outer height/
Thickness/Length 		 Material Length
per pcs		 Packing/
carton

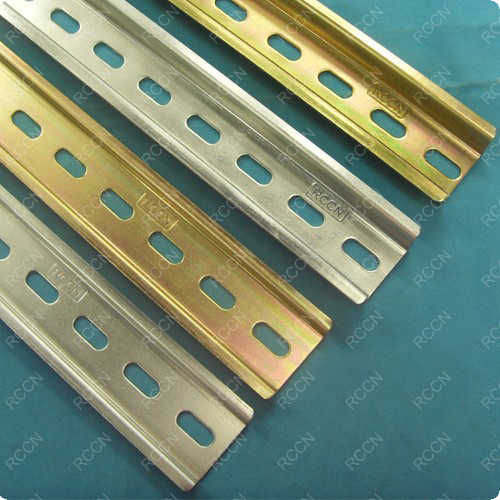

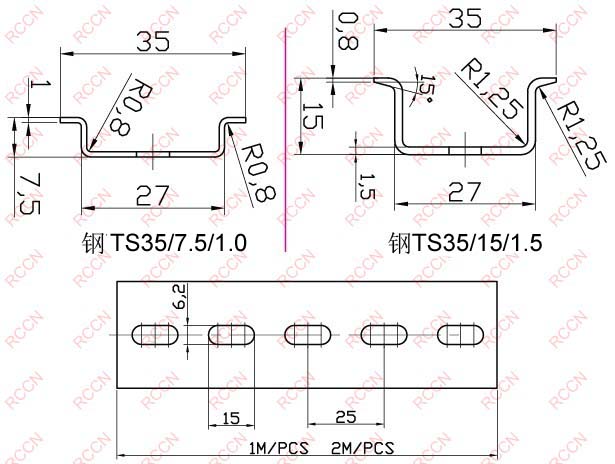

TS-35/7.5   Series
TS-35/7.5/1.0/1M Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-ROHS ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-ROHS ROHS silver zinc plated steel 2M 100M
TS-35/15  Series
TS-35/15/1.5/1M Color zinc steel 1M 30M
TS-35/15/1.5/1M-ROHS ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M Color zinc steel 2M 60M
TS-35/15/1.5/2M-ROHS ROHS silver zinc plated steel 2M 60M

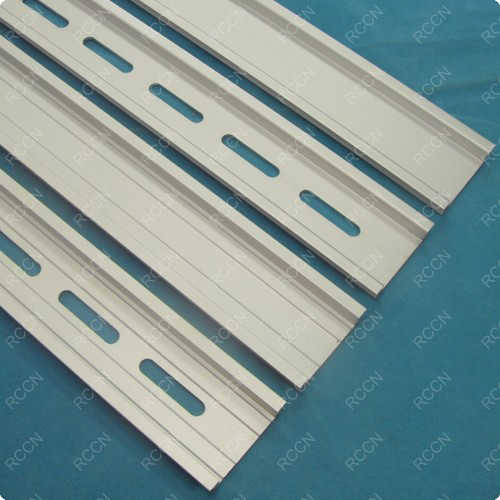

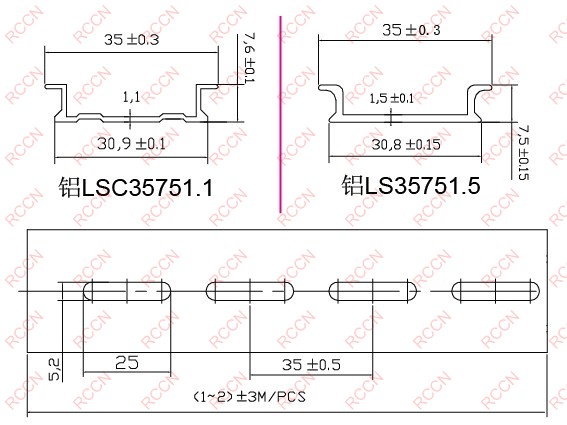

LSC-35/7.5/1.1  Series
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5 Series
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-No bottom ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M-No bottom ROHS Aluminum metal 2M 100M










0
