RCCN HVDRE Wiring Duct
Narrow slot/finger design provides more slots to closer fit the spacing of high-density terminal blocks and other hardware Certificates:UL:E306674 CE:EN50085 RoHS,REACH Made of rigid PVC UL Recognized continuous use temperature: 50°C (122°F) UL94 Flammability Rating of V-0 Provided with mounting holes Available color:gray.white.blue.black and other special colors Work Temperature:-40°C to 65°C Special length come with MOQ request Comment:gray is the common color, other color need more MOQ |

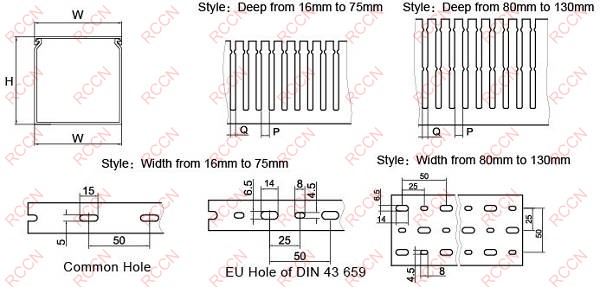

Item No. | W*H | Slot width Q |
Finger width P |
Wire capability /2.0sp |
PACK | |||
Gray | White | Blue | Black | |||||
HVDR1616F | HVDR1616W | HVDR1616E | HVDR1616B | 16*16 | 5 | 5 | 3~10pcs | 300M |
HVDR1520F | HVDR1520W | HVDR1520E | HVDR1520B | 15*20 | 4 | 6 | 8~12pcs | 260M |
HVDR2020F | HVDR2020W | HVDR2020E | HVDR2020B | 20*20 | 4 | 6 | 10~20pcs | 240M |
HVDR4020F | HVDR4020W | HVDR4020E | HVDR4020B | 40*20 | 4 | 6 | 12~28pcs | 140M |
HVDR1525F | HVDR1525W | HVDR1525E | HVDR1525B | 15*25 | 5 | 6 | 5~15pcs | 260M |
HVDR2025F | HVDR2025W | HVDR2025E | HVDR2025B | 20*20 | 4 | 6 | 5~15pcs | 200M |
HVDR2525F | HVDR2525W | HVDR2525E | HVDR2525B | 25*25 | 4 | 6 | 10~25pcs | 200M |
HVDR3025F | HVDR3025W | HVDR3025E | HVDR3025B | 30*25 | 4 | 6 | 12~28pcs | 160M |
HVDR5025F | HVDR5025W | HVDR5025E | HVDR5025B | 50*25 | 4 | 6 | 20~30pcs | 100M |
HVDR2530F | HVDR2530W | HVDR2530E | HVDR2530B | 25*30 | 4 | 6 | 25~35pcs | 160M |
HVDR3030F | HVDR3030W | HVDR3030E | HVDR3030B | 30*30 | 4 | 6 | 25~35pcs | 140M |
HVDR4030F | HVDR4030W | HVDR4030E | HVDR4030B | 40*30 | 4 | 6 | 30~40pcs | 100M |
HVDR2233F | HVDR2233W | HVDR2233E | HVDR2233B | 22*33 | 5 | 6 | 30~45pcs | 160M |
*HVDR3333F | HVDR3333W | HVDR3333E | HVDR3333B | 33*33 | 4 | 6 | 35~45pcs | 160M |
HVDR2035F | HVDR2035W | HVDR2035E | HVDR2035B | 20*35 | 4 | 6 | 30~40pcs | 100M |
HVDR3535F | HVDR3535W | HVDR3535E | HVDR3535B | 35*35 | 4 | 6 | 35~45pcs | 112M |
HVDR5035F | HVDR5035W | HVDR5035E | HVDR5035B | 50*35 | 4 | 6 | 40~60pcs | 88M |
*HVDR2040F | HVDR2040W | HVDR2040E | HVDR2040B | 20*40 | 4 | 6 | 16~22pcs | 110M |
HVDR2540F | HVDR2540W | HVDR2540E | HVDR2540B | 25*40 | 4 | 6 | 20~25pcs | 112M |
HVDR4040F | HVDR4040W | HVDR4040E | HVDR4040B | 40*40 | 4 | 6 | 60~70pcs | 100M |
HVDR6040F | HVDR6040W | HVDR6040E | HVDR6040B | 60*40 | 4 | 6 | 100~115pcs | 68M |
HVDR8040F | HVDR8040W | HVDR8040E | HVDR8040B | 80*40 | 4 | 6 | 120~135pcs | 48M |
HVDR10040F | HVDR10040W | HVDR10040E | HVDR10040B | 100*40 | 4 | 6 | 120~135pcs | 32M |
HVDR2545F | HVDR2545W | HVDR2545E | HVDR2545B | 25*45 | 4 | 6 | 20~25pcs | 104M |
HVDR3345F | HVDR3345W | HVDR3345E | HVDR3345B | 33*45 | 4 | 6 | 40~55pcs | 108M |
HVDR4545F | HVDR4545W | HVDR4545E | HVDR4545B | 45*45 | 4 | 6 | 60~70pcs | 72M |
HVDR6545F | HVDR6545W | HVDR6545E | HVDR6545B | 65*45 | 4 | 6 | 110~120pcs | 56M |
*HVDR2050F | HVDR2050W | HVDR2050E | HVDR2050B | 20*50 | 4 | 6 | 18~28pcs | 100M |
HVDR2550F | HVDR2550W | HVDR2550E | HVDR2550B | 25*50 | 4 | 6 | 20~30pcs | 100M |
HVDR3050F | HVDR3050W | HVDR3050E | HVDR3050B | 30*50 | 4 | 6 | 25~40pcs | 84M |
HVDR3550F | HVDR3550W | HVDR3550E | HVDR3550B | 35*50 | 4 | 6 | 40~60pcs | 80M |
HVDR4050F | HVDR4050W | HVDR4050E | HVDR4050B | 40*50 | 4 | 6 | 60~70pcs | 68M |
HVDR4550F | HVDR4550W | HVDR4550E | HVDR4550B | 45*50 | 4 | 6 | 70~80pcs | 60M |
HVDR5050F | HVDR5050W | HVDR5050E | HVDR5050B | 50*50 | 4 | 6 | 80~90pcs | 50M |
HVDR5550F | HVDR5550W | HVDR5550E | HVDR5550B | 55*50 | 4 | 6 | 80~90pcs | 48M |
HVDR6050F | HVDR6050W | HVDR6050E | HVDR6050B | 60*50 | 4 | 6 | 100~120pcs | 48M |
HVDR8050F | HVDR8050W | HVDR8050E | HVDR8050B | 80*50 | 4 | 6 | 160~180pcs | 40M |
HVDR10050F | HVDR10050W | HVDR1005E | HVDR10050B | 100*50 | 4 | 6 | 200~250pcs | 26M |
HVDR12555F | HVDR12555W | HVDR12555E | HVDR12555B | 125*55 | 4 | 6 | 220~270pcs | 20M |
HVDR2060F | HVDR2060W | HVDR2060E | HVDR2060B | 20*60 | 4 | 6 | 35~45pcs | 100M |
HVDR2560F | HVDR2560W | HVDR2560E | HVDR2560B | 25*60 | 4 | 6 | 40~50pcs | 100M |
HVDR3060F | HVDR3060W | HVDR3060E | HVDR3060B | 30*60 | 4 | 6 | 60~80pcs | 80M |
*HVDR3560F | HVDR3560W | HVDR3560E | HVDR3560B | 35*60 | 4 | 6 | 90~105pcs | 78M |
HVDR4060F | HVDR4060W | HVDR4060E | HVDR4060B | 40*60 | 4 | 6 | 100~115pcs | 60M |
HVDR4560F | HVDR4560W | HVDR4560E | HVDR4560B | 45*60 | 4 | 6 | 110~125pcs | 30M |
HVDR5060F | HVDR5060W | HVDR5060E | HVDR5060B | 50*60 | 4 | 6 | 120~135pcs | 60M |
HVDR6060F | HVDR6060W | HVDR6060E | HVDR6060B | 60*60 | 4 | 6 | 120~135pcs | 48M |
HVDR8060F | HVDR8060W | HVDR8060E | HVDR8060B | 80*60 | 4 | 6 | 180~210pcs | 36M |
HVDR10060F | HVDR10060W | HVDR10060E | HVDR10060B | 100*60 | 4 | 6 | 240~290pcs | 28M |
HVDR11060F | HVDR11060W | HVDR11060E | HVDR11060B | 110*60 | 4 | 6 | 250~300pcs | 48M |
*HVDR12060F | HVDR12060W | HVDR12060E | HVDR12060B | 120*60 | 4 | 6 | 260~320pcs | 48M |
HVDR15060F | HVDR15060W | HVDR15060E | HVDR15060B | 150*60 | 4 | 6 | 300~360pcs | 16M |
HVDR2565F | HVDR2565W | HVDR2565E | HVDR2565B | 25*65 | 4 | 6 | 40~50pcs | 88M |
HVDR3365F | HVDR3365W | HVDR3365E | HVDR3365B | 33*65 | 4 | 6 | 40~70pcs | 80M |
HVDR4565F | HVDR4565W | HVDR4565E | HVDR4565B | 45*65 | 4 | 6 | 110~120pcs | 52M |
HVDR6565F | HVDR6565W | HVDR6565E | HVDR6565B | 65*65 | 4 | 6 | 180~200pcs | 44M |
HVDR7265F | HVDR7265W | HVDR7265E | HVDR7265B | 72*65 | 4 | 6 | 180~230pcs | 42M |
HVDR5075F | HVDR5075W | HVDR5075E | HVDR5075B | 50*75 | 4 | 6 | 180~210pcs | 42M |
HVDR7575F | HVDR7575W | HVDR7575E | HVDR7575B | 75*75 | 4 | 6 | 200~240pcs | 40M |
HVDR2580F | HVDR2580W | HVDR2580E | HVDR2580B | 25*80 | 4 | 6 | 100~120pcs | 72M |
HVDR3080F | HVDR3080W | HVDR3080E | HVDR3080B | 30*80 | 4 | 6 | 110~125pcs | 56M |
HVDR3580F | HVDR3580W | HVDR3580E | HVDR3580B | 35*80 | 4 | 6 | 110~130pcs | 56M |
HVDR4080F | HVDR4080W | HVDR4080E | HVDR4080B | 40*80 | 4 | 6 | 140~160pcs | 48M |
HVDR4580F | HVDR4580W | HVDR4580E | HVDR4580B | 45*80 | 4 | 6 | 140~160pcs | 40M |
HVDR5080F | HVDR5080W | HVDR5080E | HVDR5080B | 50*80 | 4 | 6 | 160~180pcs | 40M |
HVDR5580F | HVDR5580W | HVDR5580E | HVDR5580B | 55*80 | 4 | 6 | 160~180pcs | 32M |
HVDR6080F | HVDR6080W | HVDR6080E | HVDR6080B | 60*80 | 4 | 6 | 180~210pcs | 32M |
HVDR8080F | HVDR8080W | HVDR8080E | HVDR8080B | 80*80 | 4 | 6 | 240~290pcs | 24M |
HVDR10080F | HVDR10080W | HVDR10080E | HVDR10080B | 100*80 | 4 | 6 | 260~350pcs | 24M |
HVDR12080F | HVDR12080W | HVDR12080E | HVDR12080B | 120*80 | 4 | 6 | 280~380pcs | 16M |
HVDR14080F | HVDR14080W | HVDR14080E | HVDR14080B | 140*80 | 4 | 6 | 350~450pcs | 16M |
HVDR25100F | HVDR25100W | HVDR25100E | HVDR25100B | 25*100 | 4 | 6 | 110~160pcs | 60M |
HVDR33100F | HVDR33100W | HVDR33100E | HVDR33100B | 33*100 | 4 | 6 | 130~175pcs | 44M |
HVDR40100F | HVDR40100W | HVDR40100E | HVDR40100B | 40*100 | 4 | 6 | 130~175pcs | 40M |
HVDR50100F | HVDR50100W | HVDR50100E | HVDR50100B | 50*100 | 4 | 6 | 220~250pcs | 40M |
HVDR60100F | HVDR60100W | HVDR60100E | HVDR60100B | 60*100 | 4 | 6 | 240~290pcs | 32M |
HVDR70100F | HVDR70100W | HVDR70100E | HVDR70100B | 70*100 | 4 | 6 | 250~310pcs | 24M |
HVDR75100F | HVDR75100W | HVDR75100E | HVDR75100B | 75*100 | 4 | 6 | 260~350pcs | 24M |
HVDR80100F | HVDR80100W | HVDR80100E | HVDR80100B | 80*100 | 4 | 6 | 260~350pcs | 24M |
HVDR100100F | HVDR100100W | HVDR100100E | HVDR100100B | 100*100 | 4 | 6 | 300~400pcs | 24M |
HVDR120100F | HVDR120100W | HVDR120100E | HVDR120100B | 120*100 | 4 | 6 | 350~450pcs | 16M |
HVDR150100F | HVDR150100W | HVDR150100E | HVDR150100B | 150*100 | 4 | 6 | 400~650pcs | 16M |
*HVDR200100F | HVDR200100W | HVDR200100E | HVDR200100B | 200*100 | 4 | 6 | 600~800pcs | 16M |
HVDR100130F | HVDR100130W | HVDR100130E | HVDR100130B | 100*130 | 4 | 6 | 350~450pcs | 16M |
*HVDR200150F | HVDR200150W | HVDR200150E | HVDR200150B | 200*150 | 4 | 6 | 900~1200pcs | 16M |
RCCN Din Rails
Material:high quality and strength cold rolled steel with electroplate EN50022 Product standard: EN50022 Color: yellow plated nickle,silver plated zinc Operated temperature:-40°C standing heat to 100°C Use way: fixed on the panel then installed with electric parts Features: perfect design,with huge pressure,exactly dia., rust resistant Special length or special hole come with MOQ., Rohs approved products are available. TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS |
Item No. Outer width/Outer height/ Thickness/Length |
Material | Length per pcs |
Packing/ carton |
TS-35/7.5 Series | |||
TS-35/7.5/1.0/1M | Color zinc steel | 1M | 50M |
TS-35/7.5/1.0/1M-ROHS | ROHS silver zinc plated steel | 1M | 50M |
TS-35/7.5/1.0/2M | Color zinc steel | 2M | 100M |
TS-35/7.5/1.0/2M-ROHS | ROHS silver zinc plated steel | 2M | 100M |
TS-35/15 Series | |||
TS-35/15/1.5/1M | Color zinc steel | 1M | 30M |
TS-35/15/1.5/1M-ROHS | ROHS silver zinc plated steel | 1M | 30M |
TS-35/15/1.5/2M | Color zinc steel | 2M | 60M |
TS-35/15/1.5/2M-ROHS | ROHS silver zinc plated steel | 2M | 60M |
LSC-35/7.5/1.1 Series | |||
LSC-35/7.5/1.1/1M | ROHS Aluminum metal | 1M | 100M |
LSC-35/7.5/1.1/2M | ROHS Aluminum metal | 2M | 100M |
LSC-35/7.5/1.1/1M-No bottom | ROHS Aluminum metal | 1M | 100M |
LSC-35/7.5/1.1/2M-No bottom | ROHS Aluminum metal | 2M | 100M |
LS-35/7.5/1.5 Series | |||
LS-35/7.5/1.5/1M | ROHS Aluminum metal | 1M | 100M |
LS-35/7.5/1.5/2M | ROHS Aluminum metal | 2M | 100M |
LS-35/7.5/1.5/1M-No bottom | ROHS Aluminum metal | 1M | 100M |
LS-35/7.5/1.5/2M-No bottom | ROHS Aluminum metal | 2M | 100M |
