RCCN HVDR Narrow Slot Wiring Duct(black)

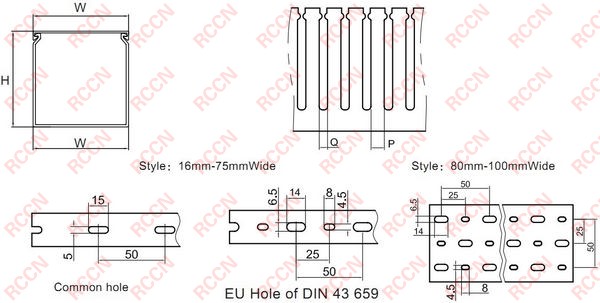

线槽图纸

American standard Narrow slot/finger design provides more
slots to closer fit the spacing of high-density terminal blocks
and other hardware used countries such as USA,
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C




Part No. W*H A B C D E F H T M/PACK 14AWG/PCS
HVDR1616B 16*16 16 16 16 8.5 4.0 10 14.5 1.3 400 4-8
HVDR2020B 20*20 20 20 20 12.5 4.0 10 18.5 1.3 200 5-12
HVDR1525B 15*25 15 25 15 15.5 4.0 10 23.5 1.4 260 5-12
HVDR2025B 20*25 20 25 20 15.5 4.0 10 23.5 1.4 200 5-12
HVDR2525B 25*25 25 25 25 15.5 4.0 10 23.5 1.4 200 10-25
HVDR1530B 15*30 15 30 15 21.5 4.0 10 31.5 1.4 180 15-25
HVDR2030B 20*30 20 30 20 21.5 4.0 10 31.5 1.3 160 15-25
HVDR2530B 25*30 25 30 25 20.0 4.0 10 28.5 1.4 160 15-25
HVDR3030B 30*30 30 30 30 20.0 4.0 10 28.5 1.4 140 15-25
HVDR4030B 40*30 40 30 40 20.0 4.0 10 28.5 1.4 120 25-35
HVDR2233B 22*33 22 33 22 21.5 4.0 10 31.5 1.4 160 15-25
HVDR3535B 35*35 35 35 35 22.5 4.0 10 32.5 1.4 100 40-45
HVDR5035B 50*35 50 35 50 22.5 4.0 10 32.5 1.6 80 55-65
HVDR2540B 25*40 25 40 25 28.5 4.0 10 38.5 1.4 112 20-25
HVDR4040B 40*40 40 40 40 28.5 4.0 10 38.5 1.4 100 60-70
HVDR6040B 60*40 60 40 60 27.5 4.0 10 37.8 1.6 68 100-115
HVDR8040B 80*40 80 40 80 28.5 4.0 10 38.5 2.0 48 120-135
HVDR10040B 100*40 100 40 100 28.5 4.0 10 38.5 2.0 40 140-165
HVDR2545B 25*45 25 45 25 33.5 4.0 10 43.5 1.4 100 20-25
HVDR3345B 33*45 33 45 33 33.5 4.0 10 43.5 1.5 104 40-55
HVDR4545B 45*45 45 45 45 33.5 4.0 10 43.5 1.5 68 60-70
HVDR6545B 65*45 65 45 65 33.5 4.0 10 43.5 1.6 68 80-90
HVDR2550B 25*50 25 50 25 38.5 4.0 10 48.5 1.6 100 20-25
HVDR3050B 30*50 30 50 30 38.5 4.0 10 48.5 1.6 84 30-35
HVDR3550B 35*50 35 50 35 38.5 4.0 10 48.5 1.6 84 40-45
HVDR4050B 40*50 40 50 40 38.5 4.0 10 48.5 1.6 68 50-60
HVDR4550B 45*50 45 50 45 38.5 4.0 10 48.5 1.6 68 60-70
HVDR5050B 50*50 50 50 50 38.5 4.0 10 48.5 1.6 60 80-90
HVDR5550B 55*50 55 50 55 38.5 4.0 10 48.5 1.6 60 80-90
HVDR6050B 60*50 60 50 60 38.5 4.0 10 48.5 1.6 52 85-95
HVDR8050B 80*50 80 50 80 38.5 4.0 10 48.5 1.6 40 150-170
HVDR10050B 100*50 100 50 100 38.5 4.0 10 48.5 1.6 28 200-240
HVDR2060B 20*60 20 60 20 47.5 4.0 10 57.5 1.7 120 35-40
HVDR2560B 25*60 25 60 25 47.5 4.0 10 57.5 1.6 120 40-45
HVDR4060B 40*60 40 60 40 47.5 4.0 10 57.5 1.8 60 100-115
HVDR4560B 45*60 45 60 45 47.5 4.0 10 57.5 1.8 60 113-118
HVDR5060B 50*60 50 60 50 47.5 4.0 10 57.5 1.8 48 115-130
HVDR6060B 60*60 60 60 60 47.5 4.0 10 57.5 2.0 48 120-135
HVDR8060B 80*60 80 60 80 47.5 4.0 10 57.5 2.0 36 180-240
HVDR11060B 110*60 110 60 110 47.5 4.0 10 57.5 2.0 20 220-280
HVDR12060B 120*60 120 60 120 47.5 4.0 10 57.5 2.0 20 220-280
HVDR2565B 25*65 25 65 25 53.5 4.0 10 63.5 1.6 88 40-45
HVDR3365B 33*65 33 65 33 53.5 4.0 10 63.5 1.6 84 60-75
HVDR4565B 45*65 45 65 45 53.5 4.0 10 63.5 1.6 60 110-120
HVDR6565B 65*65 65 65 65 53.5 4.0 10 63.5 1.6 40 180-200
HVDR5075B 50*75 50 75 50 68.5 4.0 10 73.5 2.0 56 140-180
HVDR7575B 75*75 75 75 75 68.5 4.0 10 73.5 2.0 32 220-270
HVDR2580B 25*80 25 80 25 68.5 4.0 10 78.5 1.8 72 100-120
HVDR3080B 30*80 30 80 30 68.5 4.0 10 78.5 2.0 56 110-130
HVDR3580B 35*80 35 80 35 68.5 4.0 10 78.5 2.0 56 120-140
HVDR4080B 40*80 40 80 40 68.5 4.0 10 78.5 1.8 48 120-135
HVDR4580B 45*80 45 80 45 68.5 4.0 10 78.5 2.0 40 130-140
HVDR5080B 50*80 50 80 50 68.5 4.0 10 78.5 1.8 32 150-190
HVDR5580B 55*80 55 80 55 68.5 4.0 10 78.5 2.0 32 150-190
HVDR6080B 60*80 60 80 60 68.5 4.0 10 78.5 2.0 32 180-210
HVDR8080B 80*80 80 80 80 68.5 4.0 10 78.5 2.0 24 240-290
HVDR10080B 100*80 100 80 100 68.5 4.0 10 78.5 2.0 20 260-350
HVDR12080B 120*80 120 80 120 68.5 4.0 10 78.5 2.0 16 260-350
HVDR14080B 140*80 140 80 140 68.5 4.0 10 78.5 2.0 12 300-400
HVDR33100B 33*100 33 100 33 88.5 4.0 10 98.5 2.0 44 110-160
HVDR40100B 40*100 40 100 40 88.5 4.0 10 98.5 2.0 44 130-170
HVDR50100B 50*100 50 100 50 88.5 4.0 10 98.5 2.0 32 220-250
HVDR60100B 60*100 60 100 60 88.5 4.0 10 98.5 2.0 32 240-290
HVDR75100B 75*100 75 100 75 88.5 4.0 10 98.5 2.0 24 260-350
HVDR80100B 80*100 80 100 80 88.5 4.0 10 98.5 2.0 24 260-350
HVDR100100B 100*100 100 100 100 88.5 4.0 10 98.5 2.2 16 300-400
HVDR120100B 120*100 120 100 120 88.5 4.0 10 98.5 2.4 16 330-430
HVDR150100B 150*100 150 100 150 88.5 4.0 10 98.5 2.4 16 350-450
HVDR100130B 100*130 100 130 100 118.5 4.0 10 128.5 2.2 16 330-430
