RCCN wiring duct VDRB(black)





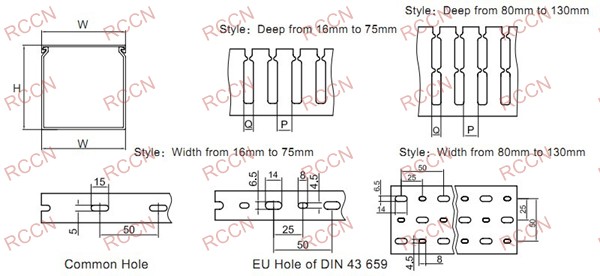

线槽图纸

Wide slot/finger design provides greater sidewall rigidity and can
be used with a wide range of wire bundle sizes。
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes
Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request

Item No. W*H Q P Wire
capability
  /2.0sp		 Packing
Gray White Blue Black
VDR1616F VDR1616W VDR1616E VDR1616B 16*16 8 10 3~10pcs 300M
*VDR1520F VDR1520W VDR1520E VDR1520B 15*20 8.5 12 8~12pcs 260M
VDR2020F VDR2020W VDR2020E VDR2020B 20*20 8.5 12 10~20pcs 240M
VDR1525F VDR1525W VDR1525E VDR1525B 15*25 8 10 5~15pcs 260M
VDR2025F VDR2025W VDR2025E VDR2025B 20*25 8 10 5~15pcs 200M
VDR2525F VDR2525W VDR2525E VDR2525B 25*25 8 10 10~25pcs 200M
VDR3025F VDR3025W VDR3025E VDR3025B 30*25 8 10 12~28pcs 160M
VDR1530F VDR1530W VDR1530E VDR1530B 15*30 8 10 8~15pcs 180M
VDR2030F VDR2030W VDR2030E VDR2030B 20*30 8 12 25~35pcs 160M
VDR2530F VDR2530W VDR2530E VDR2530B 25*30 8 12 25~35pcs 160M
VDR3030F VDR3030W VDR3030E VDR3030B 30*30 8 12 25~35pcs 140M
VDR4030F VDR4030W VDR4030E VDR4030B 40*30 8 12 30~40pcs 100M
*VDR3333F VDR3333W VDR3333E VDR3333B 33*33 8 12 35~45pcs 160M
VDR2035F VDR2035W VDR2035E VDR2035B 20*35 8 12 30~40pcs 100M
VDR3535F VDR3535W VDR3535E VDR3535B 35*35 8 12 35~45pcs 112M
VDR5035F VDR5035W VDR5035E VDR5035B 50*35 8 12 40~60pcs 88M
*VDR2040F VDR2040W VDR2040E VDR2040B 20*40 8 12 16~22pcs 110M
VDR2540F VDR2540W VDR2540E VDR2540B 25*40 8 12 20~25pcs 112M
VDR4040F VDR4040W VDR4040E VDR4040B 40*40 8 12 60~70pcs 100M
VDR6040F VDR6040W VDR6040E VDR6040B 60*40 8 12 100~115pcs 68M
VDR8040F VDR8040W VDR8040E VDR8040B 80*40 8 12 120~135pcs 48M
VDR10040F VDR10040W VDR10040E VDR10040B 100*40 8 12 120~135pcs 32M
VDR2545F VDR2545W VDR2545E VDR2545B 25*45 8 12 20~25pcs 104M
VDR3345F VDR3345W VDR3345E VDR3345B 33*45 8 12 40~55pcs 108M
VDR4545F VDR4545W VDR4545E VDR4545B 45*45 8 12 60~70pcs 72M
VDR6545F VDR6545W VDR6545E VDR6545B 65*45 8 12 110~120pcs 56M
*VDR2050F VDR2050W VDR2050E VDR2050B 20*50 8 12 18~28pcs 120M
VDR2550F VDR2550W VDR2550E VDR2550B 25*50 8 12 20~30pcs 100M
VDR3050F VDR3050W VDR3050E VDR3050B 30*50 8 12 25~40pcs 84M
VDR3550F VDR3550W VDR3550E VDR3550B 35*50 8 12 40~60pcs 80M
VDR4050F VDR4050W VDR4050E VDR4050B 40*50 8 12 60~70pcs 68M
VDR4550F VDR4550W VDR4550E VDR4550B 45*50 8 12 70~80pcs 60M
VDR5050F VDR5050W VDR5050E VDR5050B 50*50 8 12 80~90pcs 60M
VDR6050F VDR6050W VDR6050E VDR6050B 60*50 8 12 100~120pcs 48M
VDR8050F VDR8050W VDR8050E VDR8050B 80*50 8 12 160~180pcs 40M
VDR10050F VDR10050W VDR10050E VDR10050B 100*50 8 12 200~250pcs 26M
VDR12555F VDR12555W VDR12555E VDR12555B 125*55 8 12 220~270pcs 20M
*VDR2060F VDR2060W VDR2060E VDR2060B 20*60 8 12 35~45pcs 100M
VDR2560F VDR2560W VDR2560E VDR2560B 25*60 8 12 40~50pcs 100M
VDR3060F VDR3060W VDR3060E VDR3060B 30*60 8 12 60~80pcs 80M
*VDR3560F VDR3560W VDR3560E VDR3560B 35*60 8 12 90~105pcs 78M
VDR4060F VDR4060W VDR4060E VDR4060B 40*60 8 12 100~115pcs 60M
VDR4560F VDR4560W VDR4560E VDR4560B 45*60 8 12 110~125pcs 30M
VDR5060F VDR5060W VDR5060E VDR5060B 50*60 8 12 120~135pcs 60M
VDR6060F VDR6060W VDR6060E VDR6060B 60*60 8 12 120~135pcs 48M
VDR8060F VDR8060W VDR8060E VDR8060B 80*60 8 12 180~210pcs 36M
VDR10060F VDR10060W VDR10060E VDR10060B 100*60 8 12 240~290pcs 28M
VDR11060F VDR11060W VDR11060E VDR11060B 110*60 8 12 250~300pcs 48M
*VDR12060F VDR12060W VDR12060E VDR12060B 120*60 8 12 260~320pcs 48M
VDR2565F VDR2565W VDR2565E VDR2565B 25*65 8 12 40~50pcs 88M
VDR3365F VDR3365W VDR3365E VDR3365B 33*65 8 12 40~70pcs 80M
VDR4565F VDR4565W VDR4565E VDR4565B 45*65 8 12 110~120pcs 52M
VDR6565F VDR6565W VDR6565E VDR6565B 65*65 8 12 180~200pcs 44M
VDR7265F VDR7265W VDR7265E VDR7265B 72*65 8 12 180~230pcs 42M
VDR5075F VDR5075W VDR5075E VDR5075B 50*75 8 12 180~210pcs 32M
VDR7575F VDR7575W VDR7575E VDR7575B 75*75 8 12 200~240pcs 24M
VDR2580F VDR2580W VDR2580E VDR2580B 25*80 8 12 100~120pcs 72M
VDR3080F VDR3080W VDR3080E VDR3080B 30*80 8 12 110~125pcs 56M
VDR3580F VDR3580W VDR3580E VDR3580B 35*80 8 12 110~130pcs 56M
VDR4080F VDR4080W VDR4080E VDR4080B 40*80 8 12 140~160pcs 48M
VDR4580F VDR4580W VDR4580E VDR4580B 45*80 8 12 140~160pcs 40M
VDR5080F VDR5080W VDR5080E VDR5080B 5080 8 12 160~180pcs 40M
VDR5580F VDR5580W VDR5580E VDR5580B 55*80 8 12 160~180pcs 32M
VDR6080F VDR6080W VDR6080E VDR6080B 60*80 8 12 180~210pcs 32M
VDR8080F VDR8080W VDR8080E VDR8080B 80*80 8 12 240~290pcs 24M
VDR10080F VDR10080W VDR10080E VDR10080B 100*80 8 12 260~350pcs 24M
VDR12080F VDR12080W VDR12080E VDR12080B 120*80 8 12 280~380pcs 16M
VDR14080F VDR14080W VDR14080E VDR14080B 140*80 8 12 350~450pcs 16M
VDR25100F VDR25100W VDR25100E VDR25100B 25*100 8 12 110~160pcs 60M
VDR33100F VDR33100W VDR33100E VDR33100B 33*100 8 12 130~165pcs 44M
VDR40100F VDR40100W VDR40100E VDR40100B 40*100 8 12 130~175pcs 40M
VDR50100F VDR50100W VDR50100E VDR50100B 50*100 8 12 220~250pcs 40M
VDR60100F VDR60100W VDR60100E VDR60100B 60*100 8 12 240~290pcs 32M
VDR75100F VDR75100W VDR75100E VDR75100B 75*100 8 12 260~350pcs 24M
VDR80100F VDR80100W VDR80100E VDR80100B 80*100 8 12 260~350pcs 24M
VDR100100F VDR100100W VDR100100E VDR100100B 100*100 8 12 300~400pcs 24M
VDR120100F VDR120100W VDR120100E VDR120100B 120*100 8 12 350~450pcs 16M
VDR150100F VDR150100W VDR150100E VDR150100B 150*100 8 12 400~650pcs 16M
*VDR200100F VDR200100W VDR200100E VDR200100B 200*100 8 12 600~800pcs 16M
VDR100130F VDR100130W VDR100130E VDR100130B 100*130 8 12 350~450pcs 24M
*VDR200150F VDR200150W VDR200150E VDR200150B 200*150 8 12 900~1200pcs 10M



Part No.. W*H A B C D E F H T Packing 14AWG/PCS 图片/PIC
VDR1616F 16*16 16 16 16 8.5 8.0 20 14.5 1.3 300M 4-8 enter
VDR2020F 20*20 20 20 20 12.5 8.0 20 18.5 1.4 240M 5-12 enter
VDR1525F 15*25 15 25 15 15.5 8.0 20 23.5 1.4 260M 5-12 enter
VDR2025F 20*25 20 25 20 15.5 8.0 20 23.5 1.4 200M 5-12 enter
VDR2525F 25*25 25 25 25 15.5 8.0 20 23.5 1.4 200M 10-25 enter
VDR3025F 30*25 30 25 30 15.5 8.0 20 23.5 1.4 160M 15-30 enter
VDR1530F 15*30 15 30 15 21.5 8.0 20 31.5 1.3 180M 15-25 enter
VDR2030F 20*30 20 30 20 21.5 8.0 20 31.5 1.3 160M 15-25 enter
VDR2530F 25*30 25 30 25 20.0 8.0 20 28.5 1.5 160M 15-25 enter
VDR3030F 30*30 30 30 30 20.0 8.0 20 28.5 1.5 140M 15-25 enter
VDR4030F 40*30 40 30 40 20.0 8.0 20 28.5 1.4 120M 25-35 enter
VDR2233F 22*33 22 33 22 21.5 8.0 20 31.5 1.4 160M 15-25 enter
VDR3535F 35*35 35 35 35 22.5 8.0 20 32.5 1.4 100M 40-45 enter
VDR5035F 50*35 50 35 50 22.5 8.0 20 32.5 1.5 80M 55-65 enter
VDR2540F 25*40 25 40 25 28.5 8.0 20 38.5 1.4 112M 20-25 enter
VDR4040F 40*40 40 40 40 28.5 8.0 20 38.5 1.4 100M 60-70 enter
VDR6040F 60*40 60 40 60 27.5 8.0 20 37.8 1.6 68M 100-115 enter
VDR8040F 80*40 80 40 80 28.5 8.0 20 38.5 1.8 48M 120-135 enter
VDR10040F 100*40 100 40 100 28.5 8.0 20 38.5 1.8 36M 140-165 enter
VDR2545F 25*45 25 45 25 33.5 8.0 20 43.5 1.4 100M 20-25 enter
VDR3345F 33*45 33 45 33 33.5 8.0 20 43.5 1.5 104M 40-55 enter
VDR4545F 45*45 45 45 45 33.5 8.0 20 43.5 1.5 68M 60-70 enter
VDR6545F 65*45 65 45 65 33.5 8.0 20 43.5 1.6 54M 80-90 enter
VDR2550F 25*50 25 50 25 38.5 8.0 20 48.5 1.6 100M 20-25 enter
VDR3050F 30*50 30 50 30 38.5 8.0 20 48.5 1.6 84M 30-35 enter
VDR3550F 35*50 35 50 35 38.5 8.0 20 48.5 1.7 80M 40-45 enter
VDR4050F 40*50 40 50 40 38.5 8.0 20 48.5 1.6 60M 50-60 enter
VDR4550F 45*50 45 50 45 38.5 8.0 20 48.5 1.6 68M 60-70 enter
VDR5050F 50*50 50 50 50 38.5 8.0 20 48.5 1.6 60M 80-90 enter
VDR6050F 60*50 60 50 60 38.5 8.0 20 48.5 1.6 52M 85-95 enter
VDR8050F 80*50 80 50 80 38.5 8.0 20 48.5 2.0 40M 150-170 enter
VDR10050F 100*50 100 50 100 38.5 8.0 20 48.5 2.0 28M 200-240 enter
VDR2060F 20*60 20 60 20 47.5 8.0 20 57.5 1.7 100M 35-40 enter
VDR2560F 25*60 25 60 25 47.5 8.0 20 57.5 1.6 96M 40-45 enter
VDR4060F 40*60 40 60 40 47.5 8.0 20 57.5 1.8 60M 100-115 enter
VDR4560F 45*60 45 60 45 47.5 8.0 20 57.5 1.8 56M 113-118 enter
VDR5060F 50*60 50 60 50 47.5 8.0 20 57.5 1.8 48M 115-130 enter
VDR6060F 60*60 60 60 60 47.5 8.0 20 57.5 1.8 48M 120-135 enter
VDR8060F 80*60 80 60 80 47.5 8.0 20 57.5 2.0 36M 180-240 enter
VDR10060F 100*60 100 60 100 47.5 8.0 20 57.5 2.0 20M 220-280 enter
VDR11060F 110*60 110 60 110 47.5 8.0 20 57.5 2.0 20M 220-280 enter
VDR12060F 120*60 120 60 120 47.5 8.0 20 57.5 2.0 20M 220-280 enter
VDR2565F 25*65 25 65 25 53.5 8.0 20 63.5 1.6 88M 40-45 enter
VDR3365F 33*65 33 65 33 53.5 8.0 20 63.5 1.6 80M 60-75 enter
VDR4565F 45*65 45 65 45 53.5 8.0 20 63.5 1.6 52M 110-120 enter
VDR6565F 65*65 65 65 65 53.5 8.0 20 63.5 1.6 40M 180-200 enter
VDR5075F 50*75 50 75 50 68.5 8.0 20 73.5 2.0 32M 140-180 enter
VDR7575F 75*75 75 75 75 68.5 8.0 20 73.5 2.0 24M 220-270 enter
VDR2580F 25*80 25 80 25 68.5 8.0 20 78.5 1.8 72M 100-120 enter
VDR3080F 30*80 30 80 30 68.5 8.0 20 78.5 2.0 56M 110-130 enter
VDR3580F 35*80 35 80 35 68.5 8.0 20 78.5 2.0 56M 120-140 enter
VDR4080F 40*80 40 80 40 68.5 8.0 20 78.5 2.0 48M 120-135 enter
VDR4580F 45*80 45 80 45 68.5 8.0 20 78.5 2.0 40M 130-140 enter
VDR5080F 50*80 50 80 50 68.5 8.0 20 78.5 2.0 32M 150-190 enter
VDR5580F 55*80 55 80 55 68.5 8.0 20 78.5 2.0 32M 150-190 enter
VDR6080F 60*80 60 80 60 68.5 8.0 20 78.5 2.0 32M 180-210 enter
VDR8080F 80*80 80 80 80 68.5 8.0 20 78.5 2.0 24M 240-290 enter
VDR10080F 100*80 100 80 100 68.5 8.0 20 78.5 2.0 20M 260-350 enter
VDR12080F 120*80 120 80 120 68.5 8.0 20 78.5 2.2 16M 260-350 enter
VDR14080F 140*80 140 80 140 68.5 8.0 20 78.5 2.2 12M 300-400 enter
VDR25100F 25*100 25 100 25 88.5 8.0 20 98.5 2.0 60M 110-160 enter
VDR33100F 33*100 33 100 33 88.5 8.0 20 98.5 2.0 44M 110-160 enter
VDR40100F 40*100 40 100 40 88.5 8.0 20 98.5 2.0 44M 130-170 enter
VDR50100F 50*100 50 100 50 88.5 8.0 20 98.5 2.0 32M 220-250 enter
VDR60100F 60*100 60 100 60 88.5 8.0 20 98.5 2.0 32M 240-290 enter
VDR75100F 75*100 75 100 75 88.5 8.0 20 98.5 2.2 24M 260-350 enter
VDR80100F 80*100 80 100 80 88.5 8.0 20 98.5 2.2 24M 260-350 enter
VDR100100F 100*100 100 100 100 88.5 8.0 20 98.5 2.2 16M 300-400 enter
VDR120100F 120*100 120 100 120 88.5 8.0 20 98.5 2.4 16M 330-430 enter
VDR150100F 150*100 150 100 150 88.5 8.0 20 98.5 2.5 12M 350-450 enter
VDR100130F 100*130 100 130 100 118.5 8.0 20 128.5 2.4 16M 330-430 enter
