RCCN VDRL Wide Slot Wiring Duct
Comment:gray is standard color,other color come with MOQ.
Europe standard Wide slot/finger design provides greater
sidewall rigidity and can be used with a wide range of wire
bundle sizes,used countries such as U.K,
Germany, and so on
Certificates:UL:E306674 CE:EN50085 RoHS,REACH。
Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0
Provided with mounting holes

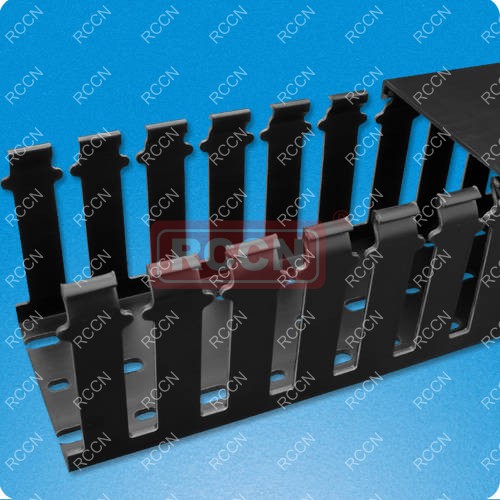

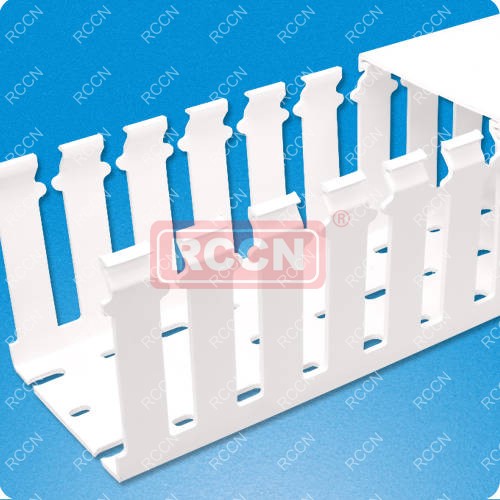

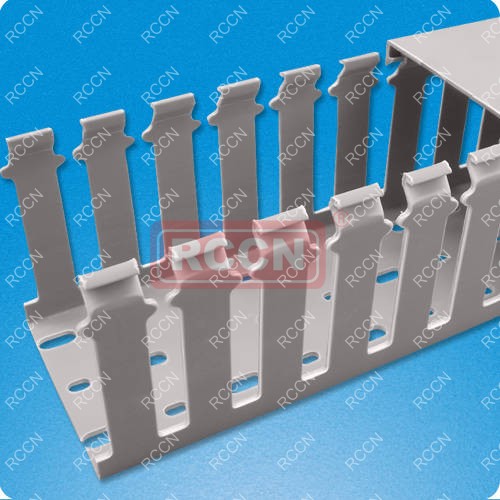

Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°
Comment:gray is standard color,other color come with MOQ

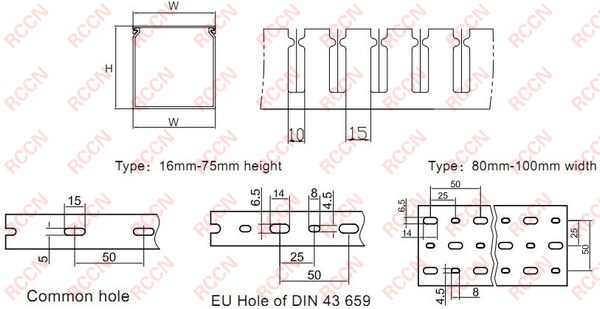

Item No. |
W*H |
Q |
P |
Wire capability/2.0sp |
pack/M |
|||
Gray | White | Blue | Black | |||||
VDR2550L | VDR2550LW | VDR2550LE | VDR2550LB | 20*50 | 10 | 15 | 20-30pcs | 100M |
VDR3050L | VDR3050LW | VDR3050LE | VDR3050LB | 30*50 | 10 | 15 | 25-40pcs | 84M |
VDR3550L | VDR3550LW | VDR3550LE | VDR3550LB | 35*50 | 10 | 15 | 40-60pcs | 80M |
VDR4050L | VDR4050LW | VDR4050LE | VDR4050LB | 40*50 | 10 | 15 | 60-70pcs | 68M |
VDR4550L | VDR4550LW | VDR4550LE | VDR4550LB | 45*50 | 10 | 15 | 70-80pcs | 60M |
VDR5050L | VDR5050LW | VDR5050LE | VDR5050LB | 50*50 | 10 | 15 | 80-90pcs | 50M |
VDR6050L | VDR6050LW | VDR6050LE | VDR6050LB | 60*50 | 10 | 15 | 100-120pcs | 48M |
VDR8050L | VDR8050LW | VDR8050LE | VDR8050LB | 60*50 | 10 | 15 | 100-120pcs | 40M |
VDR10050L | VDR10050LW | VDR10050LE | VDR10050LB | 100*50 | 10 | 15 | 200-250pcs | 26M |
VDR2580L | VDR2580LW | VDR2580LE | VDR2580LB | 25*80 | 10 | 15 | 100-120pcs | 72M |
VDR3080L | VDR3080LW | VDR3080LE | VDR3080LB | 30*80 | 10 | 15 | 110-125pcs | 56M |
VDR3580L | VDR3580LW | VDR3580LE | VDR3580LB | 35*80 | 10 | 15 | 110-130pcs | 56M |
VDR4080L | VDR4080LW | VDR4080LE | VDR4080LB | 40*80 | 10 | 15 | 140-160pcs | 48M |
VDR4580L | VDR4580LW | VDR4580LE | VDR4580LB | 45*80 | 10 | 15 | 140-160pcs | 40M |
VDR5080L | VDR5080LW | VDR5080LE | VDR5080LB | 5*80 | 10 | 15 | 160-180pcs | 40M |
VDR5580L | VDR5580LW | VDR5580LE | VDR5580LB | 55*80 | 10 | 15 | 160-180pcs | 32M |
VDR6080L | VDR6080LW | VDR6080LE | VDR6080LB | 60*80 | 10 | 15 | 180-210pcs | 32M |
VDR8080L | VDR8080LW | VDR8080LE | VDR8080LB | 80*80 | 10 | 15 | 240-290pcs | 24M |
VDR10080L | VDR10080LW | VDR10080LE | VDR10080LB | 100*80 | 10 | 15 | 260-350pcs | 24M |
VDR12080L | VDR12080LW | VDR12080LE | VDR12080LB | 120*80 | 10 | 15 | 280-380pcs | 16M |
VDR14080L | VDR14080LW | VDR14080LE | VDR14080LB | 140*80 | 10 | 15 | 350-450pcs | 16M |

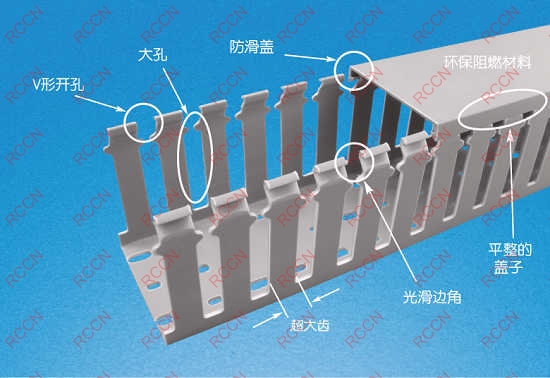

Features | Advantages | Benefits |
Wide slot & wide finger | Finger width 12mm,Slot width 8mm,High rigid fingers | Suitable to big wire or bundles wire |
Enviroment-friendly and flammability resisit material |
Products approved by EU ROHS, compliant with UL,good flammability resisit |
Eliminates health concerns associated with PVC that contains lead Eliminates the need to deburr saving installation time |
Smooth rounded edges | Exclusive RCCN ® process rounds the edges in duct slots and at top of duct fingers |
Protects hands and wiring/cabling from abrasion |
Non-slip cover (co-extruded non-slip liner inside duct covers) |
Non-slip cover (co-extruded non-slip liner inside duct covers) |
Cover stays in place during shipment, vibration and when in a vertical orientation, eliminating rework |
Double scoreline | Upper scoreline at base of finger allows fingers to be broken out without tools Lower scoreline at base of duct allows sidewall sections to be removed |
Allows quick modification for larger cabling bundles saving installation time leading to a lower installed cost Easier to create tee and corner junctions with full wire carrying capacity |
Flush cover design | Greater capacity than traditional duct designs Cover sits flush with sidewall |
Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance |
Smooth edge after punching | Provides a smooth burr-free edge when sidewalls or fingers are broken out |
Eliminates the need to deburr saving installation time |
V-shaped slot lead-in | V-shape funnels wires into slot for easier insertion |
Speeds wire installation |
Double restricted slot design | Once inserted wires are retained in the slot with or without the cover being installed |
Eliminates hassle and saves time during installation and maintenance |
Four different colors are available |
Suitable to different projects request | Can meet customers request in different project conditions in time |
Approved by many nternational tests |
America UL,Canada CULUS, EuropeCE , ROHS,REACH Flamility and low smoking certificate |
Can provide related certificates of the projects or parts need |
