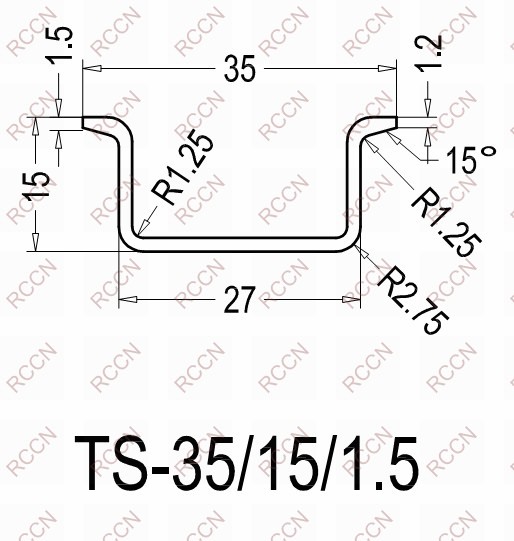

Din Rail TS35/15/1.5-615
Din Rail TS35/15/1.5-615
| Material:high quality and strength cold rolled steel with electroplate EN50022 Product standard: EN50022 Color: yellow plated nickle,silver plated zinc Operated temperature:-40°C standing heat to 100°C Use way: fixed on the panel then installed with electric parts Features: perfect design,with huge pressure,exactly dia., rust resistant Special length or special hole come with MOQ., Rohs approved products are available. |
| Item No. Outer width/Outer height/ Thickness/Length |
Material | Length per pcs |
Packing/ carton |
| Din Rail | |||
| TS-35/7.5 | |||
| TS-35/7.5/1.0/1M-615 | Color zinc steel | 1M | 50M |
| TS-35/7.5/1.0/1M-515 | Color zinc steel | 1M | 50M |
| TS-35/7.5/1.0/1M-525 | Color zinc steel | 1M | 50M |
| TS-35/7.5/1.0/1M/W-615 | ROHS silver zinc plated steel | 1M | 50M |
| TS-35/7.5/1.0/1M/W-515 | ROHS silver zinc plated steel | 1M | 50M |
| TS-35/7.5/1.0/1M/W-525 | ROHS silver zinc plated steel | 1M | 50M |
| TS-35/7.5/1.0/2M-615 | Color zinc steel | 2M | 100M |
| TS-35/7.5/1.0/2M-515 | Color zinc steel | 2M | 100M |
| TS-35/7.5/1.0/2M-525 | Color zinc steel | 2M | 100M |
| TS-35/7.5/1.0/2M/W-615 | ROHS silver zinc plated steel | 2M | 100M |
| TS-35/7.5/1.0/2M/W-515 | ROHS silver zinc plated steel | 2M | 100M |
| TS-35/7.5/1.0/2M/W-525 | ROHS silver zinc plated steel | 2M | 100M |
| TS-35/7.5/1.0/1M-N | Color zinc steel-No bottom | 1M | 50M |
| TS-35/7.5/1.0/1M/W-N | ROHS silver zinc plated steel-No bottom | 1M | 50M |
| TS-35/7.5/1.0/2M–N | Color zinc steel-No bottom | 2M | 100M |
| TS-35/7.5/1.0/2M/W-N | ROHS silver zinc plated steel-No bottom | 2M | 100M |
| TS-35/15 | |||
| TS-35/15/1.5/1M-615 | Color zinc steel | 1M | 30M |
| TS-35/15/1.5/1M/W-615 | ROHS silver zinc plated steel | 1M | 30M |
| TS-35/15/1.5/2M-615 | Color zinc steel | 2M | 60M |
| TS-35/15/1.5/2M/W-615 | ROHS silver zinc plated steel | 2M | 60M |
| TS-35/15/1.5/1M-N | Color zinc steel-No bottom | 1M | 30M |
| TS-35/15/1.5/1M/W-N | ROHS silver zinc plated steel-No bottom | 1M | 30M |
| TS-35/15/1.5/2M-N | Color zinc steel-No bottom | 2M | 60M |
| TS-35/15/1.5/2M/W-N | ROHS silver zinc plated steel-No bottom | 2M | 60M |
| TS-15/5.5 | |||
| TS-15/5.5/1.0/1M-412 | Color zinc steel | 1M | 100M |
| TS-15/5.5/1.0/2M-412 | Color zinc steel | 2M | 200M |
| TS-15/5.5/1.0/1M/W-412 | ROHS silver zinc plated steel | 1M | 100M |
| TS-15/5.5/1.0/2M/W-412 | ROHS silver zinc plated steel | 2M | 200M |
| TS-15/5.5/1.0/1M-N | Color zinc steel-No bottom | 1M | 100M |
| TS-15/5.5/1.0/2M-N | Color zinc steel-No bottom | 2M | 200M |
| TS-15/5.5/1.0/1M/W-N | ROHS silver zinc plated steel-No bottom | 1M | 100M |
| TS-15/5.5/1.0/2M/W-N | ROHS silver zinc plated steel-No bottom | 2M | 200M |
| Aluminum metal | |||
| LSC-35/7.5/1.1 | |||
| LSC-35/7.5/1.1/1M | ROHS Aluminum metal | 1M | 100M |
| LSC-35/7.5/1.1/2M | ROHS Aluminum metal | 2M | 100M |
| LSC-35/7.5/1.1/1M-No bottom | ROHS Aluminum metal | 1M | 100M |
| LSC-35/7.5/1.1/2M-No bottom | ROHS Aluminum metal | 2M | 100M |
| LS-35/7.5/1.5 | |||
| LS-35/7.5/1.5/1M | ROHS Aluminum metal | 1M | 100M |
| LS-35/7.5/1.5/2M | ROHS Aluminum metal | 2M | 100M |
| LS-35/7.5/1.5/1M-N | ROHS Aluminum metal-No bottom | 1M | 100M |
| LS-35/7.5/1.5/2M-N | ROHS Aluminum metal-No bottom | 2M | 100M |
| LS-35/15/1.5 | |||
| LS-35/15/1.5/1M | ROHS Aluminum metal | 1M | 30M |
| LS-35/15/1.5/2M | ROHS Aluminum metal | 2M | 60M |
| LS-35/15/1.5/1M-N | ROHS Aluminum metal-No bottom | 1M | 30M |
| LS-35/15/1.5/2M-N | ROHS Aluminum metal-No bottom | 2M | 60M |
| Item No. Outer width/Outer height/ Thickness/Length |
Material | Length per pcs |
Packing/ carton |
| stainless steel 304 | |||
| TS-35/7.5/1.0/1M/304-615 | stainless steel 304 | 1M | 50M |
| TS-35/7.5/1.0/2M/304-615 | stainless steel 304 | 2M | 100M |
