Din Rail TS35/7.5/1.0-525

Din Rail TS35/7.5/1.0-615



Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022
Color: yellow plated nickle,silver plated zinc
Operated temperature:-40°C standing heat to 100°C
Use way: fixed on the panel then installed with electric parts
Features: perfect design,with huge pressure,exactly dia., rust resistant
Special length or special hole come with MOQ., Rohs approved products are available.
Item No.
Outer width/Outer height/
Thickness/Length		 Material Length
per pcs		 Packing/
carton

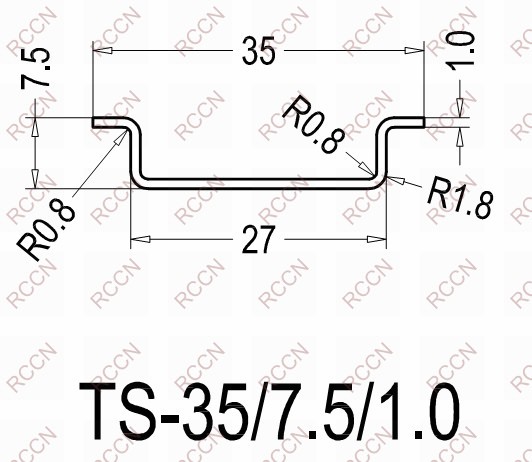

Din Rail
TS-35/7.5

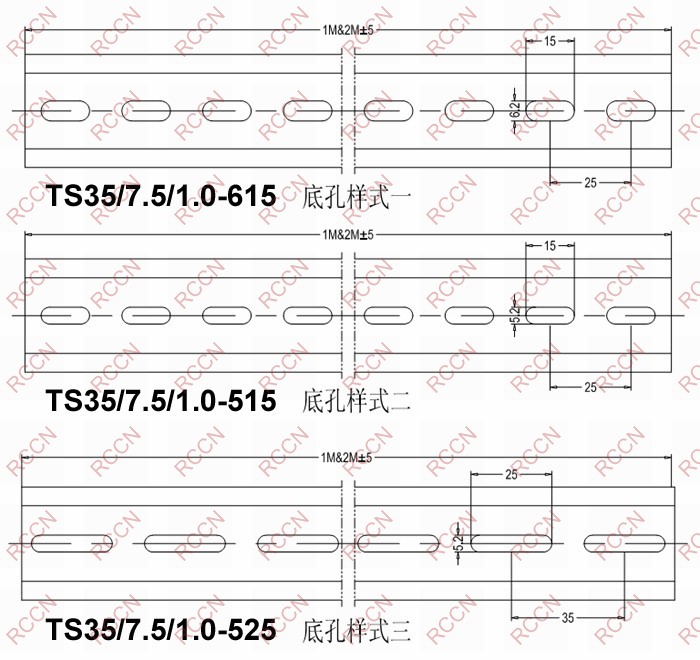

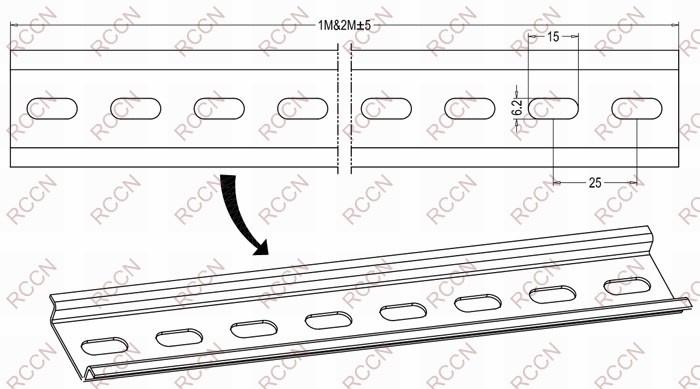

TS-35/7.5/1.0/1M-615 Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-515 Color zinc steel 1M 50M
TS-35/7.5/1.0/1M-525 Color zinc steel 1M 50M
TS-35/7.5/1.0/1M/W-615 ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/1M/W-515 ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/1M/W-525 ROHS silver zinc plated steel 1M 50M
TS-35/7.5/1.0/2M-615 Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-515 Color zinc steel 2M 100M
TS-35/7.5/1.0/2M-525 Color zinc steel 2M 100M
TS-35/7.5/1.0/2M/W-615 ROHS silver zinc plated steel 2M 100M
TS-35/7.5/1.0/2M/W-515 ROHS silver zinc plated steel 2M 100M
TS-35/7.5/1.0/2M/W-525 ROHS silver zinc plated steel 2M 100M
TS-35/7.5/1.0/1M-N Color zinc steel-No bottom 1M 50M
TS-35/7.5/1.0/1M/W-N ROHS silver zinc plated steel-No bottom 1M 50M
TS-35/7.5/1.0/2M–N Color zinc steel-No bottom 2M 100M
TS-35/7.5/1.0/2M/W-N ROHS silver zinc plated steel-No bottom 2M 100M
TS-35/15
TS-35/15/1.5/1M-615 Color zinc steel 1M 30M
TS-35/15/1.5/1M/W-615 ROHS silver zinc plated steel 1M 30M
TS-35/15/1.5/2M-615 Color zinc steel 2M 60M
TS-35/15/1.5/2M/W-615 ROHS silver zinc plated steel 2M 60M
TS-35/15/1.5/1M-N Color zinc steel-No bottom 1M 30M
TS-35/15/1.5/1M/W-N ROHS silver zinc plated steel-No bottom 1M 30M
TS-35/15/1.5/2M-N Color zinc steel-No bottom 2M 60M
TS-35/15/1.5/2M/W-N ROHS silver zinc plated steel-No bottom 2M 60M
TS-15/5.5
TS-15/5.5/1.0/1M-412 Color zinc steel 1M 100M
TS-15/5.5/1.0/2M-412 Color zinc steel 2M 200M
TS-15/5.5/1.0/1M/W-412 ROHS silver zinc plated steel 1M 100M
TS-15/5.5/1.0/2M/W-412 ROHS silver zinc plated steel 2M 200M
TS-15/5.5/1.0/1M-N Color zinc steel-No bottom 1M 100M
TS-15/5.5/1.0/2M-N Color zinc steel-No bottom 2M 200M
TS-15/5.5/1.0/1M/W-N ROHS silver zinc plated steel-No bottom 1M 100M
TS-15/5.5/1.0/2M/W-N ROHS silver zinc plated steel-No bottom 2M 200M
 Aluminum metal
LSC-35/7.5/1.1
LSC-35/7.5/1.1/1M ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M ROHS Aluminum metal 2M 100M
LSC-35/7.5/1.1/1M-No bottom ROHS Aluminum metal 1M 100M
LSC-35/7.5/1.1/2M-No bottom ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5
LS-35/7.5/1.5/1M ROHS Aluminum metal 1M 100M
LS-35/7.5/1.5/2M ROHS Aluminum metal 2M 100M
LS-35/7.5/1.5/1M-N ROHS Aluminum metal-No bottom 1M 100M
LS-35/7.5/1.5/2M-N ROHS Aluminum metal-No bottom 2M 100M
LS-35/15/1.5
LS-35/15/1.5/1M ROHS Aluminum metal 1M 30M
LS-35/15/1.5/2M ROHS Aluminum metal 2M 60M
LS-35/15/1.5/1M-N ROHS Aluminum metal-No bottom 1M 30M
LS-35/15/1.5/2M-N ROHS Aluminum metal-No bottom 2M 60M





Item No.
Outer width/Outer height/
Thickness/Length		 Material Length
per pcs		 Packing/
carton
stainless steel 304
TS-35/7.5/1.0/1M/304-615 stainless steel 304 1M 50M
TS-35/7.5/1.0/2M/304-615 stainless steel 304 2M 100M
