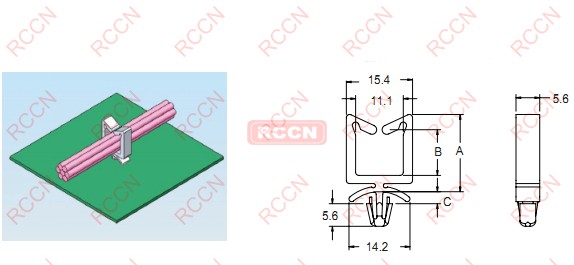

RCCN NWS Narrow Wire Saddle-Arrowhead
Material:UL approved NYLON66(natural),fireproof 94V-2, good insulation,good aging resistant. |
|
|
Packing | |||
|
“B” mm | Hole Dia. | Panel1 Thick. | ||
NWS-A1-13.0
|
13.0 | 8.2 | 4.8 | 1.6 |
|
NWS-A1-18.0 | 18.0 | ||||
NWS-A1-26.9 | 26.9 | ||||
NWS-A1-34.8 | 34.8 | ||||
NWS-A2-13.0 | 13.0 | 9.8 | 3.2 | ||
NWS-A2-18.0 | 18.0 | ||||
NWS-A2-26.9 | 26.9 | ||||
NWS-A2-34.8 | 34.8 |
