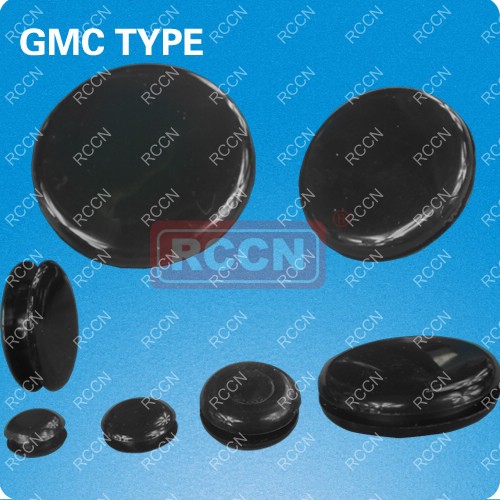

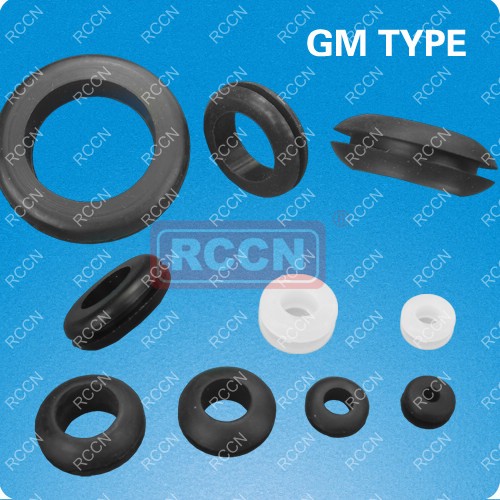

RCCN GM/GMC Grommet(Open/Closed)
Material:Rohs approved silicon rubber(soft),black,transparent can be produced,part no. is:GM-1006W |
Item No. | A | B | C | D | E | Packing | |
OPEN | CLOSED | ||||||
GM-0603 | GMC-0603 | 8.5 | 6.0 | 3.0 | 4.7 | 1.7 | 100pcs |
GM-0705 | GMC-0705 | 10.2 | 7.2 | 5.0 | 4.4 | 1.7 | |
GM-1006 | GMC-1006 | 13.3 | 10.0 | 6.4 | 6.3 | 1.7 | |
GM-1108 | GMC-1108 | 15.5 | 11.0 | 8.0 | 9.0 | 3.0 | |
GM-1410 | GMC-1410 | 19.5 | 13.9 | 10.5 | 6.4 | 3.4 | |
GM-2015 | GMC-2015 | 23.7 | 20.1 | 15.5 | 6.1 | 1.7 | |
GM-2518 | GMC-2518 | 29.9 | 25.1 | 18.9 | 7.2 | 1.5 | |
GM-3225 | GMC-3225 | 38.1 | 31.7 | 25.0 | 7.8 | 1.5 |
Tags: Grommet, rubber grommet
