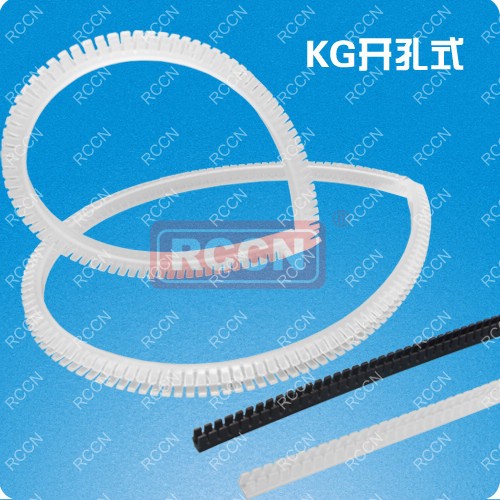

RCCN KG Movable Bushings



Material:soft PE,tooth struction
Note:    means come with MOQ *

Item No.

Slot dia.
T
(mm)

Max. Chassis
Thickness(mm)

 Packing
Transparency Black
KG-008 KG-008B 0.8 0.7-0.8
每包10M

KG-010 KG-010B 1.0 0.8-1.0
KG-012 KG-012B 1.2 1.0-1.2
KG-016 KG-016B 1.6 1.0-1.6
KG-020 KG-020B 2.0 1.6-2.0
KG-024 KG-024B 2.4 2.0-2.4
KG-032 KG-032B 3.2 2.4-3.2
KG-045 KG-045B 4.5 3.2-4.5
KG-060 KG-060B 6.0 5.6-6.0
KG-080 KG-080B 8.0 7.7-8.0
KGS-008 KGS-008B 0.8 0.7-0.8
KGS-010 KGS-010B 1.0 0.8-1.0
KGS-012 KGS-012B 1.2 1.0-1.2
KGS-016 KGS-016B 1.6 1.0-1.6
KGS-020 KGS-020B 2.0 1.6-2.0
KGS-024 KGS-024B 2.0 1.6-2.0
KGS-032 KGS-032B 3.2 2.4-3.2
KGS-045 KGS-045B 4.5 3.2-4.5
KGS-060 KGS-060B 6.0 5.6-6.0
KGS-080 KGS-080B 8.0 7.7-8.0
