RCCN LSP4 Locking Circuit Board Support
Material:UL approved NYLON66(natural),fireproof 94V-2,good insulation,good aging resistant |
|
|
|
|

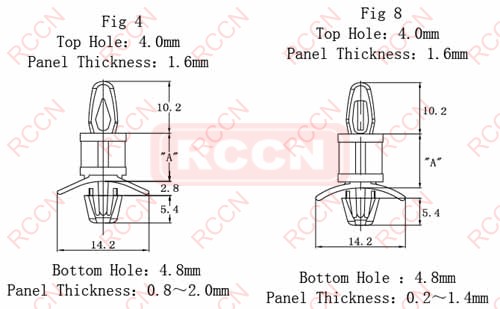

Fig1 | Fig2 | “A”±0.4mm |
|
– | LSP8-4.8 | 4.8 | |
LSP4-6.4 | – | 6.4 | |
LSP4-9.5 |
–
|
9.5 | |
– | LSP8-11.1 | 11.1 | |
LSP4-12.7 |
LSP8-12.7
|
12.7 |
