RCCN MSPDLN PC Support Post
Material:UL approved NYLON66(natural), fireproof 94V-2,good insulation,good aging resistant |
|
|
|
|

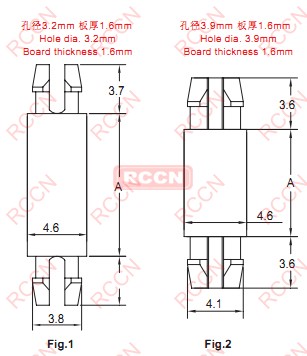

Fig1 | Fig2 | “A”±0.4mm |
|
MSPDLN-3.2 | MSPDL-3.2 | 3.2 | |
MSPDLN-4.8 | MSPDL-4.8 | 4.8 | |
MSPDLN-6.4 | MSPDL-6.4 | 6.4 | |
MSPDLN-7.9 | MSPDL-7.9 | 7.9 | |
MSPDLN-9.5 | MSPDL-9.5 | 9.5 | |
MSPDLN-11.1 | MSPDL-11.1 | 11.1 | |
MSPDLN-12.7 | MSPDL-12.7 | 12.7 | |
MSPDLN-14.3 | MSPDL-14.3 | 14.3 | |
MSPDLN-15.9 | MSPDL-15.9 | 15.9 | |
MSPDLN-17.5 | MSPDL-17.5 | 17.5 | |
MSPDLN-19.1 | MSPDL-19.1 | 19.1 | |
MSPDLN-20.6 | MSPDL-20.6 | 20.6 | |
MSPDLN-22.2 | MSPDL-22.2 | 22.2 | |
MSPDLN-25.4 | MSPDL-25.4 | 25.4 | |
MSPDLN-28.6 |
MSPDL-28.6
|
28.6 | |
MSPDLN-31.7 | MSPDL-31.7 | 31.7 | |
MSPDLN-34.9 | MSPDL-34.9 | 34.9 | |
MSPDLN-38.1 | MSPDL-38.1 | 38.1 |
