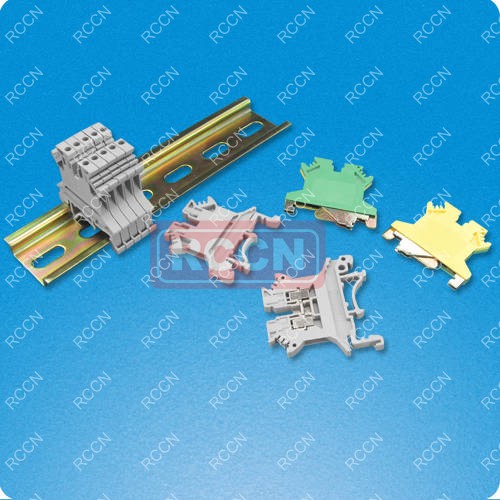

RCCN Feed-Through Terminals
Material:nylon 66, fireproof 94V-0, fitting din rail:35/7.5&35/15/&32/15 Note: JD earth connecting terminals,yellow-green. Using:connecting of wires in electric equipment Fitting din rail:35/7.5&35/15 Fitting to UK series terminals |
Item No.
|
Suitable
Wireway mm2 |
Current A
Voltage V |
Suitable
terminals |
Inside
screw |
Packing |
JWD1-1.5 | 0.2-1.5 | 17.5/500 | 0.5-0.75 | M2 | 50 |
JWD1-2.5 | 0.2-2.5 | 32/800 | 0.5-1.5 | M3 | 50 |
JWD1-2.5B | 0.25-2.5 | 32/690 | 0.5-1.5 | M3 | 50 |
JWD1-4 | 0.2-4 | 41/800 | 0.5-2.5 | M3 | 50 |
JWD1-6 | 0.2-6 | 57/800 | 0.5-6 | M4 | 50 |
JWD1-10 | 0.5-10 | 76/800 | 0.5-10 | M4 | 25 |
JWD1-16 | 4-16 | 101/800 | 1.5-16 | M4 | 25 |
JWD1-16B | 4-16 | 101/400 | 1.5-16 | M4 | 25 |
JWD1-35 | 0.75-35 | 150/1000 | 2.5-35 | M6 | 25 |
JWD1-35B | 0.75-35 | 125/800 | 2.5-35 | M6 | 25 |
JWD1-50 | 20-50 | 150/1000 | 25-50 | M6 | 10 |
JWD1-95 | 35-95 | 232/1000 | 35-95 | M8 | 10 |
JWD1-150 | 50-150 | 309/1000 | 50-150 | M10 | 10 |
JWD1-240 | 70-240 | 415/1000 | 70-185 | M10 | 10 |
JWD1-1.5JD | 0.2-1.5 | - | 0.5-0.75 | M2 | 50 |
JWD1-2.5JD | 0.2-2.5 | - | 0.5-1.5 | M3 | 50 |
JWD1-2.5BJD | 0.2-2.5 | - | 0.5-1.5 | M3 | 50 |
JWD1-4JD | 0.2-4 | - | 0.5-2.5 | M3 | 50 |
JWD1-6JD | 0.2-6 | - | 0.5-6 | M4 | 50 |
JWD1-10JD | 0.5-10 | - | 0.5-10 | M4 | 25 |
JWD1-16JD | 4-16 | - | 1.5-16 | M4 | 25 |
JWD1-16BJD | 4-16 | - | 1.5-16 | M4 | 25 |
JWD1-35JD | 6-35 | - | 2.5-35 | M6 | 25 |
JWD1-35BJD | 6-35 | - | 2.5-35 | M6 | 25 |
JWD1-50JD | 25-50 | - | 25-50 | M6 | 10 |
JWD1-95JD | 35-90 | - | 35-95 | M8 | 10 |
Fitting part no | Note | Suitable item no. or
description of the terminals |
Pack. |
JWD1-B1 |
Marking terminals |
Thickness:10mm,
Length and width37*7.5 |
50 |
JWD1-B2 |
Marking terminals |
Thickness:20mm,
Length and width40*17 |
50 |
JWD1-B3 |
Marking clamping |
suitable to ZG1 terminals
length and width44*7 |
50 |
ZPX/10 |
Marking bar |
X=4,5,6,8,10,Fitting
terminals’ thickness |
50 |
ZG1 |
Terminal fixing |
suitable to ZG1 terminals
length and width44*7 |
50 |
JWD1-B3 |
Marking clamping |
suitable to ZG1 terminals
length and width44*7 |
50 |
JWD1-B3 |
Marking clamping |
Suitable to terminal fixing | 50 |
JWD1-XJS |
Terminal fixing |
Using for caution 。
X is for terminal ’s part no. |
50 |
CZ/3 |
Testing socket |
Using for caution 。
X is for terminal ’s part no. |
50 |
CZ/4 |
Testing socket |
Use toJWD1-2.5,4 5 | 50 |
CZ/6 |
Testing socket |
Use toJWD1-6,10,16 5 | 50 |
2.3/4 ST |
Transferring test caput |
Suitable to ¢4 testing
socket, transferred in 2.3 |
50 |
DTX/2 | Short socket | X=5.2,6.2,8.2,10.2thicker terminals 5 | 50 |
2.3-ST-Color |
Testing socket |
2.3 thickness,white red blue yellow green purple gray black 8 colors |
50 |
4-ST-Color |
Testing socket |
4 thickness white red blue yellow green purple gray black 8 colors |
50 |
RCCN Din Rails
Material:high quality and strength cold rolled steel with electroplate
EN50022 Product standard: EN50022 Color: yellow plated nickle,silver plated zinc Operated temperature:-40°C standing heat to 100°C Use way: fixed on the panel then installed with electric parts Features: perfect design,with huge pressure,exactly dia., rust resistant Special length or special hole come with MOQ., Rohs approved products are available. TS-35/7.5/1/1M/R Environment-friendly goods’ part no.:TS-35/7.5/1/1M/ROHS |
Item No.
Outer width/Outer height/ Thickness/Length |
Material | Length
per pcs |
Packing/
carton |
TS-35/7.5 Series | |||
TS-35/7.5/1.0/1M | Color zinc steel | 1M | 50M |
TS-35/7.5/1.0/1M-ROHS | ROHS silver zinc plated steel | 1M | 50M |
TS-35/7.5/1.0/2M | Color zinc steel | 2M | 100M |
TS-35/7.5/1.0/2M-ROHS | ROHS silver zinc plated steel | 2M | 100M |
TS-35/15 Series | |||
TS-35/15/1.5/1M | Color zinc steel | 1M | 30M |
TS-35/15/1.5/1M-ROHS | ROHS silver zinc plated steel | 1M | 30M |
TS-35/15/1.5/2M | Color zinc steel | 2M | 60M |
TS-35/15/1.5/2M-ROHS | ROHS silver zinc plated steel | 2M | 60M |
LSC-35/7.5/1.1 Series | |||
LSC-35/7.5/1.1/1M | ROHS Aluminum metal | 1M | 100M |
LSC-35/7.5/1.1/2M | ROHS Aluminum metal | 2M | 100M |
LSC-35/7.5/1.1/1M-No bottom | ROHS Aluminum metal | 1M | 100M |
LSC-35/7.5/1.1/2M-No bottom | ROHS Aluminum metal | 2M | 100M |
LS-35/7.5/1.5 Series | |||
LS-35/7.5/1.5/1M | ROHS Aluminum metal | 1M | 100M |
LS-35/7.5/1.5/2M | ROHS Aluminum metal | 2M | 100M |
LS-35/7.5/1.5/1M-No bottom | ROHS Aluminum metal | 1M | 100M |
LS-35/7.5/1.5/2M-No bottom | ROHS Aluminum metal | 2M | 100M |
