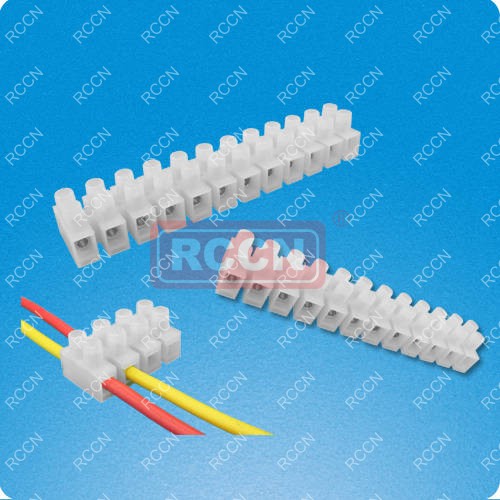

RCCN PA Terminal Blocks



Material: UL approved NYLON66(natural)，fireproof 94V-2，nickel coated copper bottom，zinc coated steel screw
Operate T:-30℃ to 110℃。
Use: Used in electric equipement、lights and so on
AWG&mm2
(square data)
refered sheet		 AWG 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32
mm2 33.4 20.8 13.2 8.4 5.3 3.3 2.1 1.3 0.83 0.52 0.33 0.21 0.13 0.08 0.05 0.03
Item No. Dimension Cable
range
mm2		 Max.
current
A		 Suitable
volage
V		 Screw Spl it
cable
length		 Packing

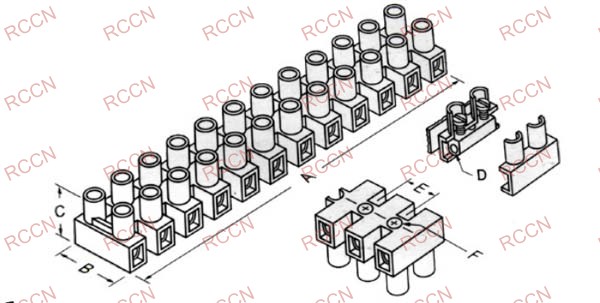

A B C D E F
Flat type 50PCS
PA-1.5 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
Flat type with fleixble
PA-1.5DS 96.2 16.3 12.7 2.8 8.2 2.9 1.5 17.5A 450V M2.6*5 5
PA-2.5DS 116.5 20.2 15.8 3.2 10 3.6 2.5 24A 450V M3*6 6.5
