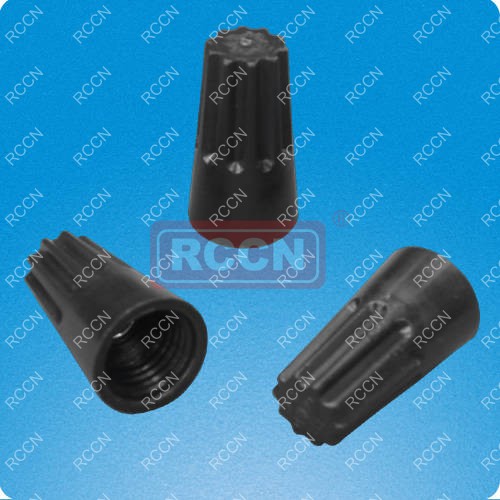

RCCN SWHB Heat Resistant Wire Connector
Material:high temperature resistant plastic,with spring inside ,temperature withstand up to 150°C,UL94V-0 fireproof. |
AWG&mm2 (square data) refered sheet |
AWG | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 |
mm2 | 33.4 | 20.8 | 13.2 | 8.4 | 5.3 | 3.3 | 2.1 | 1.3 | 0.83 | 0.52 | 0.33 | 0.21 | 0.13 | 0.08 | 0.05 | 0.03 |

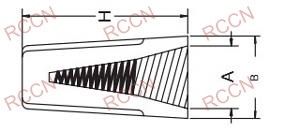

Item No. | A | B | H | SuitableWires | Color | Packing | ||
SW-71HB | 6.7 | 8.6 | 14.8 | MIN#24X1+#22X1MAX#16X2 | Black | 1000ppcs | ||
SW-73HB | 9.9 | 12 | 22.0 | MIN#20X3MAX#16X3+#18X1 | Black |
