Brass Cable Gland
 |

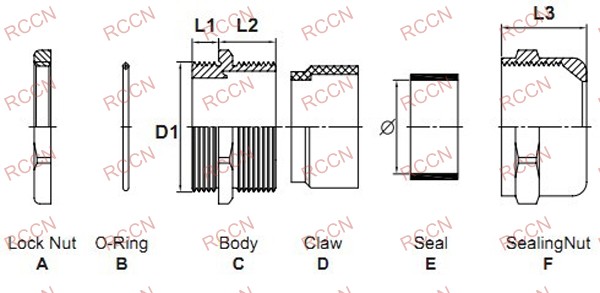

| Thread:Metric Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR Certificates:CE,EX Operate temperature:-50°C to 250°C Protection:IP68。 Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease |
|
Thread |
Item No |
Thread |
CableRange Φ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg Pcs |
|
Standard
|
A-M12*1.5 | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
| A-M16*1.5 | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | ||
| A-M18*1.5 | M18*1.5 | 5-10 | 18 | 18-18.3 | 7 | 22 | 20 | ||
| A-M20*1.5 | M20*1.5 | 6-12 | 20 | 20-20.3 | 8 | 23 | 22 | ||
| A-M25*1.5 | M25*1.5 | 10-14 | 25 | 25-25.4 | 8 | 23 | 27 | ||
| A-M32*1.5 | M32*1.5 | 13-18 | 32 | 32-32.4 | 9 | 32 | 34 | 10PCS | |
| A-M40*1.5 | M40*1.5 | 18-25 | 40 | 40-40.4 | 9 | 32 | 45 | ||
| A-M50*1.5 | M50*1.5 | 22-32 | 50 | 50-50.4 | 9 | 38 | 56 | ||
| A-M63*1.5 | M63*1.5 | 34-44 | 63 | 63-63.4 | 14 | 38 | 70 | ||
|
Length |
A-M12*1.5L | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 12 | 19 | 16 | 100PCS |
| A-M16*1.5L | M16*1.5 | 4-8 | 16 | 16-16.3 | 12 | 20 | 18 | ||
| A-M18*1.5L | M18*1.5 | 5-10 | 18 | 18-18.3 | 12 | 22 | 20 | ||
| A-M20*1.5L | M20*1.5 | 6-12 | 20 | 20-20.3 | 12 | 23 | 22 | ||
| A-M25*1.5L | M25*1.5 | 10-14 | 25 | 25-25.4 | 12 | 23 | 27 | ||
| A-M32*1.5L | M32*1.5 | 13-18 | 32 | 32-32.4 | 15 | 32 | 34 | 10PCS | |
| A-M40*1.5L | M40*1.5 | 18-25 | 40 | 40-40.4 | 15 | 32 | 45 | ||
| A-M50*1.5L | M50*1.5 | 22-32 | 50 | 50-50.4 | 15 | 38 | 56 | ||
| A-M63*1.5L | M63*1.5 | 34-44 | 63 | 63-63.4 | 18 | 38 | 70 |
|
Thread |
Item No |
Thread |
CableRange Φ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Spanner size A&F |
Std.Pkg Pcs |
|
Standard |
A-M12*1.5(3-6.5) | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 7 | 14 | 100PCS |
| A-M14*1.5(3-6.5) | M14*1.5 | 3-6.5 | 14 | 14-14.3 | 7 | 14 | ||
| A-M14*1.5(4-8) | M14*1.5 | 4-8 | 14 | 14-14.3 | 7 | 17 | ||
| A-M16*1.5(4-8) | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 17 | ||
| A-M16*1.5(5-10) | M16*1.5 | 5-10 | 16 | 16-16.3 | 8 | 20 | ||
| A-M18*1.5(6-12) | M18*1.5 | 6-12 | 18 | 18-18.3 | 8 | 20 | ||
| A-M20*1.5(6-12) | M20*1.5 | 6-12 | 20 | 20-20.3 | 8 | 22 | ||
| A-M22*1.5(10-14) | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 24 | ||
| A-M24*1.5(10-14) | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 27 | ||
| A-M25*1.5(10-14) | M25*1.5 | 10-14 | 25 | 25-25.4 | 11 | 27 | 50PCS | |
| A-M25*1.5(13-18) | M25*1.5 | 13-18 | 25 | 25-25.4 | 11 | 30 | ||
| A-M27*2.0(13-18) | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 30 | ||
| A-M30*2.0(13-18) | M30*2.0 | 13-18 | 30 | 30-30.4 | 11 | 32 | ||
| A-M32*1.5(13-18) | M32*1.5 | 13-18 | 32 | 32-32.4 | 11 | 34 | ||
| A-M32*1.5(15-25) | M32*1.5 | 15-25 | 32 | 32-32.4 | 11 | 40 | ||
| A-M33*2.0(15-25) | M33*2.0 | 15-25 | 33 | 33-3.4 | 11 | 40 | ||
| A-M36*2.0(15-25) | M36*2.0 | 15-25 | 36 | 36-36.4 | 11 | 42 | ||
| A-M40*1.5(15-25) | M40*1.5 | 15-25 | 40 | 40-40.4 | 12 | 43 | 10PCS | |
| A-M40*1.5(22-32) | M40*1.5 | 22-32 | 40 | 40-40.4 | 12 | 50 | ||
| A-M42*2.0(22-32) | M42*2.0 | 22-32 | 42 | 42-42.4 | 12 | 50 | ||
| A-M48*2.0(22-32) | M48*2.0 | 22-32 | 48 | 48-48.4 | 13 | 50 | ||
| A-M50*1.5(22-32) | M50*1.5 | 22-32 | 50 | 50-50.4 | 13 | 55 | 5PCS | |
| A-M50*1.5(30-38) | M50*1.5 | 30-38 | 50 | 50-50.4 | 13 | 57 | ||
| A-M54*2.0(30-38) | M54*2.0 | 30-38 | 54 | 54-54.4 | 14 | 60 | ||
| A-M56*2.0(30-38) | M56*2.0 | 30-38 | 56 | 56-56.4 | 14 | 60 | ||
| A-M60*2.0(34-44) | M60*2.0 | 34-44 | 60 | 60-60.4 | 14 | 64 | ||
| A-M63*1.5(34-44) | M63*1.5 | 34-44 | 63 | 63-63.4 | 14 | 68 | ||
| A-M64*2.0(34-44) | M64*2.0 | 34-44 | 64 | 64-64.4 | 14 | 68 | ||
|
Length |
A-M12*1.5L(3-6.5) | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 12 | 14 | 100PCS |
| A-M14*1.5L(3-6.5) | M14*1.5 | 3-6.5 | 14 | 14-14.3 | 12 | 14 | ||
| A-M14*1.5L(4-8) | M14*1.5 | 4-8 | 14 | 14-14.3 | 12 | 17 | ||
| A-M16*1.5L(4-8) | M16*1.5 | 4-8 | 16 | 16-16.3 | 12 | 17 | ||
| A-M16*1.5L(5-10) | M16*1.5 | 5-10 | 16 | 16-16.3 | 12 | 20 | ||
| A-M18*1.5L(6-12) | M18*1.5 | 6-12 | 18 | 18-18.3 | 12 | 20 | ||
| A-M20*1.5L(6-12) | M20*1.5 | 6-12 | 20 | 20-20.3 | 12 | 22 | ||
| A-M22*1.5L(10-14) | M22*1.5 | 10-14 | 22 | 22-22.3 | 12 | 24 | ||
| A-M24*1.5L(10-14) | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 27 | ||
| A-M25*1.5L(10-14) | M25*1.5 | 10-14 | 25 | 25-25.4 | 15 | 27 | 50PCS | |
| A-M25*1.5L(13-18) | M25*1.5 | 13-18 | 25 | 25-25.4 | 15 | 30 | ||
| A-M27*2.0L(13-18) | M27*2.0 | 13-18 | 27 | 27-27.4 | 15 | 30 | ||
| A-M30*2.0L(13-18) | M30*2.0 | 13-18 | 30 | 30-30.4 | 15 | 32 | ||
| A-M32*1.5L(13-18) | M32*1.5 | 13-18 | 32 | 32-32.4 | 15 | 34 | ||
| A-M32*1.5L(18-25) | M32*1.5 | 18-25 | 32 | 32-32.4 | 15 | 40 | ||
| A-M33*2.0L(18-25) | M33*2.0 | 18-25 | 33 | 33-3.4 | 15 | 40 | ||
| A-M36*2.0L(18-25) | M36*2.0 | 18-25 | 36 | 36-36.4 | 15 | 42 | ||
| A-M40*1.5L(18-25) | M40*1.5 | 18-25 | 40 | 40-40.4 | 15 | 43 | 10PCS | |
| A-M40*1.5L(22-32) | M40*1.5 | 22-32 | 40 | 40-40.4 | 15 | 50 | ||
| A-M42*2.0L(22-32) | M42*2.0 | 22-32 | 42 | 42-42.4 | 15 | 50 | ||
| A-M48*2.0L(22-32) | M48*2.0 | 22-32 | 48 | 48-48.4 | 15 | 50 | ||
| A-M50*1.5L(22-32) | M50*1.5 | 22-32 | 50 | 50-50.4 | 15 | 55 | 5PCS | |
| A-M50*1.5L(30-38) | M50*1.5 | 30-38 | 50 | 50-50.4 | 15 | 57 | ||
| A-M54*2.0L(30-38) | M54*2.0 | 30-38 | 54 | 54-54.4 | 18 | 60 | ||
| A-M56*2.0L(30-38) | M56*2.0 | 30-38 | 56 | 56-56.4 | 18 | 60 | ||
| A-M60*2.0L(34-44) | M60*2.0 | 34-44 | 60 | 60-60.4 | 18 | 64 | ||
| A-M63*1.5L(34-44) | M63*1.5 | 34-44 | 63 | 63-63.4 | 18 | 68 | ||
| A-M64*2.0L(34-44) | M64*2.0 | 34-44 | 64 | 64-64.4 | 18 | 68 |
