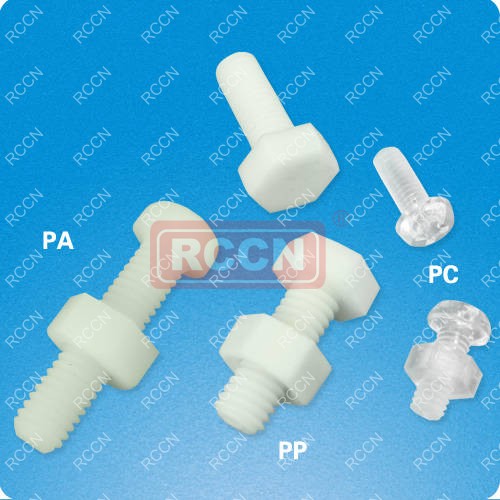

RCCN PF Plastic Fasteners
Material:NYLON66 UL approved, fireproof 94V-2 Good quality,easy to install,good insulation Usage:PC board,panel and to fix others. Characteristics:light,insulated Remarks:PF-306PC is made of PC,transparent PF-520N is PA66,natural PF-620PP is PP,wilk white M2-M5 is cross,round head SCREW AND NUT SELL SEPARATEDLY |
|
Thread | A mm |
B mm |
C mm |
|
|
NYLON | PC | |||||
PF-208N | - | M2*0.45 | 8 | 2.0 | 8.0 | 1000PCS |
PF-210N | - | M2*0.45 | 10 | 2.0 | 10 | |
PF-306N | PF-306PC | M3*0.5 | 6 | 2.5 | 6.0 | |
PF-308N | PF-308PC | M3*0.5 | 8 | 2.5 | 6.0 | |
PF-310N | PF-310PC | M3*0.5 | 10 | 2.5 | 6.0 | |
PF-312N | PF-312PC | M3*0.5 | 12 | 2.5 | 6.0 | |
PF-316N | - | M3*0.5 | 16 | 2.5 | 6.0 | |
PF-320N | - | M3*0.5 | 20 | 2.5 | 6.0 | |
PF-325N | - | M3*0.5 | 25 | 2.5 | 6.0 | |
PF-408N | PF-408PC | M4*0.7 | 8 | 2.6 | 7.5 | |
PF-410N | PF-410PC | M4*0.7 | 10 | 2.6 | 7.5 | |
PF-412N | PF-412PC | M4*0.7 | 12 | 2.6 | 7.5 | |
PF-414N | - | M4*0.7 | 14 | 2.6 | 7.5 | |
PF-420N | PF-420PC | M4*0.7 | 20 | 2.6 | 7.5 | |
PF-425N | PF-425PC | M4*0.7 | 25 | 2.6 | 7.5 | |
PF-506N | PF-506PC | M5*0.8 | 6 | 3.5 | 9.0 | 100PCS |
PF-510N | PF-510PC | M5*0.8 | 10 | 3.5 | 9.0 | |
PF-520N | PF-520PC | M5*0.8 | 20 | 3.5 | 9.0 | |
PF-525N | - | M5*0.8 | 25 | 3.5 | 9.0 | |
PF-530N | PF-530PC | M5*0.8 | 30 | 3.5 | 9.0 | |
PF-610N | PF-610PC | M6*1.0 | 10 | 4.0 | 10 | |
PF-620N | PF-620PC | M6*1.0 | 20 | 4.0 | 10 | |
PF-625N | PF-625PC | M6*1.0 | 25 | 4.0 | 10 | |
PF-630N | PF-630PC | M6*1.0 | 30 | 4.0 | 10 | |
PF-640N | PF-640PC | M6*1.0 | 40 | 4.0 | 10 | |
PF-645N | PF-645PC | M6*1.0 | 45 | 4.0 | 10 |
|
Thread | A mm |
B mm |
C mm |
|
|
NYLON | PP | |||||
PF-810N | PF-810PP | M8*1.25 | 10 | 14 | 10 | 100PCS |
PF-820N | PF-820PP | M8*1.25 | 20 | 14 | 10 | |
PF-825N | PF-825PP | M8*1.25 | 25 | 14 | 10 | |
PF-830N | PF-830PP | M8*1.25 | 30 | 14 | 10 | |
PF-840N | PF-840PP | M8*1.25 | 40 | 14 | 10 | |
PF-850N | PF-850PP | M8*1.25 | 50 | 14 | 10 | |
PF-8100N | PF-8100PP | M8*1.25 | 100 | 14 | 10 | |
PF-1010N | PF-1010PP | M10*1.5 | 10 | 8 | 19 | |
PF-1020N | PF-1020PP | M10*1.5 | 20 | 8 | 19 | |
PF-1030N | PF-1030PP | M10*1.5 | 30 | 8 | 19 | |
PF-1040N | PF-1040PP | M10*1.5 | 40 | 8 | 19 | |
PF-1050N | PF-1050PP | M10*1.5 | 50 | 8 | 19 | |
PF-1240N | PF-1240PP | M12*1.75 | 40 | 8 | 21 | |
PF-1250N | PF-1250PP | M12*1.75 | 50 | 8 | 21 | |
PF-1640N | PF-1640PP | M16*2.0 | 40 | 10 | 27 | |
PF-1650N | PF-1650PP | M16*2.0 | 50 | 10 | 27 | |
PF-1660N | PF-1660PP | M16*2.0 | 60 | 10 | 27 | |
PF-1670N | PF-1670PP | M16*2.0 | 70 | 10 | 27 | |
PF-1685N | PF-1685PP | M16*2.0 | 85 | 10 | 27 | |
PF-2040N | PF-2040PP | M20*2.0 | 40 | 12 | 33 | 每包 10PCS |
PF-2060N | PF-2060PP | M20*2.0 | 60 | 12 | 33 | |
PF-2080N | PF-2080PP | M20*2.0 | 80 | 12 | 33 | |
PF-20100N | PF-20100PP | M20*2.0 | 100 | 12 | 33 | |
PF-20130N | PF-20130PP | M20*2.0 | 130 | 12 | 33 |
