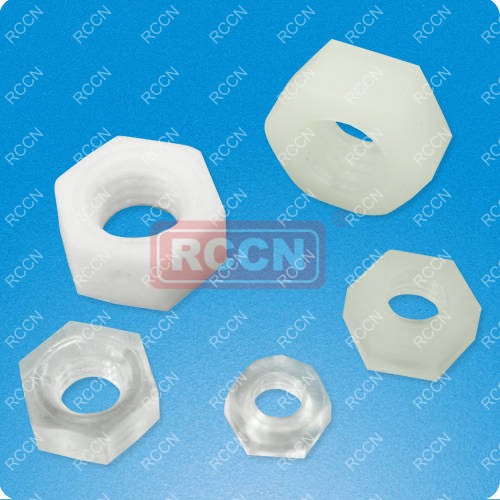

RCCN PN Plastic Nut
  |
| Material:PC(natural),PA66(natural),PP(white),fireproof 94V-2 Usage:PC board,panel and to fix others. Characteristics:light，insulated. Marks:PN-3C is made of PC,PN-5N are made of NYLON66,PN-6PP is PP |
| Item No. | A THREAD |
D mm |
B mm |
C mm |
Packing | |
| NYLON | PC或PP | |||||
| PN-2N | PN-2PC | M2×0.25 | 3.0 | 1.6 | 4.0 | 1000PCS |
| PN-3N | PN-3PC | M3×0.5 | 6.4 | 2.4 | 5.6 | |
| PN-4N | PN-4PC | M4×0.7 | 8.1 | 3.2 | 7.0 | |
| PN-5N | PN-5PC | M5×0.8 | 9.2 | 4.0 | 8.0 | |
| PN-6N | PN-6PP | M6×1.0 | 11.5 | 5.0 | 10.0 | 500PCS |
| PN-8N | PN-8PP | M8×1.25 | 14.5 | 6.4 | 12.8 | |
| PN-10N | PN-10PP | M10×1.5 | 19.2 | 8.0 | 16.7 | |
| PN-12N | PN-12PP | M12×1.75 | 11 | 19 | 22 | |
| PN-16N | PN-16PP | M16×2.0 | 12 | 24 | 27 | |
| PN-18N | PN-18PP | M18×2.0 | 13 | 26 | 29 | |
| PN-20N | PN-20PP | M20×2.0 | 14.1 | 29 | 39 | |
