RCCN KWSN Locking wires addle
  |
| Material：UL approved NYLON66(natural)，fireproof 94V-2，good insulation, good aging resistant |
This is old design, for new design,
Please check NWS series/page B94
|
|

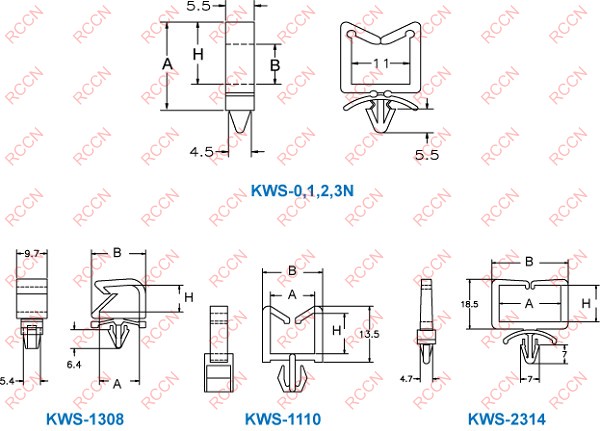

Dimension |
|
|||||
| H | A | B | W | 开孔 | 板厚 | ||
| KWS-0N | 9.2 | 12.7 | 4.0 | 11.0 | 4.8 | 2.0 |
(1000pcs) |
| KWS-1N | 11.4 | 17.9 | 8.6 | 11.0 | 4.8 | 2.0 | |
| KWS-2N | 23.4 | 26.9 | 18.2 | 11.0 | 4.8 | 2.0 | |
| KWS-3N | 31.3 | 34.8 | 26.2 | 11.0 | 4.8 | 2.0 | |
| KWS-1114 | 17.8 | 21.2 | 13.7 | 10.7 | 4.8 | 2.4 | |
