RCCN PS-TD PC Mini Push Spacer

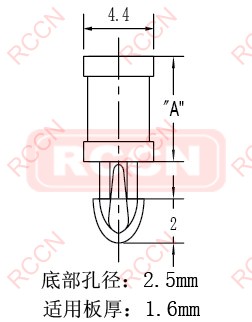

Bottom hole dia.2.5mm
Suitable board thickness 1.6mm

Material quality: on the PC board isolation column type -PS-TD approved NYLON66 (color ), fire rating of 94V-2, not easy to aging, high degree of insulation.

Method of use : tool, hand easy loading and unloading. When using the substrate after drilling, the column is fixed, then P.C. plate set into can.

Uses: used P.C. plate fixation.



Item No.

Instance

Packing
“A”±0.4mm
PS-TD-3.2 3.2
1000pcs
PS-TD-4.8 4.8
PS-TD-6.4 6.4
PS-TD-7.9 7.9
PS-TD-9.5 9.5
PS-TD-11.1 11.1
PS-TD-14.3 14.3
